VJA300L-GNUVZW (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999
Engine V35AFTS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )

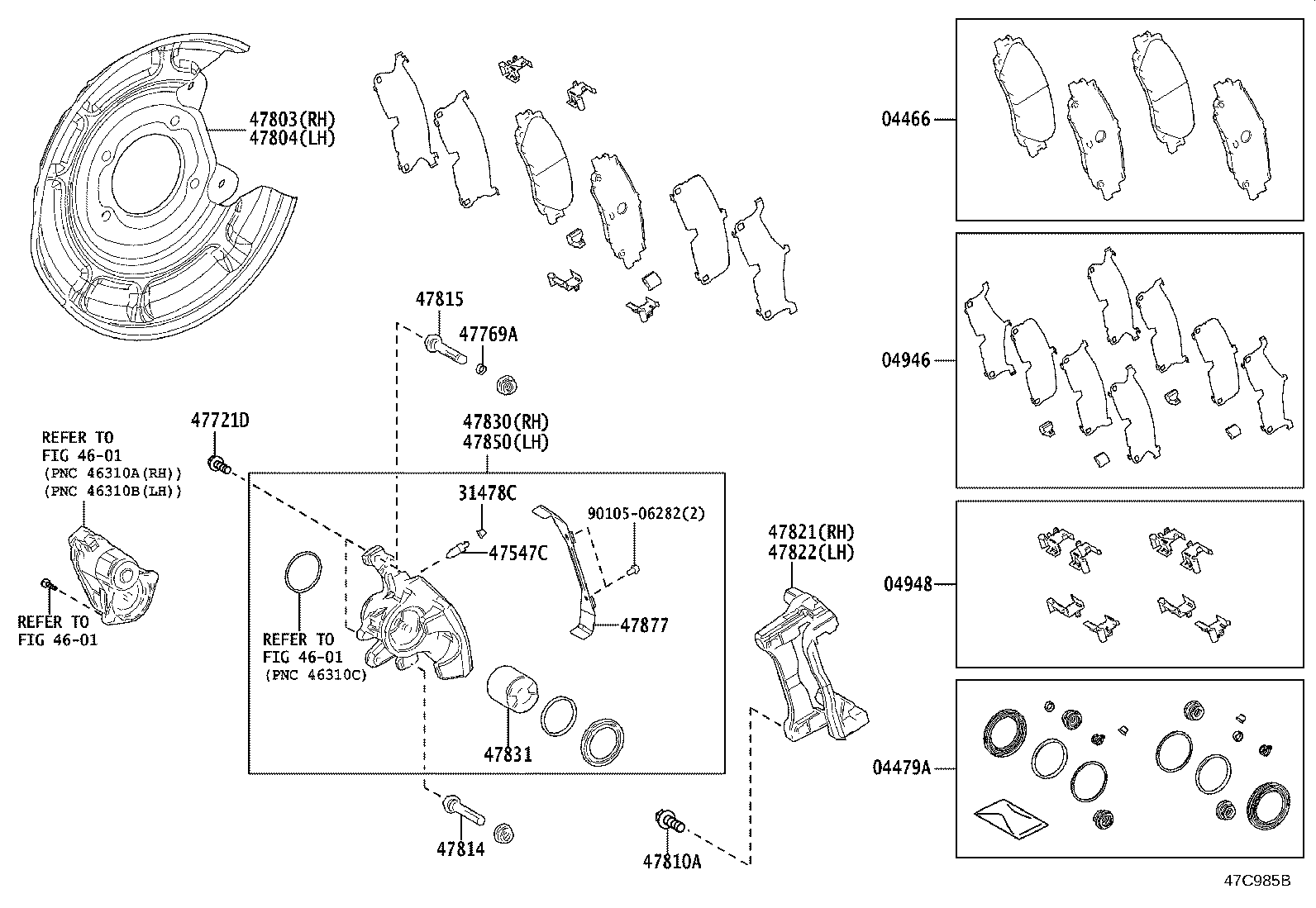

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 4601 4601 4601 47547C 47721D 47769A 47803 47804 47810A 47814 47815 47821 47822 47830 47831 47850 47877 9010506282
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-60190

GRJ300,VJA300

MARK ADVICS VC107

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-60280

GRJ300,VJA300

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-60150

GRJ300,VJA300

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-60050

GRJ300,VJA300

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

GRJ300,VJA300

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-12010

GRJ300,VJA300

 2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90015-AA606

GRJ300,VJA300

*10-1.00PX20-9

 4
47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47769-0E070

GRJ300,VJA300

 2
47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH
47803-60010

GRJ300,VJA300

 1
47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH
47804-60010

GRJ300,VJA300

 1
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90119-14169

GRJ300,VJA300

 4
47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47814-60130

GRJ300,VJA300

 2
47815 - PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47815-60130

GRJ300,VJA300

 2
47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-60130

GRJ300,VJA300

 1
47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47822-60120

GRJ300,VJA300

 1
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-60130

GRJ300,VJA300

 1
47831 - PISTON, REAR DISC BRAKE
47831-60130

GRJ300,VJA300

 2
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-60120

GRJ300,VJA300

 1
47877 - PROTECTOR, REAR DISC BRAKE DUST BOOT
47877-60130

GRJ300,VJA300

 2
Common parts
90105-06282
Linked diagrams
4601
