VJA300L-GNUVZW (2021)
Toyota Land Cruiser
Production
Apr 2021
-
Sep 9999
Engine
V35AFTS
Transmission
10FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(2104- )VJA300

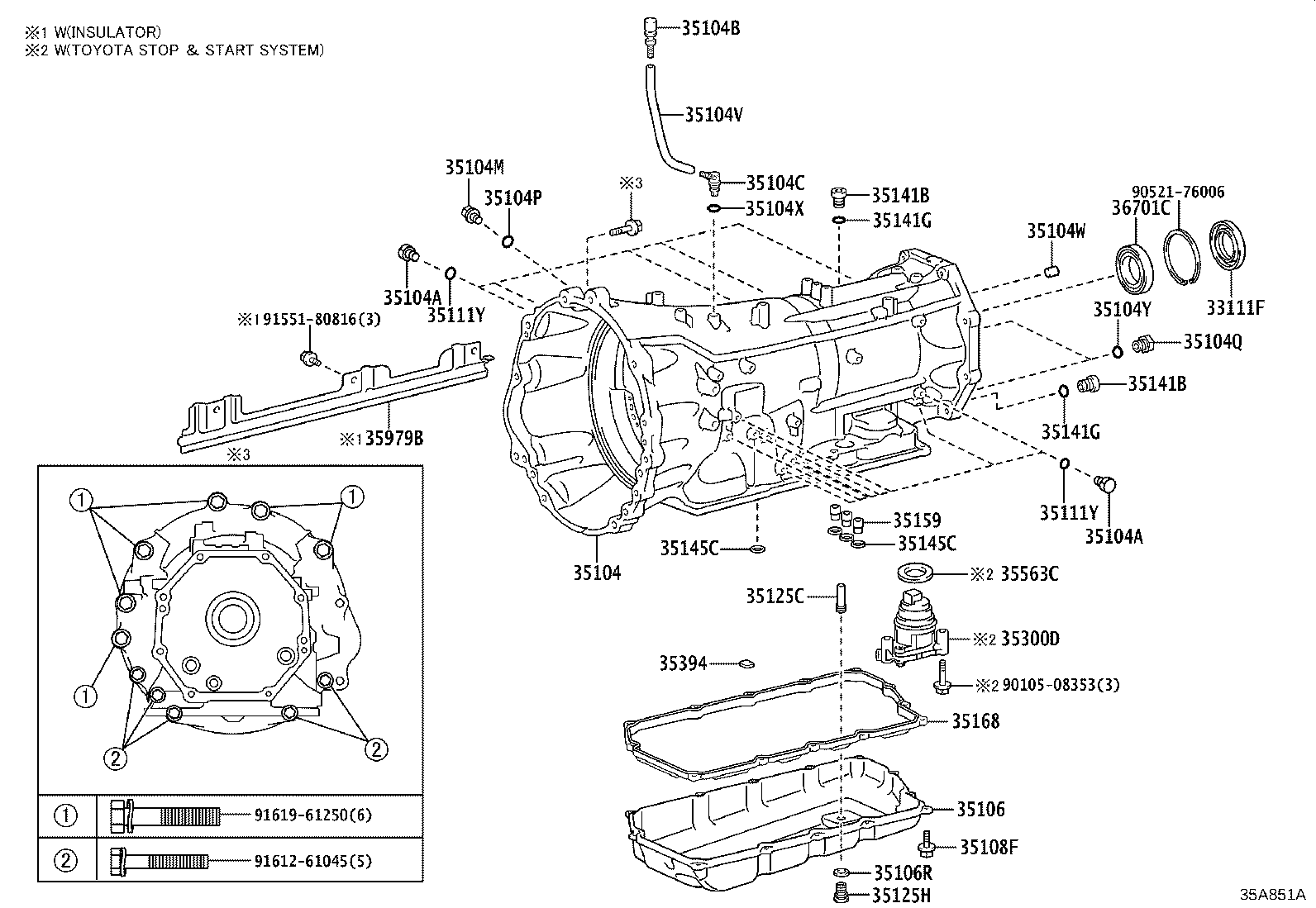

Click highlighted areas on diagram
AJA0F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111F - SEAL, OIL(FOR TRANSMISSION CASE) | ||||
| 90311-51015 |
VJA300 |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-60280 |
VJA300 |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
VJA300 |
13 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
VJA300 |
13 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03211 |
GRJ300,VJA300 |
1 | ||
| 35104C - PLUG, BREATHER, NO.2 (ATM) | ||||
| 90930-03220 |
GRJ300,VJA300 |
1 | ||
| 35104M - PLUG, REFILL(ATM) | ||||
| 90341-18060 |
VJA300 |
1 | ||
| 35104P - GASKET, REFILL PLUG(ATM) | ||||
| 90430-18008 |
VJA300 |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-18059 |
VJA300 |
2 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90447-11083 |
GRJ300,VJA300 |
1 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-11003 |
VJA300 |
2 | ||
| 35104X - RING, O (FOR BREATHER PLUG) | ||||
| 90301-08015 |
VJA300 |
1 | ||
| 35104Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-15004 |
VJA300 |
2 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-60210 |
VJA300 |
1 | ||
| 35106R - GASKET (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90430-12008 |
VJA300 |
1 | ||
| 35108F - BOLT, W/WASHER | ||||
| 90119-06A34 |
VJA300 |
13 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
VJA300 |
13 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
VJA300 |
13 | ||
| 35125C - TUBE, TRANSMISSION OIL FILLER, NO.1 | ||||
| 35125-60240 |
VJA300 |
1 | ||
| 35125H - PLUG, OVERFLOW(ATM) | ||||
| 90341-12034 |
VJA300 |
1 | ||
| 35141B - PLUG (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90341-14011 |
VJA300 |
2 | ||
| 35141B - PLUG (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90341-14011 |
VJA300 |
2 | ||
| 35141G - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-11030 |
VJA300 |
2 | ||
| 35141G - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-11030 |
VJA300 |
2 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-11020 |
VJA300 |
4 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-11020 |
VJA300 |
4 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-60040 |
VJA300 |
3 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-60040 |
VJA300 |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
GRJ300,VJA300 |
4 | ||
| 35979B - INSULATOR, TRANSMISSION, RH | ||||
| 35979-60030 |
VJA300 |
1 | ||
| 36701C - BEARING, BALL | ||||
| 90363-38014 |
VJA300 |
1 | ||
| Common parts | ||||
| 90105-08353 | ||||
| 90521-76006 | ||||
| 91551-80816 | ||||
| 91612-61045 | ||||
| 91619-61250 | ||||
