VJA300L-GNUVZV (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999
Engine V35AFTS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )

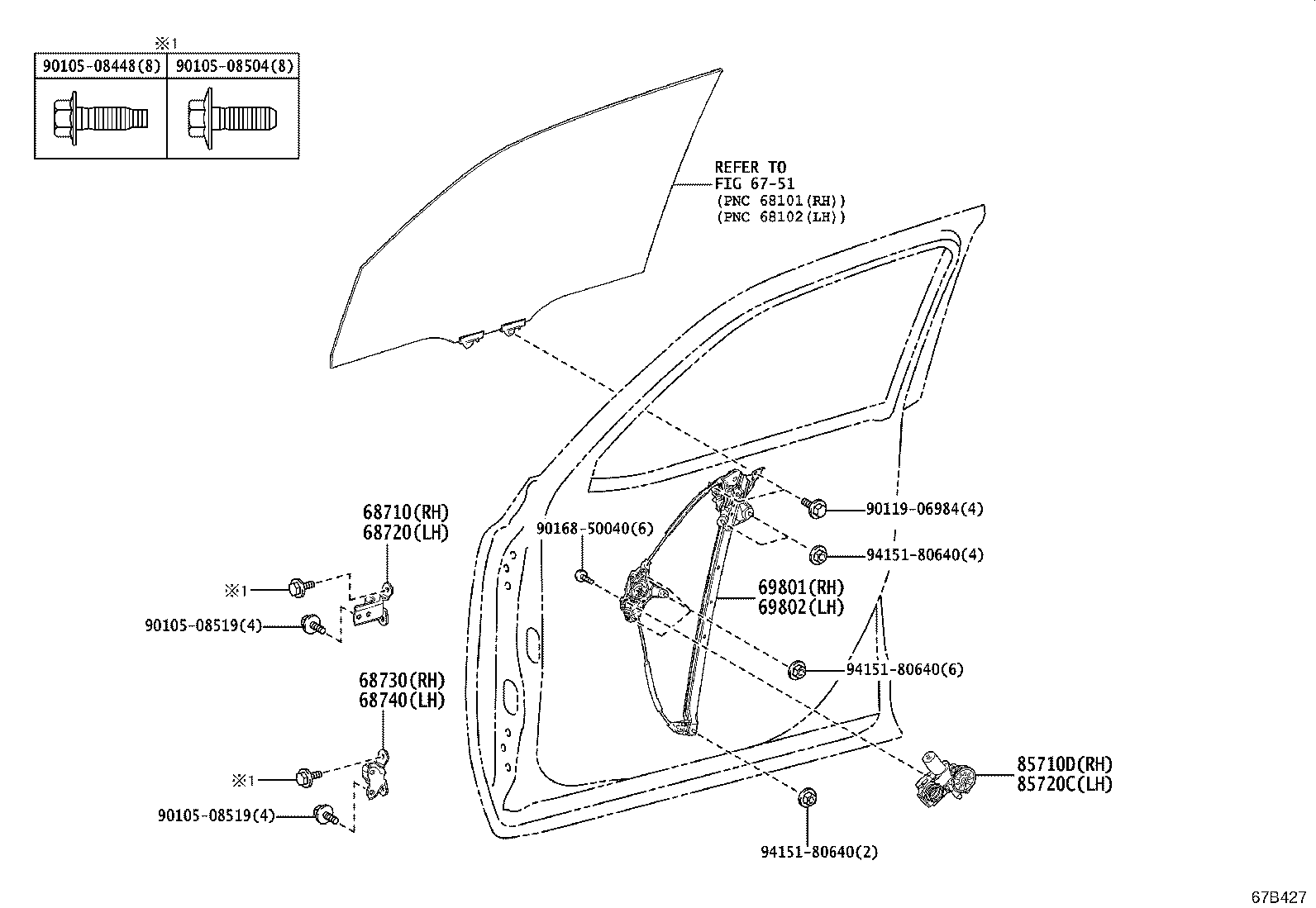

Click highlighted areas on diagram

diagram 6751 68710 68720 68730 68740 69801 69802 85710D 85720C 9010508448 9010508504 9010508519 9010508519 9011906984 9016850040 9415180640 9415180640 9415180640
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-52040

GRJ300,VJA300

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-52030

GRJ300,VJA300

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-52040

GRJ300,VJA300

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-52030

GRJ300,VJA300

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-60110

GRJ300,VJA300

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-60110

GRJ300,VJA300

 1
85710D - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-60390

GRJ300,VJA300

 1
85720C - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-60370

GRJ300,VJA300

 1
Common parts
90105-08448
90105-08504
90105-08519
90119-06984
90168-50040
94151-80640
Linked diagrams
6751
