VJA300L-GNUVZ (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999
Engine V35AFTS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

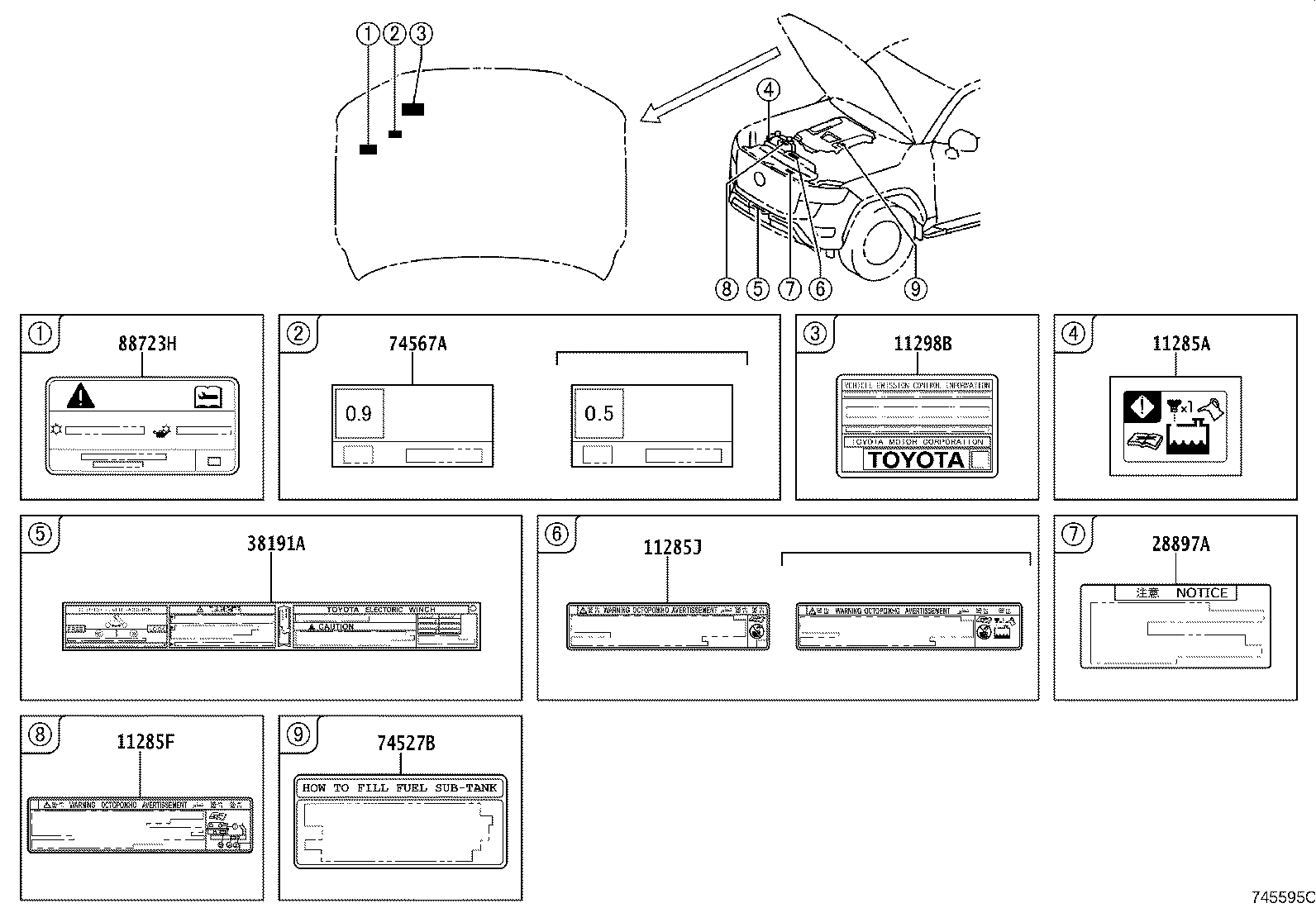

ILLUST NO. 1 OF 3(2104- )

Click highlighted areas on diagram

ENGINE ROOM & EXTERIOR

diagram 11285A 11285F 11285J 11298B 28897A 38191A 74527B 74567A 88723H
Part # Description Qty Price
11285A - LABEL, COOLANT SYSTEM NOTICE
11285-11020

V35AFTS..VJA300

 1
11285F - LABEL, COOLANT SYSTEM CAUTION
11285-70101

V35AFTS..VJA300

 1
11285J - LABEL, COOLANT SYSTEM CAUTION, NO.2
11285-70110

V35AFTS..VJA300

 1
88723H - LABEL, COOLER SERVICE CAUTION
88723-60350

VJA300..A..(EUR,GEN)

 1
88723-60370

VJA300..(V,Z)..(EUR,GEN)

COOL BOX-WITH

 1
88723-60370

VJA300..A..(EUR,GEN)

AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)&COOL BOX-WITH

 1
88723-60640

VJA300..A..(EUR,GEN)

COOL BOX-WITH

 1
88723-60640

VJA300..A..(EUR,GEN)

AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)

 1
88723-60640

VJA300..(V,Z)..(EUR,GEN)

 1

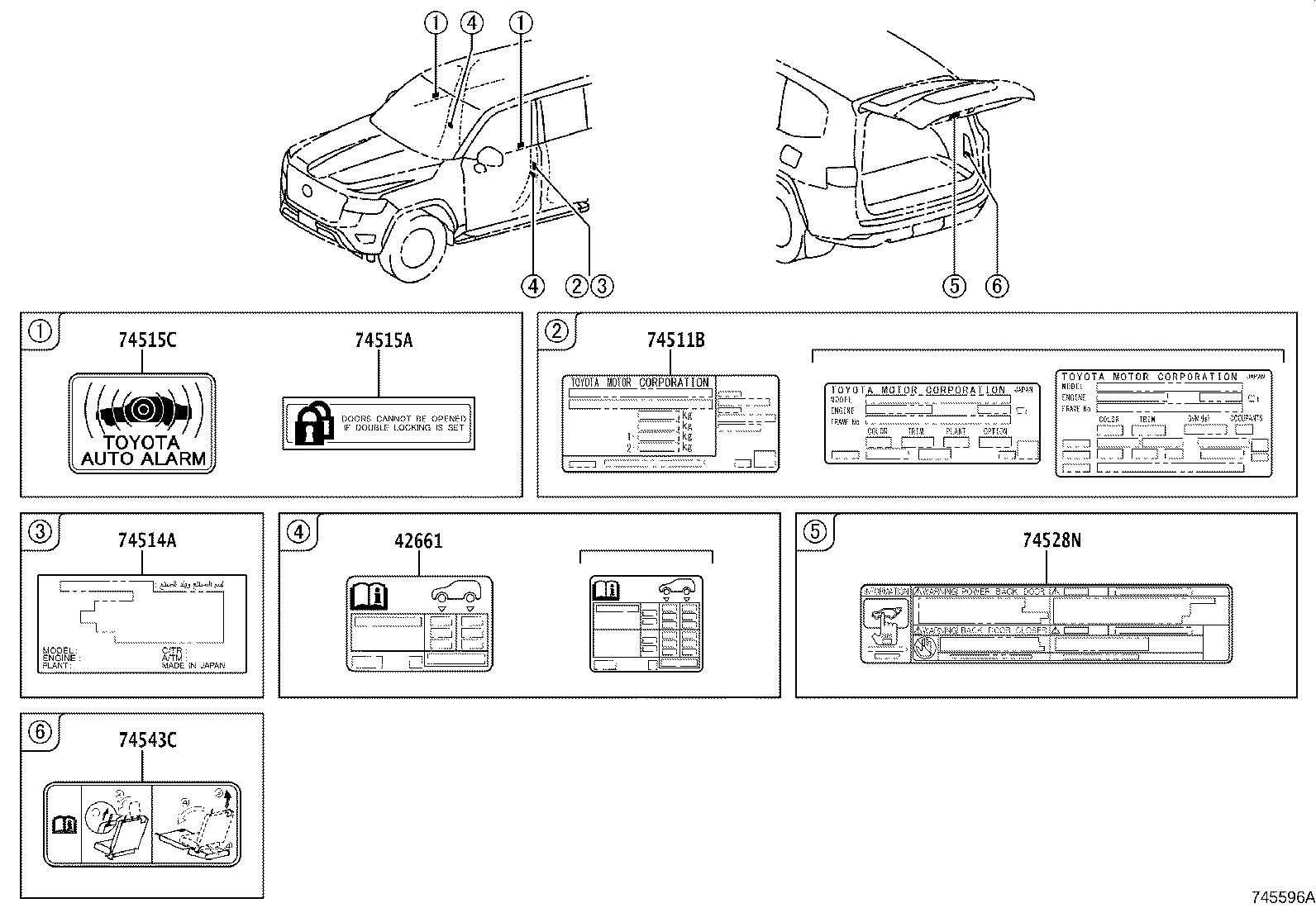

ILLUST NO. 2 OF 3(2104- )

Click highlighted areas on diagram

EXTERIOR

diagram 42661 74511B 74514A 74515A 74515C 74528N 74543C
Part # Description Qty Price
42661 - LABEL, TIRE PRESSURE INFORMATION
42661-60F70

VJA300..Z

 1
42661-60F60

GRJ300..A,V;VJA300..A,G,V

 1
42661-60F70

VJA300..5S..V;GRJ300,VJA300..7S..(A,V)

TIRE & DISC WHEEL-265/55R20, 8J, ALUMINUM

 1
74511B - PLATE, NAME
74511-2B300

GRJ300;VJA300..(A,V,Z)..(GCC,GEN)

 1
74514A - LABEL, CERTIFICATION REGULATION INFORMATION
74514-42051

VJA300..G

 1
74515C - LABEL, THEFT WARNING INFORMATION
74515-33020

GRJ300,VJA300..(V,Z)..(GCC,GEN)

 2
74515-33020

VJA300..A..GEN

ANTI-THEFT SYSTEM-*IM & SIREN & *IS & TILT

 2
74515-33020

GRJ300,VJA300..7S..A

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

 2
74528N - LABEL, BACK DOOR CAUTION, NO.2
74528-42011

VJA300..7S..Z

 1
74528-42011

GRJ300,VJA300..(A,V)..(GCC,GEN)

BACK DOOR-WITH(POWER BACK DOOR)

 1
74543C - LABEL, REAR SEAT INFORMATION
74543-60610

GRJ300,VJA300..7S..(A,G,V)

 1

ILLUST NO. 2 OF 3(2104- )

Click highlighted areas on diagram

EXTERIOR

diagram 74543L 74543M 74559A 74584A
Part # Description Qty Price
74543L - LABEL, REAR SEAT CAUTION, NO.1
74543-60590

GRJ300,VJA300

 2
74543M - LABEL, REAR SEAT CAUTION, NO.2
74543-60600

GRJ300,VJA300

 2
74559A - PLATE, FUEL CAUTION
74559-60030

VJA300..GCC,GEN

 1
74584A - LABEL, TOWING CAUTION
74584-60042

VJA300..LHD..(A,V,Z)..(GCC,GEN)

TOWING HITCH-WITH(FOR WEIGHT DISTRIBUTION HITCH)

 1

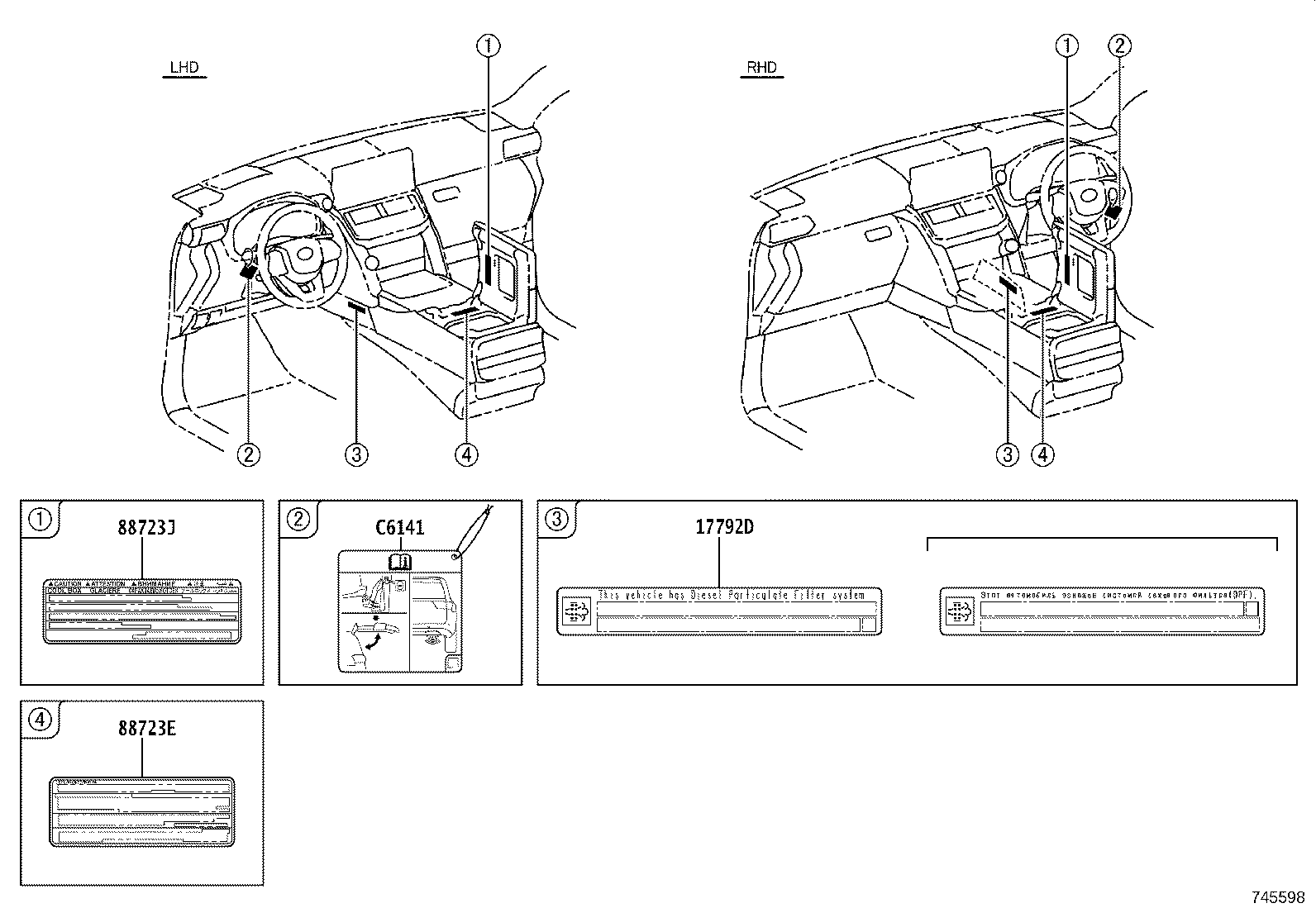

ILLUST NO. 3 OF 3(2104- )

Click highlighted areas on diagram

INTERIOR

diagram 17792D 88723E 88723J C6141
Part # Description Qty Price
88723E - LABEL, COOLER SERVICE CAUTION
88723-60700

GRJ300,VJA300..V,Z;VJA300..A..(EUR,GEN)

COOL BOX-WITH

 1
88723J - LABEL, COOLER SERVICE CAUTION, NO.2
88723-60710

GRJ300,VJA300..V,Z;VJA300..A..(EUR,GEN)

COOL BOX-WITH

 1
C6141 - LABEL, BACK DOOR OR LUGGAGE COMPARTMENT DOOR INFORMATIO
C6141-60010

VJA300..Z;VJA300..V..EUR

BACK DOOR-WITH(HANDS FREE POWER BACK DOOR)

 1
