VJA300L-GNUGZV (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999
Engine V35AFTS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )LHD

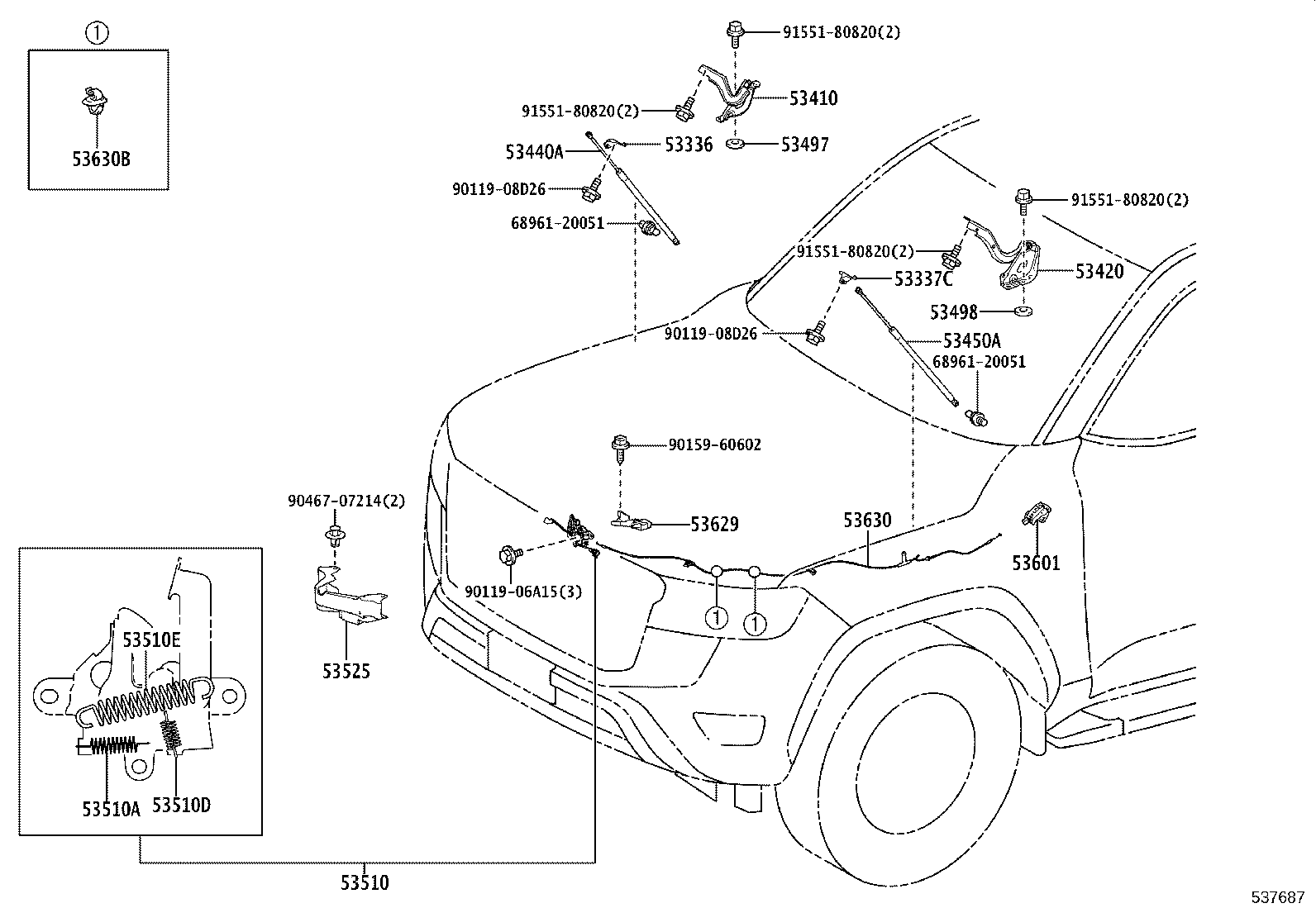

Click highlighted areas on diagram

diagram 53336 53337C 53410 53420 53440A 53450A 53497 53498 53510 53510A 53510D 53510E 53525 53601 53629 53630 53630B 6896120051 6896120051 9011906A15 9011908D26 9011908D26 9015960602 9046707214 9155180820 9155180820 9155180820 9155180820
Part # Description Qty Price
53336 - BRACKET, HOOD STAY, RH
53336-60030

GRJ300,VJA300

 1
53337C - BRACKET, HOOD STAY, LH
53337-60020

GRJ300,VJA300

 1
53410 - HINGE ASSY, HOOD, RH
53410-60190

GRJ300,VJA300

 1
53420 - HINGE ASSY, HOOD, LH
53420-60180

GRJ300,VJA300

 1
53440A - SUPPORT ASSY, HOOD, RH
53440-0W390

GRJ300,VJA300

 1
53450A - SUPPORT ASSY, HOOD, LH
53440-0W390

GRJ300,VJA300

 1
53497 - PAD, HOOD HINGE, NO.1
53497-50020

GRJ300,VJA300

T=1.0

 2
53498 - PAD, HOOD HINGE, NO.2
53497-50020

GRJ300,VJA300

T=1.0

 2
53510 - LOCK ASSY, HOOD
53510-60470

GRJ300,VJA300..LHD

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

GRJ300,VJA300

WD=0.9,CW=21

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-12063

GRJ300,VJA300

WD=1.2,CW=8.5

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-16077

GRJ300,VJA300

WD=1.6,CW=12

 1
53525 - PROTECTOR, HOOD LOCK RELEASE LEVER
53525-60070

GRJ300,VJA300

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-30100C0

GRJ300,VJA300..A,G,V

BLACK,TRIM2#

 1
53601-30100E3

GRJ300,VJA300

NEUTRAL BEIGE,TRIM4#

 1
53601-30100C0

VJA300..Z

BLACK,TRIM2#,3#

 1
53629 - COVER, HOOD LOCK CONTROL CABLE
53629-60110

GRJ300,VJA300..LHD

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-60230

GRJ300,VJA300..LHD

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90469-06005

GRJ300,VJA300

 2
Common parts
68961-20051
90119-06A15
90119-08D26
90159-60602
90467-07214
91551-80820
