VJA300L-GNUAZV (2021)
Toyota Land Cruiser

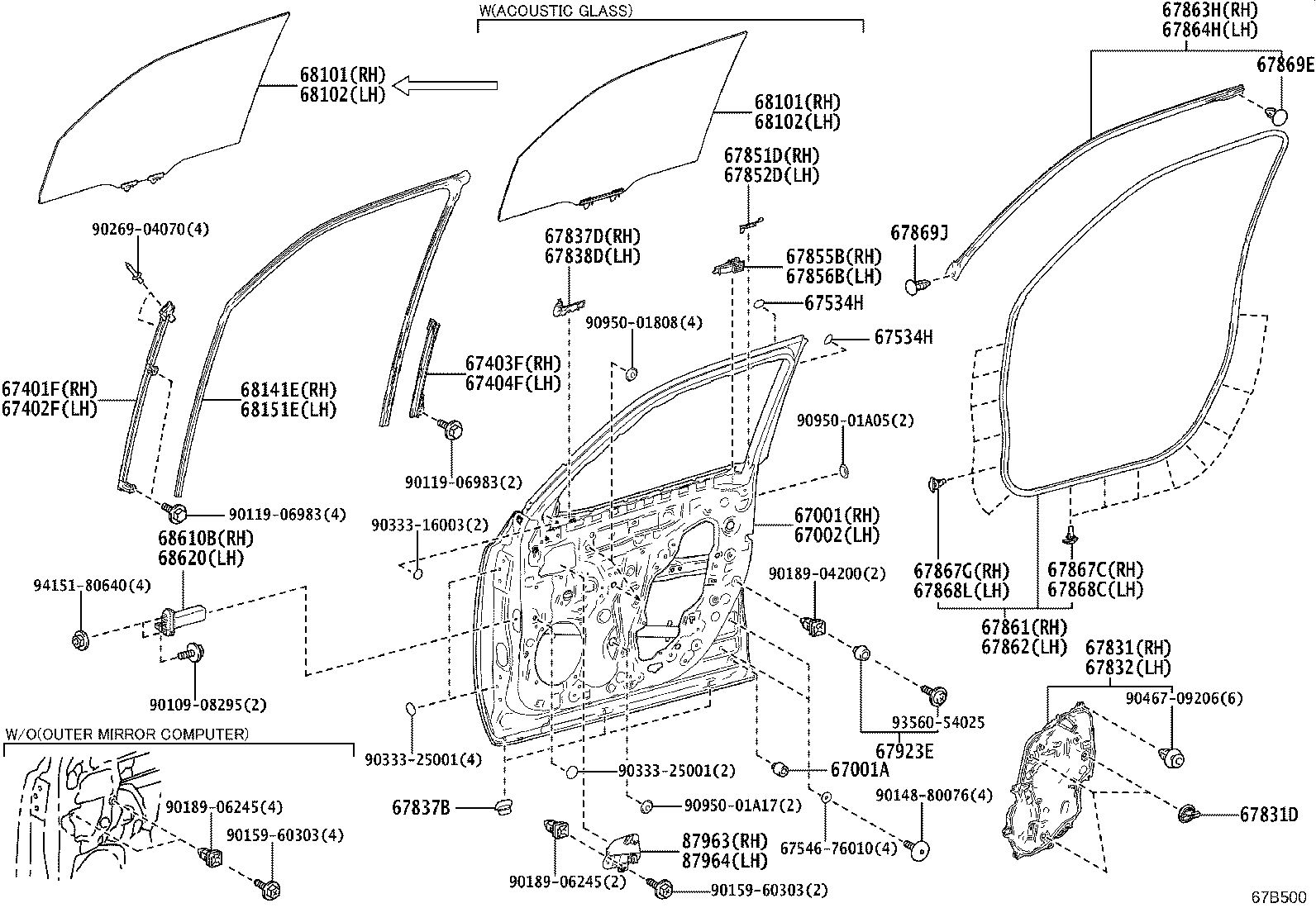

ILLUST NO. 1 OF 2(2104- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-60A40 |
GRJ300,VJA300 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09150 |
GRJ300,VJA300 |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-60B10 |
GRJ300,VJA300 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-60050 |
GRJ300,VJA300 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-60050 |
GRJ300,VJA300 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-60120 |
GRJ300,VJA300 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-60130 |
GRJ300,VJA300 |
1 | ||
| 67534H - SEAL, FRONT DOOR UPR GARNISH | ||||
| 67534-76010 |
GRJ300,VJA300 |
4 | ||
| 67534H - SEAL, FRONT DOOR UPR GARNISH | ||||
| 67534-76010 |
GRJ300,VJA300 |
4 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-60210 |
GRJ300,VJA300 |
1 | ||
| 67831D - CLIP(FOR FRONT DOOR SERVICE HOLE COVER) | ||||
| 67869-50010 |
GRJ300,VJA300 |
6 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-60120 |
GRJ300,VJA300 |
1 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-60090 |
GRJ300,VJA300 |
6 | ||
| 67837D - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-60080 |
GRJ300,VJA300 |
1 | ||
| 67838D - SEAL, FRONT DOOR VENT, LH | ||||
| 67838-60040 |
GRJ300,VJA300 |
1 | ||
| 67851D - SEAL, FRONT DOOR REAR OUTSIDE, RH | ||||
| 67851-60010 |
GRJ300,VJA300 |
1 | ||
| 67852D - SEAL, FRONT DOOR REAR OUTSIDE, LH | ||||
| 67852-60010 |
GRJ300,VJA300 |
1 | ||
| 67855B - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67855-60050 |
GRJ300,VJA300 |
1 | ||
| 67856B - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 67856-60020 |
GRJ300,VJA300 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-60190 |
GRJ300,VJA300 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-60180 |
GRJ300,VJA300 |
1 | ||
| 67863H - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-60040 |
GRJ300,VJA300 |
1 | ||
| 67864H - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-60040 |
GRJ300,VJA300 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GRJ300,VJA300 |
8 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-50170 |
GRJ300,VJA300 |
6 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GRJ300,VJA300 |
8 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-50170 |
GRJ300,VJA300 |
6 | ||
| 67869E - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-33030 |
GRJ300,VJA300 |
2 | ||
| 67869J - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-22010 |
GRJ300,VJA300 |
2 | ||
| 67923E - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-48060 |
GRJ300,VJA300 |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-60760 |
GRJ300..V;VJA300..(A,G)..GCC |
1 | ||
| 68101-60790 |
VJA300..(V,Z)..GCC |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-60760 |
GRJ300..V;VJA300..(A,G)..GCC |
1 | ||
| 68101-60790 |
VJA300..(V,Z)..GCC |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-60760 |
GRJ300..V;VJA300..(A,G)..GCC |
1 | ||
| 68102-60790 |
VJA300..(V,Z)..GCC |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-60760 |
GRJ300..V;VJA300..(A,G)..GCC |
1 | ||
| 68102-60790 |
VJA300..(V,Z)..GCC |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-60100 |
GRJ300,VJA300 |
1 | ||
| 68151E - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-60090 |
GRJ300,VJA300 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-60150 |
GRJ300,VJA300 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-60130 |
GRJ300,VJA300 |
1 | ||
| 87963 - COVER, OUTER MIRROR INSTALL HOLE, RH | ||||
| 87963-60010 |
GRJ300,VJA300 |
1 | ||
| 87964 - COVER, OUTER MIRROR INSTALL HOLE, LH | ||||
| 87964-60010 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 67546-76010 | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90148-80076 | ||||
| 90159-60303 | ||||
| 90189-04200 | ||||
| 90189-06245 | ||||
| 90269-04070 | ||||
| 90333-16003 | ||||
| 90333-25001 | ||||
| 90467-09206 | ||||
| 90950-01808 | ||||
| 90950-01A05 | ||||
| 90950-01A17 | ||||
| 93560-54025 | ||||
| 94151-80640 | ||||

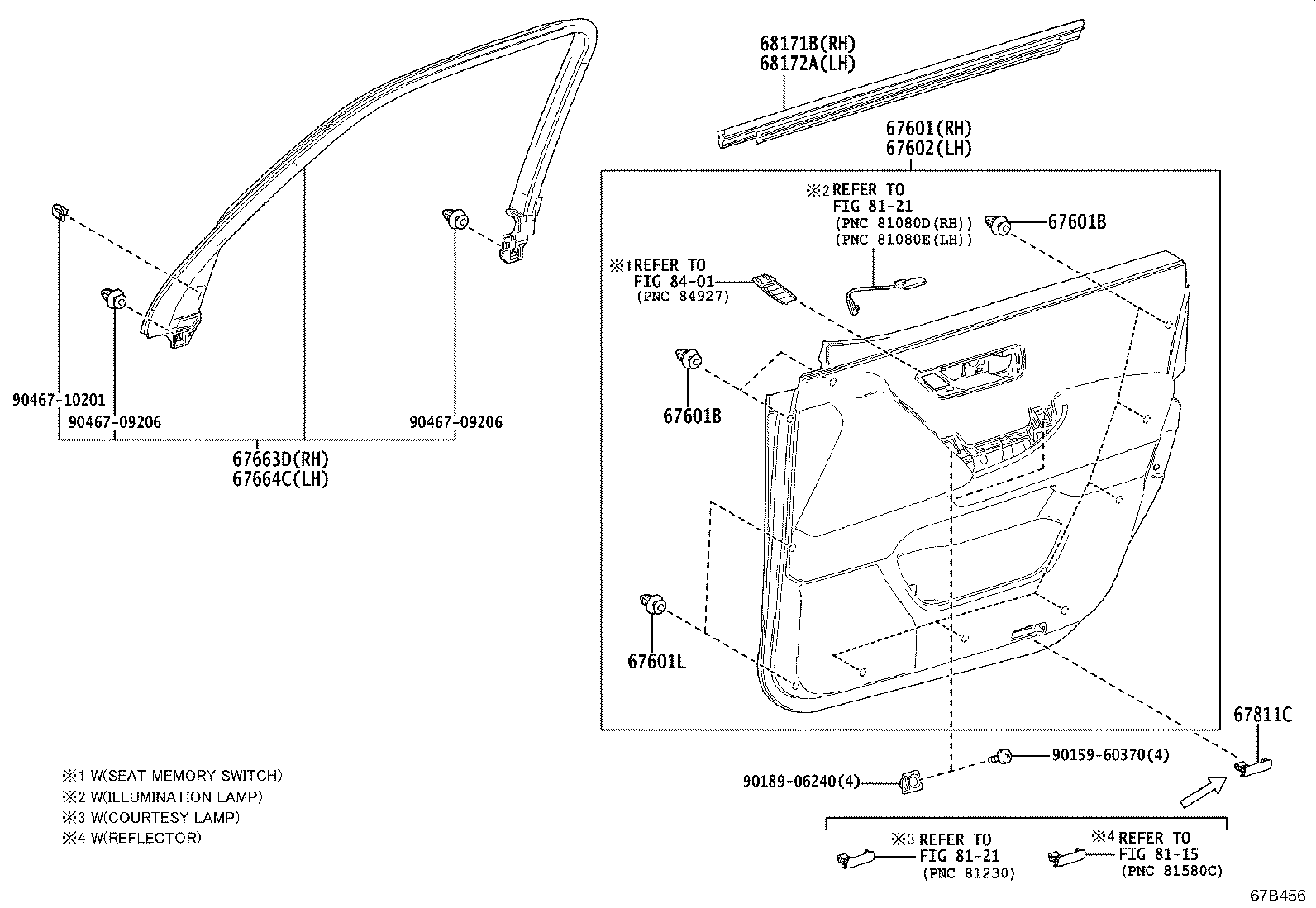

ILLUST NO. 2 OF 2(2104- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-6AC90C2 |
GRJ300,VJA300..LHD..V BLACK,TRIM2# |
1 | ||
| 67610-6AC90C3 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE&FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM4# |
1 | ||
| 67610-6AC90C3 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO)&FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM4# |
1 | ||
| 67610-6AC60C5 |
GRJ300,VJA300..LHD..(A,G) BLACK,TRIM4# |
1 | ||
| 67610-6AC60C4 |
GRJ300,VJA300..LHD..(A,G) BLACK,TRIM2# |
1 | ||
| 67610-6AC90C2 |
VJA300..A..GCC UPGRADE PACKAGE&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 67610-6AC90C2 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO)&FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 67610-6AC90C3 |
VJA300..A..GCC UPGRADE PACKAGE(AERO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM4# |
1 | ||
| 67610-6AC90C2 |
VJA300..A..GCC UPGRADE PACKAGE(AERO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 67610-6AD00C3 |
VJA300..LHD..Z BLACK,TRIM2# |
1 | ||
| 67610-6AC90C2 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE&FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 67610-6AD00C3 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 67610-6AD00C3 |
GRJ300,VJA300..LHD..V..(GCC,GEN) SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 67610-6AD00C3 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 67610-6AD00C3 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 67610-6AC90C3 |
GRJ300,VJA300..LHD..V BLACK,TRIM4# |
1 | ||
| 67610-6AD00C3 |
GRJ300,VJA300..LHD..V..(GCC,GEN) SEAT COVER MATERIAL-LEATHER(SMOOTH)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)&14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 67610-6AD00C5 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM4# |
1 | ||
| 67610-6AD00C5 |
VJA300..LHD..Z BLACK,TRIM4# |
1 | ||
| 67610-6AD00C5 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM4# |
1 | ||
| 67610-6AC90C3 |
VJA300..A..GCC UPGRADE PACKAGE&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM4# |
1 | ||
| 67610-6AD00C5 |
GRJ300,VJA300..LHD..V..(GCC,GEN) SEAT COVER MATERIAL-LEATHER(SMOOTH)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)&14SPEAKER(JBL),BLACK,TRIM4# |
1 | ||
| 67610-6AD00C5 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM4# |
1 | ||
| 67610-6AD00C3 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 67610-6AD00C5 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM4# |
1 | ||
| 67610-6AD00C4 |
VJA300..LHD..Z BLACK,TRIM3# |
1 | ||
| 67610-6AD00C5 |
GRJ300,VJA300..LHD..V..(GCC,GEN) SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM4# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
GRJ300,VJA300 |
16 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
GRJ300,VJA300 |
16 | ||
| 67601L - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09233 |
GRJ300,VJA300 |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-6AD50C4 |
GRJ300,VJA300..LHD..(A,G) BLACK,TRIM2# |
1 | ||
| 67620-6AD80C2 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO)&FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 67620-6AD80C2 |
GRJ300,VJA300..LHD..V BLACK,TRIM2# |
1 | ||
| 67620-6AD80C2 |
VJA300..A..GCC UPGRADE PACKAGE&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 67620-6AD90C2 |
GRJ300,VJA300..LHD..V..(GCC,GEN) SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 67620-6AD80C3 |
GRJ300,VJA300..LHD..V BLACK,TRIM4# |
1 | ||
| 67620-6AD80C2 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE&FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 67620-6AD80C2 |
VJA300..A..GCC UPGRADE PACKAGE(AERO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 67620-6AD90C2 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 67620-6AD80C3 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO)&FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM4# |
1 | ||
| 67620-6AD80C3 |
VJA300..A..GCC UPGRADE PACKAGE&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM4# |
1 | ||
| 67620-6AD90C2 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 67620-6AD90C3 |
GRJ300,VJA300..LHD..V..(GCC,GEN) SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM4# |
1 | ||
| 67620-6AD50C5 |
GRJ300,VJA300..LHD..(A,G) BLACK,TRIM4# |
1 | ||
| 67620-6AD90C3 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM4# |
1 | ||
| 67620-6AE00C3 |
GRJ300,VJA300..LHD..V..(GCC,GEN) SEAT COVER MATERIAL-LEATHER(SMOOTH)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)&14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 67620-6AD80C3 |
VJA300..A..GCC UPGRADE PACKAGE(AERO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM4# |
1 | ||
| 67620-6AD80C3 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE&FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM4# |
1 | ||
| 67620-6AD90C3 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM4# |
1 | ||
| 67620-6AE00C5 |
VJA300..LHD..Z BLACK,TRIM4# |
1 | ||
| 67620-6AE00C3 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM2# |
1 | ||
| 67620-6AE00C3 |
VJA300..LHD..Z BLACK,TRIM2# |
1 | ||
| 67620-6AE00C5 |
GRJ300,VJA300..LHD..V..(GCC,GEN) SEAT COVER MATERIAL-LEATHER(SMOOTH)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)&14SPEAKER(JBL),BLACK,TRIM4# |
1 | ||
| 67620-6AE00C4 |
VJA300..LHD..Z BLACK,TRIM3# |
1 | ||
| 67620-6AE00C5 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM4# |
1 | ||
| 67620-6AE00C3 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 67620-6AE00C5 |
GRJ300,VJA300..LHD..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM4# |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-60020 |
GRJ300,VJA300 |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-60020 |
GRJ300,VJA300 |
1 | ||
| 67811C - COVER, FRONT DOOR HOLE | ||||
| 67811-60030C1 |
GRJ300,VJA300..A,G BLACK,TRIM2#,4# |
2 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-60110 |
GRJ300,VJA300 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-60100 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90159-60370 | ||||
| 90189-06240 | ||||
| 90467-09206 | ||||
| 90467-10201 | ||||
| Linked diagrams | ||||
| 8115 | ||||
| 8121 | ||||
| 8401 | ||||
