VJA300L-GNUAZV (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999
Engine V35AFTS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )V35AFTS

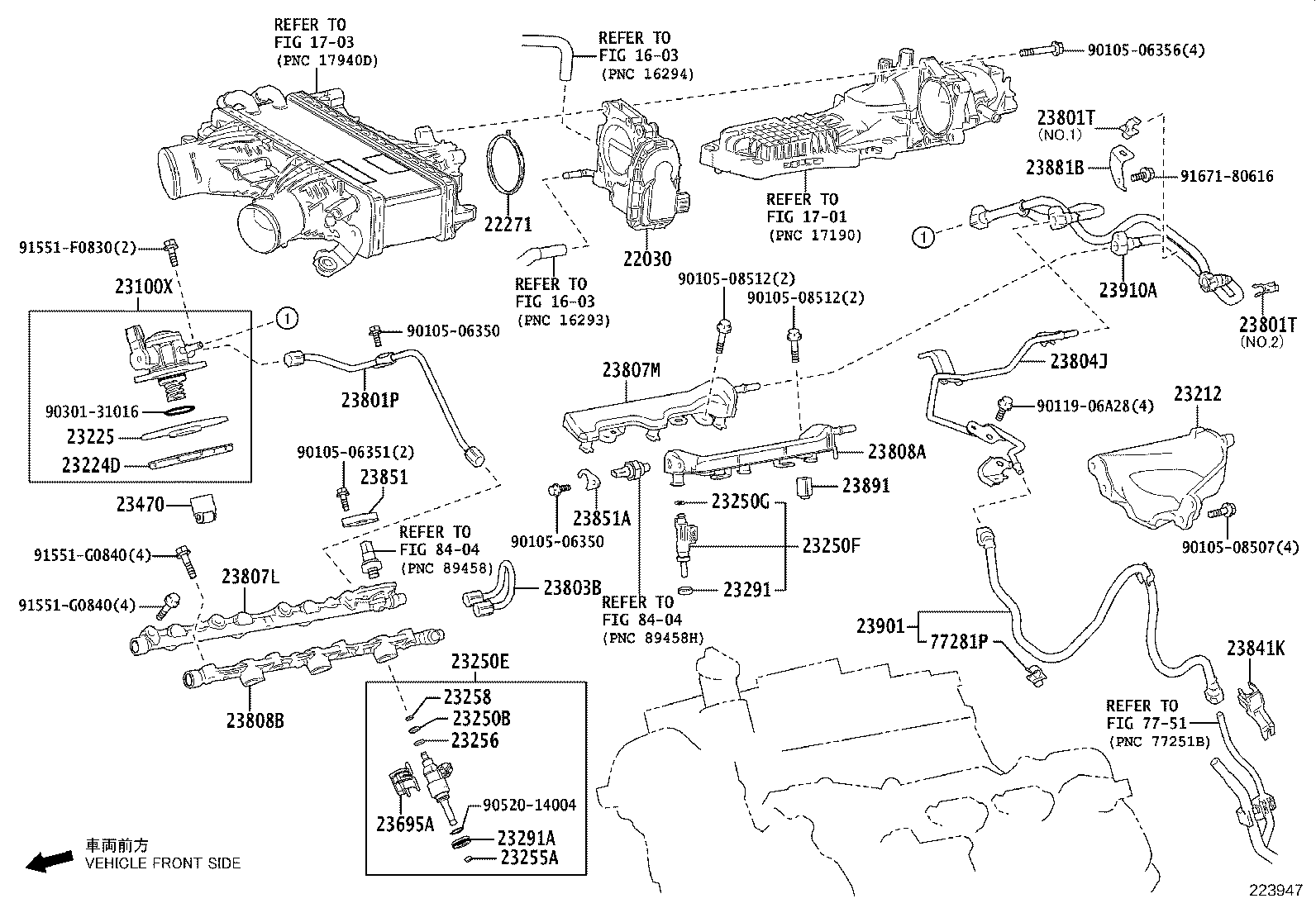

Click highlighted areas on diagram

diagram 1603 1603 1701 1703 22030 22271 23100X 23212 23224D 23225 23250B 23250E 23250F 23250G 23255A 23256 23258 23291 23291A 23470 23695A 23801P 23801T 23801T 23803B 23804J 23807L 23807M 23808A 23808B 23841K 23851 23851A 23881B 23891 23901 23910A 77281P 7751 8404 8404 9010506350 9010506350 9010506351 9010506356 9010508507 9010508512 9010508512 9011906A28 9030131016 9052014004 91551F0830 91551G0840 91551G0840 9167180616
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-70060

V35AFTS..VJA300

 1
22271 - GASKET, THROTTLE BODY
22271-70070

V35AFTS..VJA300

 1
23100X - PUMP ASSY, FUEL (ENGINE ROOM SIDE)
23101-79035

V35AFTS..VJA300

 1
23212 - BRACKET, FUEL PIPE PROTECTOR
23212-70020

V35AFTS..VJA300

 1
23224D - GASKET, FUEL PUMP SPACER
23224-25010

V35AFTS..VJA300

 1
23225 - SPACER, FUEL PUMP
23225-70010

V35AFTS..VJA300

 1
23250B - RING, O(FOR FUEL INJECTOR)
90301-05013

V35AFTS..VJA300

 6
23250E - INJECTOR ASSY, FUEL(FOR DIRECT)
23209-7013002

V35AFTS..VJA300

MARK 2,REFER REPAIR MANUAL

 6
23209-7013006

V35AFTS..VJA300

MARK 6,REFER REPAIR MANUAL

 6
23209-7013004

V35AFTS..VJA300

MARK 4,REFER REPAIR MANUAL

 6
23209-7013005

V35AFTS..VJA300

MARK 5,REFER REPAIR MANUAL

 6
23209-7013003

V35AFTS..VJA300

MARK 3,REFER REPAIR MANUAL

 6
23209-7013007

V35AFTS..VJA300

MARK 7,REFER REPAIR MANUAL

 6
23209-7013001

V35AFTS..VJA300

MARK 1,REFER REPAIR MANUAL

 6
23209-7013009

V35AFTS..VJA300

MARK 9,REFER REPAIR MANUAL

 6
23209-7013008

V35AFTS..VJA300

MARK 8,REFER REPAIR MANUAL

 6
23250F - INJECTOR ASSY, FUEL(FOR PORT)
23209-79245

V35AFTS..VJA300

 1
23250G - RING, O, NO.2(FOR FUEL INJECTOR)
90301-07037

V35AFTS..VJA300

 6
23255A - SEAL, FUEL INJECTOR
23255-25010

V35AFTS..VJA300

 6
23256 - RING, FUEL INJECTOR BACK-UP, NO.1
23256-25010

V35AFTS..VJA300

 6
23258 - RING, FUEL INJECTOR BACK-UP, NO.3
23258-31010

V35AFTS..VJA300

 6
23291 - INSULATOR, INJECTOR VIBRATION
23291-28020

V35AFTS..VJA300

 6
23291A - INSULATOR, INJECTOR VIBRATION
23291-31020

V35AFTS..VJA300

 6
23470 - LIFTER ASSY, FUEL PUMP
23470-25010

V35AFTS..VJA300

 1
23695A - CLAMP, NOZZLE HOLDER
23695-70010

V35AFTS..VJA300

 6
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-70150

V35AFTS..VJA300

 1
23801T - CLAMP OR CLIP, FUEL HOSE(FOR EFI)
23841-47050

V35AFTS..VJA300

NO.1

 1
23841-70050

V35AFTS..VJA300

NO.2

 1
23801T - CLAMP OR CLIP, FUEL HOSE(FOR EFI)
23841-47050

V35AFTS..VJA300

NO.1

 1
23841-70050

V35AFTS..VJA300

NO.2

 1
23803B - PIPE SUB-ASSY, FUEL, NO.3
23803-70060

V35AFTS..VJA300

 1
23804J - PIPE SUB-ASSY, FUEL INLET
23804-70010

V35AFTS..VJA300

 1
23807L - PIPE SUB-ASSY, FUEL DELIVERY, RH NO.1
23807-70090

V35AFTS..VJA300

 1
23807M - PIPE SUB-ASSY, FUEL DELIVERY, RH NO.2
23807-70100

V35AFTS..VJA300

 1
23808A - PIPE SUB-ASSY, FUEL DELIVERY, LH NO.1
23808-70020

V35AFTS..VJA300

 1
23808B - PIPE SUB-ASSY, FUEL DELIVERY, LH NO.2
23808-70040

V35AFTS..VJA300

 1
23841K - CLAMP, FUEL PIPE
23841-21050

V35AFTS..VJA300

 1
23851 - HOLDER, FUEL PRESSURE SENSOR, NO.1
23851-25020

V35AFTS..VJA300

 1
23851A - HOLDER, FUEL PRESSURE SENSOR, NO.2
23851-70020

V35AFTS..VJA300

 1
23881B - BRACKET, FUEL HOSE
23881-70040

V35AFTS..VJA300

 1
23891 - SPACER, FUEL DELIVERY
23891-70010

V35AFTS..VJA300

 4
23901 - TUBE SUB-ASSY, FUEL
23901-70100

V35AFTS..VJA300

 1
23910A - TUBE SUB-ASSY, FUEL
23901-70090

V35AFTS..VJA300

 1
77281P - CLAMP, FUEL HOSE
23841-47050

VJA300

 1
Common parts
90105-06350
90105-06351
90105-06356
90105-08507
90105-08512
90119-06A28
90301-31016
90520-14004
91551-F0830
91551-G0840
91671-80616
Linked diagrams
1603
1701
1703
7751
8404
