Toyota Land cruiser VJA300 HEATING & AIR CONDITIONING - WATER PIPING

Manufacturers Home
Toyota
GR
LAND CRUISER
VJA300L-GMUVZW (2021)
8716 - HEATING & AIR CONDITIONING - WATER PIPING

VJA300L-GMUVZW (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999

Engine V35AFTS

Transmission 10FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

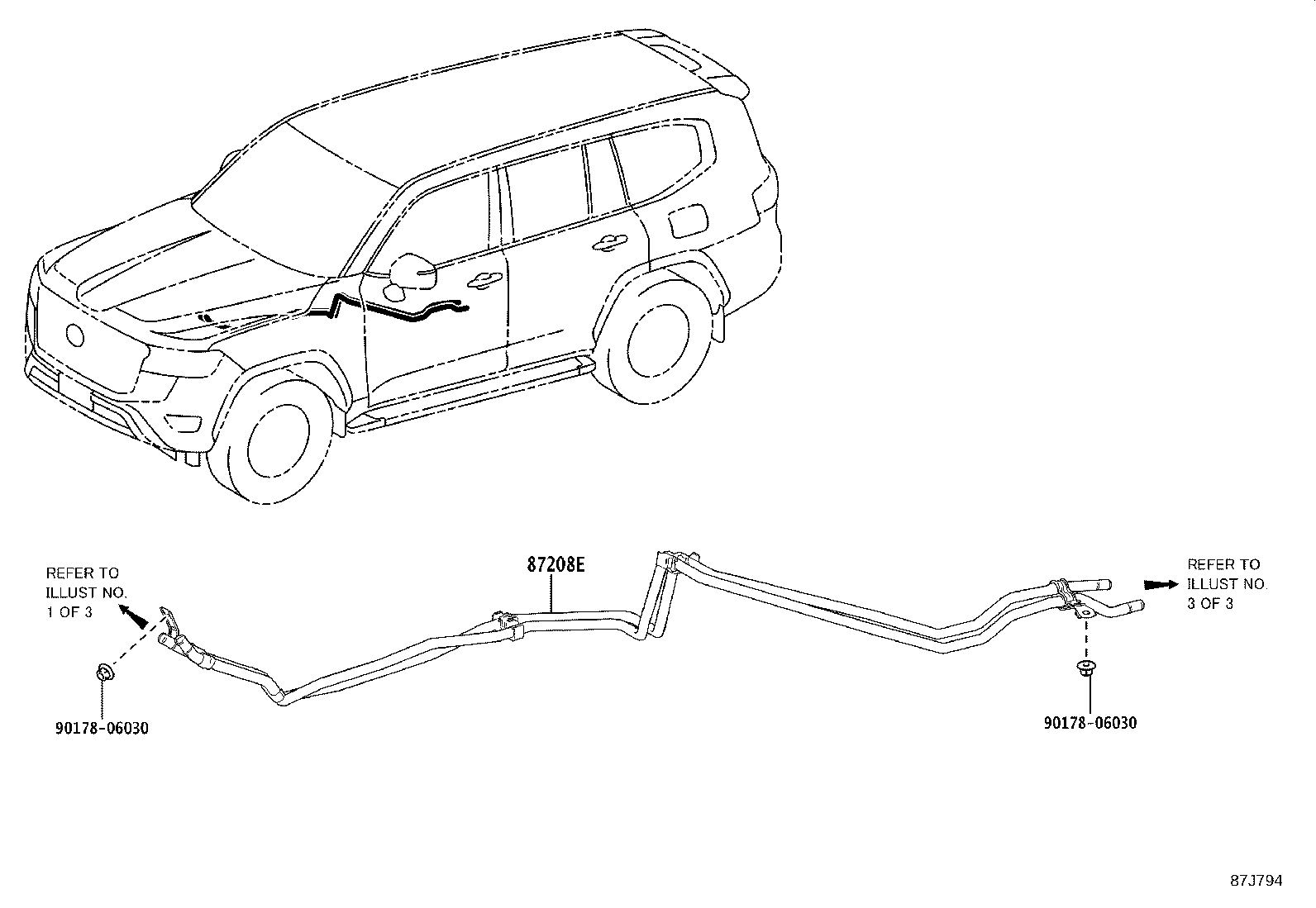

ILLUST NO. 2 OF 3(2104- )

Click highlighted areas on diagram

REAR NO.1

Part #	Description	Period	Qty
87208E - PIPE SUB-ASSY, HEATER WATER, E
87208-60A50	GRJ300,VJA300..V,Z	04/2021 - 12/2999	1
Common parts
90178-06030

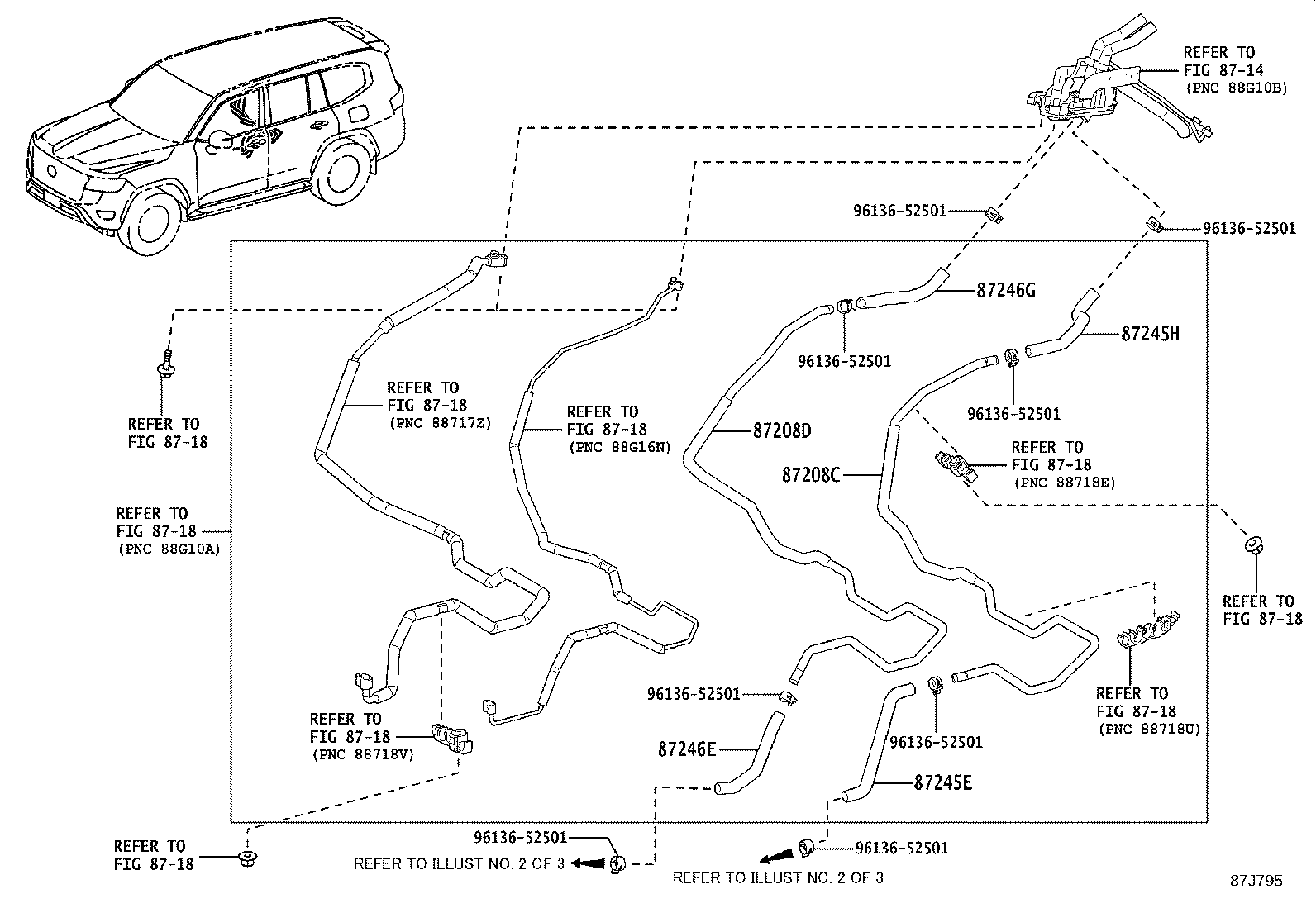

ILLUST NO. 3 OF 3(2104- )

Click highlighted areas on diagram

REAR NO.2

Part #	Description	Period	Qty
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-60B10	GRJ300,VJA300..V,Z	04/2021 - 12/2999	1
87208D - PIPE SUB-ASSY, HEATER WATER, D
87208-60B20	GRJ300,VJA300..V,Z	04/2021 - 12/2999	1
87245E - HOSE, HEATER WATER, INLET E
87245-60T50	GRJ300,VJA300..V,Z	04/2021 - 12/2999	1
87245-60T50	GRJ300,VJA300..V,Z COOL BOX-WITH	04/2021 - 12/2999	1
87245H - HOSE, HEATER WATER, INLET H
87245-60T60	GRJ300,VJA300..V,Z COOL BOX-WITH	04/2021 - 12/2999	1
87245-60T60	GRJ300,VJA300..V,Z	04/2021 - 12/2999	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-60T40	GRJ300,VJA300..V,Z COOL BOX-WITH	04/2021 - 12/2999	1
87245-60T40	GRJ300,VJA300..V,Z	04/2021 - 12/2999	1
87246G - HOSE, HEATER WATER, OUTLET G
87245-60T70	GRJ300,VJA300..V,Z	04/2021 - 12/2999	1
Common parts
96136-52501
Linked diagrams
8714
8718

(2104- )VJA300

Click highlighted areas on diagram

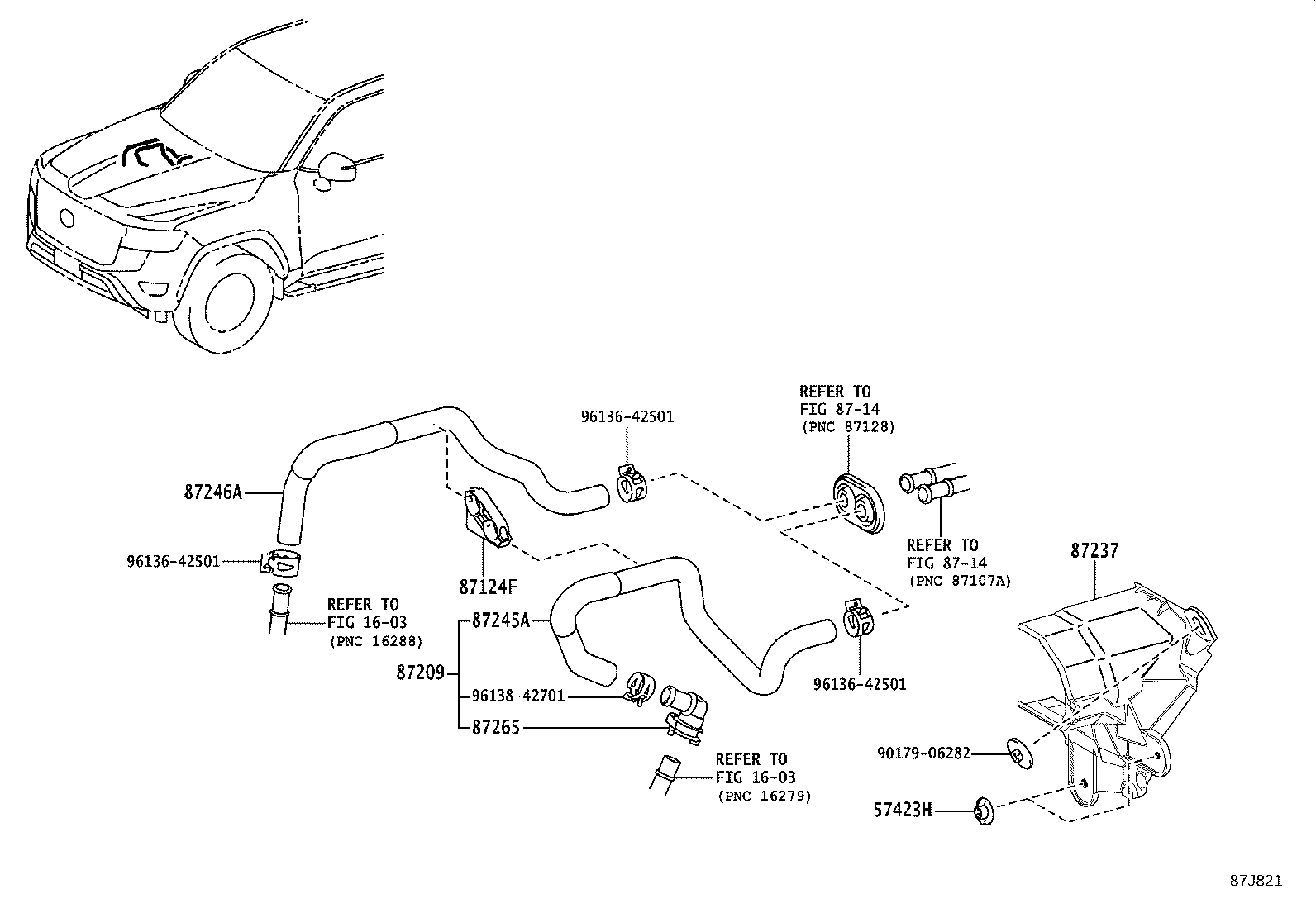

FRONT(SINGLE) & W/O(WATER PUMP)

Part #	Description	Period	Qty
57423H - CLAMP, HEATER COVER
57423-26010	VJA300	04/2021 - 12/2999	2
87124F - CLAMP, HEATER HOSE, NO.1
88718-60B30	VJA300	04/2021 - 12/2999	1
87209 - HOSE SUB-ASSY, WATER
87209-60M90	VJA300..A,G	04/2021 - 12/2999	1
87209-60M30	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87237 - COVER, HEATER PIPING
87237-60010	VJA300..LHD	04/2021 - 12/2999	1
87245A - HOSE, HEATER WATER, INLET A
87243-60030	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87245-60Q70	VJA300..A,G	04/2021 - 12/2999	1
87246A - HOSE, HEATER WATER, OUTLET A
87243-60040	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87245-60Q80	VJA300..A,G	04/2021 - 12/2999	1
87265 - CONNECTOR, HEATER WATER HOSE
87265-60320	VJA300	04/2021 - 12/2999	1
Common parts
90179-06282
96136-42501
96138-42701
Linked diagrams
1603
8714

(2104- )VJA300

Click highlighted areas on diagram

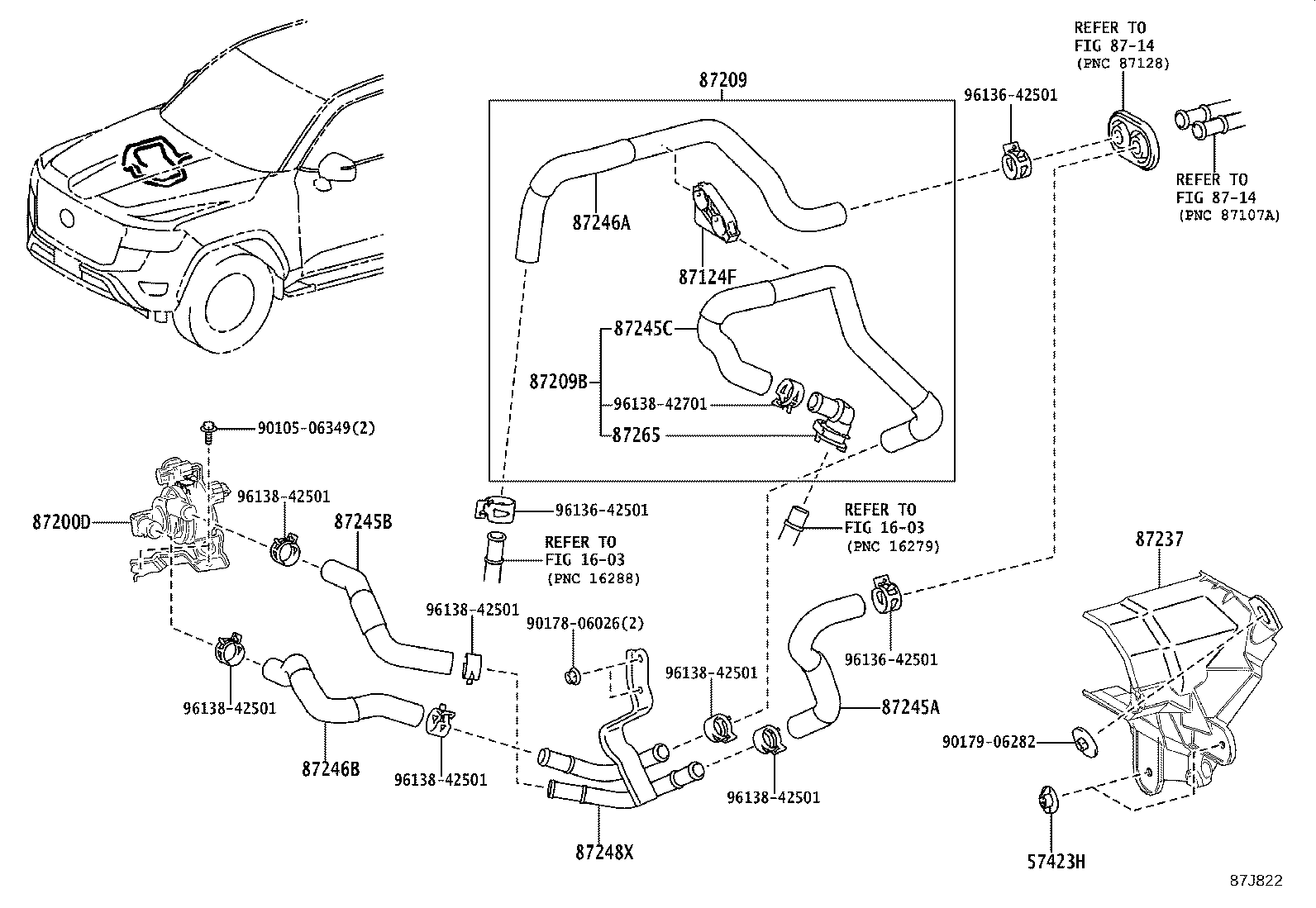

FRONT(SINGLE) & W(WATER PUMP)

Part #	Description	Period	Qty
57423H - CLAMP, HEATER COVER
57423-26010	VJA300	04/2021 - 12/2999	2
87124F - CLAMP, HEATER HOSE, NO.1
88718-60B30	VJA300	04/2021 - 12/2999	1
87209 - HOSE SUB-ASSY, WATER
87209-60M90	VJA300..A,G	04/2021 - 12/2999	1
87209-60M30	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87209B - HOSE SUB-ASSY, WATER, B
87209-60L40	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87237 - COVER, HEATER PIPING
87237-60010	VJA300..LHD	04/2021 - 12/2999	1
87245A - HOSE, HEATER WATER, INLET A
87243-60030	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87245-60Q70	VJA300..A,G	04/2021 - 12/2999	1
87245B - HOSE, HEATER WATER, INLET B
87245-60L10	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87245C - HOSE, HEATER WATER ,INLET C
87242-60030	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87246A - HOSE, HEATER WATER, OUTLET A
87243-60040	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87245-60Q80	VJA300..A,G	04/2021 - 12/2999	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-60L20	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87248X - PIPE, HEATER WATER
87248-60C50	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87265 - CONNECTOR, HEATER WATER HOSE
87265-60320	VJA300	04/2021 - 12/2999	1
Common parts
90105-06349
90178-06026
90179-06282
96136-42501
96138-42501
96138-42701
Linked diagrams
1603
8714

ILLUST NO. 1 OF 3(2104- )VJA300

Click highlighted areas on diagram

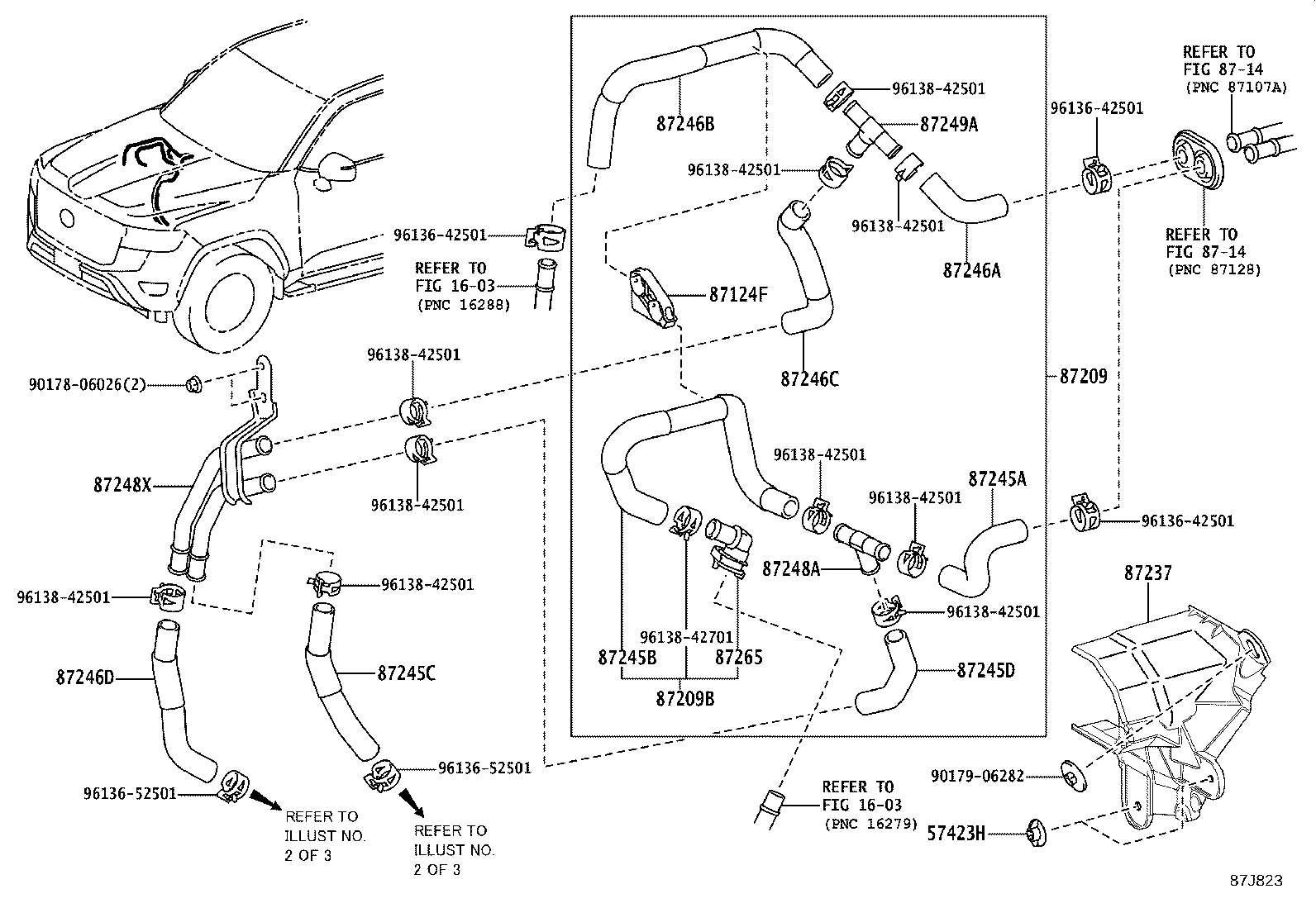

FRONT(DUAL) & W/O(WATER PUMP)

Part #	Description	Period	Qty
57423H - CLAMP, HEATER COVER
57423-26010	VJA300	04/2021 - 12/2999	2
87124F - CLAMP, HEATER HOSE, NO.1
88718-60B30	VJA300	04/2021 - 12/2999	1
87209 - HOSE SUB-ASSY, WATER
87209-60M90	VJA300..A,G	04/2021 - 12/2999	1
87209-60M30	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87209B - HOSE SUB-ASSY, WATER, B
87209-60L40	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87237 - COVER, HEATER PIPING
87237-60010	VJA300..LHD	04/2021 - 12/2999	1
87245A - HOSE, HEATER WATER, INLET A
87243-60030	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87245-60Q70	VJA300..A,G	04/2021 - 12/2999	1
87245B - HOSE, HEATER WATER, INLET B
87245-60L10	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87245C - HOSE, HEATER WATER ,INLET C
87242-60030	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87245D - HOSE, HEATER WATER, INLET D
87254-60040	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87246A - HOSE, HEATER WATER, OUTLET A
87243-60040	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87245-60Q80	VJA300..A,G	04/2021 - 12/2999	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-60L20	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87246C - HOSE, HEATER WATER, OUTLET C
87254-60030	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87246D - HOSE, HEATER WATER, OUTLET D
87242-60040	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87248A - PIPE, HEATER WATER INLET, A
87248-26880	VJA300..V,Z	04/2021 - 12/2999	1
87248X - PIPE, HEATER WATER
87248-60C50	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26880	VJA300..V,Z	04/2021 - 12/2999	1
87265 - CONNECTOR, HEATER WATER HOSE
87265-60320	VJA300	04/2021 - 12/2999	1
Common parts
90178-06026
90179-06282
96136-42501
96136-52501
96138-42501
96138-42701
Linked diagrams
1603
8714

ILLUST NO. 1 OF 3(2104- )VJA300

Click highlighted areas on diagram

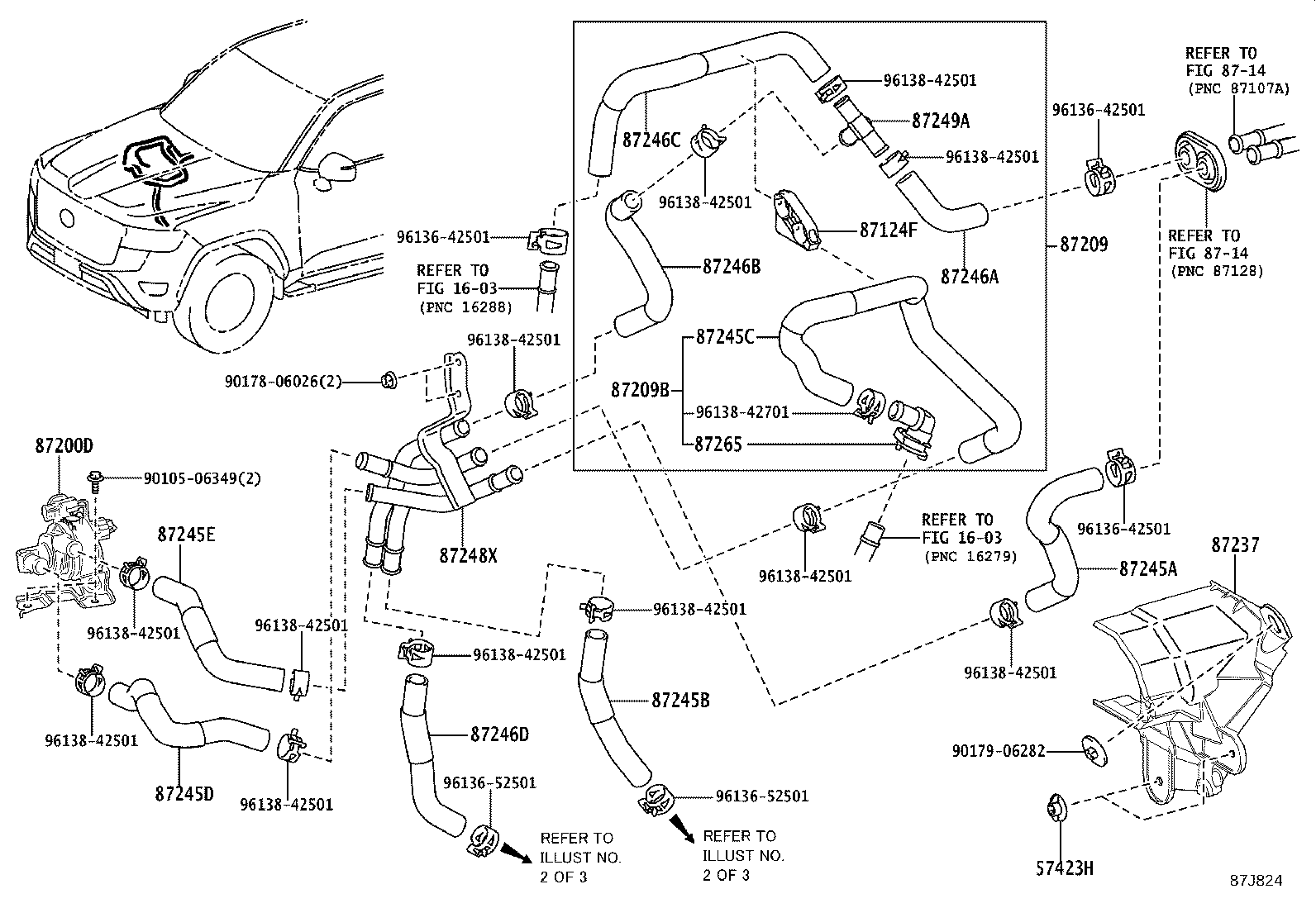

FRONT(DUAL) & W(WATER PUMP)

Part #	Description	Period	Qty
57423H - CLAMP, HEATER COVER
57423-26010	VJA300	04/2021 - 12/2999	2
87124F - CLAMP, HEATER HOSE, NO.1
88718-60B30	VJA300	04/2021 - 12/2999	1
87209 - HOSE SUB-ASSY, WATER
87209-60M90	VJA300..A,G	04/2021 - 12/2999	1
87209-60M30	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87209B - HOSE SUB-ASSY, WATER, B
87209-60L40	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87237 - COVER, HEATER PIPING
87237-60010	VJA300..LHD	04/2021 - 12/2999	1
87245A - HOSE, HEATER WATER, INLET A
87243-60030	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87245-60Q70	VJA300..A,G	04/2021 - 12/2999	1
87245B - HOSE, HEATER WATER, INLET B
87245-60L10	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87245C - HOSE, HEATER WATER ,INLET C
87242-60030	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87245D - HOSE, HEATER WATER, INLET D
87254-60040	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87245E - HOSE, HEATER WATER, INLET E
87245-60T50	GRJ300,VJA300..V,Z	04/2021 - 12/2999	1
87245-60T50	GRJ300,VJA300..V,Z COOL BOX-WITH	04/2021 - 12/2999	1
87246A - HOSE, HEATER WATER, OUTLET A
87243-60040	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87245-60Q80	VJA300..A,G	04/2021 - 12/2999	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-60L20	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87246C - HOSE, HEATER WATER, OUTLET C
87254-60030	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87246D - HOSE, HEATER WATER, OUTLET D
87242-60040	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87248X - PIPE, HEATER WATER
87248-60C50	VJA300..LHD..(V,Z)	04/2021 - 12/2999	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26880	VJA300..V,Z	04/2021 - 12/2999	1
87265 - CONNECTOR, HEATER WATER HOSE
87265-60320	VJA300	04/2021 - 12/2999	1
Common parts
90105-06349
90178-06026
90179-06282
96136-42501
96136-52501
96138-42501
96138-42701
Linked diagrams
1603
8714
