VJA300L-GMUVZW (2021)
Toyota Land Cruiser

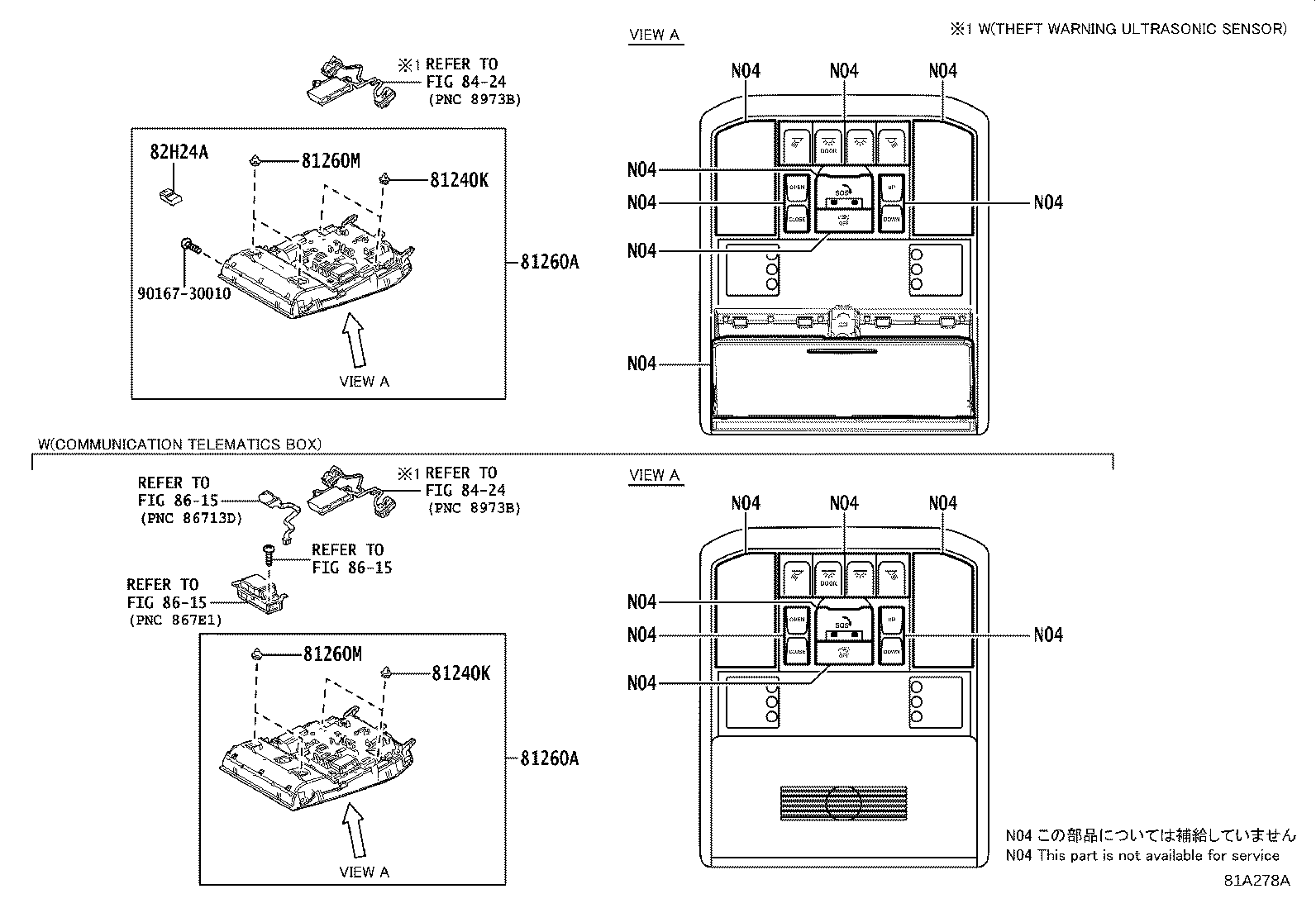

ILLUST NO. 2 OF 2(2104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81240K - CLIP, ROOM LAMP | ||||
| 90467-09245 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..LHD..A |
2 | ||
| 81240K - CLIP, ROOM LAMP | ||||
| 90467-09245 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..LHD..A |
2 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81208-60020 |
VJA300..G |
1 | ||
| 81208-60040 |
VJA300..EUR UKRAINE SPEC |
1 | ||
| 81208-60040 |
VJA300..A..EUR;VJA300..7S..V..EUR VIETNAM SPEC&ANTI-THEFT SYSTEM-*IM & SIREN & *IS & TILT |
1 | ||
| 81208-60040 |
VJA300..(V,Z)..EUR UZBEKISTAN SPEC |
1 | ||
| 81208-60040 |
VJA300..EUR AZER, GEORGIA SPEC |
1 | ||
| 81208-60040 |
VJA300..(V,Z)..EUR TAJIKISTAN, TURKMENISTAN SPEC |
1 | ||
| 81208-60050 |
VJA300..EUR |
1 | ||
| 81208-60100 |
VJA300..A..EUR VIETNAM SPEC&ANTI-THEFT SYSTEM-*IM & SIREN & *IS & TILT&MOON ROOF-WITH |
1 | ||
| 81208-60100 |
VJA300..A..EUR UKRAINE SPEC&MOON ROOF-WITH |
1 | ||
| 81208-60100 |
VJA300..(V,Z)..EUR UKRAINE SPEC&MOON ROOF-WITH(REMOTE CONTROL) |
1 | ||
| 81208-60100 |
VJA300..A..EUR AZER, GEORGIA SPEC&MOON ROOF-WITH |
1 | ||
| 81208-60100 |
VJA300..(V,Z)..EUR AZER, GEORGIA SPEC&MOON ROOF-WITH(REMOTE CONTROL) |
1 | ||
| 81208-60100 |
VJA300..(V,Z)..EUR UZBEKISTAN SPEC&MOON ROOF-WITH(REMOTE CONTROL) |
1 | ||
| 81208-60100 |
VJA300..(V,Z)..EUR TAJIKISTAN, TURKMENISTAN SPEC&MOON ROOF-WITH(REMOTE CONTROL) |
1 | ||
| 81208-60110 |
VJA300..A..EUR MOON ROOF-WITH |
1 | ||
| 81208-60110 |
VJA300..(V,Z)..EUR MOON ROOF-WITH(REMOTE CONTROL) |
1 | ||
| 81260-60G60 |
VJA300..G QATAR, BAHRAIN SPEC |
1 | ||
| 81260-60G60 |
VJA300..G OMAN SPEC |
1 | ||
| 81260-60G60 |
VJA300..G KUWAIT SPEC |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81208-60020 |
VJA300..G |
1 | ||
| 81208-60040 |
VJA300..EUR UKRAINE SPEC |
1 | ||
| 81208-60040 |
VJA300..A..EUR;VJA300..7S..V..EUR VIETNAM SPEC&ANTI-THEFT SYSTEM-*IM & SIREN & *IS & TILT |
1 | ||
| 81208-60040 |
VJA300..(V,Z)..EUR UZBEKISTAN SPEC |
1 | ||
| 81208-60040 |
VJA300..EUR AZER, GEORGIA SPEC |
1 | ||
| 81208-60040 |
VJA300..(V,Z)..EUR TAJIKISTAN, TURKMENISTAN SPEC |
1 | ||
| 81208-60050 |
VJA300..EUR |
1 | ||
| 81208-60100 |
VJA300..A..EUR VIETNAM SPEC&ANTI-THEFT SYSTEM-*IM & SIREN & *IS & TILT&MOON ROOF-WITH |
1 | ||
| 81208-60100 |
VJA300..A..EUR UKRAINE SPEC&MOON ROOF-WITH |
1 | ||
| 81208-60100 |
VJA300..(V,Z)..EUR UKRAINE SPEC&MOON ROOF-WITH(REMOTE CONTROL) |
1 | ||
| 81208-60100 |
VJA300..A..EUR AZER, GEORGIA SPEC&MOON ROOF-WITH |
1 | ||
| 81208-60100 |
VJA300..(V,Z)..EUR AZER, GEORGIA SPEC&MOON ROOF-WITH(REMOTE CONTROL) |
1 | ||
| 81208-60100 |
VJA300..(V,Z)..EUR UZBEKISTAN SPEC&MOON ROOF-WITH(REMOTE CONTROL) |
1 | ||
| 81208-60100 |
VJA300..(V,Z)..EUR TAJIKISTAN, TURKMENISTAN SPEC&MOON ROOF-WITH(REMOTE CONTROL) |
1 | ||
| 81208-60110 |
VJA300..A..EUR MOON ROOF-WITH |
1 | ||
| 81208-60110 |
VJA300..(V,Z)..EUR MOON ROOF-WITH(REMOTE CONTROL) |
1 | ||
| 81260-60G60 |
VJA300..G QATAR, BAHRAIN SPEC |
1 | ||
| 81260-60G60 |
VJA300..G OMAN SPEC |
1 | ||
| 81260-60G60 |
VJA300..G KUWAIT SPEC |
1 | ||
| 81260M - CLIP, ROOM LAMP | ||||
| 90467-10167 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..LHD..A |
2 | ||
| 81260M - CLIP, ROOM LAMP | ||||
| 90467-10167 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..LHD..A |
2 | ||
| 82H24A - CONNECTOR, WIRING HARNESS | ||||
| 82824-58010 |
VJA300..A..EUR VIETNAM SPEC&ANTI-THEFT SYSTEM-*IM & SIREN & *IS & TILT&MOON ROOF-WITH |
1 | ||
| 82824-58010 |
VJA300..A..EUR;VJA300..7S..V..EUR VIETNAM SPEC&ANTI-THEFT SYSTEM-*IM & SIREN & *IS & TILT |
1 | ||
| 82824-58010 |
VJA300..A..EUR UKRAINE SPEC&MOON ROOF-WITH |
1 | ||
| 82824-58010 |
VJA300..G OMAN SPEC |
1 | ||
| 82824-58010 |
VJA300..G KUWAIT SPEC |
1 | ||
| 82824-58010 |
VJA300..EUR UKRAINE SPEC |
1 | ||
| 82824-58010 |
VJA300..(V,Z)..EUR UKRAINE SPEC&MOON ROOF-WITH(REMOTE CONTROL) |
1 | ||
| 82824-58010 |
VJA300..EUR AZER, GEORGIA SPEC |
1 | ||
| 82824-58010 |
VJA300..A..EUR AZER, GEORGIA SPEC&MOON ROOF-WITH |
1 | ||
| 82824-58010 |
VJA300..G QATAR, BAHRAIN SPEC |
1 | ||
| 82824-58010 |
VJA300..(V,Z)..EUR UZBEKISTAN SPEC&MOON ROOF-WITH(REMOTE CONTROL) |
1 | ||
| 82824-58010 |
VJA300..(V,Z)..EUR AZER, GEORGIA SPEC&MOON ROOF-WITH(REMOTE CONTROL) |
1 | ||
| 82824-58010 |
VJA300..(V,Z)..EUR TAJIKISTAN, TURKMENISTAN SPEC |
1 | ||
| 82824-58010 |
VJA300..(V,Z)..EUR TAJIKISTAN, TURKMENISTAN SPEC&MOON ROOF-WITH(REMOTE CONTROL) |
1 | ||
| 82824-58010 |
VJA300..(V,Z)..EUR UZBEKISTAN SPEC |
1 | ||
| Common parts | ||||
| 90167-30010 | ||||
| Linked diagrams | ||||
| 8424 | ||||
| 8615 | ||||

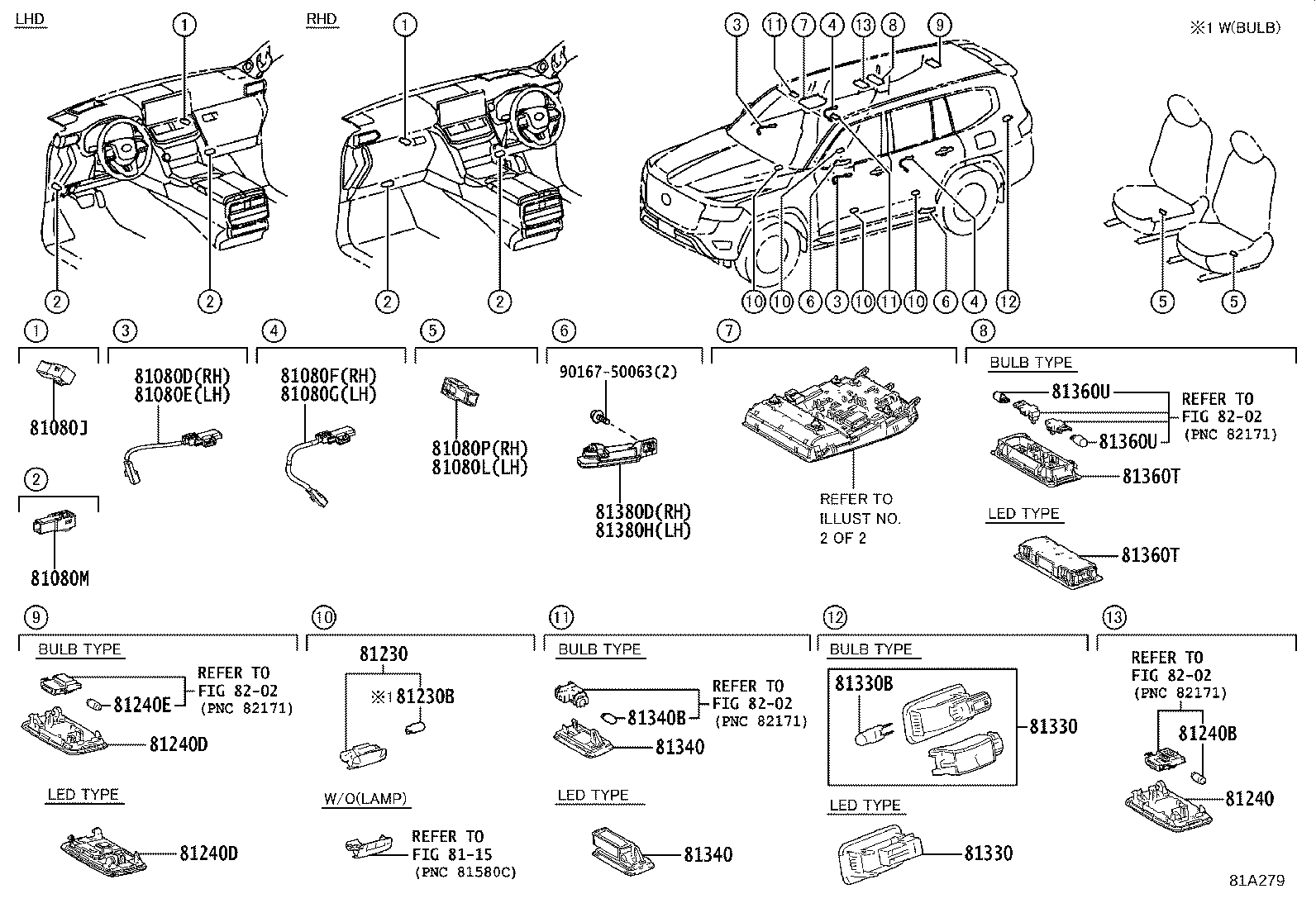

ILLUST NO. 1 OF 2(2104- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81080D - LAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH | ||||
| 81080-60310 |
VJA300..Z |
1 | ||
| 81080-60310 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL) |
1 | ||
| 81080-60310 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL) |
1 | ||
| 81080-60310 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 81080-60310 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 81080E - LAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH | ||||
| 81080-60320 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL) |
1 | ||
| 81080-60320 |
VJA300..Z |
1 | ||
| 81080-60320 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 81080-60320 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 81080-60320 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL) |
1 | ||
| 81080F - LAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH | ||||
| 81080-60310 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 81080-60310 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL) |
1 | ||
| 81080-60310 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL) |
1 | ||
| 81080-60310 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 81080-60310 |
VJA300..Z |
1 | ||
| 81080G - LAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH | ||||
| 81080-60320 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL) |
1 | ||
| 81080-60320 |
VJA300..Z |
1 | ||
| 81080-60320 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 81080-60320 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL) |
1 | ||
| 81080-60320 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81080-33290 |
GRJ300,VJA300 |
1 | ||
| 81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81080-30170 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 81080-30170 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 81080-30170 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 81080-30170 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 81080-30170 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 81080-30170 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 81080-30170 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 81080-30170 |
VJA300..Z |
1 | ||
| 81080M - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81080-33290 |
GRJ300,VJA300..V SEAT COVER MATERIAL-SYNTHETIC LEATHER |
2 | ||
| 81080-33290 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
2 | ||
| 81080-33290 |
VJA300..Z |
2 | ||
| 81080P - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-30170 |
VJA300..Z |
1 | ||
| 81080-30170 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 81080-30170 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 81080-30170 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 81080-30170 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 81080-30170 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 81080-30170 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 81080-30170 |
GRJ300,VJA300..V SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER) |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-11030 |
VJA300..Z DOOR COURTESY LAMP-FOR ACCESSORY(LED, FR & RR) |
4 | ||
| 81230-30200 |
GRJ300,VJA300..V DOOR COURTESY LAMP-FOR ACCESSORY(LED, FR & RR) |
4 | ||
| 81230-11030 |
VJA300..Z |
4 | ||
| 81230-11030 |
GRJ300,VJA300..V DOOR COURTESY LAMP- FOR ACCESSORY(LED, 70TH ANNIVERSARY) |
4 | ||
| 81230-WY040 |
GRJ300,VJA300..V,Z DOOR COURTESY LAMP-FOR ACCESSORY(LED, FR & RR) |
4 | ||
| 81230-11030 |
GRJ300,VJA300..V DOOR COURTESY LAMP-WITH(LED) |
4 | ||
| 81230-30200 |
GRJ300,VJA300..V |
4 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-12010 |
GRJ300,VJA300..V 12V 5W,DOOR COURTESY LAMP-FOR ACCESSORY(LED, FR & RR) |
4 | ||
| 90981-12010 |
GRJ300,VJA300..V 12V 5W |
4 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-12100E0 |
GRJ300..A;VJA300..LHD..(A,G) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 81240-12100C0 |
GRJ300..A;VJA300..LHD..(A,G) BLACK,TRIM2# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-14011 |
GRJ300,VJA300..A,G 12V 8W |
1 | ||
| 81240D - LAMP ASSY, ROOM, NO.2 | ||||
| 81240-12100C0 |
GRJ300..A,V;VJA300..G,V;VJA300..LHD..A BLACK,TRIM2# |
1 | ||
| 81240-48030E0 |
VJA300..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 81240-48030C1 |
GRJ300,VJA300..V ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT,BLACK,TRIM2# |
1 | ||
| 81240-12100E0 |
GRJ300..A,V;VJA300..G,V;VJA300..LHD..A NEUTRAL BEIGE,TRIM4# |
1 | ||
| 81240-48030C1 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 81240-48030C1 |
GRJ300,VJA300..V ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT,BLACK,TRIM2# |
1 | ||
| 81240-48030E0 |
GRJ300,VJA300..V ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 81240-48030E0 |
GRJ300,VJA300..V ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 81240D - LAMP ASSY, ROOM, NO.2 | ||||
| 81240-12100C0 |
GRJ300..A,V;VJA300..G,V;VJA300..LHD..A BLACK,TRIM2# |
1 | ||
| 81240-48030E0 |
VJA300..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 81240-48030C1 |
GRJ300,VJA300..V ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT,BLACK,TRIM2# |
1 | ||
| 81240-12100E0 |
GRJ300..A,V;VJA300..G,V;VJA300..LHD..A NEUTRAL BEIGE,TRIM4# |
1 | ||
| 81240-48030C1 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 81240-48030C1 |
GRJ300,VJA300..V ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT,BLACK,TRIM2# |
1 | ||
| 81240-48030E0 |
GRJ300,VJA300..V ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 81240-48030E0 |
GRJ300,VJA300..V ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 81240E - BULB, ROOM LAMP, NO.2 | ||||
| 90981-14011 |
GRJ300,VJA300..A,G,V 12V 8W |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-11010 |
GRJ300,VJA300..V,Z |
1 | ||
| 81330-30100 |
GRJ300,VJA300..A,G |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-11010 |
GRJ300,VJA300..V,Z |
1 | ||
| 81330-30100 |
GRJ300,VJA300..A,G |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 99132-12050 |
GRJ300,VJA300..A,G 12V 5W |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-30110 |
GRJ300..G;VJA300..A..(EUR,GEN) SUN VISOR-WITH(MIRROR & BULB LAMP & SLIDE ) |
2 | ||
| 81340-50260 |
GRJ300,VJA300..V,Z |
2 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-30110 |
GRJ300..G;VJA300..A..(EUR,GEN) SUN VISOR-WITH(MIRROR & BULB LAMP & SLIDE ) |
2 | ||
| 81340-50260 |
GRJ300,VJA300..V,Z |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-11062 |
GRJ300..G;VJA300..A..(EUR,GEN) 12V 8W,SUN VISOR-WITH(MIRROR & BULB LAMP & SLIDE ) |
2 | ||
| 81360T - LAMP ASSY, SPOT | ||||
| 81360-60140C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 81360-60140E0 |
VJA300..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 81360-60150C0 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 81360-60140E0 |
GRJ300,VJA300..V ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 81360-60140C0 |
GRJ300,VJA300..V ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT,BLACK,TRIM2# |
1 | ||
| 81360-60140C0 |
GRJ300,VJA300..V ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT,BLACK,TRIM2# |
1 | ||
| 81360-60150E0 |
GRJ300,VJA300..LHD..A MOON ROOF-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 81360-60140E0 |
GRJ300,VJA300..V ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 81360-60150C0 |
GRJ300,VJA300..LHD..A MOON ROOF-WITH,BLACK,TRIM2# |
1 | ||
| 81360-60150E0 |
GRJ300,VJA300..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 81360T - LAMP ASSY, SPOT | ||||
| 81360-60140C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 81360-60140E0 |
VJA300..Z NEUTRAL BEIGE,TRIM4# |
1 | ||
| 81360-60150C0 |
GRJ300,VJA300..V BLACK,TRIM2# |
1 | ||
| 81360-60140E0 |
GRJ300,VJA300..V ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 81360-60140C0 |
GRJ300,VJA300..V ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT,BLACK,TRIM2# |
1 | ||
| 81360-60140C0 |
GRJ300,VJA300..V ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT,BLACK,TRIM2# |
1 | ||
| 81360-60150E0 |
GRJ300,VJA300..LHD..A MOON ROOF-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 81360-60140E0 |
GRJ300,VJA300..V ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 81360-60150C0 |
GRJ300,VJA300..LHD..A MOON ROOF-WITH,BLACK,TRIM2# |
1 | ||
| 81360-60150E0 |
GRJ300,VJA300..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 81360U - BULB, SPOT LAMP | ||||
| 99132-12050 |
GRJ300,VJA300..V |
2 | ||
| 99132-12050 |
GRJ300,VJA300..LHD..A MOON ROOF-WITH |
2 | ||
| 81360U - BULB, SPOT LAMP | ||||
| 99132-12050 |
GRJ300,VJA300..V |
2 | ||
| 99132-12050 |
GRJ300,VJA300..LHD..A MOON ROOF-WITH |
2 | ||
| 81380D - LAMP ASSY, STEP | ||||
| 81380-60140 |
VJA300..Z;VJA300..V..EUR |
1 | ||
| 81380H - LAMP ASSY, STEP | ||||
| 81380-60150 |
VJA300..Z;VJA300..V..EUR |
1 | ||
| Common parts | ||||
| 90167-50063 | ||||
| Linked diagrams | ||||
| 8115 | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
