VJA300L-GMUVZW (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999
Engine V35AFTS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

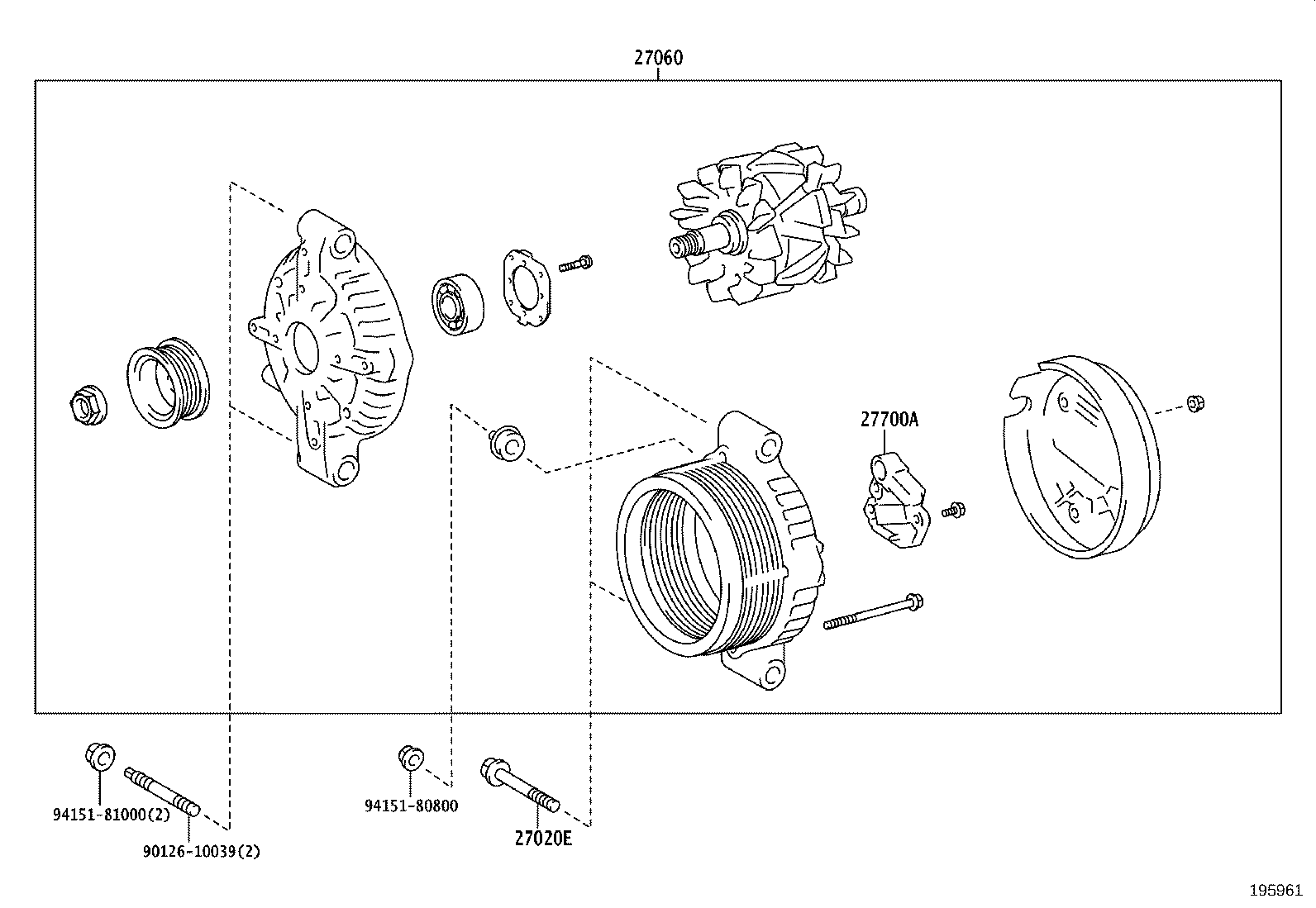

(2104- )V35AFTS

Click highlighted areas on diagram

12V 180A

diagram 27020E 27060 27700A 9012610039 9415180800 9415181000
Part # Description Qty Price
27020E - BOLT(FOR ALTERNATOR)
91552-81070

V35AFTS..VJA300

 2
27060 - ALTERNATOR ASSY, W/REGULATOR
27060-0W040

V35AFTS..VJA300..(V,Z)..EUR

12V 180A,WINDSHIELD DEICER-WITH(FOR WIPER)

 1
27060-70550

V35AFTS..VJA300..EUR

12V 240A

 1
27060-0W040

V35AFTS..VJA300..EUR

12V 180A,WINDSHIELD DEICER-WITHOUT

 1
27700A - REGULATOR ASSY, GENERATOR
27700-0W030

V35AFTS..VJA300..EUR

WINDSHIELD DEICER-WITHOUT

 1
27700-0W030

V35AFTS..VJA300..(V,Z)..EUR

WINDSHIELD DEICER-WITH(FOR WIPER)

 1
Common parts
90126-10039
94151-80800
94151-81000

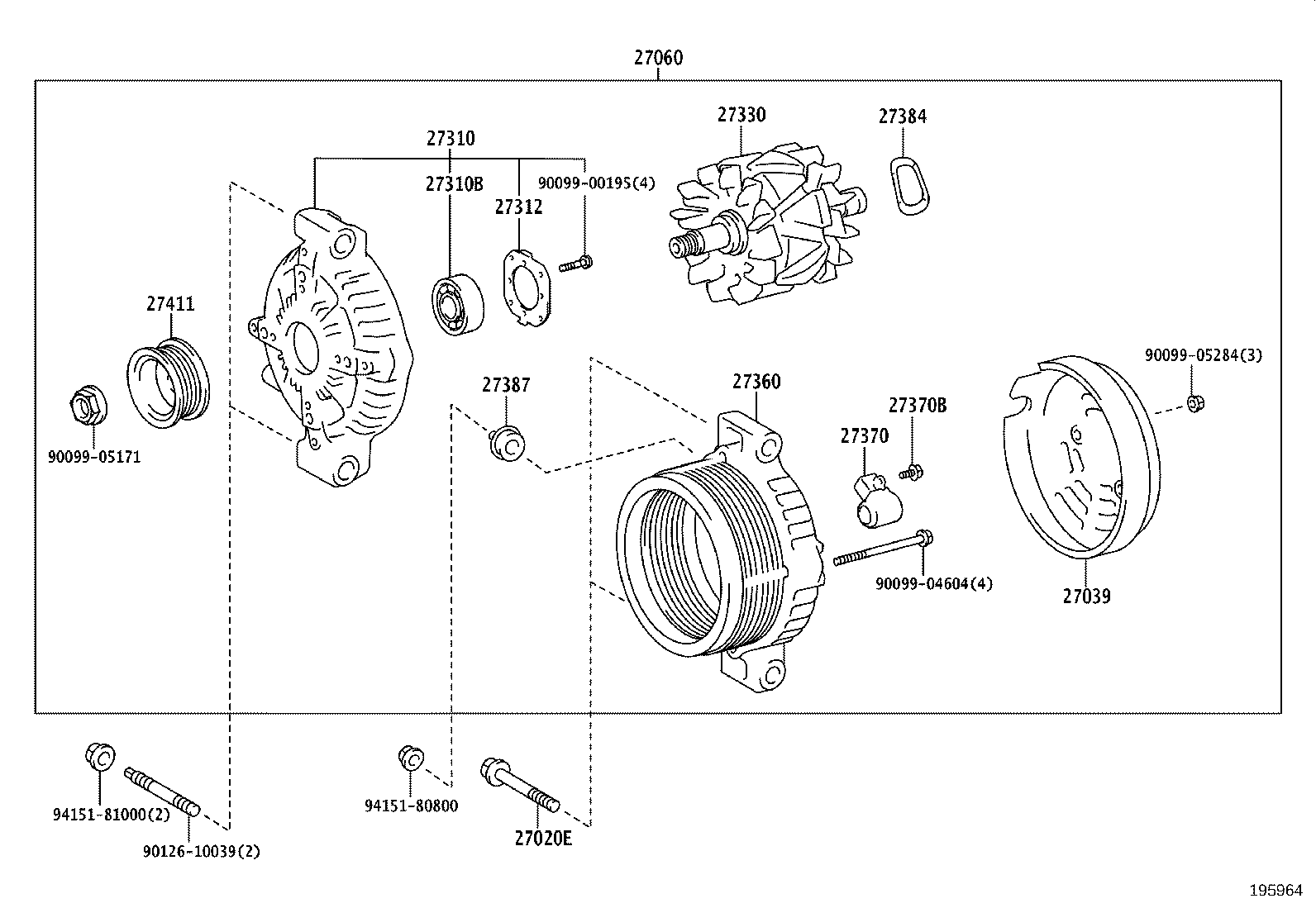

(2104- )V35AFTS

Click highlighted areas on diagram

12V 240A

diagram 27020E 27039 27060 27310 27310B 27312 27330 27360 27370 27370B 27384 27387 27411 9009900195 9009904604 9009905171 9009905284 9012610039 9415180800 9415181000
Part # Description Qty Price
27020E - BOLT(FOR ALTERNATOR)
91552-81070

V35AFTS..VJA300

 2
27039 - COVER, ALTERNATOR REAR END
27039-38140

V35AFTS..VJA300..EUR

 1
27060 - ALTERNATOR ASSY, W/REGULATOR
27060-0W040

V35AFTS..VJA300..(V,Z)..EUR

12V 180A,WINDSHIELD DEICER-WITH(FOR WIPER)

 1
27060-70550

V35AFTS..VJA300..EUR

12V 240A

 1
27060-0W040

V35AFTS..VJA300..EUR

12V 180A,WINDSHIELD DEICER-WITHOUT

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-70510

V35AFTS..VJA300..EUR

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10226

V35AFTS..VJA300..EUR

 1
27312 - PLATE, RETAINER
27312-42010

V35AFTS..VJA300..EUR

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-70510

V35AFTS..VJA300..EUR

 1
27360 - COIL ASSY, ALTERNATOR
27360-70510

V35AFTS..VJA300..EUR

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-27060

V35AFTS..VJA300..EUR

 1
27370B - SCREW(FOR ALTERNATOR BRUSH HOLDER)
90099-00197

1GRFE..GRJ300;V35AFTS..VJA300..EUR

 2
27384 - WASHER
27384-38130

V35AFTS..VJA300..EUR

 1
27387 - INSULATOR, TERMINAL
27387-38130

V35AFTS..VJA300..EUR

 1
27411 - PULLEY, ALTERNATOR
27411-50190

V35AFTS..VJA300..EUR

 1
Common parts
90099-00195
90099-04604
90099-05171
90099-05284
90126-10039
94151-80800
94151-81000
