VJA300L-GMUAZW (2021)
Toyota Land Cruiser

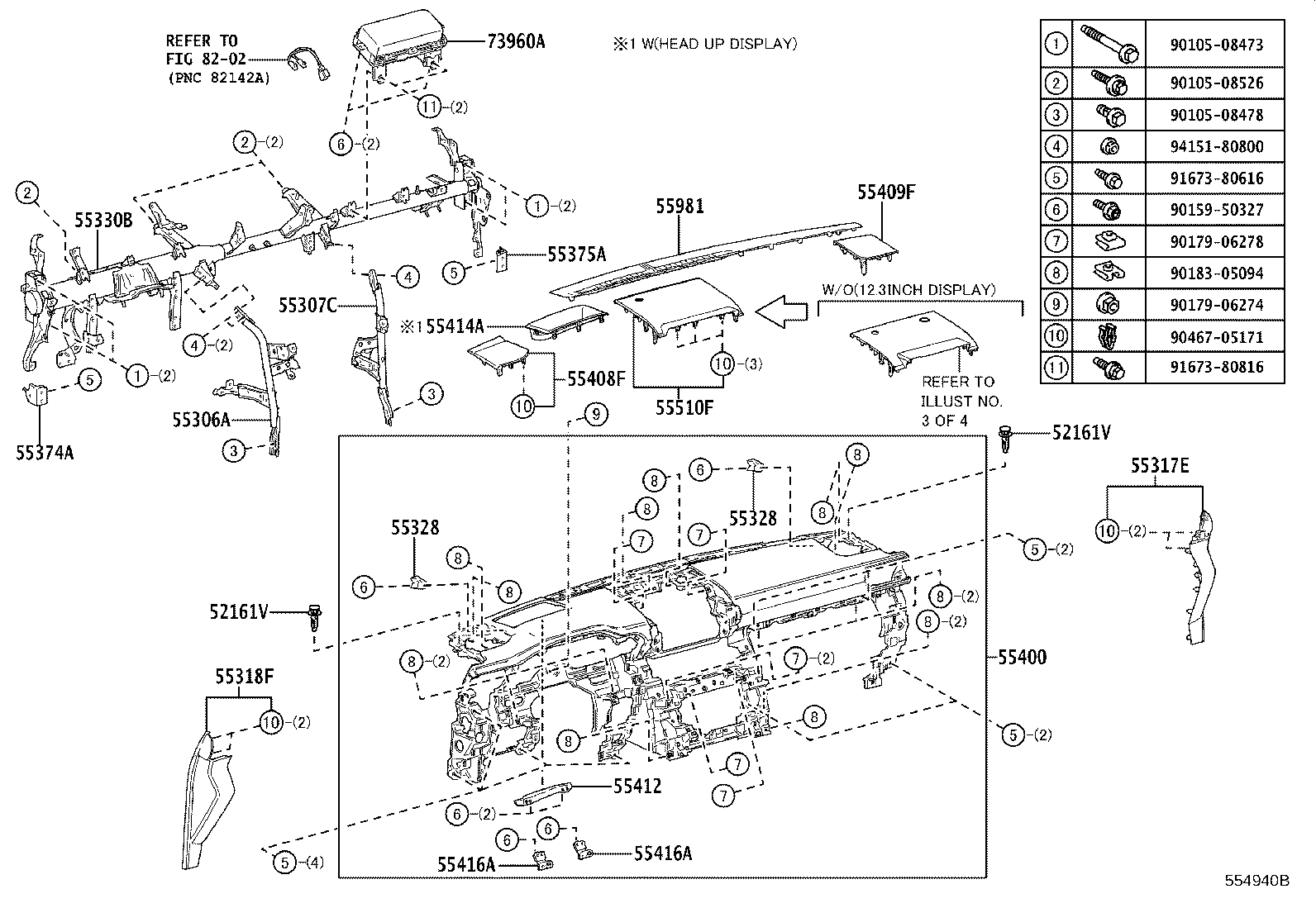

ILLUST NO. 1 OF 4(2104- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-16010 |
GRJ300,VJA300 |
2 | ||
| 52161V - PIECE, INSTRUMENT PANEL | ||||
| 52161-16010 |
GRJ300,VJA300 |
2 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-60200 |
GRJ300,VJA300..LHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-60140 |
GRJ300,VJA300..LHD |
1 | ||
| 55317E - PANEL, INSTRUMENT SIDE, NO.1 | ||||
| 55317-60090C0 |
GRJ300,VJA300..LHD..(A,G,V) BLACK,TRIM2# |
1 | ||
| 55317-60090C0 |
VJA300..LHD..Z BLACK,TRIM2#,3# |
1 | ||
| 55317-60090C1 |
GRJ300,VJA300..LHD BLACK,TRIM4# |
1 | ||
| 55318F - PANEL, INSTRUMENT SIDE, NO.2 | ||||
| 55318-60180C0 |
VJA300..LHD..Z BLACK,TRIM2#,3# |
1 | ||
| 55318-60180C0 |
GRJ300,VJA300..LHD..(A,G,V) BLACK,TRIM2# |
1 | ||
| 55318-60180C1 |
GRJ300,VJA300..LHD BLACK,TRIM4# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-28130 |
GRJ300,VJA300 |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-28130 |
GRJ300,VJA300 |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-60500 |
GRJ300,VJA300..LHD |
1 | ||
| 55374A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH | ||||
| 55374-60150 |
GRJ300,VJA300 |
1 | ||
| 55375A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH | ||||
| 55375-60130 |
GRJ300,VJA300 |
1 | ||
| 55400 - PAD ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-60090C0 |
VJA300..Z..(EUR,GCC) BLACK,TRIM2#,3#,4# |
1 | ||
| 55400-60100C0 |
GRJ300,VJA300..LHD..(A,G,V) BLACK,TRIM2#,4# |
1 | ||
| 55400-60090C0 |
VJA300..LHD..V..(EUR,GEN) HEAD-UP DISPLAY-WITH,BLACK,TRIM2#,4# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-60270C0 |
VJA300..Z..EUR BLACK,TRIM2#,3#,4# |
1 | ||
| 55408-60270C0 |
GRJ300,VJA300..LHD..(A,G,V) BLACK,TRIM2#,4# |
1 | ||
| 55408-60310C0 |
GRJ300,VJA300..LHD..V AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM2#,4# |
1 | ||
| 55408-60310C0 |
VJA300..Z..EUR AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM2#,3#,4# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-60140C0 |
GRJ300,VJA300..LHD..(A,G,V) BLACK,TRIM2#,4# |
1 | ||
| 55409-60140C0 |
VJA300..Z..EUR BLACK,TRIM2#,3#,4# |
1 | ||
| 55409-60180C0 |
GRJ300,VJA300..LHD..V AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM2#,4# |
1 | ||
| 55409-60180C0 |
VJA300..Z..EUR AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM2#,3#,4# |
1 | ||
| 55412 - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-60220 |
VJA300..5S..V;VJA300..LHD..7S..(EUR,GEN) HEAD-UP DISPLAY-WITH |
1 | ||
| 55414-60220 |
VJA300..Z..(EUR,GCC) |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-60200C0 |
VJA300..Z..(EUR,GCC) BLACK,TRIM2#,3#,4# |
1 | ||
| 55414-60200C0 |
VJA300..LHD..V..(EUR,GEN) HEAD-UP DISPLAY-WITH,BLACK,TRIM2#,4# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-60120 |
GRJ300,VJA300 |
2 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-60120 |
GRJ300,VJA300 |
2 | ||
| 55510F - COVER ASSY, SPEAKER OPENING, NO.1 | ||||
| 55510-60150C0 |
VJA300..Z..EUR AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM2#,3#,4# |
1 | ||
| 55510-60150C0 |
GRJ300,VJA300..V AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM2#,4# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-60070 |
GRJ300,VJA300..LHD |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-60410 |
GRJ300,VJA300..LHD |
1 | ||
| Common parts | ||||
| 90105-08473 | ||||
| 90105-08478 | ||||
| 90105-08526 | ||||
| 90159-50327 | ||||
| 90179-06274 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

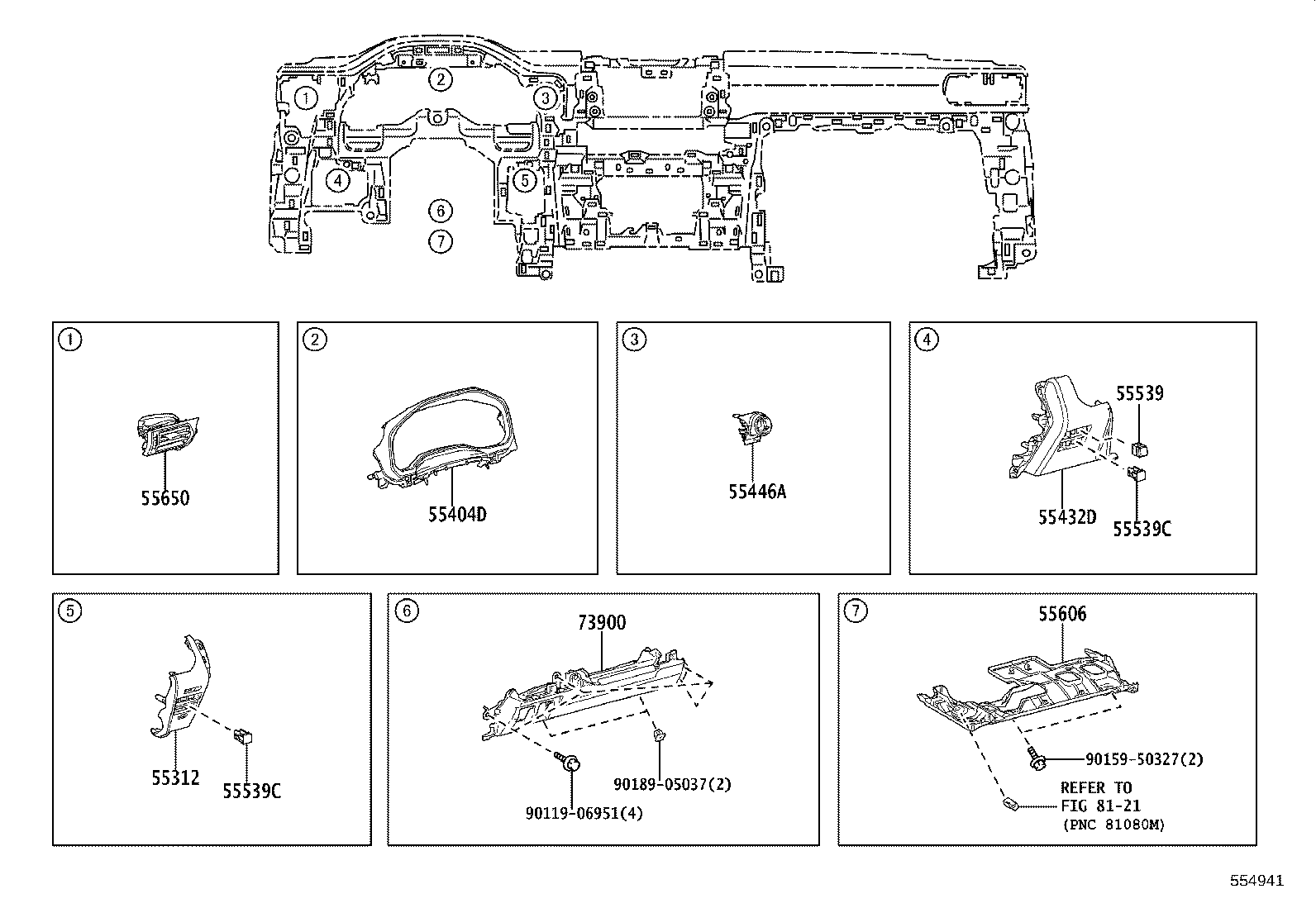

ILLUST NO. 2 OF 4(2104- )LHD
DRIVER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-60110C0 |
GRJ300,VJA300..LHD..(A,G,V) BLACK,TRIM2# |
1 | ||
| 55312-60110C0 |
VJA300..LHD..Z BLACK,TRIM2#,3# |
1 | ||
| 55312-60110E0 |
GRJ300,VJA300..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-60490 |
GRJ300,VJA300..LHD |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-60540E0 |
GRJ300,VJA300..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55432-60540C0 |
VJA300..LHD..Z BLACK,TRIM2#,3# |
1 | ||
| 55432-60540C0 |
GRJ300,VJA300..LHD..(A,G,V) BLACK,TRIM2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-60280 |
GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 55446-60300 |
GRJ300,VJA300..LHD..(V,Z) |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-42070C0 |
GRJ300,VJA300..V,Z BLACK |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C1 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 55539-33170C1 |
VJA300..Z..(EUR,GEN) ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE),BLACK,TRIM2#,3# |
1 | ||
| 55539-33170C1 |
VJA300..G;VJA300..A..EUR BLACK |
1 | ||
| 55539-33170C1 |
GRJ300;VJA300..5S..V;VJA300..7S..(A,V) BLACK,TRIM2# |
1 | ||
| 55539-33170C1 |
GRJ300;VJA300..5S..V;VJA300..7S..(A,V) DIFFERENTIAL LOCK-WITH(REAR),BLACK,TRIM2# |
1 | ||
| 55539-33170C1 |
GRJ300,VJA300..V PARKING SUPPORT BRAKE-WITH,BLACK,TRIM2# |
1 | ||
| 55539-33170C1 |
GRJ300..G,V;VJA300..V..(EUR,GCC) DIFFERENTIAL LOCK-WITH(FRONT & REAR),BLACK,TRIM2# |
1 | ||
| 55539-33170C1 |
VJA300..A..EUR DIFFERENTIAL LOCK-WITH(FRONT & REAR),BLACK |
1 | ||
| 55539-33170C1 |
VJA300..V..EUR PARKING SUPPORT BRAKE-WITH & WITH(*BSM),BLACK,TRIM2# |
1 | ||
| 55539-33170C1 |
VJA300..V..EUR PARKING SUPPORT BRAKE-WITH & WITH(*BSM & REAR CAMERA),BLACK,TRIM2# |
1 | ||
| 55539-33170C1 |
VJA300..V..EUR PARKING SUPPORT BRAKE-WITH & WITH(REAR CAMERA),BLACK,TRIM2# |
1 | ||
| 55539-33170C1 |
VJA300..Z..EUR PARKING SUPPORT BRAKE-WITH & WITH(*BSM & REAR CAMERA),BLACK,TRIM2#,3# |
1 | ||
| 55539-33170C1 |
VJA300..A..EUR PARKING SUPPORT BRAKE-WITH,BLACK |
1 | ||
| 55539-33170C1 |
VJA300..A..EUR ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE),BLACK |
1 | ||
| 55539-33170C1 |
VJA300..V..EUR HEADLAMP-PROJECTOR(*AHB),BLACK,TRIM2# |
1 | ||
| 55539-33170C1 |
VJA300..Z..(EUR,GEN) PARKING SUPPORT BRAKE-WITH,BLACK,TRIM2#,3# |
1 | ||
| 55539-33170C1 |
GRJ300,VJA300..V PARKING SUPPORT BRAKE-WITH & WITH(*RCDE),BLACK,TRIM2# |
1 | ||
| 55539-33170C1 |
VJA300..Z..EUR PARKING SUPPORT BRAKE-WITH & WITH(REAR CAMERA),BLACK,TRIM2#,3# |
1 | ||
| 55539-33170C1 |
GRJ300;VJA300..5S..(V,Z);VJA300..7S..(A,V,Z) BLACK |
1 | ||
| 55539-33170C1 |
VJA300..Z..(EUR,GEN) PARKING SUPPORT BRAKE-WITH & WITH(*RCDE),BLACK,TRIM2#,3# |
1 | ||
| 55539-33170C1 |
VJA300..V..EUR HEADLAMP-PROJECTOR(*AHB & SEQUENTIAL TURN LAMP),BLACK,TRIM2# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-33170C1 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 55539-33170C1 |
VJA300..Z..(EUR,GEN) ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE),BLACK,TRIM2#,3# |
1 | ||
| 55539-33170C1 |
VJA300..G;VJA300..A..EUR BLACK |
1 | ||
| 55539-33170C1 |
GRJ300;VJA300..5S..V;VJA300..7S..(A,V) BLACK,TRIM2# |
1 | ||
| 55539-33170C1 |
GRJ300;VJA300..5S..V;VJA300..7S..(A,V) DIFFERENTIAL LOCK-WITH(REAR),BLACK,TRIM2# |
1 | ||
| 55539-33170C1 |
GRJ300,VJA300..V PARKING SUPPORT BRAKE-WITH,BLACK,TRIM2# |
1 | ||
| 55539-33170C1 |
GRJ300..G,V;VJA300..V..(EUR,GCC) DIFFERENTIAL LOCK-WITH(FRONT & REAR),BLACK,TRIM2# |
1 | ||
| 55539-33170C1 |
VJA300..A..EUR DIFFERENTIAL LOCK-WITH(FRONT & REAR),BLACK |
1 | ||
| 55539-33170C1 |
VJA300..V..EUR PARKING SUPPORT BRAKE-WITH & WITH(*BSM),BLACK,TRIM2# |
1 | ||
| 55539-33170C1 |
VJA300..V..EUR PARKING SUPPORT BRAKE-WITH & WITH(*BSM & REAR CAMERA),BLACK,TRIM2# |
1 | ||
| 55539-33170C1 |
VJA300..V..EUR PARKING SUPPORT BRAKE-WITH & WITH(REAR CAMERA),BLACK,TRIM2# |
1 | ||
| 55539-33170C1 |
VJA300..Z..EUR PARKING SUPPORT BRAKE-WITH & WITH(*BSM & REAR CAMERA),BLACK,TRIM2#,3# |
1 | ||
| 55539-33170C1 |
VJA300..A..EUR PARKING SUPPORT BRAKE-WITH,BLACK |
1 | ||
| 55539-33170C1 |
VJA300..A..EUR ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE),BLACK |
1 | ||
| 55539-33170C1 |
VJA300..V..EUR HEADLAMP-PROJECTOR(*AHB),BLACK,TRIM2# |
1 | ||
| 55539-33170C1 |
VJA300..Z..(EUR,GEN) PARKING SUPPORT BRAKE-WITH,BLACK,TRIM2#,3# |
1 | ||
| 55539-33170C1 |
GRJ300,VJA300..V PARKING SUPPORT BRAKE-WITH & WITH(*RCDE),BLACK,TRIM2# |
1 | ||
| 55539-33170C1 |
VJA300..Z..EUR PARKING SUPPORT BRAKE-WITH & WITH(REAR CAMERA),BLACK,TRIM2#,3# |
1 | ||
| 55539-33170C1 |
GRJ300;VJA300..5S..(V,Z);VJA300..7S..(A,V,Z) BLACK |
1 | ||
| 55539-33170C1 |
VJA300..Z..(EUR,GEN) PARKING SUPPORT BRAKE-WITH & WITH(*RCDE),BLACK,TRIM2#,3# |
1 | ||
| 55539-33170C1 |
VJA300..V..EUR HEADLAMP-PROJECTOR(*AHB & SEQUENTIAL TURN LAMP),BLACK,TRIM2# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-60160 |
GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 55606-60190 |
GRJ300,VJA300..LHD..(V,Z) |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-60440 |
GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 55650-60460 |
GRJ300,VJA300..LHD..(V,Z) |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-60250C0 |
GRJ300,VJA300..LHD..(A,G,V) BLACK,TRIM2# |
1 | ||
| 73900-60250C0 |
VJA300..LHD..Z BLACK,TRIM2#,3# |
1 | ||
| 73900-60250E0 |
GRJ300,VJA300..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-50327 | ||||
| 90189-05037 | ||||
| Linked diagrams | ||||
| 8121 | ||||

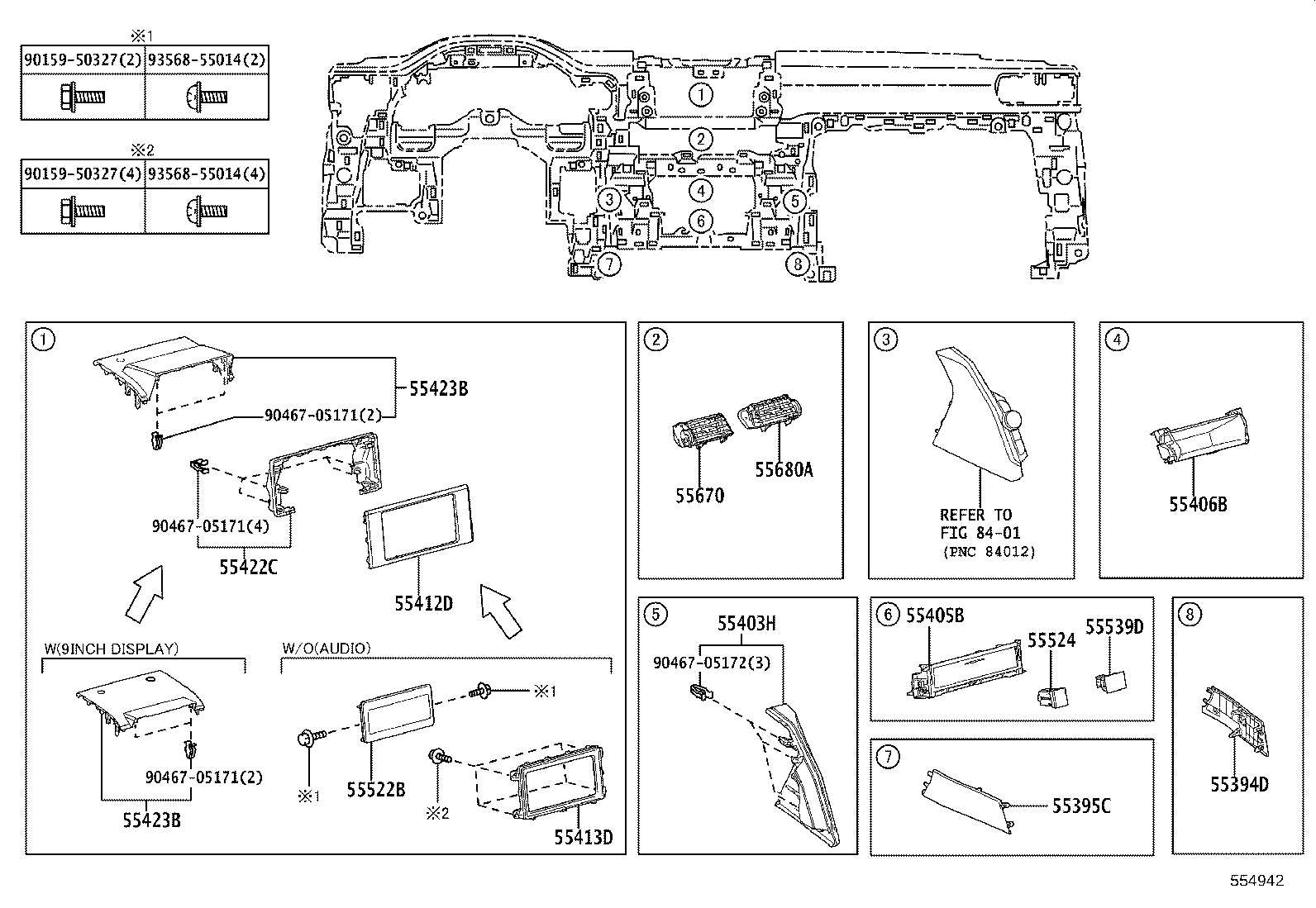

ILLUST NO. 3 OF 4(2104- )LHD
CENTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55394D - COVER, INSTRUMENT PANEL BRACKET, INNER NO.1 RH | ||||
| 55394-60060C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 55394-60060E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55394-60060C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
1 | ||
| 55395C - COVER, INSTRUMENT PANEL BRACKET, INNER NO.1 LH | ||||
| 55395-60080E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55395-60080C0 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 55395-60080C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
1 | ||
| 55403H - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 55403-60210E0 |
GRJ300,VJA300..LHD..(A,G) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55403-60210C0 |
GRJ300,VJA300..LHD..(A,G) BLACK,TRIM2# |
1 | ||
| 55403-60230C1 |
VJA300..LHD..Z BLACK,TRIM2#,3# |
1 | ||
| 55403-60230C1 |
GRJ300,VJA300..LHD..V BLACK,TRIM2# |
1 | ||
| 55403-60230E1 |
GRJ300,VJA300..LHD..(V,Z) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-60360 |
GRJ300,VJA300..LHD |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-60480 |
VJA300..Z..EUR;GRJ300,VJA300..LHD..(A,G,V) |
1 | ||
| 55406-60480 |
VJA300..Z..EUR;GRJ300,VJA300..LHD..V AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL) |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-60440 |
VJA300..Z..EUR;GRJ300,VJA300..A,G,V |
1 | ||
| 55412-60440 |
VJA300..Z..EUR;GRJ300,VJA300..V AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL) |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-60450 |
VJA300..EUR;VJA300..A..GEN;GRJ300,VJA300..G |
1 | ||
| 55413-60450 |
VJA300..(V,Z)..EUR AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL) |
1 | ||
| 55413-60450 |
VJA300..A..GEN;GRJ300,VJA300..G AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER |
1 | ||
| 55413-60450 |
GRJ300..G;VJA300..(A,V)..EUR AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-60250 |
VJA300..Z..EUR;GRJ300,VJA300..A,G,V |
1 | ||
| 55422-60250 |
VJA300..Z..EUR;GRJ300,VJA300..V AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL) |
1 | ||
| 55423B - COVER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55423-60140C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2#,4# |
1 | ||
| 55423-60140C0 |
VJA300..Z..EUR BLACK,TRIM2#,3#,4# |
1 | ||
| 55423-60140C0 |
VJA300..Z..EUR AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM2#,3#,4# |
1 | ||
| 55423-60140C0 |
GRJ300,VJA300..V AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM2#,4# |
1 | ||
| 55423-60150C0 |
VJA300..LHD..(A,V)..(EUR,GEN) AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55423B - COVER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55423-60140C0 |
GRJ300,VJA300..A,G,V BLACK,TRIM2#,4# |
1 | ||
| 55423-60140C0 |
VJA300..Z..EUR BLACK,TRIM2#,3#,4# |
1 | ||
| 55423-60140C0 |
VJA300..Z..EUR AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM2#,3#,4# |
1 | ||
| 55423-60140C0 |
GRJ300,VJA300..V AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM2#,4# |
1 | ||
| 55423-60150C0 |
VJA300..LHD..(A,V)..(EUR,GEN) AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
GRJ300..G;VJA300..(A,V)..EUR AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER |
1 | ||
| 55522-52020 |
VJA300..EUR;VJA300..A..GEN;GRJ300,VJA300..G |
1 | ||
| 55522-52020 |
VJA300..A..GEN;GRJ300,VJA300..G AUDIO(FOR OVERSEAS MARKET)-CD & AM(9KHZ)/FM & 6SPEAKER |
1 | ||
| 55522-52020 |
VJA300..(V,Z)..EUR AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL) |
1 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-12010C0 |
VJA300..Z..EUR;GRJ300,VJA300..A,G,V BLACK |
1 | ||
| 55524-12010C0 |
VJA300..A..EUR ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:2)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER,BLACK |
1 | ||
| 55524-12010C0 |
VJA300..Z..EUR;GRJ300,VJA300..V AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK |
1 | ||
| 55524-12010C0 |
GRJ300,VJA300..LHD..V AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER,BLACK |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-12260C0 |
GRJ300,VJA300..A,G BLACK |
1 | ||
| 55539-12260C0 |
VJA300..A..EUR ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:2)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER,BLACK |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-60380 |
GRJ300,VJA300..A,G |
1 | ||
| 55670-60400 |
GRJ300,VJA300..V,Z |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-60230 |
GRJ300,VJA300..A,G |
1 | ||
| 55680-60250 |
GRJ300,VJA300..V,Z |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

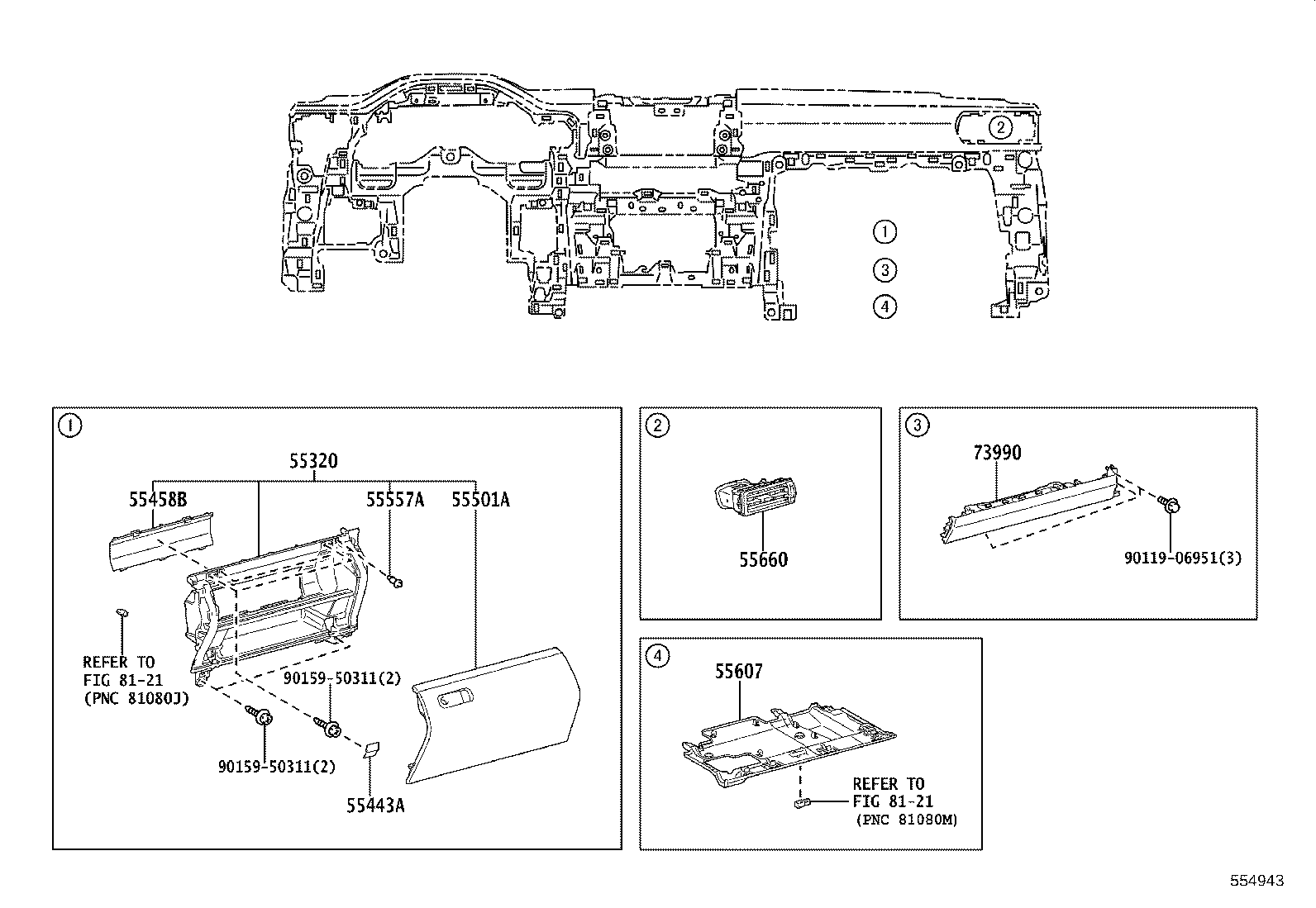

ILLUST NO. 4 OF 4(2104- )LHD
PASSENGER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55320 - PANEL ASSY, INSTRUMENT, LOWER NO.2 | ||||
| 55320-60110E1 |
GRJ300,VJA300..LHD..(A,G) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55320-60110C1 |
GRJ300,VJA300..LHD..(A,G) BLACK,TRIM2# |
1 | ||
| 55320-60130C2 |
VJA300..LHD..Z BLACK,TRIM2#,3# |
1 | ||
| 55320-60130C2 |
GRJ300,VJA300..LHD..V BLACK,TRIM2# |
1 | ||
| 55320-60130E2 |
GRJ300,VJA300..LHD..(V,Z) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55443A - COVER, INSTRUMENT PANEL BOX DOOR | ||||
| 55443-60220 |
GRJ300,VJA300 |
2 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55459-60250 |
GRJ300,VJA300 |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-60290C0 |
GRJ300,VJA300..LHD..V BLACK,TRIM2# |
1 | ||
| 55501-60270C0 |
GRJ300,VJA300..LHD..(A,G) BLACK,TRIM2# |
1 | ||
| 55501-60270E0 |
GRJ300,VJA300..LHD..(A,G) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55501-60290C0 |
VJA300..LHD..Z BLACK,TRIM2#,3# |
1 | ||
| 55501-60290E0 |
GRJ300,VJA300..LHD..(V,Z) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-10040 |
GRJ300,VJA300 |
2 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-60180 |
GRJ300,VJA300..LHD..(V,Z) |
1 | ||
| 55607-60160 |
GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-60530 |
GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 55660-60550 |
GRJ300,VJA300..LHD..(V,Z) |
1 | ||
| 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 73990-60100C0 |
VJA300..LHD..Z BLACK,TRIM2#,3# |
1 | ||
| 73990-60100C0 |
GRJ300,VJA300..LHD..(A,G,V) BLACK,TRIM2# |
1 | ||
| 73990-60100E0 |
GRJ300,VJA300..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-50311 | ||||
| Linked diagrams | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
