VDJ79R-TJMRYQ3 (2016)

Toyota Land Cruiser

Production Aug 2016 - Sep 9999
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1909- )HZJ71,79..RHD..PIC,SOT

Click highlighted areas on diagram

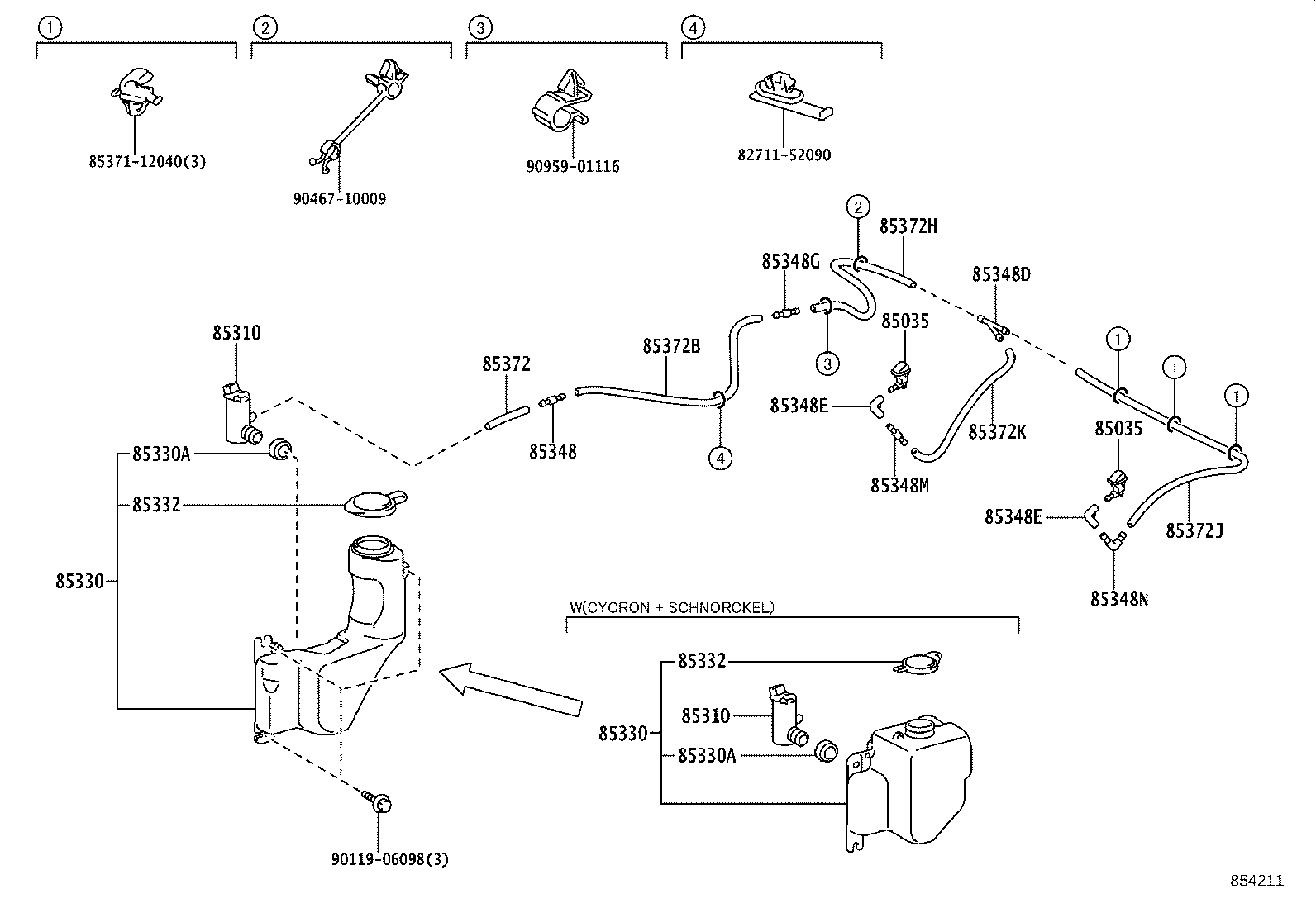

diagram 8271152090 85035 85035 85310 85310 85330 85330 85330A 85330A 85332 85332 85348 85348D 85348E 85348E 85348G 85348M 85348N 8537112040 85372 85372B 85372H 85372J 85372K 9011906098 9046710009 9095901116
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-60170

VDJ7#..ARL

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-60170

VDJ7#..ARL

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-90B00

HZJ71,79..RHD..(PIC,SOT)

CKD PACKAGE(BANGLADESH)

 1
85330-71010

GRJ7#,HZJ7#,VDJ7#

 1
85310-90B00

HZJ71,79..RHD..(PIC,SOT)

BATTERY-80D26R X 2 SERIES

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-90B00

HZJ71,79..RHD..(PIC,SOT)

CKD PACKAGE(BANGLADESH)

 1
85330-71010

GRJ7#,HZJ7#,VDJ7#

 1
85310-90B00

HZJ71,79..RHD..(PIC,SOT)

BATTERY-80D26R X 2 SERIES

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-60230

HZJ71,79..RHD..(PIC,SOT)

BATTERY-80D26R X 2 SERIES

 1
85315-60230

HZJ71,79..RHD..(PIC,SOT)

CKD PACKAGE(BANGLADESH)

 1
85315-60330

GRJ7#,HZJ7#,VDJ7#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-60230

HZJ71,79..RHD..(PIC,SOT)

BATTERY-80D26R X 2 SERIES

 1
85315-60230

HZJ71,79..RHD..(PIC,SOT)

CKD PACKAGE(BANGLADESH)

 1
85315-60330

GRJ7#,HZJ7#,VDJ7#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

HZJ71,79..RHD..(PIC,SOT)

BATTERY-80D26R X 2 SERIES

 1
90099-32089

HZJ71,79..RHD..(PIC,SOT)

CKD PACKAGE(BANGLADESH)

 1
85336-60300

GRJ7#,HZJ7#,VDJ7#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

HZJ71,79..RHD..(PIC,SOT)

BATTERY-80D26R X 2 SERIES

 1
90099-32089

HZJ71,79..RHD..(PIC,SOT)

CKD PACKAGE(BANGLADESH)

 1
85336-60300

GRJ7#,HZJ7#,VDJ7#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-35130

HZJ71,79..RHD..(PIC,SOT)

CKD PACKAGE(BANGLADESH)

 1
85316-35130

HZJ71,79..RHD..(PIC,SOT)

BATTERY-80D26R X 2 SERIES

 1
85332-12740

GRJ7#,HZJ7#,VDJ7#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-35130

HZJ71,79..RHD..(PIC,SOT)

CKD PACKAGE(BANGLADESH)

 1
85316-35130

HZJ71,79..RHD..(PIC,SOT)

BATTERY-80D26R X 2 SERIES

 1
85332-12740

GRJ7#,HZJ7#,VDJ7#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

VDJ7#..ARL

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85348-14390

VDJ7#..ARL

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
90099-33080

VDJ7#..ARL

 2
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
90099-33080

VDJ7#..ARL

 2
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122

VDJ7#..ARL

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-10260

VDJ7#..ARL

 2
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

GRJ7#,HZJ7#,VDJ7#

*H,L=50

 1
90099-33080

HZJ71,79..RHD..(PIC,SOT)

*H,L=50,CKD PACKAGE(BANGLADESH)

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90446-07001

HZJ71,79..RHD..(PIC,SOT)

*H,L=1000,CKD PACKAGE(BANGLADESH)

 1
90099-33080

GRJ7#,HZJ7#,VDJ7#

*H,L=690

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

HZJ71,79..RHD..(PIC,SOT)

*H,L=710,CKD PACKAGE(BANGLADESH)

 1
90099-33080

VDJ7#..ARL

*H,L=680

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
90446-07001

HZJ71,79..RHD..(PIC,SOT)

*H,L=810,CKD PACKAGE(BANGLADESH)

 1
90099-33080

VDJ7#..ARL

*H,L=690

 1
85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
90446-07001

HZJ71,79..RHD..(PIC,SOT)

*H,L=200,CKD PACKAGE(BANGLADESH)

 1
90099-33080

VDJ7#..ARL

*H,L=70

 1
Common parts
82711-52090
85371-12040
90119-06098
90467-10009
90959-01116
