VDJ79R-TJMRYQ3 (2016)

Toyota Land Cruiser

Production Aug 2016 - Sep 9999
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1608- )VDJ7#

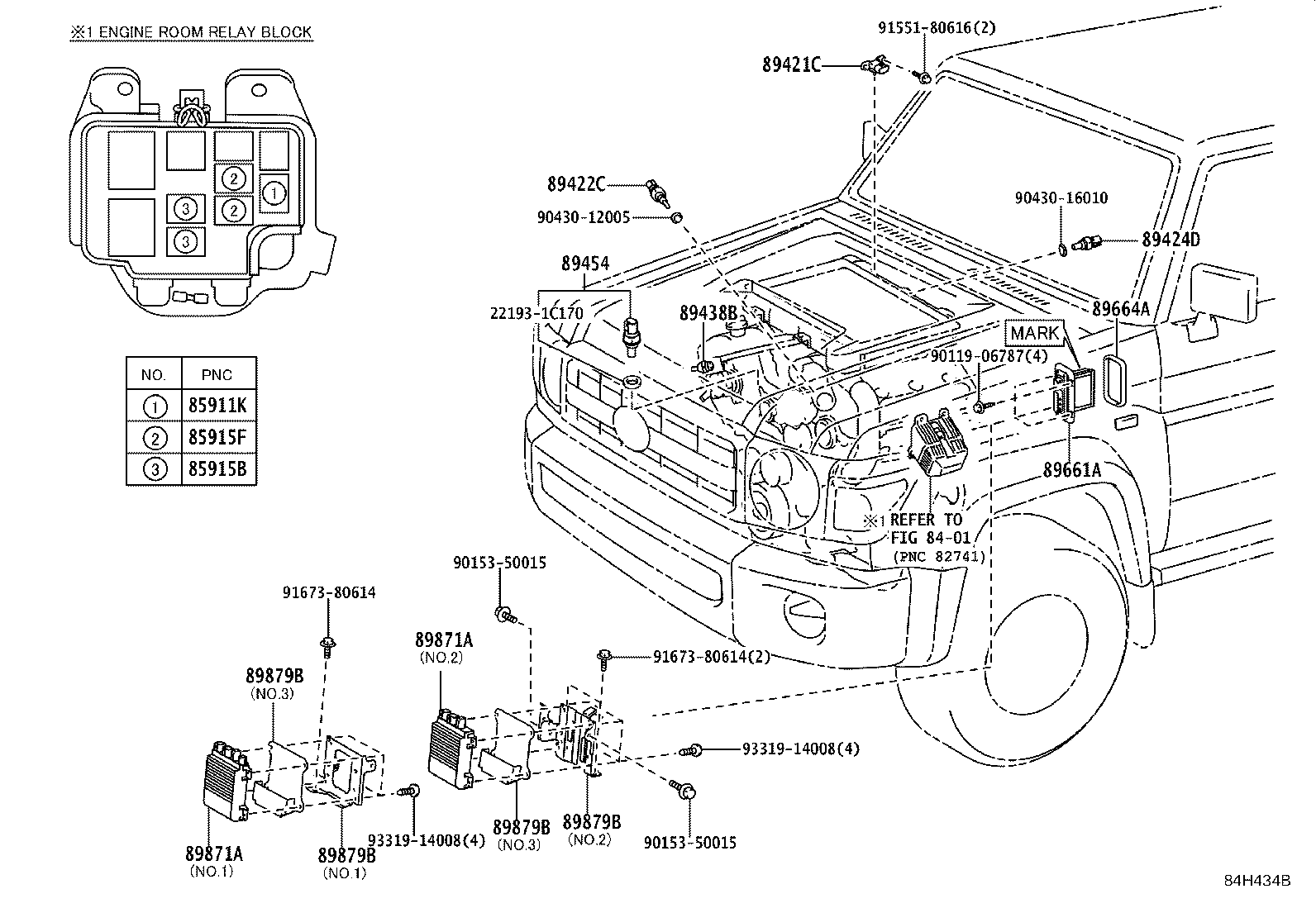

Click highlighted areas on diagram

diagram 221931C170 8401 85911K 85915B 85915F 89421C 89422C 89424D 89438B 89454 89661A 89664A 89871A 89871A 89879B 89879B 89879B 89879B 9011906787 9015350015 9015350015 9043012005 9043016010 9155180616 9167380614 9167380614 9331914008 9331914008
Part # Description Qty Price
85911K - RELAY, HEATER(FOR AIR FUEL RATIO SENSOR)
90987-02027

VDJ7#..ARL

 1
85915B - RELAY, MAIN (FOR DIESEL TURBO)
90987-02027

VDJ7#

 2
85915F - RELAY, SPILL VALVE
90987-02027

VDJ7#

 2
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-20200

VDJ7#

 1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-33030

VDJ7#..ARL

 1
89424D - SENSOR, INLET AIR TEMPERATURE
89424-60010

VDJ7#

 1
89438B - SWITCH, POWER STEERING OIL PRESSURE
89438-33010

VDJ7#

 1
89438-71010

VDJ7#

 1
89454 - SENSOR, FUEL TEMPERATURE
89454-60020

VDJ7#

 1
89661A - COMPUTER, ENGINE CONTROL
89661-60V10

VDJ7#..ARL

P/N LABEL=8966160V10

 1
89661-60V11

VDJ7#..ARL

DENSO,P/N LABEL=8966160V11

 1
89664A - SEAL, ENGINE CONTROL COMPUTER
89664-34010

VDJ7#

 1
89871A - DRIVER, INJECTOR
89871-60030

VDJ7#..ARL

NO.2

 1
89871-60020

VDJ7#..ARL

NO.1

 1
89871A - DRIVER, INJECTOR
89871-60030

VDJ7#..ARL

NO.2

 1
89871-60020

VDJ7#..ARL

NO.1

 1
89879B - BRACKET, INJECTOR DRIVER
89879-60180

VDJ7#

NO.1

 1
89879-60190

VDJ7#

NO.2

 1
89879B - BRACKET, INJECTOR DRIVER
89879-60180

VDJ7#

NO.1

 1
89879-60190

VDJ7#

NO.2

 1
89879B - BRACKET, INJECTOR DRIVER
89879-60180

VDJ7#

NO.1

 1
89879-60190

VDJ7#

NO.2

 1
89879B - BRACKET, INJECTOR DRIVER
89879-60180

VDJ7#

NO.1

 1
89879-60190

VDJ7#

NO.2

 1
Common parts
22193-1C170
90119-06787
90153-50015
90430-12005
90430-16010
91551-80616
91673-80614
93319-14008
Linked diagrams
8401
