VDJ79R-TJMRYQ3 (2016)
Toyota Land Cruiser

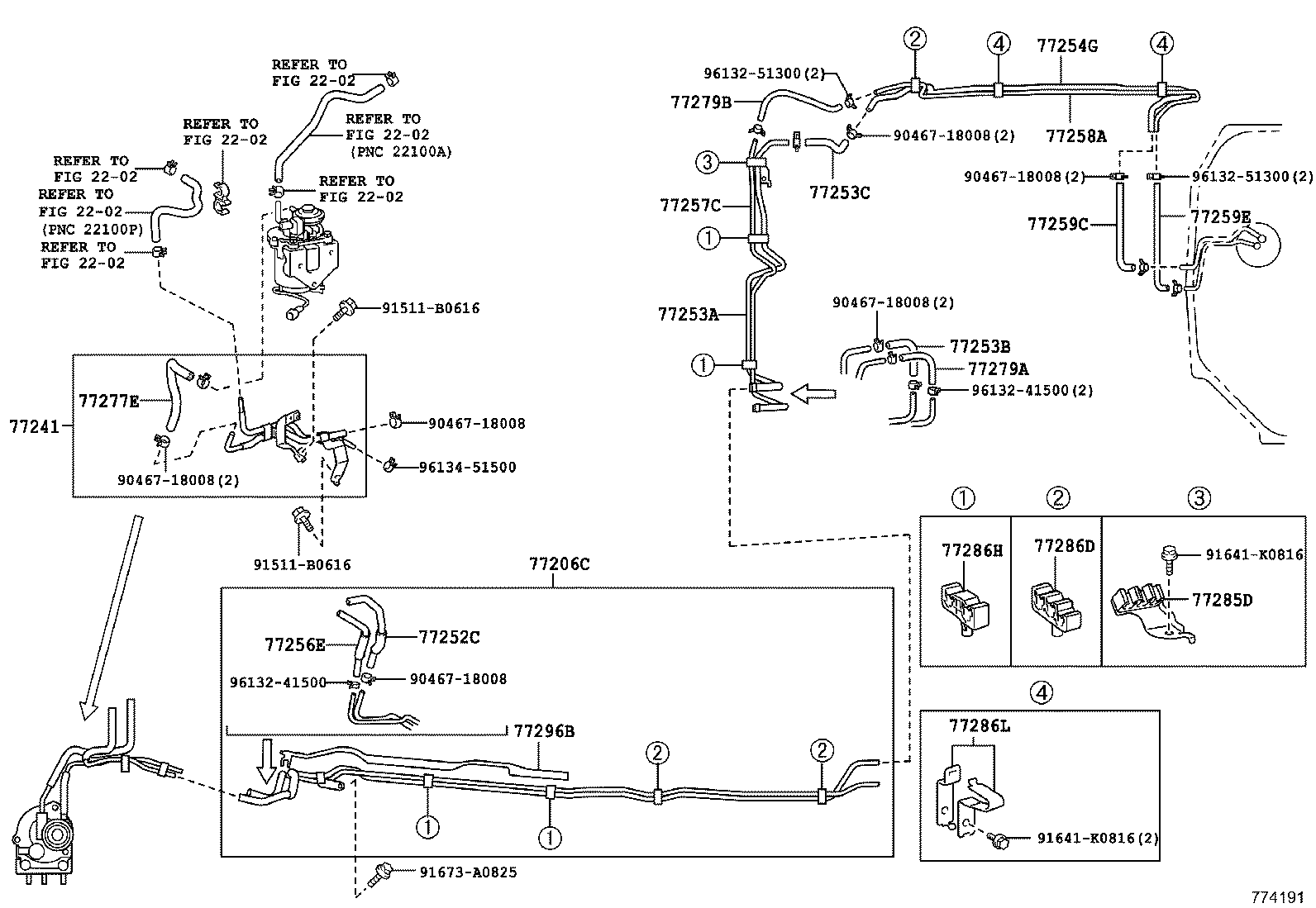

ILLUST NO. 3 OF 5(1608- )VDJ79..PIC..ARL,GCC
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60790 |
VDJ79..PIC..IV |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-60B81 |
VDJ7#..RHD |
1 | ||
| 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) | ||||
| 77259-60751 |
VDJ7#..ARL |
1 | ||
| 77253A - TUBE, FUEL MAIN, NO.3 | ||||
| 77253-60420 |
VDJ79..PIC..IV |
1 | ||
| 77253-60350 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77253B - HOSE, FUEL, NO.1(FOR FUEL MAIN NO.3 TUBE) | ||||
| 77259-60G30 |
VDJ79..PIC..IV |
1 | ||
| 77253C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.3 TUBE) | ||||
| 77259-60G60 |
VDJ79..PIC..IV |
1 | ||
| 77254G - TUBE, FUEL MAIN, NO.4 | ||||
| 77254-60390 |
VDJ79..PIC..IV |
1 | ||
| 77253-60360 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 77259-60741 |
VDJ7#..ARL |
1 | ||
| 77257C - TUBE, FUEL RETURN, NO.3 | ||||
| 77257-60290 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77257-60420 |
VDJ79..PIC..IV |
1 | ||
| 77258A - TUBE, FUEL RETURN, NO.4 | ||||
| 77257-60301 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77258-60310 |
VDJ79..PIC..IV |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-60B30 |
GRJ78,79..HT,PIC |
1 | ||
| 77259-60G40 |
VDJ79..IV |
1 | ||
| 77259E - HOSE, FUEL | ||||
| 77259-60G50 |
VDJ79..IV |
1 | ||
| 77277E - HOSE, FUEL, NO.5 (FOR RETURN TUBE, NO.1) | ||||
| 77259-60761 |
VDJ7# |
1 | ||
| 77279A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.3) | ||||
| 95337-10016 |
VDJ79..PIC..(ARL,GCC) L=160 |
1 | ||
| 77279B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.3) | ||||
| 95337-08034 |
VDJ79..IV L=340 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60E70 |
VDJ79..PIC..IV |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-60610 |
VDJ76..ARL;VDJ79..PIC |
3 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77285-60D10 |
VDJ79..PIC..IV |
4 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77285-60C10 |
VDJ79..IV;VDJ76,79..(DCB,HT)..CBU |
2 | ||
| 77285-60380 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-60230 |
VDJ79..PIC..IV |
1 | ||
| Common parts | ||||
| 90467-18008 | ||||
| 91511-B0616 | ||||
| 91641-K0816 | ||||
| 91673-A0825 | ||||
| 96132-41500 | ||||
| 96132-51300 | ||||
| 96134-51500 | ||||
| Linked diagrams | ||||
| 2202 | ||||
ILLUST NO. 3 OF 5(1608- )GRJ78,79..HT,PIC
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-60640 |
GRJ78,79..HT,PIC |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-60B81 |
VDJ7#..RHD |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77256-60830 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77256-60860 |
GRJ78,79..HT,PIC |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77262-60460 |
GRJ78,79..HT,PIC |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-60100 |
GRJ78,79..HT,PIC |
1 | ||
| 77266-60120 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),REAR |
1 | ||
| 77406-60030 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77266-60130 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),REAR |
1 | ||
| 77266-60110 |
GRJ78,79..HT,PIC |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60E70 |
VDJ79..PIC..IV |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60B00 |
GRJ78,79..HT,PIC |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-60610 |
VDJ76..ARL;VDJ79..PIC |
3 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77285-60D10 |
VDJ79..PIC..IV |
4 | ||
| 77296A - PLATE, FUEL TUBE SUPPORT, NO.2 | ||||
| 77296-60150 |
GRJ78,79 |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-60230 |
VDJ79..PIC..IV |
1 | ||
| Common parts | ||||
| 90464-00803 | ||||
| 90466-11004 | ||||
| 91511-B0616 | ||||
| 91553-A0816 | ||||
| 91641-K0816 | ||||
| 91673-80816 | ||||
| 91674-80820 | ||||
| 91674-80825 | ||||
| 96132-51100 | ||||
| 96135-51100 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 3 OF 5(1608- )GRJ78,79..HT,PIC
FUEL TUBE, W(FUEL SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60790 |
VDJ79..PIC..IV |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-60B81 |
VDJ7#..RHD |
1 | ||
| 77249B - HOSE, FUEL | ||||
| 95338-06020 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77253A - TUBE, FUEL MAIN, NO.3 | ||||
| 77253-60420 |
VDJ79..PIC..IV |
1 | ||
| 77253-60350 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77254G - TUBE, FUEL MAIN, NO.4 | ||||
| 77254-60390 |
VDJ79..PIC..IV |
1 | ||
| 77253-60360 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77256-60830 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77256-60860 |
GRJ78,79..HT,PIC |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95338-06017 |
GRJ78,79..HT,PIC L=170,FUEL TANK-W(SUB TANK) |
2 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95338-06017 |
GRJ78,79..HT,PIC L=170,FUEL TANK-W(SUB TANK) |
2 | ||
| 77257C - TUBE, FUEL RETURN, NO.3 | ||||
| 77257-60290 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77257-60420 |
VDJ79..PIC..IV |
1 | ||
| 77258A - TUBE, FUEL RETURN, NO.4 | ||||
| 77257-60301 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77258-60310 |
VDJ79..PIC..IV |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-60610 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-60B50 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77259F - HOSE, FUEL | ||||
| 77259-60600 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77259K - HOSE, FUEL | ||||
| 77259-60B40 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77262-60460 |
GRJ78,79..HT,PIC |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-60100 |
GRJ78,79..HT,PIC |
1 | ||
| 77266-60120 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),REAR |
1 | ||
| 77406-60030 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-60100 |
GRJ78,79..HT,PIC |
1 | ||
| 77266-60120 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),REAR |
1 | ||
| 77406-60030 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77266-60130 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),REAR |
1 | ||
| 77266-60110 |
GRJ78,79..HT,PIC |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77266-60130 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),REAR |
1 | ||
| 77266-60110 |
GRJ78,79..HT,PIC |
1 | ||
| 77268A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77266-60140 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77277D - HOSE, FUEL, NO.4 (FOR RETURN TUBE, NO.1) | ||||
| 95334-06017 |
GRJ78,79..HT,PIC *H,L=170,FUEL TANK-W(SUB TANK) |
1 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-60320 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60E70 |
VDJ79..PIC..IV |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60B00 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77285J - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60B10 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60B20 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77285L - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60B30 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77285M - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60B40 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-60610 |
VDJ76..ARL;VDJ79..PIC |
3 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77285-60D10 |
VDJ79..PIC..IV |
4 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77285-60460 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77285-60C10 |
VDJ79..IV;VDJ76,79..(DCB,HT)..CBU |
2 | ||
| 77285-60380 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77296A - PLATE, FUEL TUBE SUPPORT, NO.2 | ||||
| 77296-60150 |
GRJ78,79 |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-60230 |
VDJ79..PIC..IV |
1 | ||
| 77406 - PROTECTOR SUB-ASSY, FUEL TUBE | ||||
| 77406-60040 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN | ||||
| 77710-60190 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77710-60210 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77720E - VALVE ASSY, FUEL TANK SOLENOID RETURN | ||||
| 77720-60150 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77720-60070 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| Common parts | ||||
| 90461-10750 | ||||
| 90464-00803 | ||||
| 90466-11004 | ||||
| 91511-B0616 | ||||
| 91553-A0816 | ||||
| 91641-K0816 | ||||
| 91651-B0640 | ||||
| 91671-A0818 | ||||
| 91673-80816 | ||||
| 91674-80820 | ||||
| 91674-80825 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| 96135-51100 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 1 OF 5(1608- )DCB..CBU ; (1608- )VDJ79..IV
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-60180 |
VDJ79..IV;GRJ7#,HZJ7#,VDJ76;VDJ78,79..STD..(GCC,GEN) |
1 | ||
| 77011-60180 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-60410 |
HZJ78,79..HT,PIC |
1 | ||
| 77017-60410 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77017-60540 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77017-60640 |
VDJ79..IV;VDJ76,79..(DCB,HT)..CBU |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77023-36010 |
HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77023-60030 |
VDJ79..IV;VDJ76,79..(DCB,HT)..CBU |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-60891 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77001-60B10 |
VDJ79..LX..CBU;HZJ78,79,VDJ78..HT,PIC MAIN TANK |
1 | ||
| 77001-60542 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77001-60891 |
GRJ78,79..HT,PIC |
1 | ||
| 77001-60A80 |
VDJ79..IV;GRJ76,79,HZJ76,79,VDJ76,79..(DCB,HT)..CBU |
1 | ||
| 77133 - SUPPORT, FUEL SUB-TANK, RH | ||||
| 77133-60101 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77133-60160 |
VDJ79..IV;HZJ76,79..(DCB,HT)..GEN;GRJ76,79,VDJ76,79..(DCB,HT)..CBU |
1 | ||
| 77134 - SUPPORT, FUEL SUB-TANK, LH | ||||
| 77134-60050 |
VDJ79..IV;HZJ76,79..(DCB,HT)..GEN;GRJ76,79,VDJ76,79..(DCB,HT)..CBU |
1 | ||
| 77133-60101 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
VDJ79..IV;GRJ7#,HZJ7#,VDJ76;VDJ78,79..STD..(GCC,GEN) |
1 | ||
| 77178-20010 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60C20 |
VDJ79..IV;HZJ79..DCB..GEN;VDJ79..STD..CBU |
1 | ||
| 77203B - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-60280 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77203-60280 |
GRJ78,79..HT,PIC |
1 | ||
| 77203-60290 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14010 |
VDJ79..IV;GRJ71,76,79,HZJ76,79,VDJ76,79..(DCB,HT,SOT)..CBU |
1 | ||
| 77169-14010 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77169-20040 |
GRJ78,79..HT,PIC |
1 | ||
| 77169-20040 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60341 |
VDJ79..IV;HZJ79..DCB..GEN;GRJ79,VDJ79..DCB..CBU |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06030 |
VDJ79..IV;HZJ76,79,VDJ76,79..(DCB,HT)..CBU *H,L=300 |
1 | ||
| 77259-60631 |
HZJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77291 - PACKING, FUEL TANK SUPPORT, UPPER | ||||
| 77293-60030 |
VDJ79..IV;HZJ78,79..GEN;GRJ78,79,VDJ78;VDJ79..STD..CBU |
1 | ||
| 77292A - STAY, FUEL TANK FILLAR UPPER PIPE | ||||
| 77292-60010 |
GRJ79,HZJ79,VDJ79..IV |
1 | ||
| 77295F - GROMMET, FUEL HOSE | ||||
| 90480-01303 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77295-60360 |
VDJ79..IV;VDJ76,79..(DCB,HT)..CBU |
1 | ||
| 77296 - PLATE, FUEL TUBE GROMMET SUPPORT | ||||
| 77296-60200 |
VDJ79..IV;HZJ76,79,VDJ76,79..(DCB,HT)..CBU |
1 | ||
| 90949-01182 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60030 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
1 | ||
| 77606-60130 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK |
1 | ||
| 77606-60160 |
VDJ79..IV;HZJ76,79..(DCB,HT)..GEN;GRJ76,79,VDJ76,79..(DCB,HT)..CBU |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60261 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77601-60230 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60350 |
VDJ79..IV;HZJ76,79..(DCB,HT)..GEN;GRJ76,79,VDJ76,79..(DCB,HT)..CBU |
2 | ||
| 77602-60100 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60261 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77601-60230 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, RH |
1 | ||
| 77601-60350 |
VDJ79..IV;HZJ76,79..(DCB,HT)..GEN;GRJ76,79,VDJ76,79..(DCB,HT)..CBU |
2 | ||
| 77602-60100 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK, LH |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-10011 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK |
2 | ||
| 90249-14002 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77653-60080 |
VDJ79..IV;HZJ76,79..(DCB,HT)..GEN;GRJ76,79,VDJ76,79..(DCB,HT)..CBU |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-10011 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),MAIN TANK |
2 | ||
| 90249-14002 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK),SUB TANK |
2 | ||
| 77653-60080 |
VDJ79..IV;HZJ76,79..(DCB,HT)..GEN;GRJ76,79,VDJ76,79..(DCB,HT)..CBU |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10092 |
HZJ76,78,79,VDJ7# |
1 | ||
| Common parts | ||||
| 77285-60D20 | ||||
| 90119-06621 | ||||
| 90119-10556 | ||||
| 90159-50219 | ||||
| 90179-08068 | ||||
| 90460-65002 | ||||
| 90467-12067 | ||||
| 91626-B0818 | ||||
| 91651-61022 | ||||
| 91674-K1035 | ||||
| 96132-51100 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
