VDJ79R-TJMRYQ3 (2016)

Toyota Land Cruiser

Production Aug 2016 - Sep 9999
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701-1706)FZJ71,78 ; (0701-1706)SOT..GCC ; (0701-1706)GRJ71,78..RHD ; (0701- )H

Click highlighted areas on diagram

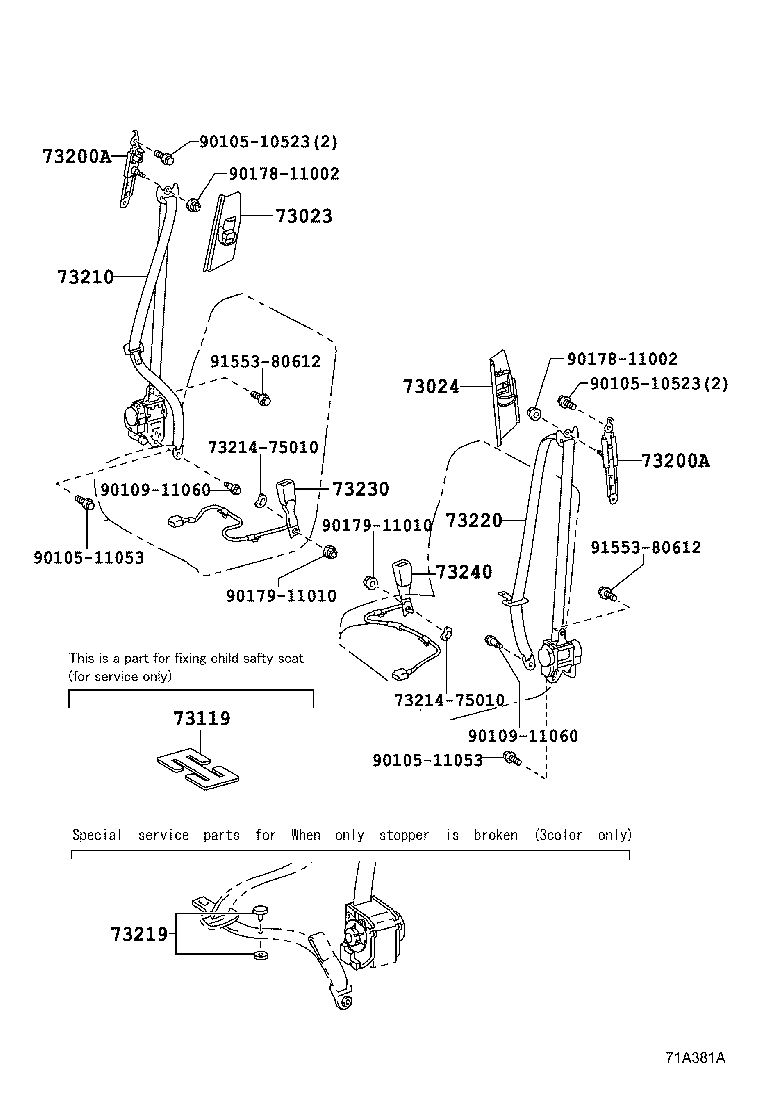

FRONT SEAT BELT

diagram 73119 73150 73210 73210 73219 73220 73220 73230 73230 73240 73240 73297B 73298B 9010511053 9010511053 9010511053 9010511053 9010911060 9010911060 9010911060 9010911060 9155380612 9155380612 9155380612 9155380612 9354055010 9354055010
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7#

 1
73119-22010

HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7#

 1
73150 - BELT ASSY, FRONT SEAT LAP TYPE, CENTER
73130-60121C0

GRJ79,HZJ78,79..RHD..(HT,PIC)

BLACK,TRIM1#,4#

 1
73130-60121C0

GRJ79,HZJ78,79..RHD..(HT,PIC)

BLACK,TRIM1#,4#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-60A20C0

VDJ79..PIC..STD

BLACK,TRIM1#,4#

 1
73210-60A20C0

VDJ79..PIC..STD

BLACK,TRIM1#,4#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-60A20C0

VDJ79..PIC..STD

BLACK,TRIM1#,4#

 1
73210-60A20C0

VDJ79..PIC..STD

BLACK,TRIM1#,4#

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7#

BLACK,BLACK

 1
73219-33010

HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7#

BLACK,BLACK

 1
73219-33030

HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7#

BEIGE,BEIGE

 1
73219-33030

HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7#

BEIGE,BEIGE

 1
73219-33020

HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7#

GRAY,GRAY

 1
73219-33020

HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7#

GRAY,GRAY

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-60770C0

VDJ79..PIC..STD

BLACK,TRIM1#,4#

 1
73220-60770C0

VDJ79..PIC..STD

BLACK,TRIM1#,4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-60770C0

VDJ79..PIC..STD

BLACK,TRIM1#,4#

 1
73220-60770C0

VDJ79..PIC..STD

BLACK,TRIM1#,4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-60760C1

VDJ79..PIC..STD

BLACK,TRIM1#,4#

 1
73230-60760C1

VDJ79..PIC..STD

BLACK,TRIM1#,4#

 1
73230-60242C0

GRJ79,HZJ78,79..RHD..(HT,PIC)

BLACK,TRIM1#,4#

 1
73230-60242C0

GRJ79,HZJ78,79..RHD..(HT,PIC)

BLACK,TRIM1#,4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-60760C1

VDJ79..PIC..STD

BLACK,TRIM1#,4#

 1
73230-60760C1

VDJ79..PIC..STD

BLACK,TRIM1#,4#

 1
73230-60242C0

GRJ79,HZJ78,79..RHD..(HT,PIC)

BLACK,TRIM1#,4#

 1
73230-60242C0

GRJ79,HZJ78,79..RHD..(HT,PIC)

BLACK,TRIM1#,4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-60640C1

VDJ79..PIC..STD

BLACK,TRIM1#,4#

 1
73240-60640C1

VDJ79..PIC..STD

BLACK,TRIM1#,4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-60640C1

VDJ79..PIC..STD

BLACK,TRIM1#,4#

 1
73240-60640C1

VDJ79..PIC..STD

BLACK,TRIM1#,4#

 1
Common parts
90105-11053
90109-11060
91553-80612
93540-55010

(1608- )VDJ79..PIC..IV

Click highlighted areas on diagram

FRONT SEAT BELT

diagram 73023 73024 73119 73200A 73200A 73210 7321475010 7321475010 73219 73220 73230 73240 9010510523 9010510523 9010511053 9010511053 9010911060 9010911060 9017811002 9017811002 9017911010 9017911010 9155380612 9155380612
Part # Description Qty Price
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-58010B0

VDJ79..PIC..IV

LT.GRAY,TRIM1#,4#

 1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73024-58010B0

VDJ79..PIC..IV

LT.GRAY,TRIM1#,4#

 1
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7#

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-12070

VDJ79..PIC..IV

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-12070

VDJ79..PIC..IV

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-60A20C0

VDJ79..PIC..STD

BLACK,TRIM1#,4#

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7#

BLACK,BLACK

 1
73219-33030

HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7#

BEIGE,BEIGE

 1
73219-33020

HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7#

GRAY,GRAY

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-60770C0

VDJ79..PIC..STD

BLACK,TRIM1#,4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-60760C1

VDJ79..PIC..STD

BLACK,TRIM1#,4#

 1
73230-60242C0

GRJ79,HZJ78,79..RHD..(HT,PIC)

BLACK,TRIM1#,4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-60640C1

VDJ79..PIC..STD

BLACK,TRIM1#,4#

 1
Common parts
73214-75010
90105-10523
90105-11053
90109-11060
90178-11002
90179-11010
91553-80612
