VDJ79R-TJMRYQ3 (2016)
Toyota Land Cruiser
(1608- )VDJ79..PIC..IV

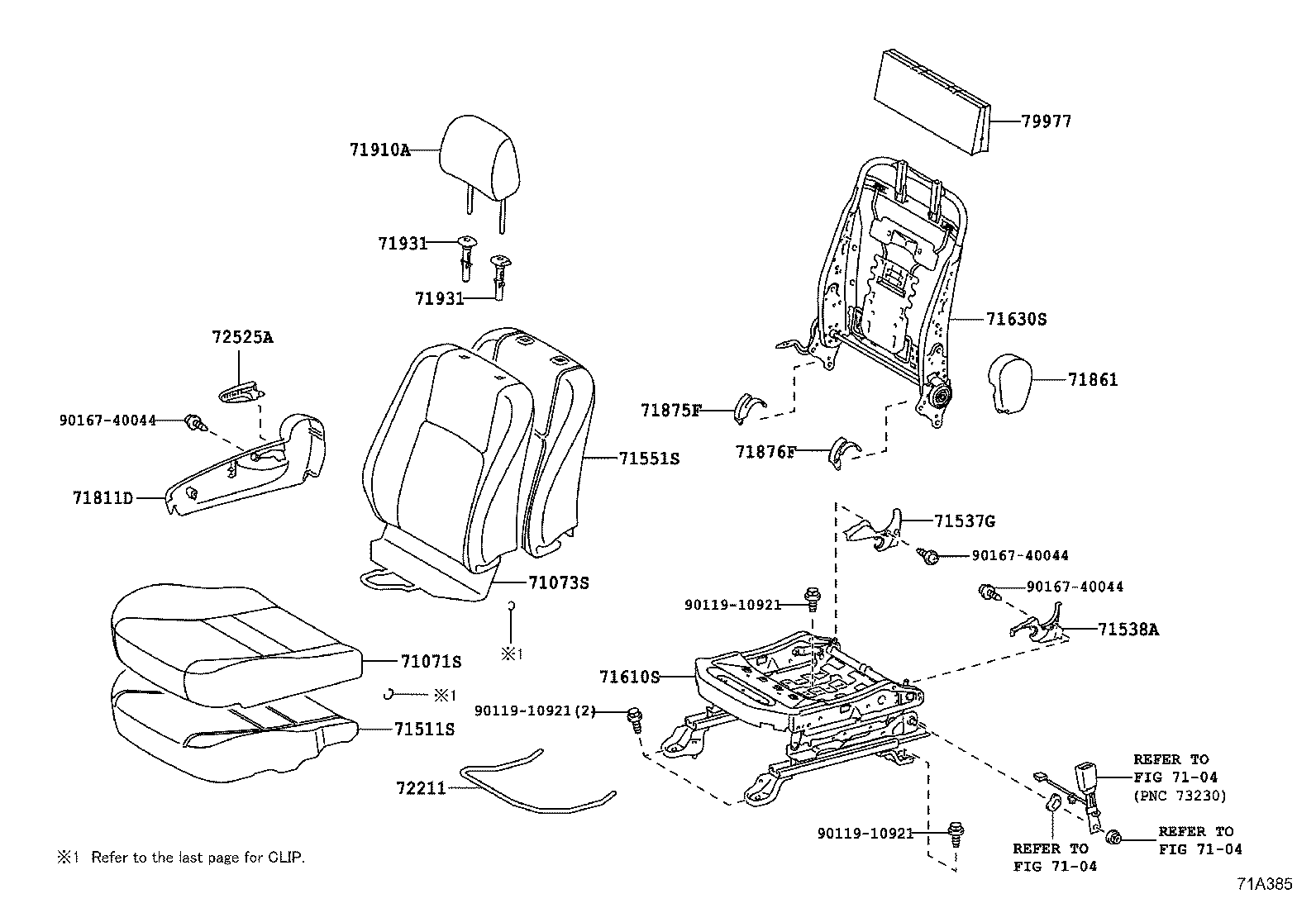

FRONT SEAT(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-60405B4 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) SLATE GRAY,TRIM1# |
2 | ||
| 71071-60405E3 |
GRJ79,HZJ71,79..RHD..(HT,PIC) MD.OAK,TRIM4# |
2 | ||
| 71071-60N50B0 |
VDJ79..PIC..STD SLATE GRAY,TRIM1# |
1 | ||
| 71071-60N60B0 |
VDJ79..PIC..STD SEAT COVER MATERIAL-FABRIC,BLUEISH GLAY,TRIM1# |
1 | ||
| 71071-60405E3 |
GRJ79,HZJ71,79..RHD..(HT,PIC) MD.OAK,TRIM4# |
1 | ||
| 71071-60405B4 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) SLATE GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-60M60B1 |
VDJ79..PIC..STD SEAT COVER MATERIAL-FABRIC,BLUEISH GLAY,TRIM1# |
1 | ||
| 71073-60M50B1 |
VDJ79..PIC..STD SLATE GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-60023 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
2 | ||
| 71511-60600 |
VDJ79..PIC..IV |
1 | ||
| 71501-60023 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-60110B1 |
VDJ79..PIC..STD BLUISH GRAY,TRIM1# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-60030B2 |
VDJ79..PIC..STD BLUISH GRAY,TRIM1# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-60011 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
2 | ||
| 71551-60680 |
VDJ79..PIC..IV |
1 | ||
| 71505-60011 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-60500 |
VDJ79..PIC..IV |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-60620 |
VDJ79..PIC..IV |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-60340B2 |
VDJ79..PIC..STD BLUISH GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-33150B0 |
VDJ79..PIC..STD BLUISH GRAY,TRIM1# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-60260B2 |
VDJ79..PIC..STD BLUISH GRAY,TRIM1# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-60270B2 |
VDJ79..PIC..STD BLUISH GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60E70B0 |
VDJ79..PIC..STD BLUISH GRAY,TRIM1# |
2 | ||
| 71910-60E80B0 |
VDJ79..PIC..STD SEAT COVER MATERIAL-FABRIC,BLUEISH GLAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020B0 |
VDJ79..PIC..STD W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020B0 |
VDJ79..PIC..STD W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-44020B1 |
GRJ79..LX;VDJ79..CBU;HZJ76,79..RHD;VDJ79..DCB..IV;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) W(LOCK),MD.GRAY,TRIM1#,2# |
2 | ||
| 71931-47010B8 |
GRJ79..LX;VDJ79..CBU;HZJ76,79..RHD;VDJ79..DCB..IV;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) W/O(LOCK),MD.GRAY,TRIM1#,2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020B0 |
VDJ79..PIC..STD W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020B0 |
VDJ79..PIC..STD W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-44020B1 |
GRJ79..LX;VDJ79..CBU;HZJ76,79..RHD;VDJ79..DCB..IV;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) W(LOCK),MD.GRAY,TRIM1#,2# |
2 | ||
| 71931-47010B8 |
GRJ79..LX;VDJ79..CBU;HZJ76,79..RHD;VDJ79..DCB..IV;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) W/O(LOCK),MD.GRAY,TRIM1#,2# |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-33040 |
VDJ79..PIC..IV |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-52050B1 |
VDJ79..PIC..STD BLUISH GRAY,TRIM1# |
1 | ||
| 79977 - FELT, SEAT BACK | ||||
| 79977-33010 |
VDJ79..PIC..IV |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1608- )VDJ79..PIC..IV

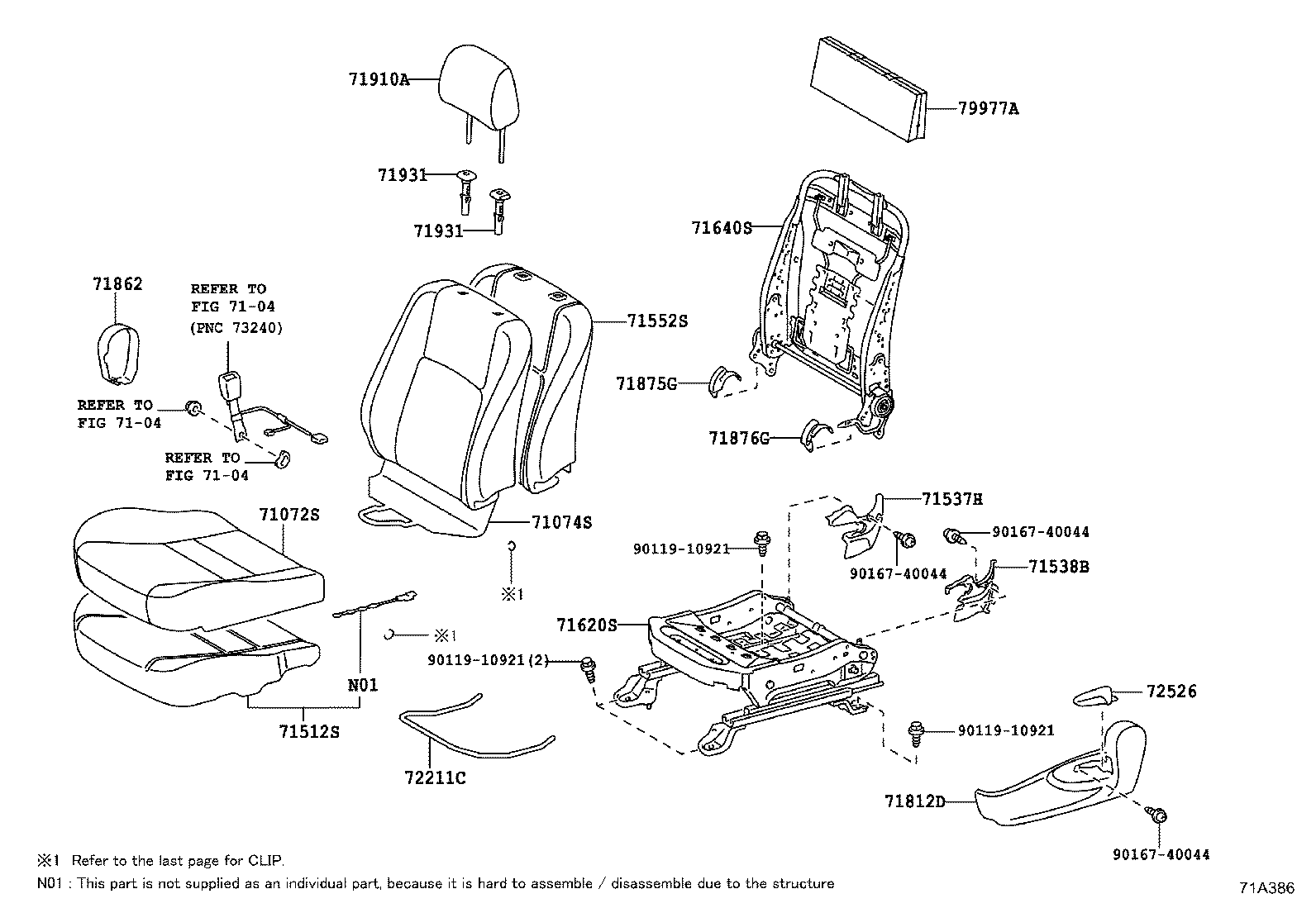

FRONT SEAT(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-60385E5 |
GRJ79,HZJ71,79..RHD..(HT,PIC) MD.OAK,TRIM4# |
2 | ||
| 71072-60385B5 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) SLATE GRAY,TRIM1# |
2 | ||
| 71072-60346B5 |
GRJ79,HZJ76,79..RHD FRONT SEAT-SEPARATE SEAT,SLATE GRAY,TRIM1# |
1 | ||
| 71072-60346E5 |
GRJ79,HZJ76,79..RHD FRONT SEAT-SEPARATE SEAT,MD.OAK,TRIM4# |
1 | ||
| 71072-60M80B0 |
VDJ79..PIC..STD SEAT COVER MATERIAL-FABRIC,BLUEISH GLAY,TRIM1# |
1 | ||
| 71072-60M70B0 |
VDJ79..PIC..STD SLATE GRAY,TRIM1# |
1 | ||
| 71072-60385B5 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) SLATE GRAY,TRIM1# |
1 | ||
| 71072-60385E5 |
GRJ79,HZJ71,79..RHD..(HT,PIC) MD.OAK,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-60M60B1 |
VDJ79..PIC..STD SEAT COVER MATERIAL-FABRIC,BLUEISH GLAY,TRIM1# |
1 | ||
| 71073-60M50B1 |
VDJ79..PIC..STD SLATE GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-60121 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
2 | ||
| 71502-60044 |
GRJ79,HZJ76,79..RHD FRONT SEAT-SEPARATE SEAT |
1 | ||
| 71502-60121 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
1 | ||
| 71502-60550 |
VDJ79..PIC..IV |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-60110B1 |
VDJ79..PIC..STD BLUISH GRAY,TRIM1# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-60030B2 |
VDJ79..PIC..STD BLUISH GRAY,TRIM1# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-60060 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
2 | ||
| 71506-60011 |
GRJ79,HZJ76,79..RHD FRONT SEAT-SEPARATE SEAT |
1 | ||
| 71551-60680 |
VDJ79..PIC..IV |
1 | ||
| 71506-60060 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-60500 |
VDJ79..PIC..IV |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-60520 |
VDJ79..PIC..IV |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-60310B2 |
VDJ79..PIC..STD BLUISH GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-33070B0 |
VDJ79..PIC..STD BLUISH GRAY,TRIM1# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-60260B2 |
VDJ79..PIC..STD BLUISH GRAY,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-60270B2 |
VDJ79..PIC..STD BLUISH GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60E70B0 |
VDJ79..PIC..STD BLUISH GRAY,TRIM1# |
2 | ||
| 71910-60E80B0 |
VDJ79..PIC..STD SEAT COVER MATERIAL-FABRIC,BLUEISH GLAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020B0 |
VDJ79..PIC..STD W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020B0 |
VDJ79..PIC..STD W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-44020B1 |
GRJ79..LX;VDJ79..CBU;HZJ76,79..RHD;VDJ79..DCB..IV;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) W(LOCK),MD.GRAY,TRIM1#,2# |
2 | ||
| 71931-47010B8 |
GRJ79..LX;VDJ79..CBU;HZJ76,79..RHD;VDJ79..DCB..IV;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) W/O(LOCK),MD.GRAY,TRIM1#,2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020B0 |
VDJ79..PIC..STD W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020B0 |
VDJ79..PIC..STD W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-44020B1 |
GRJ79..LX;VDJ79..CBU;HZJ76,79..RHD;VDJ79..DCB..IV;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) W(LOCK),MD.GRAY,TRIM1#,2# |
2 | ||
| 71931-47010B8 |
GRJ79..LX;VDJ79..CBU;HZJ76,79..RHD;VDJ79..DCB..IV;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) W/O(LOCK),MD.GRAY,TRIM1#,2# |
2 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-33040 |
VDJ79..PIC..IV |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-52040B1 |
VDJ79..PIC..STD BLUISH GRAY,TRIM1# |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-33010 |
VDJ79..PIC..IV |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1608-1909)GRJ79,HZJ79..RHD..PIC ; (1608- )GRJ79,HZJ7#..RHD..DCB,HT,SOT ; (2101-
FRONT BENCH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-60405B4 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) SLATE GRAY,TRIM1# |
2 | ||
| 71071-60405E3 |
GRJ79,HZJ71,79..RHD..(HT,PIC) MD.OAK,TRIM4# |
2 | ||
| 71071-60N50B0 |
VDJ79..PIC..STD SLATE GRAY,TRIM1# |
1 | ||
| 71071-60N60B0 |
VDJ79..PIC..STD SEAT COVER MATERIAL-FABRIC,BLUEISH GLAY,TRIM1# |
1 | ||
| 71071-60405E3 |
GRJ79,HZJ71,79..RHD..(HT,PIC) MD.OAK,TRIM4# |
1 | ||
| 71071-60405B4 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) SLATE GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-60385E5 |
GRJ79,HZJ71,79..RHD..(HT,PIC) MD.OAK,TRIM4# |
2 | ||
| 71072-60385B5 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) SLATE GRAY,TRIM1# |
2 | ||
| 71072-60346B5 |
GRJ79,HZJ76,79..RHD FRONT SEAT-SEPARATE SEAT,SLATE GRAY,TRIM1# |
1 | ||
| 71072-60346E5 |
GRJ79,HZJ76,79..RHD FRONT SEAT-SEPARATE SEAT,MD.OAK,TRIM4# |
1 | ||
| 71072-60M80B0 |
VDJ79..PIC..STD SEAT COVER MATERIAL-FABRIC,BLUEISH GLAY,TRIM1# |
1 | ||
| 71072-60M70B0 |
VDJ79..PIC..STD SLATE GRAY,TRIM1# |
1 | ||
| 71072-60385B5 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) SLATE GRAY,TRIM1# |
1 | ||
| 71072-60385E5 |
GRJ79,HZJ71,79..RHD..(HT,PIC) MD.OAK,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-60M60B1 |
VDJ79..PIC..STD SEAT COVER MATERIAL-FABRIC,BLUEISH GLAY,TRIM1# |
1 | ||
| 71073-60M50B1 |
VDJ79..PIC..STD SLATE GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-60M60B1 |
VDJ79..PIC..STD SEAT COVER MATERIAL-FABRIC,BLUEISH GLAY,TRIM1# |
1 | ||
| 71073-60M50B1 |
VDJ79..PIC..STD SLATE GRAY,TRIM1# |
1 | ||
| 71133 - PLATE, FRONT SEAT CUSHION, NO.3 | ||||
| 71132-90K01 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
2 | ||
| 71132-90K01 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
1 | ||
| 71148 - SILENCER, FRONT SEAT CUSHION | ||||
| 71148-90304 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
4 | ||
| 71148-90304 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
2 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-60023 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
2 | ||
| 71511-60600 |
VDJ79..PIC..IV |
1 | ||
| 71501-60023 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-60121 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
2 | ||
| 71502-60044 |
GRJ79,HZJ76,79..RHD FRONT SEAT-SEPARATE SEAT |
1 | ||
| 71502-60121 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
1 | ||
| 71502-60550 |
VDJ79..PIC..IV |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-60030 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
4 | ||
| 71521-60030 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
2 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-90K00 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
1 | ||
| 71537-90K00 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-60011 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
2 | ||
| 71551-60680 |
VDJ79..PIC..IV |
1 | ||
| 71505-60011 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71506-60060 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
2 | ||
| 71506-60011 |
GRJ79,HZJ76,79..RHD FRONT SEAT-SEPARATE SEAT |
1 | ||
| 71551-60680 |
VDJ79..PIC..IV |
1 | ||
| 71506-60060 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-60500 |
VDJ79..PIC..IV |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-60500 |
VDJ79..PIC..IV |
1 | ||
| 71769C - CLIP, FRONT SEAT CUSHION COVER | ||||
| 90467-07032 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
1 | ||
| 90467-07032 |
GRJ79,HZJ71,79..RHD..(HT,PIC,SOT) |
2 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-60020B0 |
GRJ79..LX;VDJ79..CBU;HZJ76,79..RHD;VDJ79..DCB..IV;HZJ79..LHD..PIC..GEN..CBU;GRJ76,79,VDJ76..(DCB,HT)..(ARL,GCC) SHADOW GRAY,TRIM1#,2# |
1 | ||
| 71811-60020E1 |
VDJ79..CBU;GRJ71..HT..STD;VDJ79..DCB..IV;GRJ76,78,79,HZJ7#,VDJ76,78..DCB,HT,PIC SANDAL WOOD,TRIM4# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-60020B0 |
HZJ76,79..RHD FRONT SEAT-SEPARATE SEAT,SHADOW GRAY,TRIM1#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60E70B0 |
VDJ79..PIC..STD BLUISH GRAY,TRIM1# |
2 | ||
| 71910-60E80B0 |
VDJ79..PIC..STD SEAT COVER MATERIAL-FABRIC,BLUEISH GLAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60E70B0 |
VDJ79..PIC..STD BLUISH GRAY,TRIM1# |
2 | ||
| 71910-60E80B0 |
VDJ79..PIC..STD SEAT COVER MATERIAL-FABRIC,BLUEISH GLAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020B0 |
VDJ79..PIC..STD W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020B0 |
VDJ79..PIC..STD W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-44020B1 |
GRJ79..LX;VDJ79..CBU;HZJ76,79..RHD;VDJ79..DCB..IV;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) W(LOCK),MD.GRAY,TRIM1#,2# |
2 | ||
| 71931-47010B8 |
GRJ79..LX;VDJ79..CBU;HZJ76,79..RHD;VDJ79..DCB..IV;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) W/O(LOCK),MD.GRAY,TRIM1#,2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020B0 |
VDJ79..PIC..STD W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020B0 |
VDJ79..PIC..STD W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-44020B1 |
GRJ79..LX;VDJ79..CBU;HZJ76,79..RHD;VDJ79..DCB..IV;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) W(LOCK),MD.GRAY,TRIM1#,2# |
2 | ||
| 71931-47010B8 |
GRJ79..LX;VDJ79..CBU;HZJ76,79..RHD;VDJ79..DCB..IV;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) W/O(LOCK),MD.GRAY,TRIM1#,2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020B0 |
VDJ79..PIC..STD W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020B0 |
VDJ79..PIC..STD W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-44020B1 |
GRJ79..LX;VDJ79..CBU;HZJ76,79..RHD;VDJ79..DCB..IV;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) W(LOCK),MD.GRAY,TRIM1#,2# |
2 | ||
| 71931-47010B8 |
GRJ79..LX;VDJ79..CBU;HZJ76,79..RHD;VDJ79..DCB..IV;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) W/O(LOCK),MD.GRAY,TRIM1#,2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020B0 |
VDJ79..PIC..STD W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-47020B0 |
VDJ79..PIC..STD W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-44020B1 |
GRJ79..LX;VDJ79..CBU;HZJ76,79..RHD;VDJ79..DCB..IV;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) W(LOCK),MD.GRAY,TRIM1#,2# |
2 | ||
| 71931-47010B8 |
GRJ79..LX;VDJ79..CBU;HZJ76,79..RHD;VDJ79..DCB..IV;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC) W/O(LOCK),MD.GRAY,TRIM1#,2# |
2 | ||
| 72054A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH | ||||
| 72054-90K00C0 |
HZJ76,79..RHD FRONT SEAT-SEPARATE SEAT,BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-08301 | ||||
| 90119-10708 | ||||
| 90119-10921 | ||||
| 90159-40269 | ||||
| 90167-40044 | ||||
| 90168-40049 | ||||
| 90202-14007 | ||||
| 90386-12041 | ||||
| 90389-08104 | ||||
| 90468-04006 | ||||
| 90523-08001 | ||||
| 90562-18094 | ||||
| 93383-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
