VDJ79R-TJMRYQ3 (2016)
Toyota Land Cruiser
Production
Aug 2016
-
Sep 9999
Engine
1VDFTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

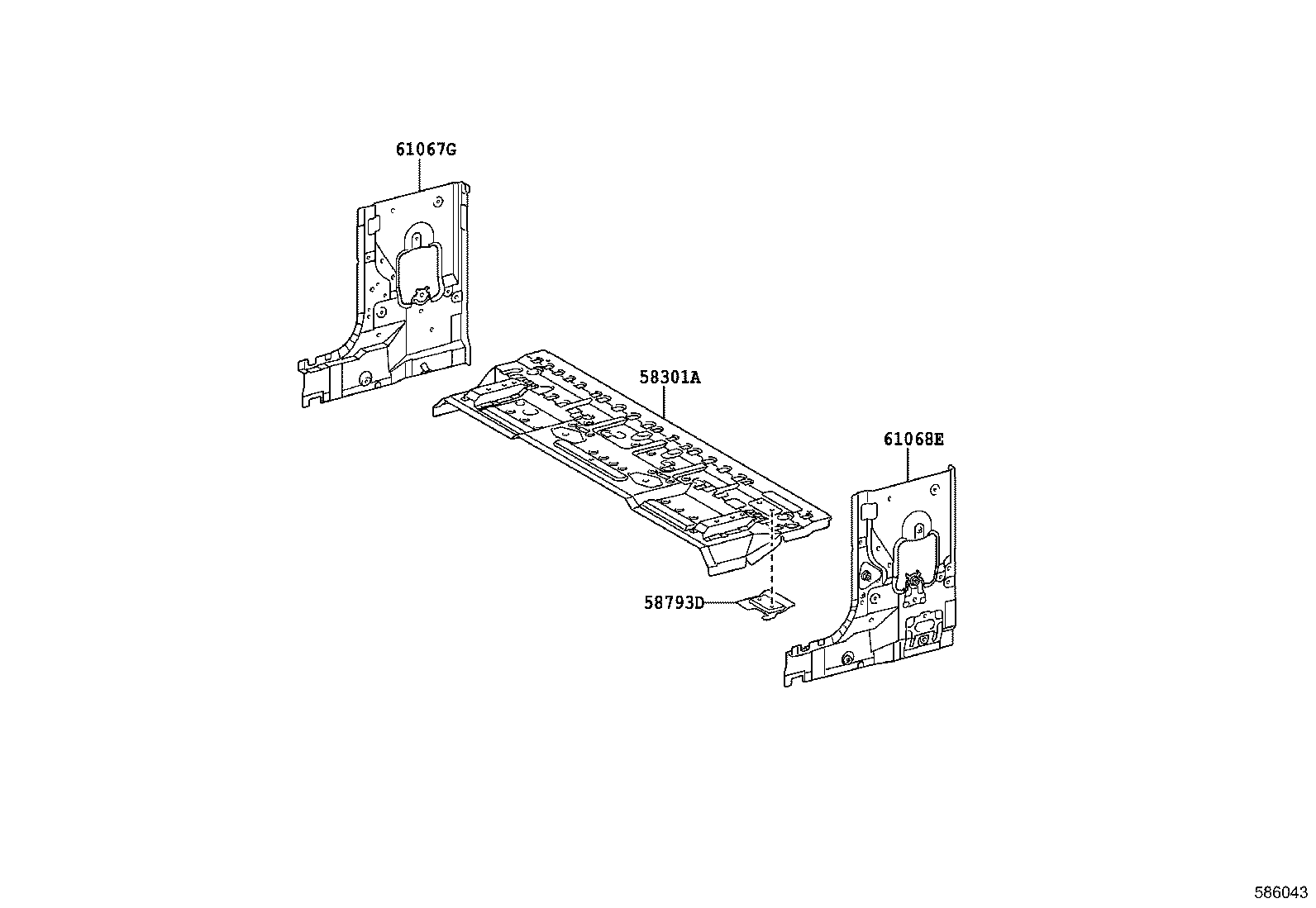

ILLUST NO. 1 OF 2(1608- )VDJ79..PIC..IV
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58301A - PANEL SUB-ASSY, REAR FLOOR | ||||
| 58301-60R80 |
VDJ79..PIC..IV |
1 | ||
| 58793D - BRACKET, JACK CARRIER | ||||
| 58793-60050 |
VDJ79..IV;GRJ79,HZJ79,VDJ79..DCB..CBU |
1 | ||
| 61067G - BRACKET SUB-ASSY, REAR SUSP BUMPER, RH | ||||
| 61067-60060 |
VDJ79..PIC..IV |
1 | ||
| 61068E - BRACKET SUB-ASSY, REAR SUSP BUMPER, LH | ||||
| 61068-60050 |
VDJ79..PIC..IV |
1 | ||

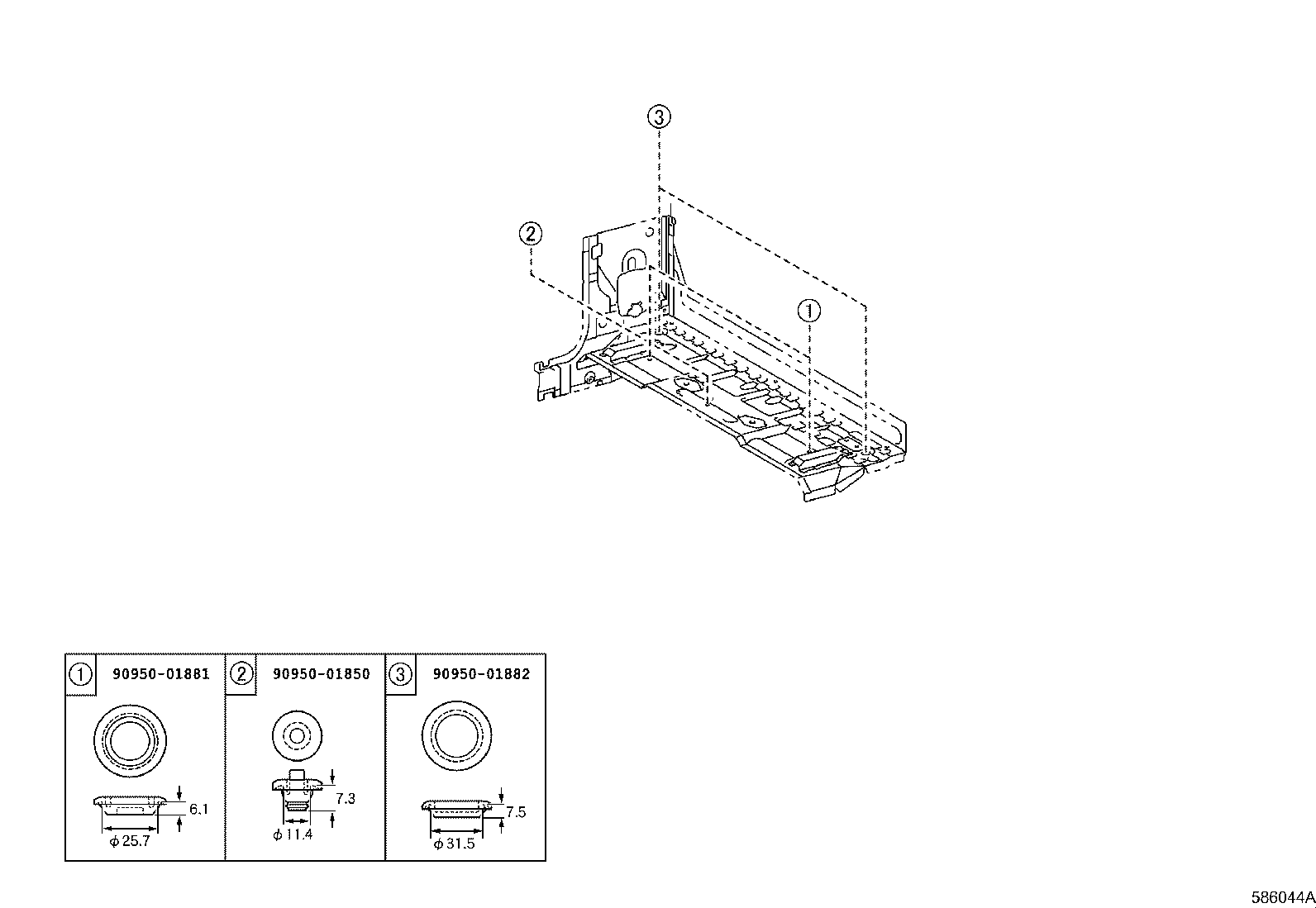

ILLUST NO. 2 OF 2(1608- )VDJ79..PIC..IV
Click highlighted areas on diagram
HOLE PLUG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90950-01850 | ||||
| 90950-01881 | ||||
| 90950-01882 | ||||
