VDJ79R-TJMRYQ3 (2016)
Toyota Land Cruiser

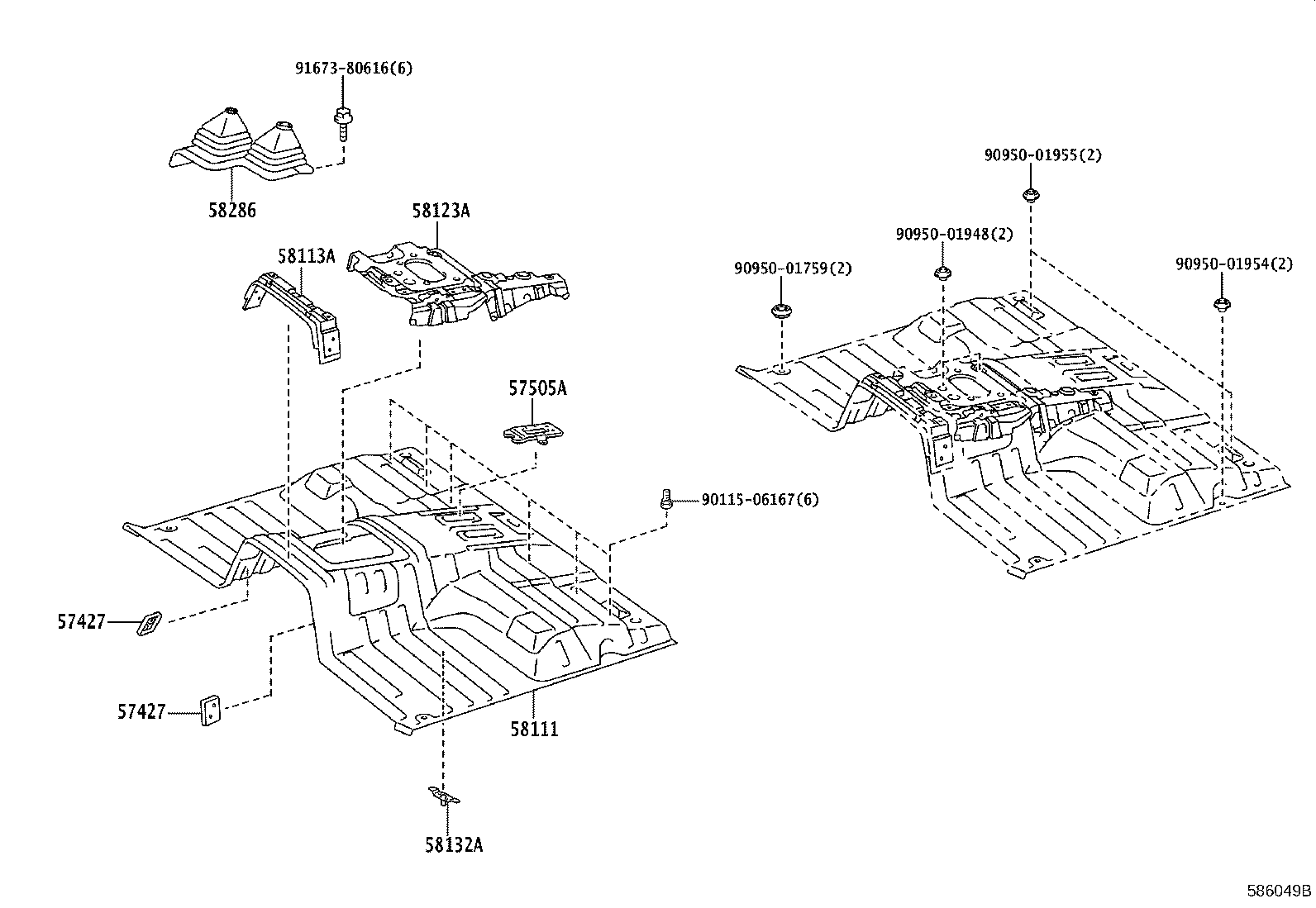

ILLUST NO. 1 OF 2(1608- )VDJ79..PIC..IV
FRONT FLOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57427 - REINFORCEMENT, FRONT FLOOR TO BRACE | ||||
| 57427-90K00 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 57427 - REINFORCEMENT, FRONT FLOOR TO BRACE | ||||
| 57427-90K00 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 57505A - REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER | ||||
| 57505-60060 |
VDJ79..IV;GRJ79,HZJ71,76,79,VDJ76,79..RHD..(DCB,HT,SOT)..CBU |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-60E71 |
VDJ79..IV;GRJ79,HZJ71,76,79,VDJ76,79..RHD..(DCB,HT,SOT)..CBU |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-60010 |
VDJ79..PIC..IV |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58013-60091 |
VDJ79..PIC..IV |
1 | ||
| 58132A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2 | ||||
| 58132-60030 |
HZJ7#,VDJ7# |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58280-60370 |
GRJ7#,VDJ7# |
1 | ||
| Common parts | ||||
| 90115-06167 | ||||
| 90950-01759 | ||||
| 90950-01948 | ||||
| 90950-01954 | ||||
| 90950-01955 | ||||
| 91673-80616 | ||||
ILLUST NO. 2 OF 2(1608- )GRJ79..LX ; (1608- )GRJ79..PIC..GEN..CBU ; (1608- )GRJ71,HZJ71,79,
SIDE STEP(ALUMINUM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51078A - BRACKET SUB-ASSY, SIDE STEP, NO.3, RH | ||||
| 51078-90K00 |
GRJ71,HZJ71;VDJ79..PIC..IV |
1 | ||
| 51078-90K01 |
VDJ79..LX..CBU;GRJ78,79,HZJ78,79,VDJ78..HT,PIC |
1 | ||
| 51078B - BRACKET SUB-ASSY, SIDE STEP, NO.3, LH | ||||
| 51078-90K01 |
VDJ79..LX..CBU;GRJ78,79,HZJ78,79,VDJ78..HT,PIC |
1 | ||
| 51078-90K00 |
GRJ71,HZJ71;VDJ79..PIC..IV |
1 | ||
| 51707 - STEP SUB-ASSY, RH | ||||
| 51707-90K07 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 51707-90K07 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 51707-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| 51707-90K07 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 51708 - STEP SUB-ASSY, LH | ||||
| 51708-90K07 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 51708-90K07 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 51708-90K07 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 51708-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| 51793A - BRACKET, SIDE STEP, NO.1 RH | ||||
| 51793-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| 51793B - BRACKET, SIDE STEP, NO.1, LH | ||||
| 51793-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| Common parts | ||||
| 90149-40024 | ||||
| 90179-04021 | ||||
| 91611-A0616 | ||||
| 91635-40618 | ||||
| 91651-40614 | ||||
ILLUST NO. 2 OF 2(1608- )VDJ78..LX ; (1608- )HZJ79,VDJ79..PIC..GEN ; (1608- )GRJ78,79,HZJ78
SIDE STEP(PLATING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51078A - BRACKET SUB-ASSY, SIDE STEP, NO.3, RH | ||||
| 51078-90K00 |
GRJ71,HZJ71;VDJ79..PIC..IV |
1 | ||
| 51078-90K01 |
VDJ79..LX..CBU;GRJ78,79,HZJ78,79,VDJ78..HT,PIC |
1 | ||
| 51078B - BRACKET SUB-ASSY, SIDE STEP, NO.3, LH | ||||
| 51078-90K01 |
VDJ79..LX..CBU;GRJ78,79,HZJ78,79,VDJ78..HT,PIC |
1 | ||
| 51078-90K00 |
GRJ71,HZJ71;VDJ79..PIC..IV |
1 | ||
| 51707 - STEP SUB-ASSY, RH | ||||
| 51707-90K07 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 51707-90K07 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 51707-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| 51707-90K07 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 51708 - STEP SUB-ASSY, LH | ||||
| 51708-90K07 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 51708-90K07 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 51708-90K07 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 51708-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| 51793A - BRACKET, SIDE STEP, NO.1 RH | ||||
| 51793-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| 51793B - BRACKET, SIDE STEP, NO.1, LH | ||||
| 51793-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| Common parts | ||||
| 91611-A0616 | ||||
| 91635-40618 | ||||
| 91651-40614 | ||||
ILLUST NO. 2 OF 2(1608- )GRJ71,78,79,HZJ71,78,79,VDJ78..HT,PIC,SOT..STD
SIDE STEP(PAINTING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51078A - BRACKET SUB-ASSY, SIDE STEP, NO.3, RH | ||||
| 51078-90K00 |
GRJ71,HZJ71;VDJ79..PIC..IV |
1 | ||
| 51078-90K01 |
VDJ79..LX..CBU;GRJ78,79,HZJ78,79,VDJ78..HT,PIC |
1 | ||
| 51078B - BRACKET SUB-ASSY, SIDE STEP, NO.3, LH | ||||
| 51078-90K01 |
VDJ79..LX..CBU;GRJ78,79,HZJ78,79,VDJ78..HT,PIC |
1 | ||
| 51078-90K00 |
GRJ71,HZJ71;VDJ79..PIC..IV |
1 | ||
| 51707 - STEP SUB-ASSY, RH | ||||
| 51707-90K07 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 51707-90K07 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 51707-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| 51707-90K07 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 51708 - STEP SUB-ASSY, LH | ||||
| 51708-90K07 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 51708-90K07 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 51708-90K07 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 51708-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-90K00 |
HZJ78,79..(HT,PIC)..GEN;GRJ71,78,79,HZJ71,VDJ78,79..(HT,PIC,SOT)..STD NO PAINT REQ. |
2 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-90K00 |
HZJ78,79..(HT,PIC)..GEN;GRJ71,78,79,HZJ71,VDJ78,79..(HT,PIC,SOT)..STD NO PAINT REQ. |
2 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51773-90K00 |
HZJ78,79..(HT,PIC)..GEN;GRJ71,78,79,HZJ71,VDJ78,79..(HT,PIC,SOT)..STD |
2 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51773-90K00 |
HZJ78,79..(HT,PIC)..GEN;GRJ71,78,79,HZJ71,VDJ78,79..(HT,PIC,SOT)..STD |
2 | ||
| 51793A - BRACKET, SIDE STEP, NO.1 RH | ||||
| 51793-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| 51793B - BRACKET, SIDE STEP, NO.1, LH | ||||
| 51793-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| Common parts | ||||
| 90179-05102 | ||||
| 91635-40618 | ||||
| 91651-40614 | ||||

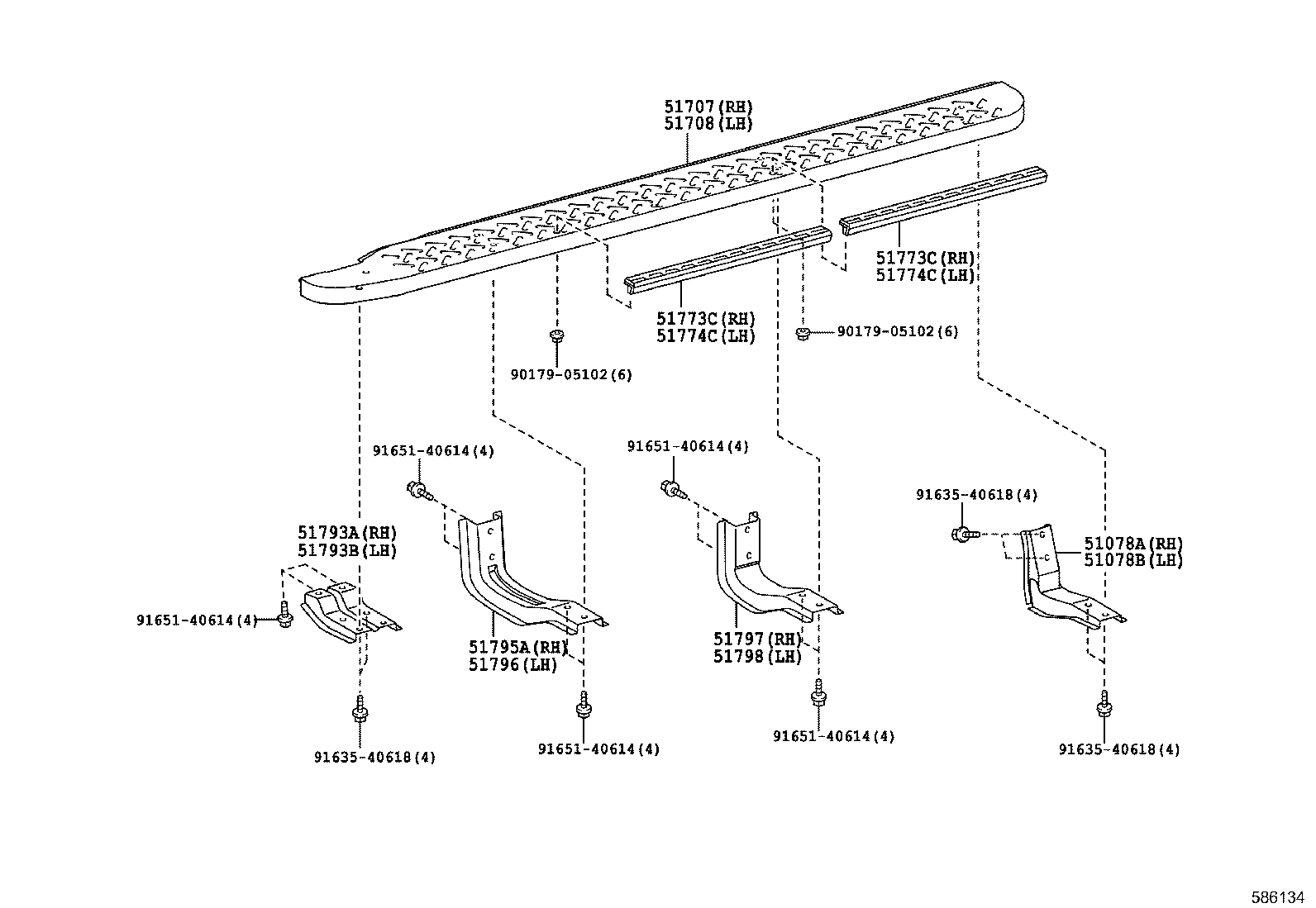

ILLUST NO. 2 OF 2(1608- )VDJ79..PIC..STD
SIDE STEP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51078A - BRACKET SUB-ASSY, SIDE STEP, NO.3, RH | ||||
| 51078-90K00 |
GRJ71,HZJ71;VDJ79..PIC..IV |
1 | ||
| 51078-90K01 |
VDJ79..LX..CBU;GRJ78,79,HZJ78,79,VDJ78..HT,PIC |
1 | ||
| 51078B - BRACKET SUB-ASSY, SIDE STEP, NO.3, LH | ||||
| 51078-90K01 |
VDJ79..LX..CBU;GRJ78,79,HZJ78,79,VDJ78..HT,PIC |
1 | ||
| 51078-90K00 |
GRJ71,HZJ71;VDJ79..PIC..IV |
1 | ||
| 51707 - STEP SUB-ASSY, RH | ||||
| 51707-90K07 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 51707-90K07 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 51707-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| 51707-90K07 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 51708 - STEP SUB-ASSY, LH | ||||
| 51708-90K07 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 51708-90K07 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 51708-90K07 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 51708-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-90K00 |
HZJ78,79..(HT,PIC)..GEN;GRJ71,78,79,HZJ71,VDJ78,79..(HT,PIC,SOT)..STD NO PAINT REQ. |
2 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-90K00 |
HZJ78,79..(HT,PIC)..GEN;GRJ71,78,79,HZJ71,VDJ78,79..(HT,PIC,SOT)..STD NO PAINT REQ. |
2 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51773-90K00 |
HZJ78,79..(HT,PIC)..GEN;GRJ71,78,79,HZJ71,VDJ78,79..(HT,PIC,SOT)..STD |
2 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51773-90K00 |
HZJ78,79..(HT,PIC)..GEN;GRJ71,78,79,HZJ71,VDJ78,79..(HT,PIC,SOT)..STD |
2 | ||
| 51793A - BRACKET, SIDE STEP, NO.1 RH | ||||
| 51793-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| 51793B - BRACKET, SIDE STEP, NO.1, LH | ||||
| 51793-90K00 |
GRJ71,78,79,HZJ71,78,79,VDJ78,79..(HT,PIC,SOT)..STD |
1 | ||
| 51795A - BRACKET, SIDE STEP, NO.2 RH | ||||
| 51795-60140 |
VDJ79..PIC..IV |
1 | ||
| 51796 - BRACKET, SIDE STEP, NO.2 LH | ||||
| 51795-60140 |
VDJ79..PIC..IV |
1 | ||
| 51797 - BRACKET, SIDE STEP, NO.3 RH | ||||
| 51797-60150 |
VDJ79..PIC..IV |
1 | ||
| 51798 - BRACKET, SIDE STEP, NO.3 LH | ||||
| 51797-60150 |
VDJ79..PIC..IV |
1 | ||
| Common parts | ||||
| 90179-05102 | ||||
| 91635-40618 | ||||
| 91651-40614 | ||||
