VDJ79R-TJMRYQ3 (2016)
Toyota Land Cruiser

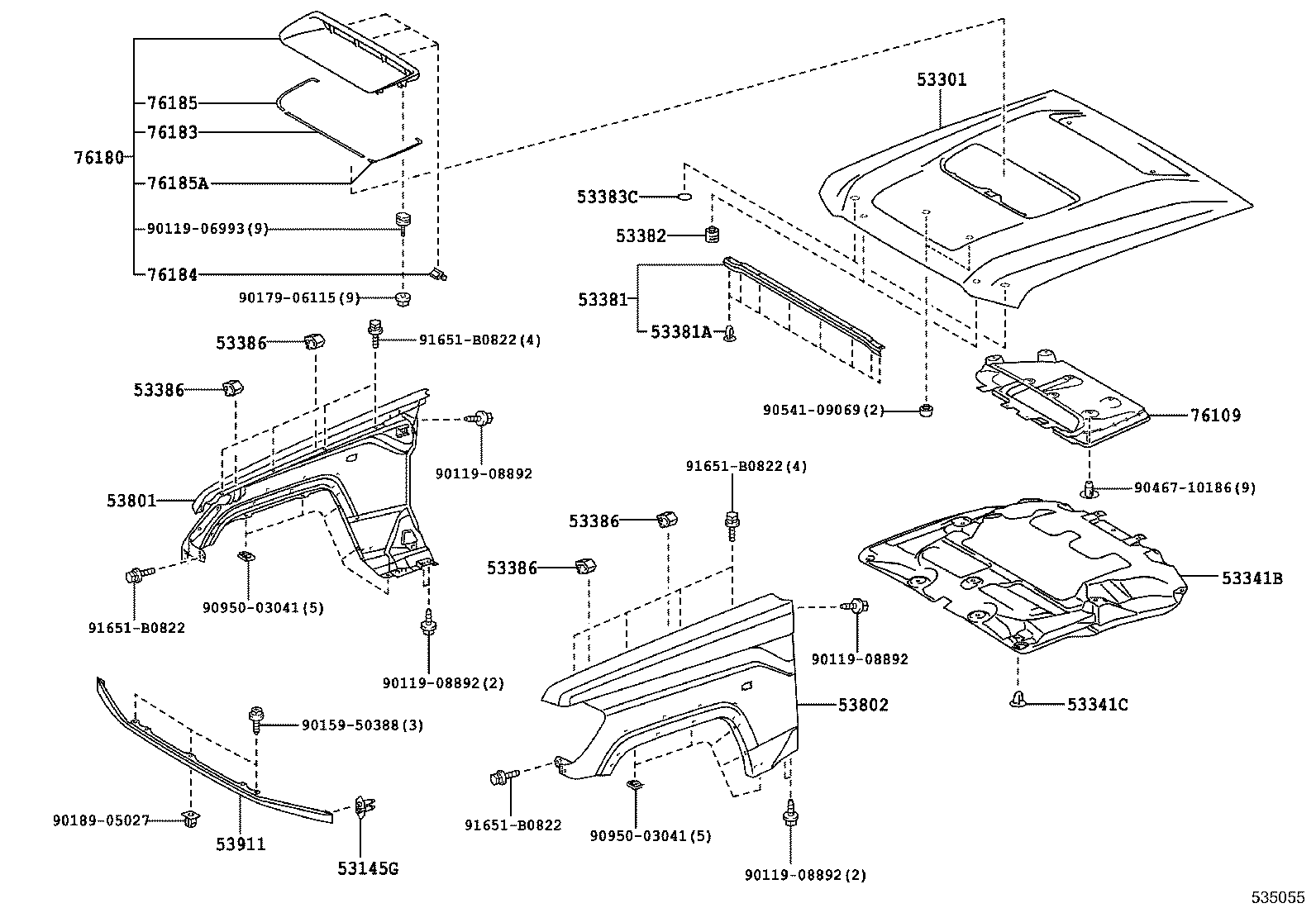

ILLUST NO. 1 OF 2(1608- )ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53145G - CLIP, RADIATOR GRILLE | ||||
| 53145-60020 |
HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7# |
2 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-60750 |
VDJ7#..ARL |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-60430 |
VDJ7#..ARL |
1 | ||
| 53341-60300 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
VDJ7#..ARL |
10 | ||
| 90467-09050 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC |
12 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-60080 |
HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7# |
8 | ||
| 53382 - BUMPER, HOOD, FRONT | ||||
| 53382-60030 |
HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7# |
2 | ||
| 53383C - SEAL, HOOD TO COWL TOP | ||||
| 53397-60010 |
HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7# |
2 | ||
| 53386 - BUMPER, HOOD, REAR | ||||
| 53384-60060 |
HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7# |
4 | ||
| 53386 - BUMPER, HOOD, REAR | ||||
| 53384-60060 |
HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7# |
4 | ||
| 53386 - BUMPER, HOOD, REAR | ||||
| 53384-60060 |
HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7# |
4 | ||
| 53386 - BUMPER, HOOD, REAR | ||||
| 53384-60060 |
HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7# |
4 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-60C70 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 53801-60C70 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 53801-60A70 |
GRJ79,HZJ71,78,79..RHD AUDIO(FOR OVERSEAS MARKET)-2WMU/CD-Y/USB 2SP |
1 | ||
| 53801-60C70 |
HZJ71,79..RHD..(PIC,SOT) SPECIAL EDITION |
1 | ||
| 53801-60A80 |
GRJ79,HZJ78,79..RHD SOUTH AFRICA SPEC&AUDIO(FOR OVERSEAS MARKET)-S1ME-Y 1SP |
1 | ||
| 53801-60A80 |
GRJ79,HZJ78,79..RHD SOUTH AFRICA SPEC&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 2SP |
1 | ||
| 53801-60A70 |
GRJ79,HZJ71,78,79..RHD AUDIO(FOR OVERSEAS MARKET)-2WMU/CD-LA/USB 2SP |
1 | ||
| 53801-60A70 |
GRJ79,HZJ71,78,79..RHD AUDIO(FOR OVERSEAS MARKET)-S1ME-Y 1SP |
1 | ||
| 53801-60A80 |
GRJ79,HZJ78,79..RHD SOUTH AFRICA SPEC&AUDIO(FOR OVERSEAS MARKET)-2WMU/CD-Y/USB 2SP |
1 | ||
| 53801-60B40 |
HZJ71,78,79..RHD AIR CLEANER-CYCRON+SCHNORKEL&AUDIO(FOR OVERSEAS MARKET)-2WMU/CD-LA/USB 2SP |
1 | ||
| 53801-60B10 |
GRJ79,HZJ76,79..RHD SOUTH AFRICA SPEC&TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE) |
1 | ||
| 53801-60B40 |
HZJ71,78,79..RHD AIR CLEANER-CYCRON+SCHNORKEL&AUDIO(FOR OVERSEAS MARKET)-2WMU/CD-Y/USB 2SP |
1 | ||
| 53801-60A70 |
GRJ79,HZJ71,78,79..RHD AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 2SP |
1 | ||
| 53801-60B30 |
GRJ79,HZJ76,78,79..RHD SOUTH AFRICA SPEC |
1 | ||
| 53801-60B40 |
HZJ71,78,79..RHD AIR CLEANER-CYCRON+SCHNORKEL&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 2SP |
1 | ||
| 53801-60B50 |
VDJ7# |
1 | ||
| 53801-60B40 |
HZJ71,78,79..RHD AIR CLEANER-CYCRON+SCHNORKEL&AUDIO(FOR OVERSEAS MARKET)-S1ME-Y 1SP |
1 | ||
| 53801-60B60 |
VDJ76,79..RHD TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE) |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-60A70 |
HZJ71,78,79..RHD AIR CLEANER-CYCRON+SCHNORKEL&AUDIO(FOR OVERSEAS MARKET)-S1ME-Y 1SP |
1 | ||
| 53802-60A70 |
HZJ71,78,79..RHD AIR CLEANER-CYCRON+SCHNORKEL&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 2SP |
1 | ||
| 53802-60A70 |
HZJ71,78,79..RHD AIR CLEANER-CYCRON+SCHNORKEL&AUDIO(FOR OVERSEAS MARKET)-2WMU/CD-Y/USB 2SP |
1 | ||
| 53802-60A70 |
HZJ71,78,79..RHD AIR CLEANER-CYCRON+SCHNORKEL&AUDIO(FOR OVERSEAS MARKET)-2WMU/CD-LA/USB 2SP |
1 | ||
| 53802-60A80 |
VDJ79..LX..GCC;GRJ71,78,79,HZJ78,79,VDJ78,79..(HT,PIC)..STD..(ARL,GCC) AUDIO(FOR OVERSEAS MARKET)-2WMU/CD-Y/USB 2SP |
1 | ||
| 53802-60A80 |
VDJ79..LX..GCC;GRJ71,78,79,HZJ78,79,VDJ78,79..(HT,PIC)..STD..(ARL,GCC) AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 2SP |
1 | ||
| 53802-60A80 |
VDJ79..LX..GCC;GRJ71,78,79,HZJ78,79,VDJ78,79..(HT,PIC)..STD..(ARL,GCC) AUDIO(FOR OVERSEAS MARKET)-S1ME-Y 1SP |
1 | ||
| 53802-60A90 |
VDJ79..PIC..STD TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&AUDIO(FOR OVERSEAS MARKET)-S1ME-Y 1SP |
1 | ||
| 53802-60B10 |
GRJ79,HZJ76,79..RHD SOUTH AFRICA SPEC&TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE) |
1 | ||
| 53802-60A90 |
VDJ79..PIC..STD TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&AUDIO(FOR OVERSEAS MARKET)-2WMU/CD-Y/USB 2SP |
1 | ||
| 53802-60A90 |
VDJ79..PIC..STD TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE)&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS 2SP |
1 | ||
| 53802-60B10 |
VDJ79..RHD..STD TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE) |
1 | ||
| 53802-60B30 |
GRJ79,HZJ76,78,79..RHD SOUTH AFRICA SPEC |
1 | ||
| 53802-60B30 |
VDJ79..STD;VDJ79..LX..GCC;GRJ71,78,79,HZJ78,79,VDJ78..STD..(ARL,GCC) |
1 | ||
| 53911 - PANEL, FRONT VALANCE | ||||
| 53911-60030 |
HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7# PAINT REQ. |
1 | ||
| 76109 - GUIDE SUB-ASSY, HOOD AIR INTAKE | ||||
| 76109-60020 |
VDJ7#..ARL |
1 | ||
| 76180 - BULGE ASSY, HOOD | ||||
| 76180-60010B1 |
VDJ76,79..ARL GRAY ME.,1G3 |
1 | ||
| 76180-60010J0 |
VDJ7#..ARL BLUE,8H6 |
1 | ||
| 76180-60010B0 |
VDJ76,79..ARL SILVER ME.,1F7 |
1 | ||
| 76180-60010E0 |
VDJ7#..ARL BEIGE,4E9 |
1 | ||
| 76180-60010E1 |
VDJ76,79..ARL BEIGE M.M.,4R3 |
1 | ||
| 76180-60010A0 |
VDJ7#..ARL WHITE,058 |
1 | ||
| 76180-60010D0 |
VDJ76,79..ARL DK. RED M.M.,3Q3 |
1 | ||
| 76183 - PROTECTOR, HOOD BULGE, NO.1 | ||||
| 76183-60010 |
VDJ7#..ARL |
1 | ||
| 76184 - PROTECTOR, HOOD BULGE, NO.2 | ||||
| 76184-60020 |
VDJ7#..ARL |
3 | ||
| 76185 - PROTECTOR, HOOD BULGE, NO.3 | ||||
| 76183-60020 |
VDJ7#..ARL |
1 | ||
| 76185A - PROTECTOR, HOOD BULGE, NO.4 | ||||
| 76183-60030 |
VDJ7#..ARL |
1 | ||
| Common parts | ||||
| 90119-06993 | ||||
| 90119-08892 | ||||
| 90159-50388 | ||||
| 90179-06115 | ||||
| 90189-05027 | ||||
| 90467-10186 | ||||
| 90541-09069 | ||||
| 90950-03041 | ||||
| 91651-B0822 | ||||
