VDJ79R-TJMRYQ3 (2016)

Toyota Land Cruiser

Production Aug 2016 - Sep 9999
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1608- )VDJ79..PIC..IV

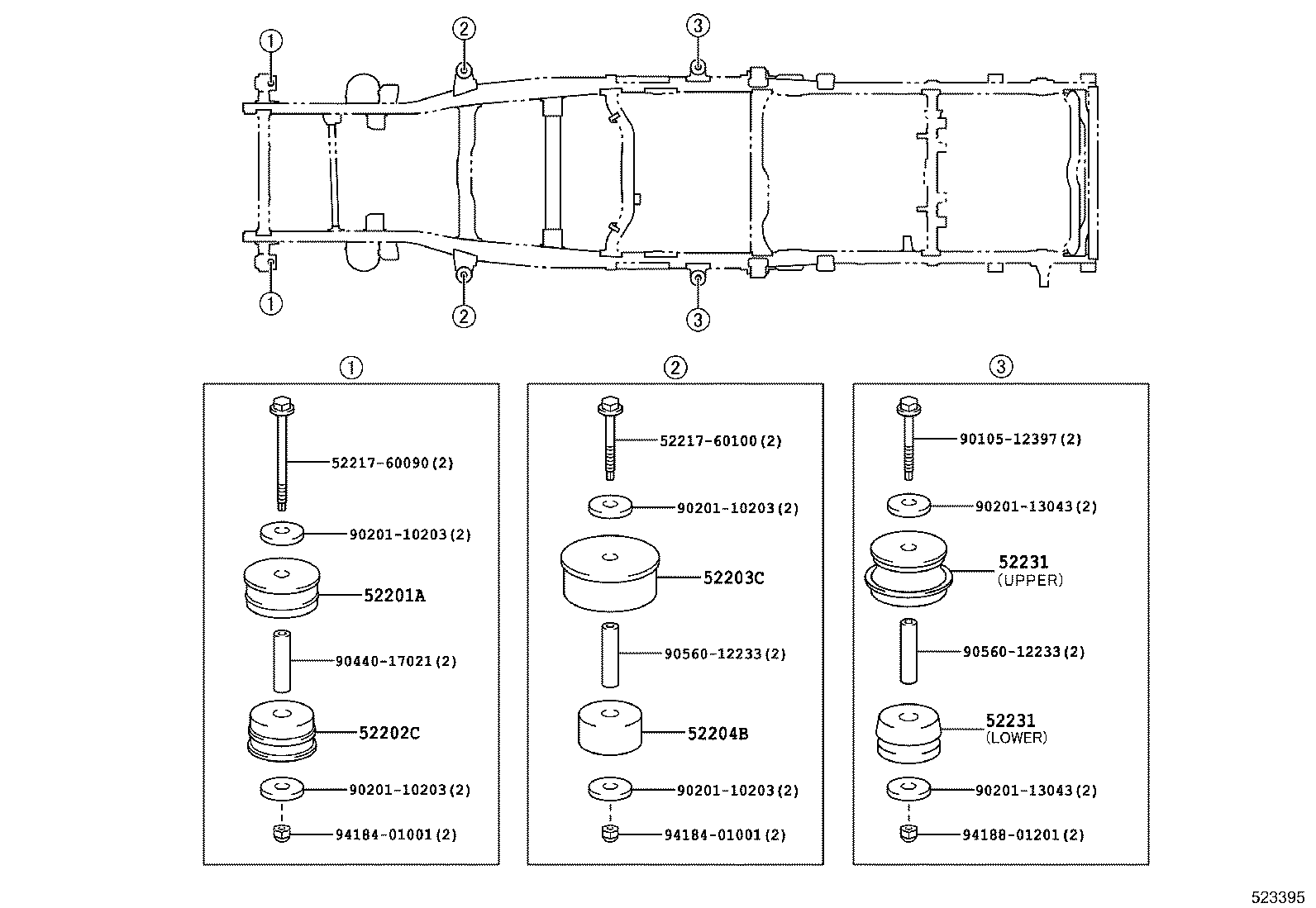

Click highlighted areas on diagram

diagram 52201A 52202C 52203C 52204B 5221760090 5221760100 52231 52231 9010512397 9020110203 9020110203 9020110203 9020110203 9020113043 9020113043 9044017021 9056012233 9056012233 9418401001 9418401001 9418801201
Part # Description Qty Price
52201A - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-25020

HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7#

 2
52202C - CUSHION SUB-ASSY, CAB FRONT MOUNTING, LOWER
52202-60050

HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7#

 2
52203C - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER
52203-60120

VDJ79..PIC..IV

 2
52203-60030

VDJ79..PIC..IV

 2
52203-60030

VDJ79..CBU;VDJ79..DCB..IV;GRJ71,76,79,HZJ71,76,79,VDJ76

 2
52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER
52204-60070

GRJ71,76,79,HZJ71,76,79,VDJ76,79

 2
52231 - CUSHION, BODY MOUNT, NO.3 UPPER
52206-60060

VDJ79..PIC..IV

LOWER

 2
52205-60060

VDJ79..PIC..IV

UPPER

 2
52231 - CUSHION, BODY MOUNT, NO.3 UPPER
52206-60060

VDJ79..PIC..IV

LOWER

 2
52205-60060

VDJ79..PIC..IV

UPPER

 2
Common parts
52217-60090
52217-60100
90105-12397
90201-10203
90201-13043
90440-17021
90560-12233
94184-01001
94188-01201
