VDJ79R-TJMRYQ3 (2016)
Toyota Land Cruiser

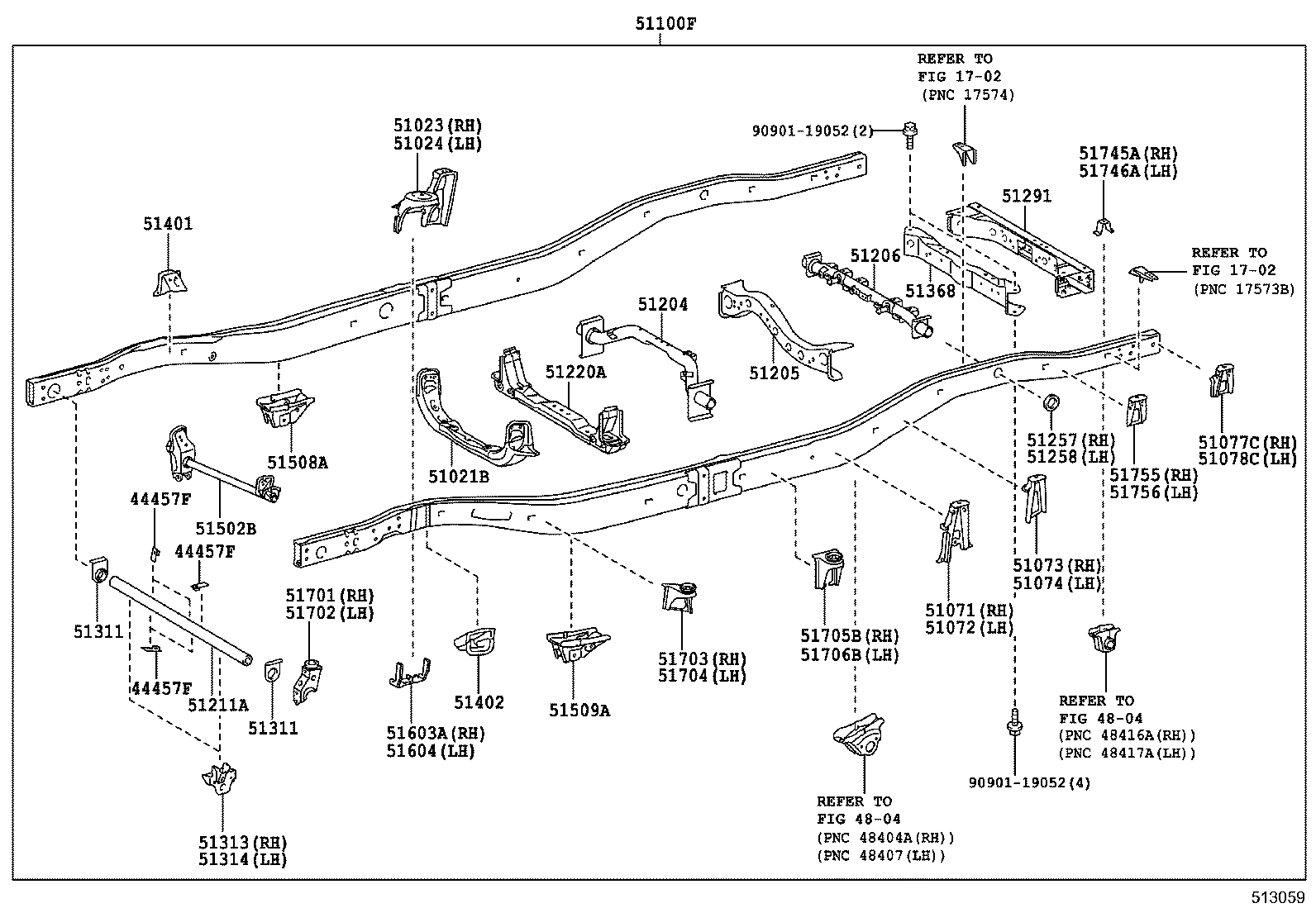

ILLUST NO. 1 OF 2(1608- )VDJ79..PIC..IV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44457F - BRACKET, TUBE SUPPORT | ||||
| 44457-60150 |
GRJ7#,HZJ7#,VDJ7# |
5 | ||
| 44457F - BRACKET, TUBE SUPPORT | ||||
| 44457-60150 |
GRJ7#,HZJ7#,VDJ7# |
5 | ||
| 44457F - BRACKET, TUBE SUPPORT | ||||
| 44457-60150 |
GRJ7#,HZJ7#,VDJ7# |
5 | ||
| 51021B - CROSSMEMBER SUB-ASSY, FRAME AUXILIARY | ||||
| 51021-60050 |
VDJ79..PIC..IV |
1 | ||
| 51023 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH | ||||
| 51023-60020 |
VDJ79..PIC..IV |
1 | ||
| 51024 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH | ||||
| 51024-60020 |
VDJ79..PIC..IV |
1 | ||
| 51071 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH | ||||
| 51071-60020 |
VDJ79..PIC..IV |
1 | ||
| 51072 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH | ||||
| 51072-60020 |
VDJ79..PIC..IV |
1 | ||
| 51073 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH | ||||
| 51073-60010 |
VDJ79..PIC..IV |
1 | ||
| 51074 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH | ||||
| 51074-60010 |
VDJ79..PIC..IV |
1 | ||
| 51077C - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.4 RH | ||||
| 51077-60120 |
VDJ79..PIC..IV |
1 | ||
| 51078C - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.4 LH | ||||
| 51078-60090 |
VDJ79..PIC..IV |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-6AF70 |
VDJ79..PIC..IV |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-60201 |
VDJ79..LX..CBU;GRJ78,79,HZJ78,79,VDJ78..HT,PIC |
1 | ||
| 51203-60310 |
VDJ79..PIC..IV |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-60220 |
VDJ79..PIC..IV |
1 | ||
| 51241-60160 |
VDJ79..CBU;VDJ79..DCB..IV;GRJ78,79,HZJ78,79,VDJ78 |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51250-60111 |
GRJ78,79..HT,PIC FUEL TANK-W(SUB TANK) |
1 | ||
| 51250-60130 |
VDJ79..PIC..IV |
1 | ||
| 51211A - CROSSMEMBER, FRAME, FRONT | ||||
| 51211-60091 |
VDJ79..PIC..IV |
1 | ||
| 51220A - CROSSMEMBER ASSY, FRAME, NO.2 | ||||
| 51220-60010 |
VDJ79..PIC..IV |
1 | ||
| 51257 - REINFORCEMENT, FRAME NO.5 CROSSMEMBER, RH | ||||
| 51257-60040 |
VDJ79..PIC..IV |
1 | ||
| 51258 - REINFORCEMENT, FRAME NO.5 CROSSMEMBER, LH | ||||
| 51257-60040 |
VDJ79..PIC..IV |
1 | ||
| 51291 - CROSSMEMBER, FRAME, REAR | ||||
| 51209-60250 |
VDJ79..IV;GRJ79,HZJ79,VDJ79..DCB..CBU |
1 | ||
| 51311 - GUSSET, FRAME FRONT CROSSMEMBER | ||||
| 51311-60080 |
VDJ79..PIC..IV |
2 | ||
| 51311 - GUSSET, FRAME FRONT CROSSMEMBER | ||||
| 51311-60080 |
VDJ79..PIC..IV |
2 | ||
| 51313 - GUSSET, FRONT FRAME, LOWER RH | ||||
| 51093-60010 |
VDJ79..PIC..IV |
1 | ||
| 51314 - GUSSET, FRONT FRAME, LOWER LH | ||||
| 51094-60010 |
VDJ79..PIC..IV |
1 | ||
| 51368 - MEMBER, FRAME FUEL TANK MOUNTING | ||||
| 51368-60020 |
VDJ79..IV;GRJ76,79,HZJ76,79,VDJ76,79..(DCB,HT)..CBU |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-60150 |
VDJ79..PIC..IV |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-60050 |
VDJ79..PIC..IV |
1 | ||
| 51502B - BRACKET SUB-ASSY, LATERAL ROD SUPPORT | ||||
| 51502-60060 |
VDJ79..PIC..IV |
1 | ||
| 51508A - BRACKET SUB-ASSY, LOWER ARM, RH | ||||
| 51508-60050 |
VDJ79..PIC..IV |
1 | ||
| 51509A - BRACKET SUB-ASSY, LOWER ARM, LH | ||||
| 51509-60060 |
VDJ79..PIC..IV |
1 | ||
| 51603A - BRACKET SUB-ASSY, FRONT BOUND STOPPER, RH | ||||
| 51603-60040 |
VDJ79..PIC..IV |
1 | ||
| 51604 - BRACKET SUB-ASSY, FRONT BOUND STOPPER, LH | ||||
| 51604-60040 |
VDJ79..PIC..IV |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51701-60070 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51701-60070 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-60120 |
VDJ79..PIC..IV |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51704-60110 |
VDJ79..PIC..IV |
1 | ||
| 51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH | ||||
| 51705-60091 |
VDJ79..LX..CBU;GRJ78,79,HZJ78,79,VDJ78..HT,PIC |
1 | ||
| 51705-60170 |
VDJ79..PIC..IV |
1 | ||
| 51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH | ||||
| 51705-60091 |
VDJ79..LX..CBU;GRJ78,79,HZJ78,79,VDJ78..HT,PIC |
1 | ||
| 51705-60170 |
VDJ79..PIC..IV |
1 | ||
| 51745A - BRACKET, REAR BODY MOUNTING, NO.5 RH | ||||
| 51745-60040 |
VDJ79..PIC..IV |
1 | ||
| 51746A - BRACKET, REAR BODY MOUNTING, NO.5 LH | ||||
| 51745-60040 |
VDJ79..PIC..IV |
1 | ||
| 51755 - BRACKET, BODY SUPPORT, NO.3 RH | ||||
| 51755-60020 |
VDJ79..PIC..IV |
1 | ||
| 51756 - BRACKET, BODY SUPPORT, NO.3 LH | ||||
| 51755-60020 |
VDJ79..PIC..IV |
1 | ||
| Common parts | ||||
| 90901-19052 | ||||
| Linked diagrams | ||||
| 1702 | ||||
| 4804 | ||||

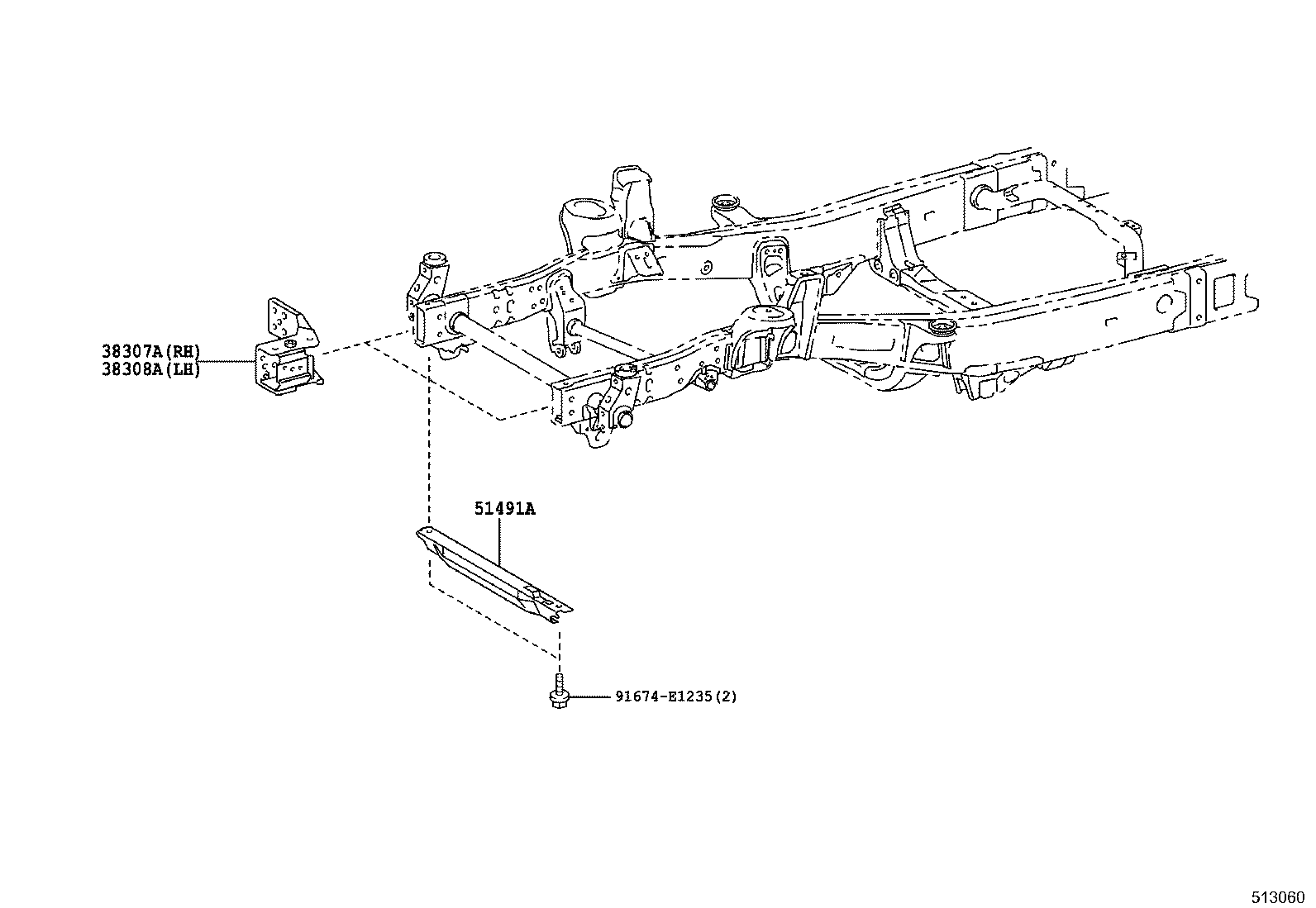

ILLUST NO. 2 OF 2(1608- )VDJ79..PIC..IV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38307A - SUPPORT SUB-ASSY, WINCH BASE, RH | ||||
| 38307-60040 |
VDJ79..PIC..IV |
1 | ||
| 38308A - SUPPORT SUB-ASSY, WINCH BASE, LH | ||||
| 38308-60040 |
VDJ79..PIC..IV |
1 | ||
| 51491A - BAR, UNDER GUARD, FRONT NO.1 | ||||
| 51491-60030 |
VDJ76,79;GRJ79..RHD;GRJ79,HZJ79,VDJ78..ARL,GCC |
1 | ||
| Common parts | ||||
| 91674-E1235 | ||||
