VDJ79R-TJMRYQ3 (2016)
Toyota Land Cruiser

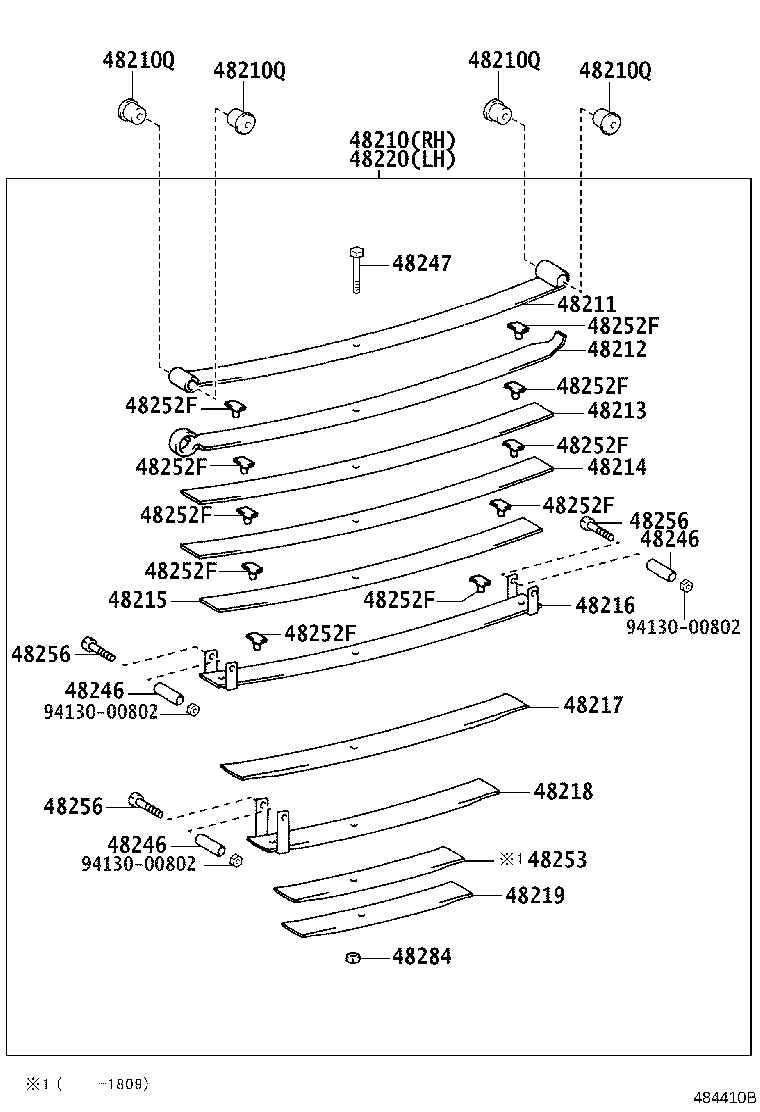

ILLUST NO. 2 OF 3(1608- )VDJ79..PIC..IV
9-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-60B10 |
VDJ79..PIC..IV 9-LEAF |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18021 |
VDJ79..PIC..IV |
8 | ||
| 90385-18022 |
HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7# UPPER |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18021 |
VDJ79..PIC..IV |
8 | ||
| 90385-18022 |
HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7# UPPER |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18021 |
VDJ79..PIC..IV |
8 | ||
| 90385-18022 |
HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7# UPPER |
4 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18021 |
VDJ79..PIC..IV |
8 | ||
| 90385-18022 |
HZJ76,78,79..GEN;GRJ7#,HZJ71,VDJ7# UPPER |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-60B10 |
VDJ79..PIC..IV |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-60B10 |
VDJ79..PIC..IV |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-60B10 |
VDJ79..PIC..IV |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-60B10 |
VDJ79..PIC..IV |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-60B10 |
VDJ79..PIC..IV |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48202-60B10 |
VDJ79..PIC..IV |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-60B10 |
VDJ79..PIC..IV |
2 | ||
| 48218 - LEAF, REAR SPRING, NO.8 | ||||
| 48203-60B10 |
VDJ79..PIC..IV |
2 | ||
| 48219 - LEAF, REAR SPRING, NO.9 | ||||
| 48219-60B10 |
VDJ79..PIC..IV |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-60B10 |
VDJ79..PIC..IV 9-LEAF |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
HZJ78,79..GEN;GRJ78,79,VDJ79 |
6 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
HZJ78,79..GEN;GRJ78,79,VDJ79 |
6 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
HZJ78,79..GEN;GRJ78,79,VDJ79 |
6 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36280 |
VDJ79..PIC..IV |
2 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
VDJ79..PIC..IV |
20 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
VDJ79..PIC..IV |
20 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
VDJ79..PIC..IV |
20 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
VDJ79..PIC..IV |
20 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
VDJ79..PIC..IV |
20 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
VDJ79..PIC..IV |
20 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
VDJ79..PIC..IV |
20 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
VDJ79..PIC..IV |
20 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
VDJ79..PIC..IV |
20 | ||
| 48252F - SILENCER, REAR SPRING, NO.3 | ||||
| 48252-26070 |
VDJ79..PIC..IV |
20 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-60B10 |
VDJ79..PIC..IV |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
HZJ78,79..GEN;GRJ78,79,VDJ79 |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
HZJ78,79..GEN;GRJ78,79,VDJ79 |
6 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
HZJ78,79..GEN;GRJ78,79,VDJ79 |
6 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
HZJ78,79..GEN;GRJ78,79,VDJ78,79 |
2 | ||
| Common parts | ||||
| 94130-00802 | ||||
