VDJ79R-TJMRYQ3 (2016)
Toyota Land Cruiser
ILLUST NO. 6 OF 6(1608- )GRJ7#,VDJ7#..ARL,GCC
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-60200 |
HZJ78,79;GRJ78,79..LHD..GEN REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 44050-60350 |
VDJ79..PIC..IV TIRE & DISK WHEEL-265/70R16LT AT1 7JJ ALUMINUM L(TUBE) |
1 | ||
| 44050-60340 |
VDJ79..PIC..IV |
1 | ||
| 44050-60360 |
VDJ79..PIC..STD TIRE & DISK WHEEL-225/95R16 6J L(TUBE) |
1 | ||
| 44050-60360 |
VDJ79..PIC..IV |
1 | ||
| 44050-60340 |
VDJ79..PIC..IV TIRE & DISK WHEEL-7.50R16-8 RGF 5.50F |
1 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-60100 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V |
3 | ||
| 44547-60100 |
VDJ7#;GRJ79..RHD |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-60100 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V |
3 | ||
| 44547-60100 |
VDJ7#;GRJ79..RHD |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-60100 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V |
3 | ||
| 44547-60100 |
VDJ7#;GRJ79..RHD |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-60060 |
VDJ7#..ARL,GCC |
1 | ||
| 44590-60050 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| Common parts | ||||
| 44521-12050 | ||||
| 90119-06844 | ||||
| 90179-08249 | ||||

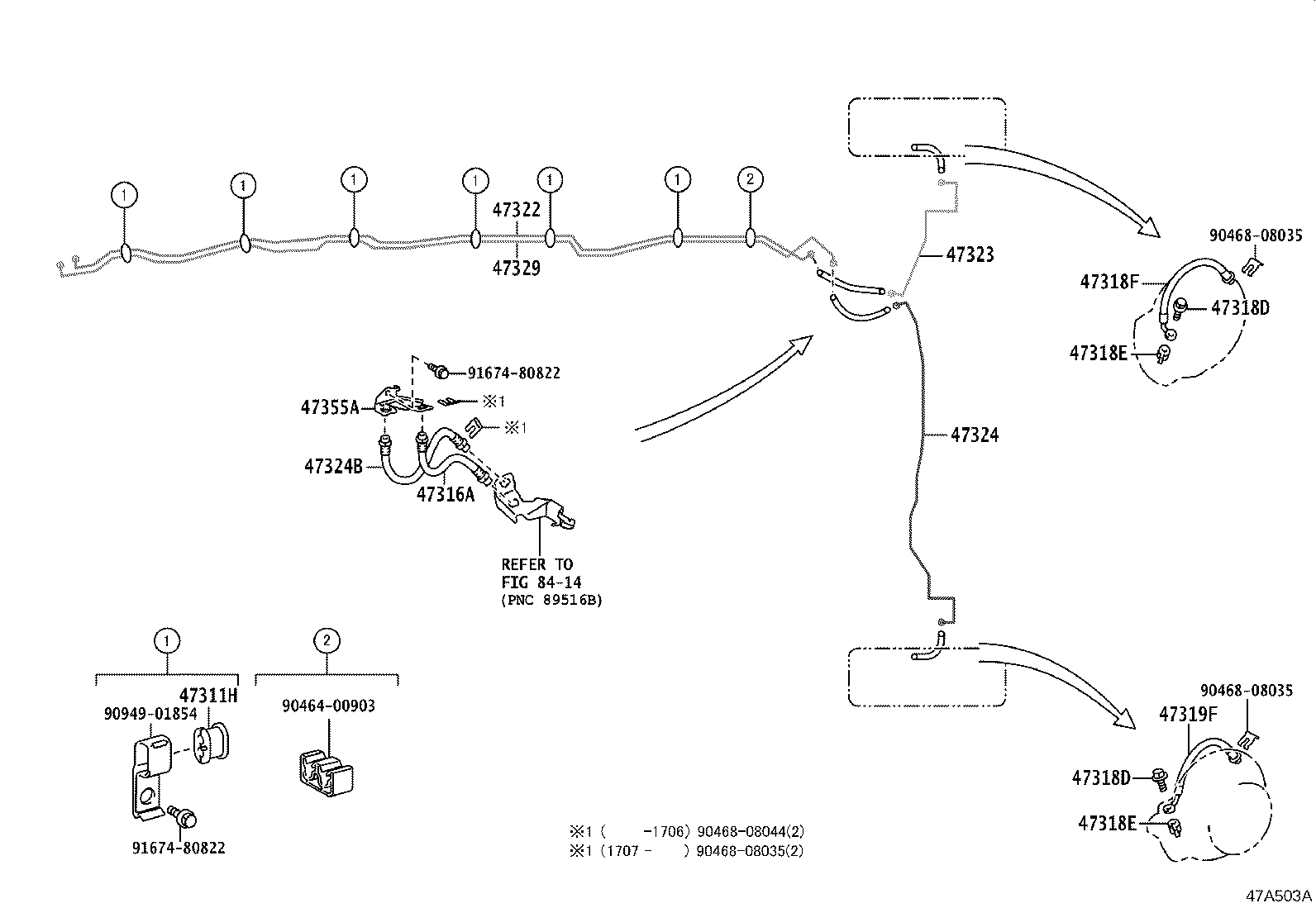

ILLUST NO. 4 OF 6(1608- )VDJ79..PIC..IV
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 90480-01107 |
GRJ71,HZJ78,79;VDJ79..RHD..PIC;VDJ79..STD..GEN |
6 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02G97 |
VDJ7#..ARL,GCC |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V |
2 | ||
| 90401-10058 |
VDJ7#..ARL |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V |
2 | ||
| 90401-10058 |
VDJ7#..ARL |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V |
2 | ||
| 47389-50020 |
VDJ7#..ARL |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V |
2 | ||
| 47389-50020 |
VDJ7#..ARL |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02G98 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 90947-02G98 |
VDJ7#..ARL |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02G99 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 90947-02G99 |
VDJ7#..ARL |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47323-60C20 |
VDJ79..PIC..IV |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47324-60510 |
VDJ7#..ARL |
1 | ||
| 47324-60410 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN |
1 | ||
| 47324-60401 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47325-60371 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN |
1 | ||
| 47325-60361 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47325-60470 |
VDJ7#..ARL |
1 | ||
| 47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2) | ||||
| 90947-02H84 |
VDJ7#..ARL,GCC |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-60120 |
VDJ79..PIC..IV |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-60260 |
VDJ7#..ARL,GCC |
1 | ||
| Common parts | ||||
| 90464-00903 | ||||
| 90468-08035 | ||||
| 90949-01854 | ||||
| 91674-80822 | ||||
| Linked diagrams | ||||
| 8414 | ||||

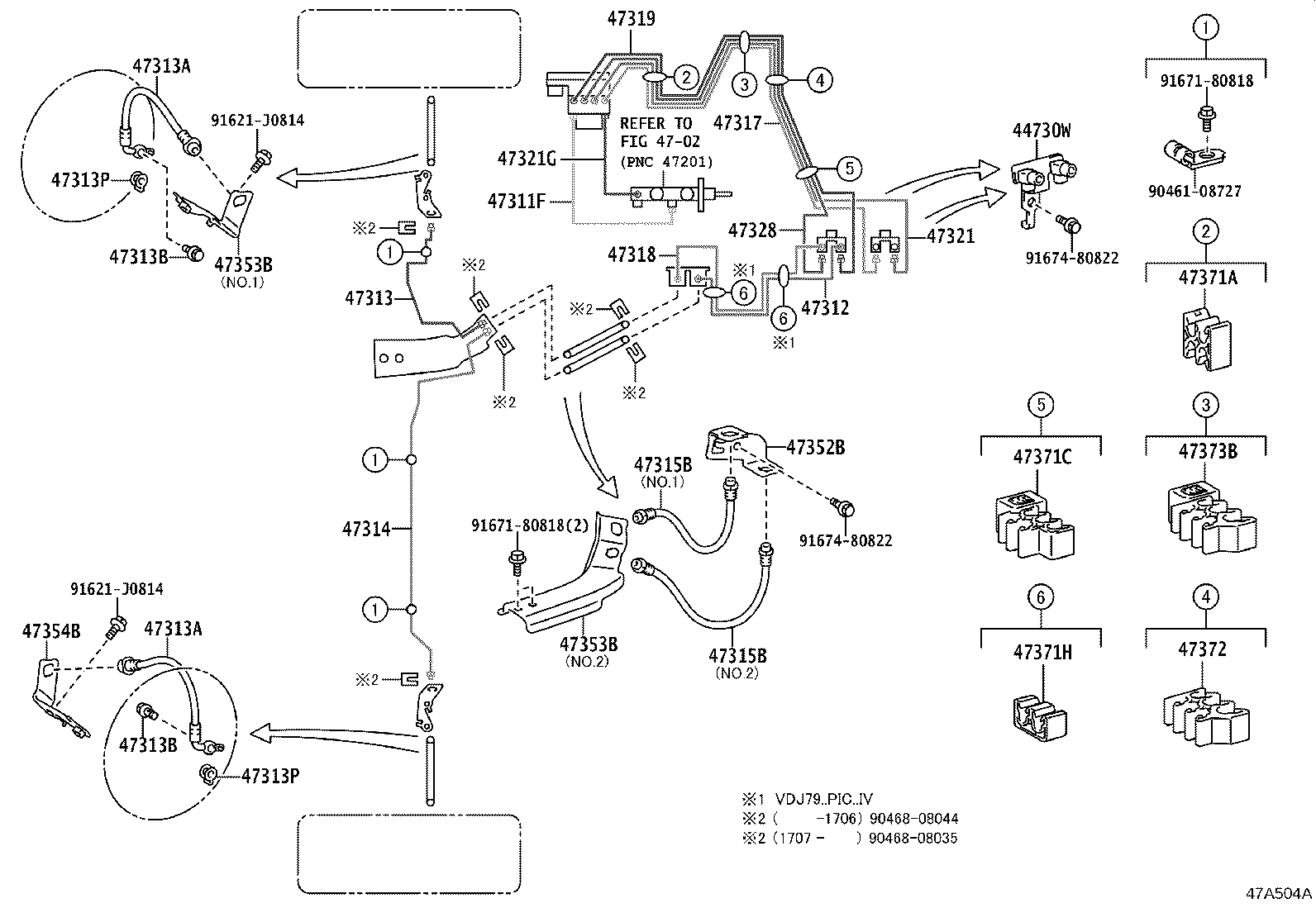

ILLUST NO. 3 OF 6(1608- )ARL
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730W - WAY, 2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10294 |
VDJ7# |
2 | ||
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-60700 |
VDJ7#..ARL |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47313-60570 |
VDJ79..PIC..IV |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-60350 |
VDJ7# |
1 | ||
| 47314-60351 |
VDJ7# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02G91 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02G91 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47315-60611 |
VDJ7# |
1 | ||
| 47315-60610 |
VDJ7# |
1 | ||
| 47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G92 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN |
1 | ||
| 90947-02G96 |
VDJ7# NO.2 |
1 | ||
| 90947-02G94 |
VDJ7# NO.1 |
1 | ||
| 47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G92 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN |
1 | ||
| 90947-02G96 |
VDJ7# NO.2 |
1 | ||
| 90947-02G94 |
VDJ7# NO.1 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-60200 |
VDJ79..PIC..IV |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-60180 |
VDJ79..PIC..IV |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-60170 |
VDJ79..PIC..IV |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47322-60D30 |
VDJ79..PIC..IV |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-60440 |
VDJ7#..ARL |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-60050 |
VDJ79..PIC..IV |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47354-60160 |
VDJ7# |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47351-60300 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V,NO.1 |
1 | ||
| 47351-60311 |
VDJ7# NO.2 |
1 | ||
| 47351-60300 |
VDJ7#;GRJ79..RHD NO.1 |
1 | ||
| 47351-60280 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47351-60300 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V,NO.1 |
1 | ||
| 47351-60311 |
VDJ7# NO.2 |
1 | ||
| 47351-60300 |
VDJ7#;GRJ79..RHD NO.1 |
1 | ||
| 47351-60280 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47352-60190 |
VDJ7#;GRJ79..RHD |
1 | ||
| 47352-60190 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47352-60170 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00876 |
VDJ7#..ARL,GCC |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01D45 |
GRJ79..RHD;VDJ7#..ARL,GCC |
1 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90464-00903 |
VDJ79..PIC..IV |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01D52 |
VDJ7#..ARL,GCC |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01E46 |
VDJ7#..ARL,GCC |
1 | ||
| Common parts | ||||
| 90461-08727 | ||||
| 91621-J0814 | ||||
| 91671-80818 | ||||
| 91674-80822 | ||||
| Linked diagrams | ||||
| 4702 | ||||
ILLUST NO. 1 OF 6(1608- )ARL
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311F - TUBE, FRONT BRAKE, FRAME NO.1 | ||||
| 47311-60700 |
VDJ7#..ARL |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47313-60570 |
VDJ79..PIC..IV |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47313-60570 |
VDJ79..PIC..IV |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-60351 |
VDJ7# |
1 | ||
| 47314-60350 |
VDJ7# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02G91 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02G91 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47315-60611 |
VDJ7# |
1 | ||
| 47315-60610 |
VDJ7# |
1 | ||
| 47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G92 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN |
1 | ||
| 90947-02G96 |
VDJ7# NO.2 |
1 | ||
| 90947-02G94 |
VDJ7# NO.1 |
1 | ||
| 47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02G92 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN |
1 | ||
| 90947-02G96 |
VDJ7# NO.2 |
1 | ||
| 90947-02G94 |
VDJ7# NO.1 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02G97 |
VDJ7#..ARL,GCC |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-60200 |
VDJ79..PIC..IV |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-60180 |
VDJ79..PIC..IV |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-60180 |
VDJ79..PIC..IV |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V |
2 | ||
| 90401-10058 |
VDJ7#..ARL |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V |
2 | ||
| 90401-10058 |
VDJ7#..ARL |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V |
2 | ||
| 47389-50020 |
VDJ7#..ARL |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V |
2 | ||
| 47389-50020 |
VDJ7#..ARL |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02G98 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 90947-02G98 |
VDJ7#..ARL |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-60170 |
VDJ79..PIC..IV |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02G99 |
VDJ7#..ARL |
1 | ||
| 90947-02G99 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47322-60D30 |
VDJ79..PIC..IV |
1 | ||
| 47321G - TUBE, REAR BRAKE, FRAME NO.1 | ||||
| 47321-60440 |
VDJ7#..ARL |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47323-60C20 |
VDJ79..PIC..IV |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47323-60C20 |
VDJ79..PIC..IV |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47323-60C20 |
VDJ79..PIC..IV |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47323-60C20 |
VDJ79..PIC..IV |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47324-60510 |
VDJ7#..ARL |
1 | ||
| 47324-60410 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN |
1 | ||
| 47324-60401 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47325-60371 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN |
1 | ||
| 47325-60361 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47325-60470 |
VDJ7#..ARL |
1 | ||
| 47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2) | ||||
| 90947-02H84 |
VDJ7#..ARL,GCC |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-60050 |
VDJ79..PIC..IV |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-60120 |
VDJ79..PIC..IV |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-60120 |
VDJ79..PIC..IV |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-60120 |
VDJ79..PIC..IV |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-60120 |
VDJ79..PIC..IV |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47354-60160 |
VDJ7# |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-60260 |
VDJ7#..ARL,GCC |
1 | ||
| Common parts | ||||
| 90468-08035 | ||||
| 91674-80822 | ||||
| Linked diagrams | ||||
| 8414 | ||||
ILLUST NO. 2 OF 6(1608- )ARL
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730W - WAY, 2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10294 |
VDJ7# |
2 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 90480-01107 |
GRJ71,HZJ78,79;VDJ79..RHD..PIC;VDJ79..STD..GEN |
6 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47351-60300 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V,NO.1 |
1 | ||
| 47351-60311 |
VDJ7# NO.2 |
1 | ||
| 47351-60300 |
VDJ7#;GRJ79..RHD NO.1 |
1 | ||
| 47351-60280 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47351-60300 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V,NO.1 |
1 | ||
| 47351-60311 |
VDJ7# NO.2 |
1 | ||
| 47351-60300 |
VDJ7#;GRJ79..RHD NO.1 |
1 | ||
| 47351-60280 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47352-60190 |
VDJ7#;GRJ79..RHD |
1 | ||
| 47352-60190 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 47352-60170 |
HZJ76,78,79;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71..GEN |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00876 |
VDJ7#..ARL,GCC |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01D45 |
GRJ79..RHD;VDJ7#..ARL,GCC |
1 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90464-00903 |
VDJ79..PIC..IV |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01D52 |
VDJ7#..ARL,GCC |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01E46 |
VDJ7#..ARL,GCC |
1 | ||
| Common parts | ||||
| 90461-08727 | ||||
| 90464-00903 | ||||
| 90949-01854 | ||||
| 91621-J0814 | ||||
| 91671-80818 | ||||
| 91674-80822 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
