VDJ79R-TJMRYQ3 (2016)

Toyota Land Cruiser

Production Aug 2016 - Sep 9999
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

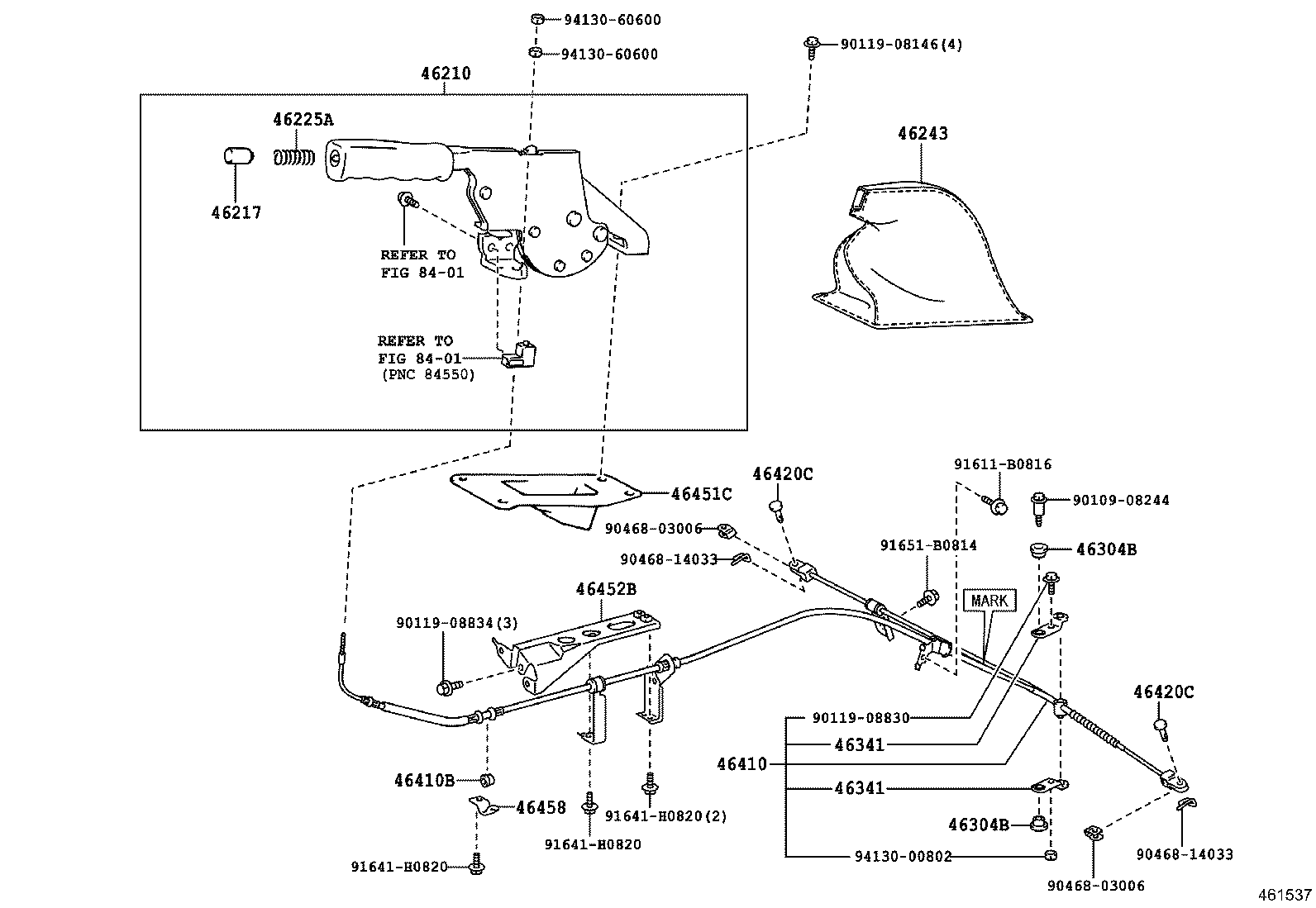

ILLUST NO. 1 OF 2(1608- )VDJ78,79..STD..GCC ; (1608- )VDJ79..PIC..ARL,GCC

Click highlighted areas on diagram

diagram 46210 46217 46225A 46243 46304B 46304B 46341 46341 46410 46410B 46420C 46420C 46451C 46452B 46458 8401 8401 9010908244 9011908146 9011908830 9011908834 9046803006 9046803006 9046814033 9046814033 91611B0816 91641H0820 91641H0820 91641H0820 91651B0814 9413000802 9413060600 9413060600
Part # Description Qty Price
46210 - LEVER ASSY, PARKING BRAKE
46210-60230C0

HZJ79..IV;HZJ76..LHD;HZJ79,VDJ78..ARL,GCC;HZJ79..LHD..DCB..GEN;GRJ71,79,VDJ76..(DCB,HT)..GEN;GRJ76,78,79,HZJ71,78,VDJ79..(HT,PIC)..STD

BLACK,TRIM1#,4#

 1
46210-60230C0

VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC)

BLACK,TRIM1#,2#,4#

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-20020C0

HZJ79..IV;HZJ76..LHD;HZJ79,VDJ78..ARL,GCC;HZJ79..LHD..DCB..GEN;GRJ71,79,VDJ76..(DCB,HT)..GEN;GRJ76,78,79,HZJ71,78,VDJ79..(HT,PIC)..STD

BLACK,TRIM1#,4#

 1
46217-20020C0

VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC)

BLACK,TRIM1#,2#,4#

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10138

GRJ7#,HZJ7#,VDJ7#

 1
46243 - COVER, PARKING BRAKE LEVER
46243-60060C0

HZJ79..IV;HZJ76..LHD;HZJ79,VDJ78..ARL,GCC;HZJ79..LHD..DCB..GEN;GRJ71,79,VDJ76..(DCB,HT)..GEN;GRJ76,78,79,HZJ71,78,VDJ79..(HT,PIC)..STD

BLACK,TRIM1#,4#

 1
46243-60060C0

VDJ79..DCB;HZJ76,79..RHD;GRJ79,VDJ79..LX;HZJ79..LHD..PIC..GEN..CBU;GRJ71,76,79,VDJ76..(DCB,HT)..(ARL,GCC)

BLACK,TRIM1#,2#,4#

 1
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12012

GRJ7#,HZJ7#,VDJ7#

 2
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12012

GRJ7#,HZJ7#,VDJ7#

 2
46341 - EQUALIZER, PARKING BRAKE
46341-35030

GRJ7#,HZJ7#,VDJ7#

 2
46341 - EQUALIZER, PARKING BRAKE
46341-35030

GRJ7#,HZJ7#,VDJ7#

 2
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-60D00

VDJ79..PIC..IV

MARK=78

 1
46410B - GROMMET(FOR PARKING BRAKE FRONT CABLE)
90480-17158

VDJ79..IV;GRJ71,HZJ71;GRJ79,HZJ76,79,VDJ76,79..RHD..(DCB,HT)..CBU

 1
46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE)
90240-08059

GRJ7#,HZJ7#,VDJ7#

 2
46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE)
90240-08059

GRJ7#,HZJ7#,VDJ7#

 2
46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46451-60130

VDJ79..IV;HZJ76,79..(DCB,HT)..GEN;GRJ71,76,79,HZJ71,VDJ76,79..(DCB,HT)..CBU

 1
46452B - BRACKET, CABLE SUPPORT, NO.2
46452-60130

VDJ79..PIC..IV

 1
46458 - RETAINER, CABLE
46458-30020

VDJ79..IV;GRJ71,HZJ71;GRJ79,HZJ76,79,VDJ76,79..RHD..(DCB,HT)..CBU

 1
Common parts
90109-08244
90119-08146
90119-08830
90119-08834
90468-03006
90468-14033
91611-B0816
91641-H0820
91651-B0814
94130-00802
94130-60600
