VDJ79R-TJMRYQ3 (2016)

Toyota Land Cruiser

Production Aug 2016 - Sep 9999
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1608- )1VDFTV..ARL

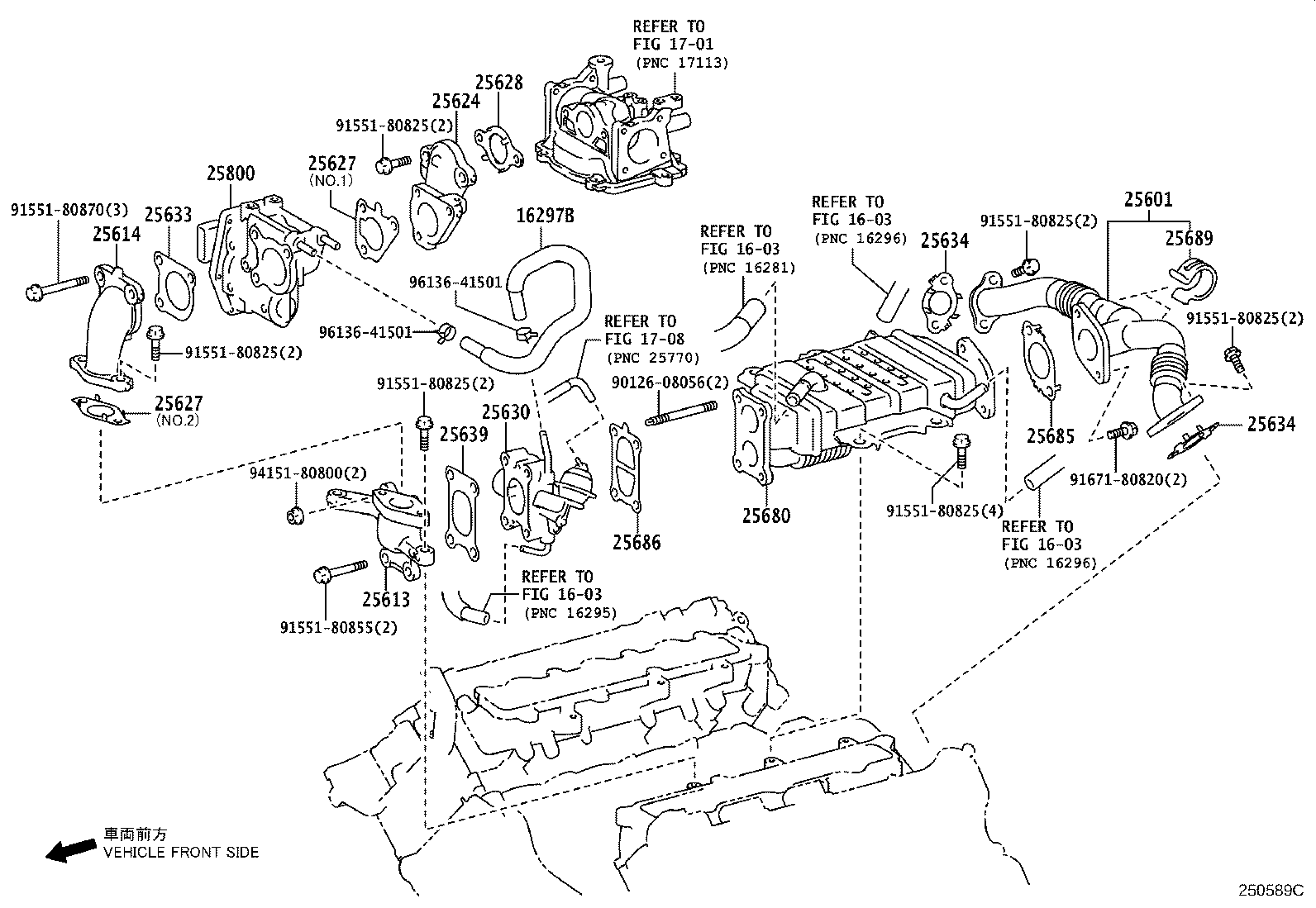

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 16297B 1701 1708 25601 25613 25614 25624 25627 25627 25628 25630 25633 25634 25634 25639 25680 25685 25686 25689 25800 9012608056 9155180825 9155180825 9155180825 9155180825 9155180825 9155180825 9155180855 9155180870 9167180820 9415180800 9613641501 9613641501
Part # Description Qty Price
16297B - HOSE, WATER BY-PASS, NO.9
16297-51020

1VDFTV..VDJ7#..ARL

 1
25601 - PIPE SUB-ASSY, EGR, NO.1
25611-51030

1VDFTV..VDJ7#..ARL

 1
25613 - PIPE, EGR, NO.3
25613-51030

1VDFTV..VDJ7#..ARL

 1
25614 - PIPE, EGR, NO.4
25614-51020

1VDFTV..VDJ7#..ARL

 1
25624 - ADAPTER, EGR VALVE
25624-51010

1VDFTV..VDJ7#..ARL

 1
25627 - GASKET, EGR VALVE
25627-30070

1VDFTV..VDJ7#..ARL

NO.1:REFER ILLUST.

 1
25627-51010

1VDFTV..VDJ7#..ARL

NO.2:REFER ILLUST.

 1
25627 - GASKET, EGR VALVE
25627-30070

1VDFTV..VDJ7#..ARL

NO.1:REFER ILLUST.

 1
25627-51010

1VDFTV..VDJ7#..ARL

NO.2:REFER ILLUST.

 1
25628 - GASKET, EGR INLET
25628-51010

1VDFTV..VDJ7#..ARL

 1
25630 - VALVE ASSY, EGR, NO.2
25630-51020

1VDFTV..VDJ7#..ARL

 1
25633 - GASKET, EGR VALVE
25633-26020

1VDFTV..VDJ7#..ARL

 1
25634 - GASKET, EGR PIPE
25634-51010

1VDFTV..VDJ7#..ARL

 2
25634 - GASKET, EGR PIPE
25634-51010

1VDFTV..VDJ7#..ARL

 2
25639 - GASKET, EGR PIPE, NO.3
25639-51010

1VDFTV..VDJ7#..ARL

 1
25680 - COOLER ASSY, EGR
25680-51030

1VDFTV..VDJ7#..ARL

 1
25685 - GASKET, EGR COOLER, NO.1
25685-51020

1VDFTV..VDJ7#..ARL

 1
25686 - GASKET, EGR COOLER, NO.2
25686-51010

1VDFTV..VDJ7#..ARL

 1
25689 - INSULATOR, EGR COOLER
25699-30010

1VDFTV..VDJ7#..ARL

 2
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-30210

1VDFTV..VDJ7#..ARL

 1
Common parts
90126-08056
91551-80825
91551-80855
91551-80870
91671-80820
94151-80800
96136-41501
Linked diagrams
1603
1701
1708
