VDJ79R-TJMRYQ3 (2016)

Toyota Land Cruiser

Production Aug 2016 - Sep 9999
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

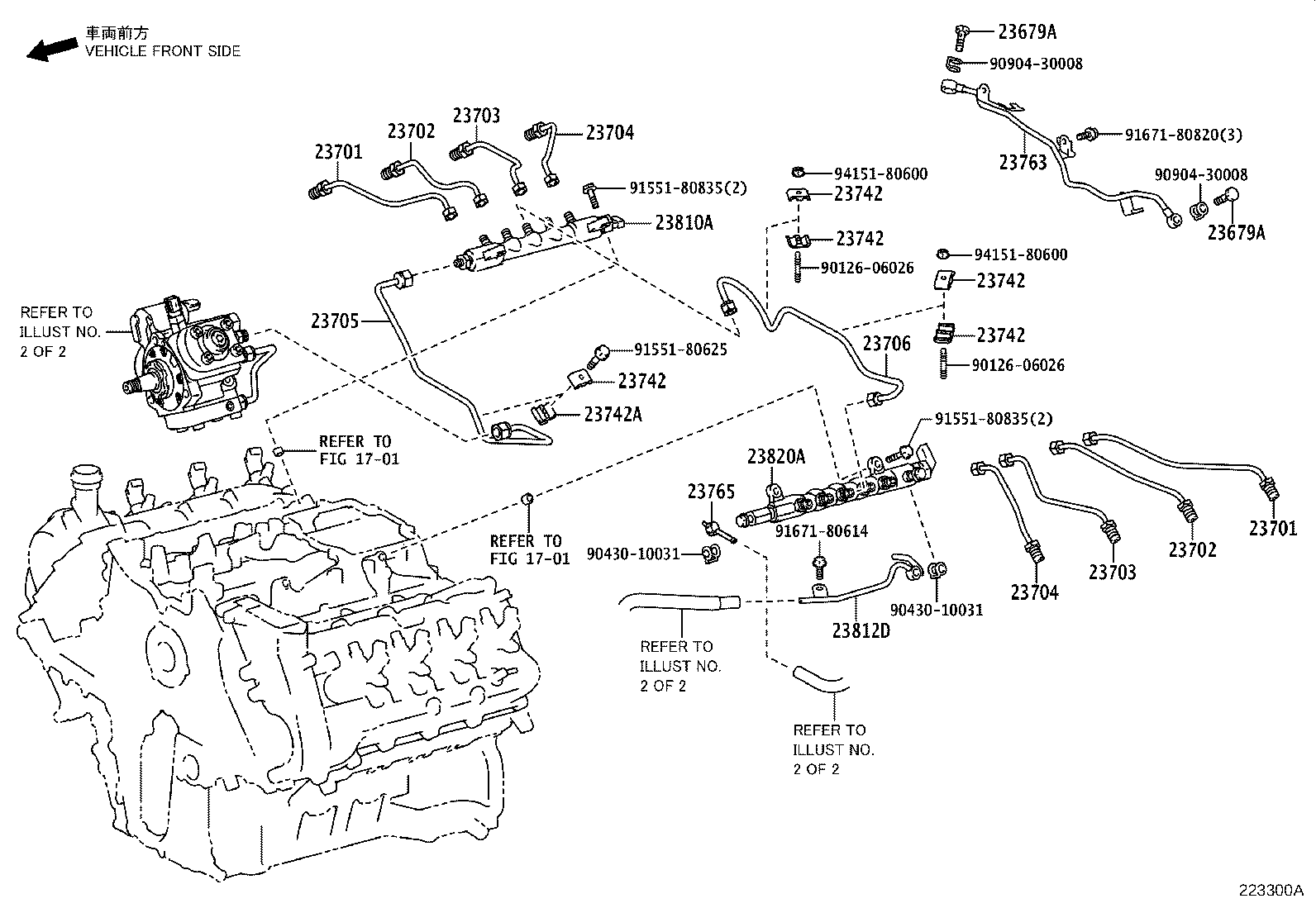

ILLUST NO. 1 OF 2(1608- )1VDFTV..ARL

Click highlighted areas on diagram

diagram 1701 1701 23679A 23679A 23701 23701 23702 23702 23703 23703 23704 23704 23705 23706 23742 23742 23742 23742 23742 23742A 23763 23765 23810A 23812D 23820A 9012606026 9012606026 9043010031 9043010031 9090430008 9090430008 9155180625 9155180835 9155180835 9167180614 9167180820 9415180600 9415180600
Part # Description Qty Price
23679A - SCREW, INJECTOR FOLLOW
23679-51010

1VDFTV..VDJ7#..ARL

 2
23679A - SCREW, INJECTOR FOLLOW
23679-51010

1VDFTV..VDJ7#..ARL

 2
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-51020

1VDFTV..VDJ7#..ARL

 2
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-51020

1VDFTV..VDJ7#..ARL

 2
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-51020

1VDFTV..VDJ7#..ARL

 2
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-51020

1VDFTV..VDJ7#..ARL

 2
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-51020

1VDFTV..VDJ7#..ARL

 2
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-51020

1VDFTV..VDJ7#..ARL

 2
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-51020

1VDFTV..VDJ7#..ARL

 2
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-51020

1VDFTV..VDJ7#..ARL

 2
23705 - PIPE SUB-ASSY, INJECTION, NO.5
23705-51011

1VDFTV..VDJ7#

 1
23706 - PIPE SUB-ASSY, INJECTION, NO.6
23706-51020

1VDFTV..VDJ7#..ARL

 1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010

1VDFTV..VDJ7#

 5
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010

1VDFTV..VDJ7#

 5
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010

1VDFTV..VDJ7#

 5
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010

1VDFTV..VDJ7#

 5
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010

1VDFTV..VDJ7#

 5
23742A - CLAMP, INJECTION PIPE, NO.3
23742-58020

1VDFTV..VDJ7#

 1
23763 - PIPE, NOZZLE LEAKAGE, NO.3
23763-51020

1VDFTV..VDJ7#..ARL

 1
23765 - PIPE, NOZZLE LEAKAGE, NO.5
23765-51011

1VDFTV..VDJ7#

 1
23810A - RAIL ASSY, COMMON
23810-51021

1VDFTV..VDJ7#..ARL

 1
23812D - PIPE, FUEL, NO.2
23812-51020

1VDFTV..VDJ7#..ARL

 1
23820A - RAIL ASSY, COMMON
23820-51020

1VDFTV..VDJ7#..ARL

 1
Common parts
90126-06026
90430-10031
90904-30008
91551-80625
91551-80835
91671-80614
91671-80820
94151-80600
Linked diagrams
1701

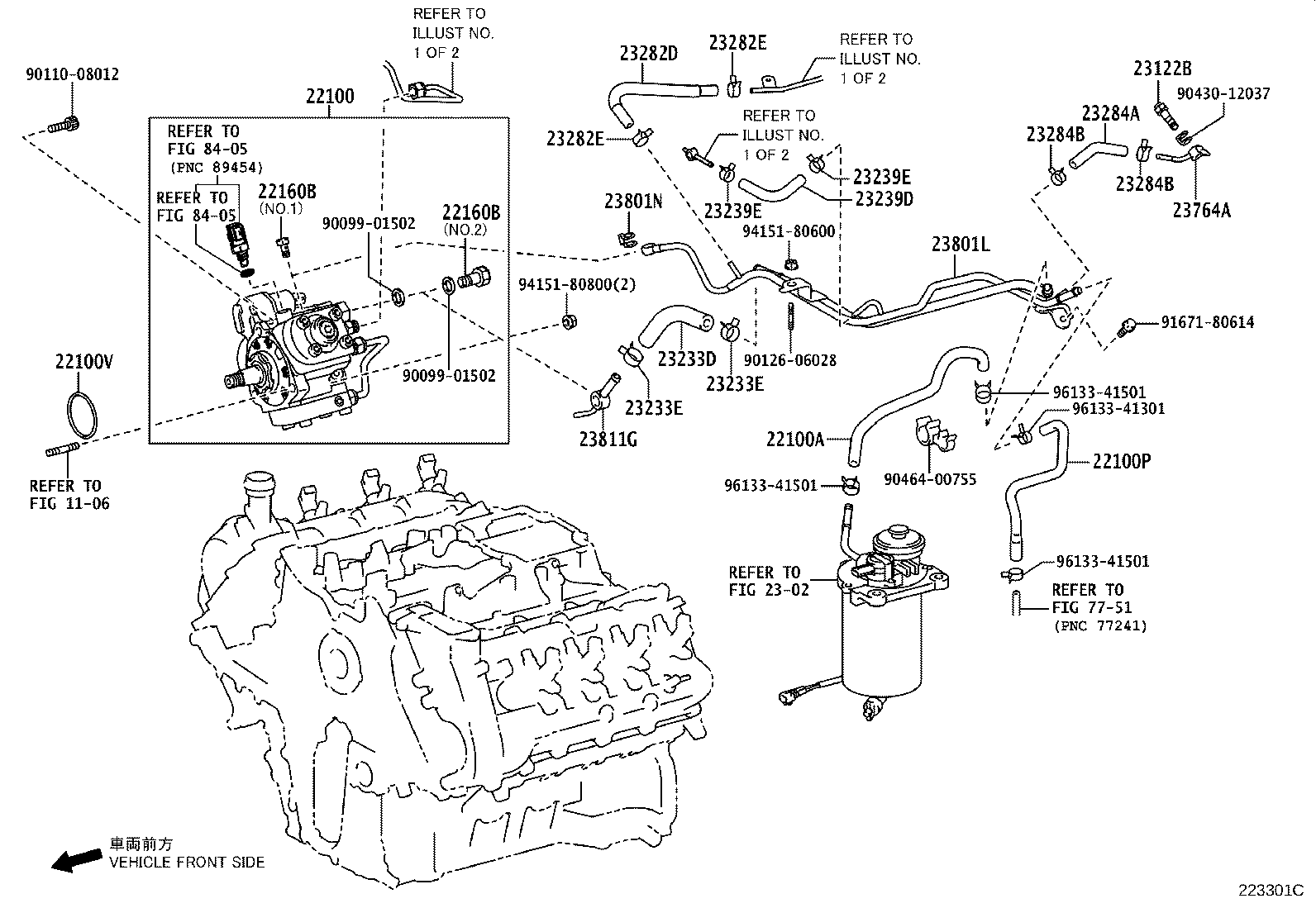

ILLUST NO. 2 OF 2(1608- )1VDFTV..ARL

Click highlighted areas on diagram

diagram 1106 22100 22100A 22100P 22100V 22160B 22160B 2302 23122B 23233D 23233E 23233E 23239D 23239E 23239E 23282D 23282E 23282E 23284A 23284B 23284B 23764A 23801L 23801N 23811G 7751 8405 8405 9009901502 9009901502 9011008012 9012606028 9043012037 9046400755 9167180614 9415180600 9415180800 9613341301 9613341501 9613341501 9613341501
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-51070

1VDFTV..VDJ7#..ARL

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23271-51020

1VDFTV..VDJ7#..ARL

 1
22100P - HOSE, FUEL(FOR FUEL PIPE TO FUEL TUBE)
23273-51060

1VDFTV..VDJ7#..ARL

 1
22100V - RING, O(FOR INJECTION PUMP)
90301-49003

1VDFTV..VDJ7#

 1
22160B - SCREW
90099-18010

1VDFTV..VDJ7#

NO.2

 1
90099-18005

1VDFTV..VDJ7#

NO.1

 1
22160B - SCREW
90099-18010

1VDFTV..VDJ7#

NO.2

 1
90099-18005

1VDFTV..VDJ7#

NO.1

 1
23122B - VALVE, CHECK
23769-51010

1VDFTV..VDJ7#..ARL

 1
23233D - HOSE, FUEL PUMP
23233-51011

1VDFTV..VDJ7#

 1
23233E - CLIP, HOSE(FOR FUEL PUMP HOSE)
96133-41501

1VDFTV..VDJ7#

 2
23233E - CLIP, HOSE(FOR FUEL PUMP HOSE)
96133-41501

1VDFTV..VDJ7#

 2
23239D - HOSE, FUEL, NO.1
23239-51030

1VDFTV..VDJ7#..ARL

 1
23239E - CLIP, FUEL HOSE, NO.1
90467-11076

1VDFTV..VDJ7#

 2
23239E - CLIP, FUEL HOSE, NO.1
90467-11076

1VDFTV..VDJ7#

 2
23282D - HOSE, FUEL, NO.4
23282-51020

1VDFTV..VDJ7#..ARL

 1
23282E - CLIP(FOR FUEL HOSE NO.4)
90467-11076

1VDFTV..VDJ7#..ARL

 2
23282E - CLIP(FOR FUEL HOSE NO.4)
90467-11076

1VDFTV..VDJ7#..ARL

 2
23284A - HOSE, FUEL, NO.5
23284-51020

1VDFTV..VDJ7#..ARL

 1
23284B - CLIP(FOR FUEL HOSE NO.5)
90467-11076

1VDFTV..VDJ7#..ARL

 2
23284B - CLIP(FOR FUEL HOSE NO.5)
90467-11076

1VDFTV..VDJ7#..ARL

 2
23764A - PIPE, NOZZLE LEAKAGE, NO.4
23764-51020

1VDFTV..VDJ7#..ARL

 1
23801L - PIPE SUB-ASSY, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23801-51030

1VDFTV..VDJ7#..ARL

 1
23801N - GASKET
90430-10031

1VDFTV..VDJ7#..ARL

 1
23811G - PIPE, FUEL, NO.1
23811-51010

1VDFTV..VDJ7#

 1
Common parts
90099-01502
90110-08012
90126-06028
90430-12037
90464-00755
91671-80614
94151-80600
94151-80800
96133-41301
96133-41501
Linked diagrams
1106
2302
7751
8405
