VDJ79R-TJMRYQ3 (2016)

Toyota Land Cruiser

Production Aug 2016 - Sep 9999
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1608- )1VDFTV..ARL

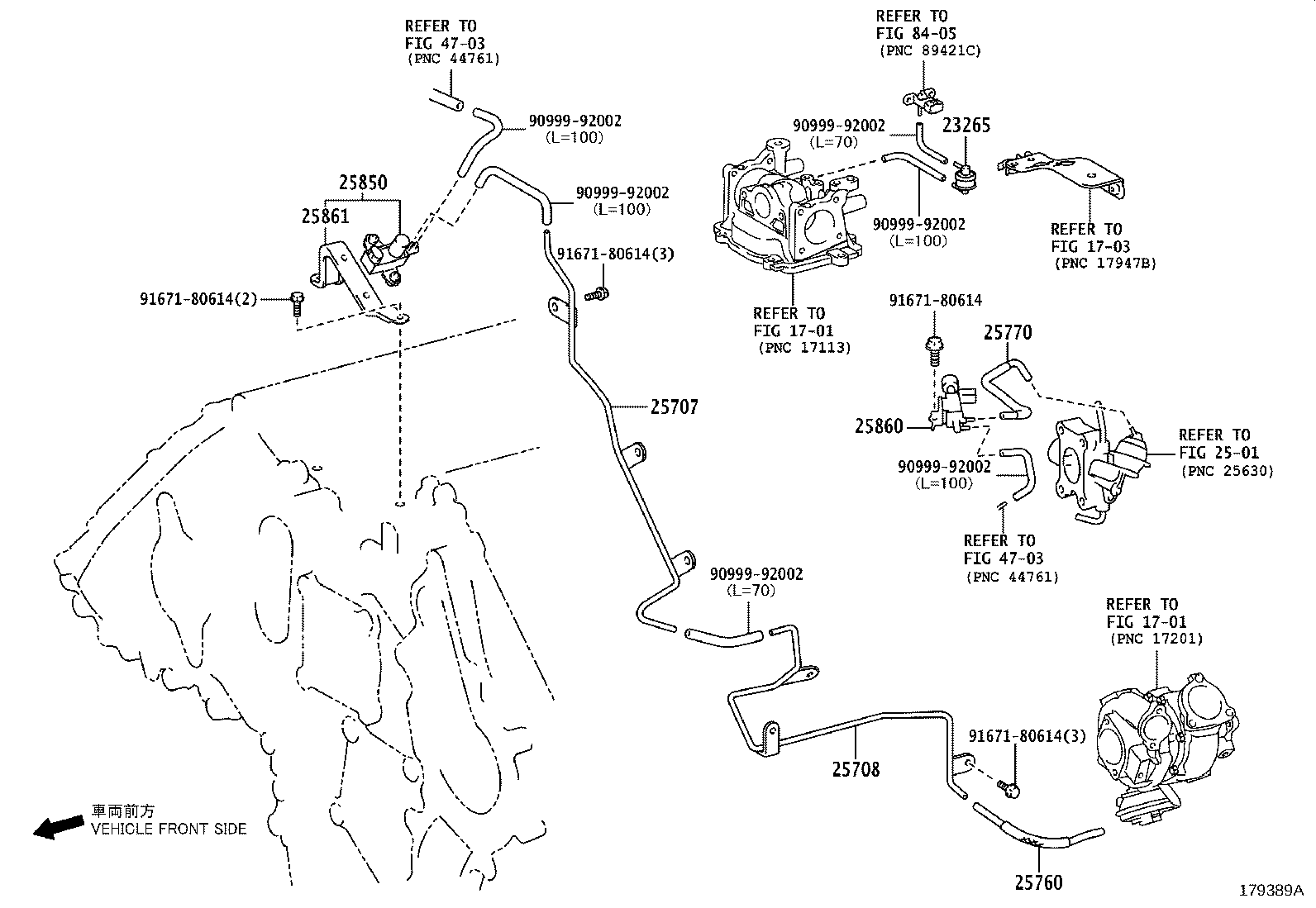

Click highlighted areas on diagram

EURO 5

diagram 1701 1701 1703 23265 2501 25707 25708 25760 25770 25850 25860 25861 4703 4703 8405 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9167180614 9167180614 9167180614 9167180614
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11036

1VDFTV..VDJ7#

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-51010

1VDFTV..VDJ7#

 1
25708 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.3
25708-51010

1VDFTV..VDJ7#

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-51010

1VDFTV..VDJ7#

 1
25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2
25770-51030

1VDFTV..VDJ7#..ARL

 1
25850 - VALVE ASSY, ELECTRIC VACUUM REGULATING
25850-51010

1VDFTV..VDJ7#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-51020

1VDFTV..VDJ7#..ARL

 1
25861 - BRACKET, VACUUM SWITCHING VALVE
25861-51010

1VDFTV..VDJ7#

 1
Common parts
90999-92002
91671-80614
Linked diagrams
1701
1703
2501
4703
8405
