VDJ79R-TJMRYQ3 (2016)

Toyota Land Cruiser

Production Aug 2016 - Sep 9999
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1608- )1VDFTV..VDJ79..RHD

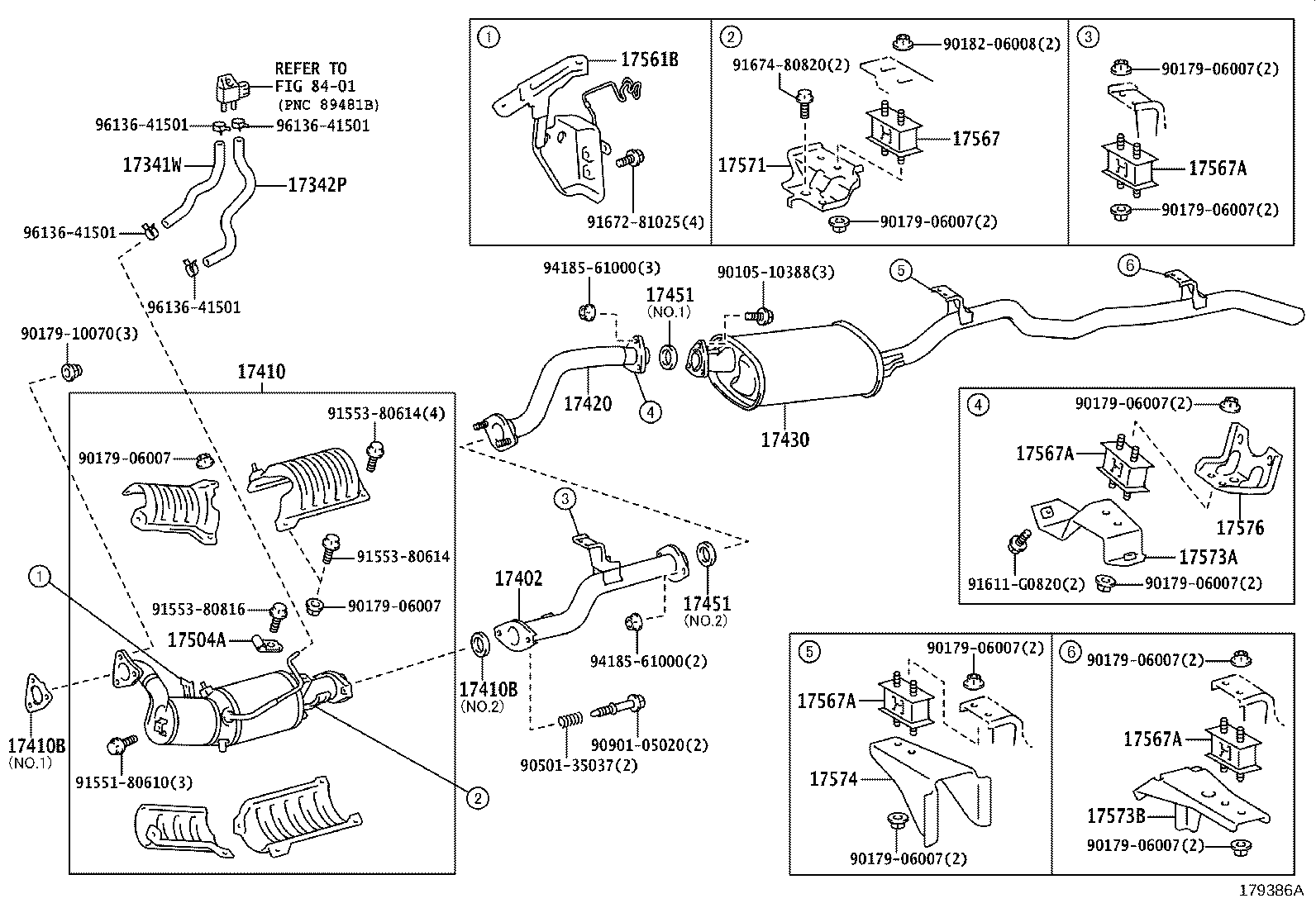

Click highlighted areas on diagram

diagram 17341W 17342P 17402 17410 17410B 17410B 17420 17430 17451 17451 17504A 17561B 17567 17567A 17567A 17567A 17567A 17571 17573A 17573B 17574 17576 8401 9010510388 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017910070 9018206008 9050135037 9090105020 9155180610 9155380614 9155380614 9155380816 91611G0820 9167281025 9167480820 9418561000 9418561000 9613641501 9613641501 9613641501 9613641501
Part # Description Qty Price
17341W - HOSE, AIR, NO.1
17341-51060

1VDFTV..VDJ7#..ARL

 1
17342P - HOSE, AIR, NO.2
17342-51050

1VDFTV..VDJ7#..ARL

 1
17402 - PIPE SUB-ASSY, EXHAUST, FRONT NO.2
17402-51030

1VDFTV..VDJ76,79..ARL

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-51070

1VDFTV..VDJ7#..ARL

 1
17401-51071

1VDFTV..VDJ7#..ARL

 1
17410B - GASKET, EXHAUST PIPE
17279-17030

1VDFTV..VDJ7#..ARL

NO.1

 1
17451-28040

1VDFTV..VDJ7#..ARL

NO.2

 1
17410B - GASKET, EXHAUST PIPE
17279-17030

1VDFTV..VDJ7#..ARL

NO.1

 1
17451-28040

1VDFTV..VDJ7#..ARL

NO.2

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-51040

1VDFTV..VDJ79..IV

 1
17403-51030

1VDFTV..VDJ79..IV

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-17270

1VDFTV..VDJ79..IV

 1
17405-51020

1VDFTV..VDJ79..IV

 1
17451 - GASKET, EXHAUST PIPE
90917-06076

1VDFTV..VDJ78,79..ARL

NO.2

 1
90917-06049

1VDFTV..VDJ78,79..ARL

NO.1

 1
17451 - GASKET, EXHAUST PIPE
90917-06076

1VDFTV..VDJ78,79..ARL

NO.2

 1
90917-06049

1VDFTV..VDJ78,79..ARL

NO.1

 1
17504A - CLAMP SUB-ASSY, EXHAUST PIPE
17504-30040

1VDFTV..VDJ7#..ARL

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-51020

1VDFTV..VDJ7#..ARL

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-17030

1VDFTV..VDJ7#..ARL

 1
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-17020

1VDFTV..VDJ78,79..ARL

 4
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-17020

1VDFTV..VDJ78,79..ARL

 4
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-17020

1VDFTV..VDJ78,79..ARL

 4
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-17020

1VDFTV..VDJ78,79..ARL

 4
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-51010

1VDFTV..VDJ7#..ARL

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-58081

1HZ,1VDFTV..HZJ78,79,VDJ78,79

 1
17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-60021

1HZ,1VDFTV..HZJ76,78,79,VDJ7#

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-60040

1GRFE,1HZ,1VDFTV..GRJ78,79,HZJ78,79,VDJ78,79

 1
17576 - BRACKET, MUFFLER CLAMP
17576-61030

1VDFTV..VDJ78,79..ARL

 1
Common parts
90105-10388
90179-06007
90179-10070
90182-06008
90501-35037
90901-05020
91551-80610
91553-80614
91553-80816
91611-G0820
91672-81025
91674-80820
94185-61000
96136-41501
Linked diagrams
8401
