VDJ79R-TJMRYQ3 (2016)

Toyota Land Cruiser

Production Aug 2016 - Sep 9999
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1608- )1VDFTV..ARL

Click highlighted areas on diagram

EURO 5

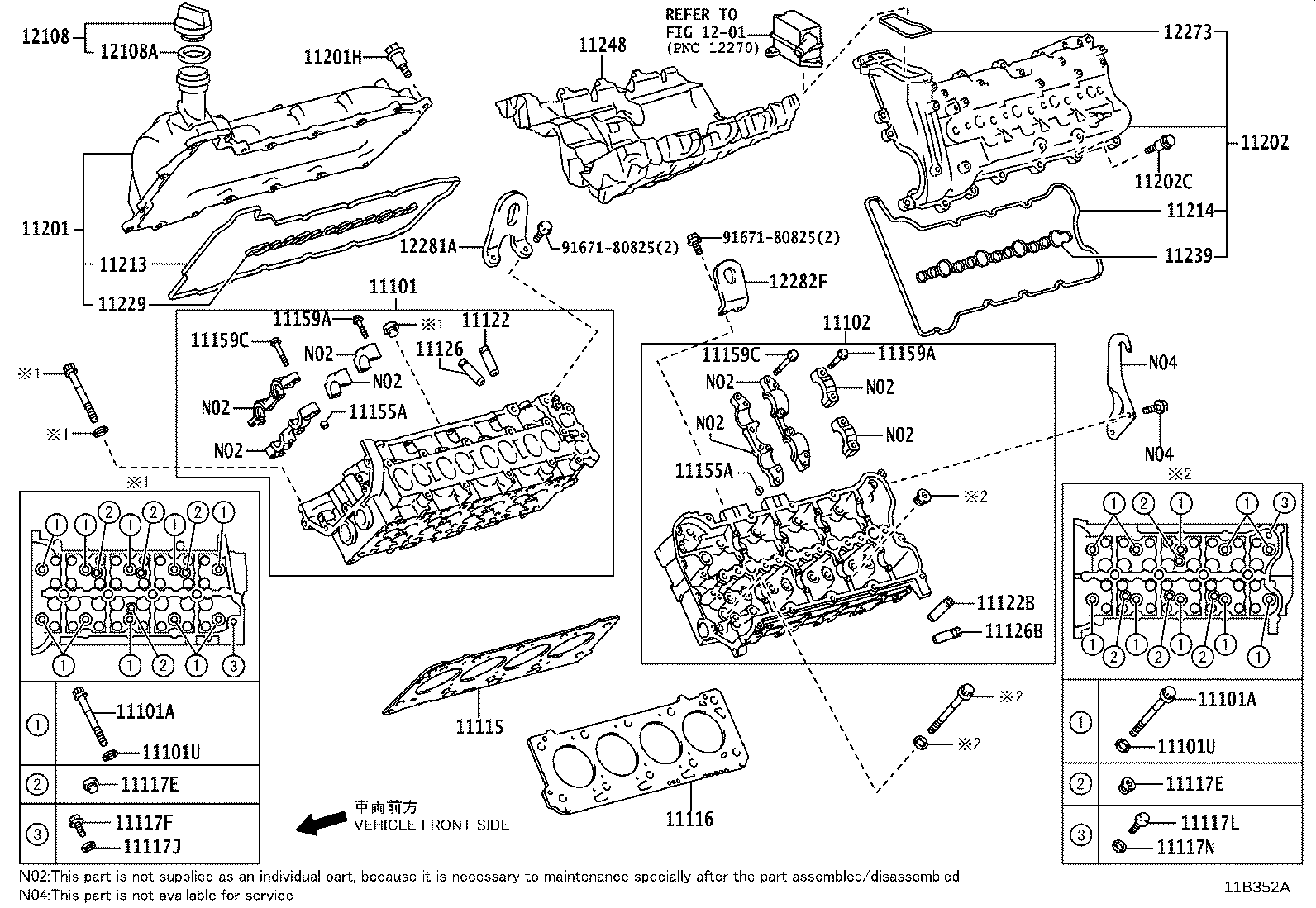

diagram 11101 11101A 11101A 11101U 11101U 11102 11115 11116 11117E 11117E 11117F 11117J 11117L 11117N 11122 11122B 11126 11126B 11155A 11155A 11159A 11159A 11159C 11159C 11201 11201H 11202 11202C 11213 11214 11229 11239 11248 1201 12108 12108A 12273 12281A 12282F 9167180825 9167180825
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-51022

1VDFTV..VDJ7#

 1
11101-51023

1VDFTV..VDJ7#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02169

1VDFTV..VDJ7#

 20
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02169

1VDFTV..VDJ7#

 20
11101U - SPACER(FOR CYLINDER HEAD SET BOLT)
90560-14033

1VDFTV..VDJ7#

 20
11101U - SPACER(FOR CYLINDER HEAD SET BOLT)
90560-14033

1VDFTV..VDJ7#

 20
11102 - HEAD, CYLINDER, LH
11102-51021

1VDFTV..VDJ7#..ARL

 1
11102-51020

1VDFTV..VDJ7#..ARL

 1
11115 - GASKET, CYLINDER HEAD
11115-51030A0

1VDFTV..VDJ7#

MARKA,REFER REPAIR MANUAL

 1
11115-51030D0

1VDFTV..VDJ7#

MARKD,REFER REPAIR MANUAL

 1
11115-51030E0

1VDFTV..VDJ7#

MARKE,REFER REPAIR MANUAL

 1
11115-51030C0

1VDFTV..VDJ7#

MARKC,REFER REPAIR MANUAL

 1
11115-51030B0

1VDFTV..VDJ7#

MARKB,REFER REPAIR MANUAL

 1
11116 - GASKET, CYLINDER HEAD, NO.2
11116-51030B0

1VDFTV..VDJ7#

MARKB,REFER REPAIR MANUAL

 1
11116-51030A0

1VDFTV..VDJ7#

MARKA,REFER REPAIR MANUAL

 1
11116-51030E0

1VDFTV..VDJ7#

MARKE,REFER REPAIR MANUAL

 1
11116-51030C0

1VDFTV..VDJ7#

MARKC,REFER REPAIR MANUAL

 1
11116-51030D0

1VDFTV..VDJ7#

MARKD,REFER REPAIR MANUAL

 1
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-14015

1VDFTV..VDJ7#

 4
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-14015

1VDFTV..VDJ7#

 4
11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2
90341-08006

1VDFTV..VDJ7#..ARL

 1
11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-08017

1VDFTV..VDJ7#..ARL

 1
11117L - PLUG, W/HEAD STRAIGHT SCREW, LH NO.2
90341-08006

1VDFTV..VDJ7#..ARL

 1
11117N - GASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
90430-08017

1VDFTV..VDJ7#..ARL

 1
11122 - BUSH, INTAKE VALVE GUIDE
11123-0R010

1VDFTV..VDJ7#

O/S 0.05

 8
11122-0R010

1VDFTV..VDJ7#

STD

 8
11122B - BUSH, INTAKE VALVE GUIDE, NO.2
11123-0R010

1VDFTV..VDJ7#

O/S 0.05

 8
11122-0R010

1VDFTV..VDJ7#

STD

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11123-0R010

1VDFTV..VDJ7#

O/S 0.05

 8
11122-0R010

1VDFTV..VDJ7#

STD

 8
11126B - BUSH, EXHAUST VALVE GUIDE, NO.2
11122-0R010

1VDFTV..VDJ7#

STD

 8
11123-0R010

1VDFTV..VDJ7#

O/S 0.05

 8
11155A - PIN, RING W/HEAD
90253-11021

1VDFTV..VDJ7#

 4
11155A - PIN, RING W/HEAD
90253-11021

1VDFTV..VDJ7#

 4
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
91551-80630

1VDFTV..VDJ7#

 16
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
91551-80630

1VDFTV..VDJ7#

 16
11159C - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
91551-80860

1VDFTV..VDJ7#

 4
11159C - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
91551-80860

1VDFTV..VDJ7#

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-51051

1VDFTV..VDJ7#..ARL

 1
11201-51050

1VDFTV..VDJ7#..ARL

 1
11201H - BOLT(FOR CYLINDER HEAD COVER)
90109-06384

1VDFTV..VDJ7#..ARL

 19
11202 - COVER SUB-ASSY, CYLINDER HEAD, LH
11202-51022

1VDFTV..VDJ7#..ARL

 1
11202C - BOLT(FOR CYLINDER HEAD COVER LH)
90109-06384

1VDFTV..VDJ7#..ARL

 18
11213 - GASKET, CYLINDER HEAD COVER
11213-51020

1VDFTV..VDJ7#

 1
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11214-51010

1VDFTV..VDJ7#

 1
11229 - GASKET, CYLINDER HEAD COVER, NO.3
11229-51010

1VDFTV..VDJ7#..ARL

 1
11239 - GASKET, CLINDER HEAD CONER, NO.4
11229-51010

1VDFTV..VDJ7#..ARL

 1
11248 - SILENCER, V-BANK
11248-51010

1VDFTV..VDJ7#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-51010

1VDFTV..VDJ7#..ARL

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-35001

1VDFTV..VDJ7#

 1
12273 - GASKET, OIL SEPARATOR
12273-51010

1VDFTV..VDJ7#

 1
12281A - HANGER, ENGINE, NO.1
12281-51040

1VDFTV..VDJ7#

 1
12282F - HANGER, ENGINE, NO.2
12282-51040

1VDFTV..VDJ7#

 1
Common parts
91671-80825
Linked diagrams
1201
