VDJ78R-RJMRYQ (2007)

Toyota Land Cruiser

Production Jan 2007 - Aug 2016
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )VDJ7#..RHD

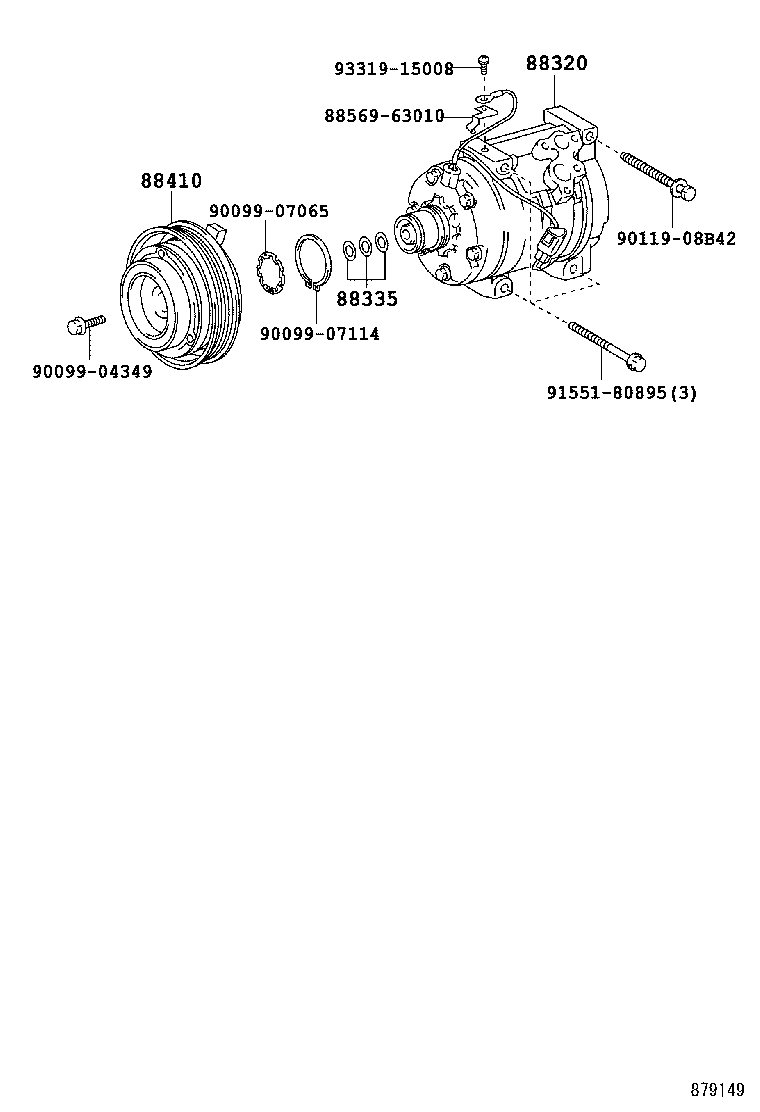

Click highlighted areas on diagram

diagram 88320 88335 88410 8856963010 9009904349 9009907065 9009907114 9011908B42 9155180895 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-6A370

GRJ71,78..RHD

AIR CONDITIONER-WITH

 1
88320-6A250

VDJ7#..ARL

AIR CONDITIONER-WITH(DOP)

 1
88320-6A240

VDJ7#..DCB,HT

AIR CONDITIONER-WITH

 1
88335 - GASKET KIT, OVERHAUL
88335-14020

GRJ71,78..RHD

AIR CONDITIONER-WITH

 1
88335-14020

VDJ7#..ARL

AIR CONDITIONER-WITH(DOP)

 1
88335-14020

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

AIR CONDITIONER-WITH

 1
88410 - CLUTCH ASSY, MAGNET
88410-6A130

GRJ71,78..RHD

AIR CONDITIONER-WITH

 1
88410-6A060

VDJ7#

AIR CONDITIONER-WITH

 1
88410-6A060

VDJ7#..ARL

AIR CONDITIONER-WITH(DOP)

 1
Common parts
88569-63010
90099-04349
90099-07065
90099-07114
90119-08B42
91551-80895
93319-15008
