VDJ78R-RJMRYQ (2007)

Toyota Land Cruiser

Production Jan 2007 - Aug 2016
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

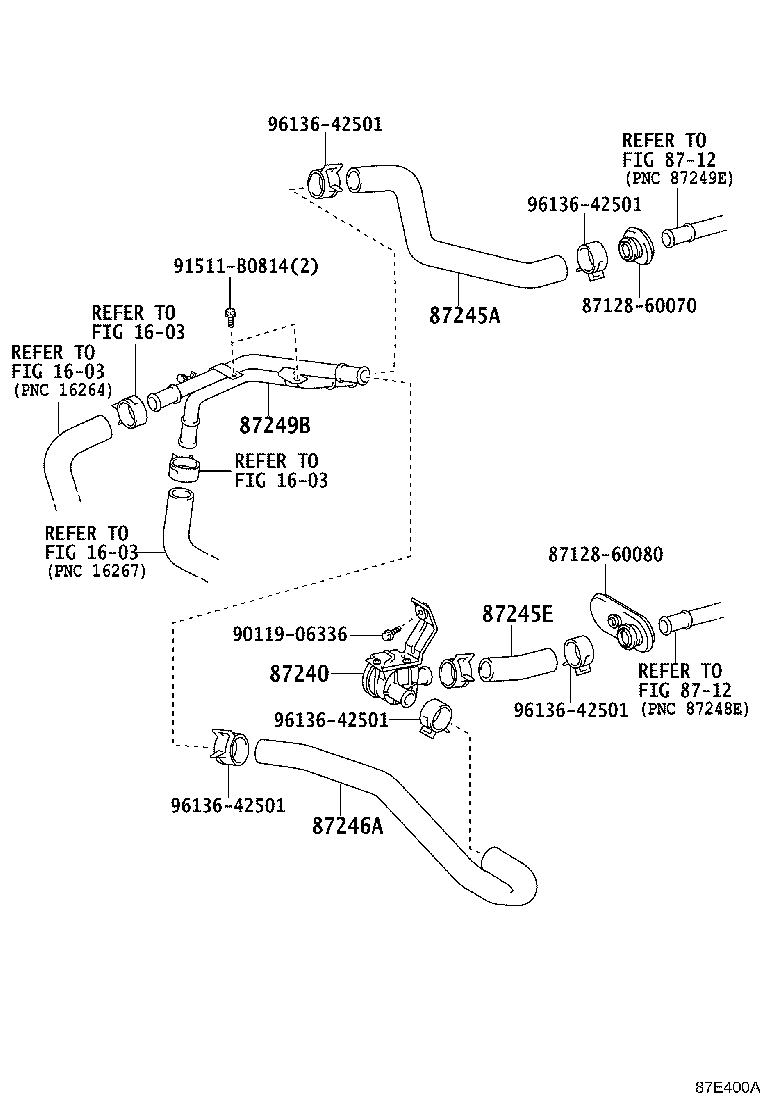

ILLUST NO. 1 OF 2(0701-1208)VDJ7#

Click highlighted areas on diagram

FRONT

diagram 1603 1603 1603 1603 8712 8712 8712860070 8712860080 87240 87245A 87245E 87246A 87249B 9011906336 91511B0814 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-60110

VDJ7#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-60A70

VDJ7#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-60290

VDJ7#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-60A60

VDJ7#

 1
87245-60171

HZJ76,78,79..RHD..(DCB,HT)

HEATER-W(FRONT & REAR)

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-60400

VDJ7#

 1
Common parts
87128-60070
87128-60080
90119-06336
91511-B0814
96136-42501
Linked diagrams
1603
8712
