VDJ78R-RJMRYQ (2007)
Toyota Land Cruiser
Production
Jan 2007
-
Aug 2016
Engine
1VDFTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

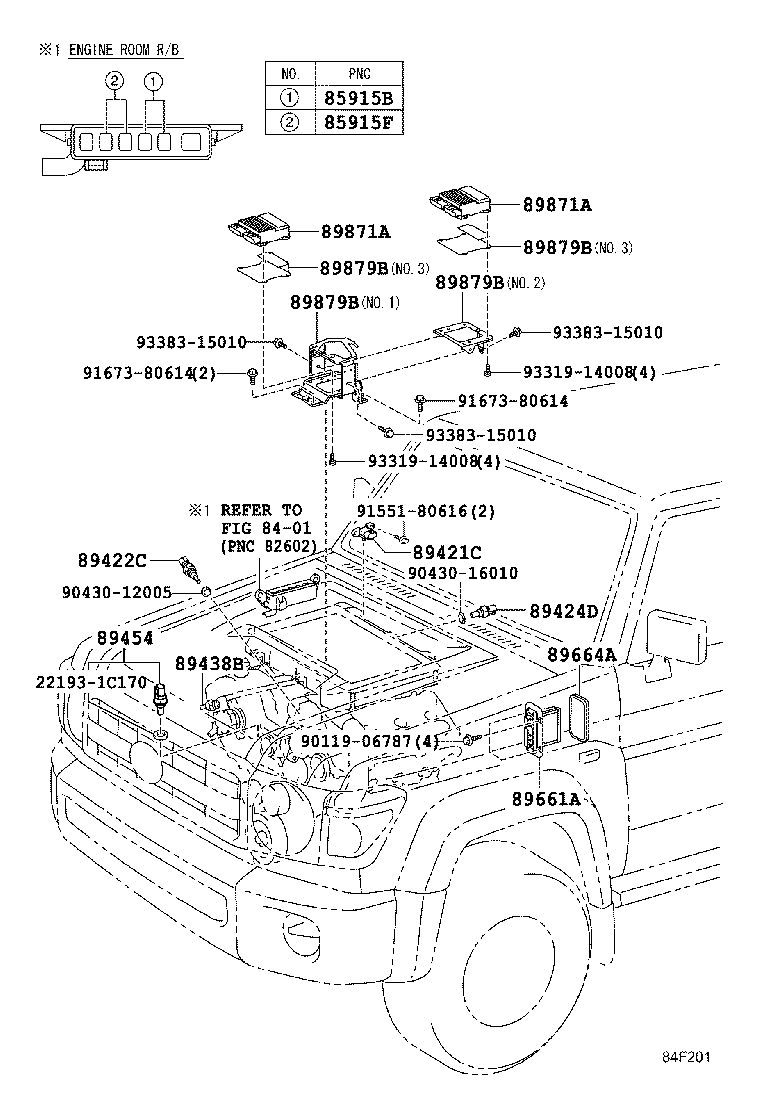

(0701-0907)VDJ7#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85915B - RELAY, MAIN (FOR DIESEL TURBO) | ||||
| 90987-02027 |
VDJ7# |
2 | ||
| 85915F - RELAY, SPILL VALVE | ||||
| 90987-02027 |
VDJ7# |
2 | ||
| 89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO) | ||||
| 89421-20200 |
VDJ7# |
1 | ||
| 89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE | ||||
| 89422-16010 |
VDJ7# |
1 | ||
| 89424D - SENSOR, INLET AIR TEMPERATURE | ||||
| 89424-60010 |
VDJ7# |
1 | ||
| 89438B - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
VDJ7# |
1 | ||
| 89454 - SENSOR, FUEL TEMPERATURE | ||||
| 89454-60020 |
VDJ7# |
1 | ||
| 89661A - COMPUTER, ENGINE CONTROL | ||||
| 89661-60F31 |
VDJ7# |
1 | ||
| 89661-60L21 |
VDJ7# |
1 | ||
| 89661-60L20 |
VDJ7# |
1 | ||
| 89661-60X40 |
VDJ7# |
1 | ||
| 89661-60F30 |
VDJ7# |
1 | ||
| 89664A - SEAL, ENGINE CONTROL COMPUTER | ||||
| 89664-34010 |
VDJ7# |
1 | ||
| 89871A - DRIVER, INJECTOR | ||||
| 89871-71010 |
VDJ7# |
2 | ||
| 89871A - DRIVER, INJECTOR | ||||
| 89871-71010 |
VDJ7# |
2 | ||
| 89879B - BRACKET, INJECTOR DRIVER | ||||
| 89879-60090 |
VDJ7# NO.3 |
2 | ||
| 89879-60070 |
VDJ7# NO.1 |
1 | ||
| 89879-60080 |
VDJ7# NO.2 |
1 | ||
| 89879-60170 |
VDJ7# NO.2 |
1 | ||
| 89879-60160 |
VDJ7# NO.1 |
1 | ||
| 89879B - BRACKET, INJECTOR DRIVER | ||||
| 89879-60090 |
VDJ7# NO.3 |
2 | ||
| 89879-60070 |
VDJ7# NO.1 |
1 | ||
| 89879-60080 |
VDJ7# NO.2 |
1 | ||
| 89879-60170 |
VDJ7# NO.2 |
1 | ||
| 89879-60160 |
VDJ7# NO.1 |
1 | ||
| 89879B - BRACKET, INJECTOR DRIVER | ||||
| 89879-60090 |
VDJ7# NO.3 |
2 | ||
| 89879-60070 |
VDJ7# NO.1 |
1 | ||
| 89879-60080 |
VDJ7# NO.2 |
1 | ||
| 89879-60170 |
VDJ7# NO.2 |
1 | ||
| 89879-60160 |
VDJ7# NO.1 |
1 | ||
| 89879B - BRACKET, INJECTOR DRIVER | ||||
| 89879-60090 |
VDJ7# NO.3 |
2 | ||
| 89879-60070 |
VDJ7# NO.1 |
1 | ||
| 89879-60080 |
VDJ7# NO.2 |
1 | ||
| 89879-60170 |
VDJ7# NO.2 |
1 | ||
| 89879-60160 |
VDJ7# NO.1 |
1 | ||
| Common parts | ||||
| 22193-1C170 | ||||
| 90119-06787 | ||||
| 90430-12005 | ||||
| 90430-16010 | ||||
| 91551-80616 | ||||
| 91673-80614 | ||||
| 93319-14008 | ||||
| 93383-15010 | ||||
| Linked diagrams | ||||
| 8401 | ||||

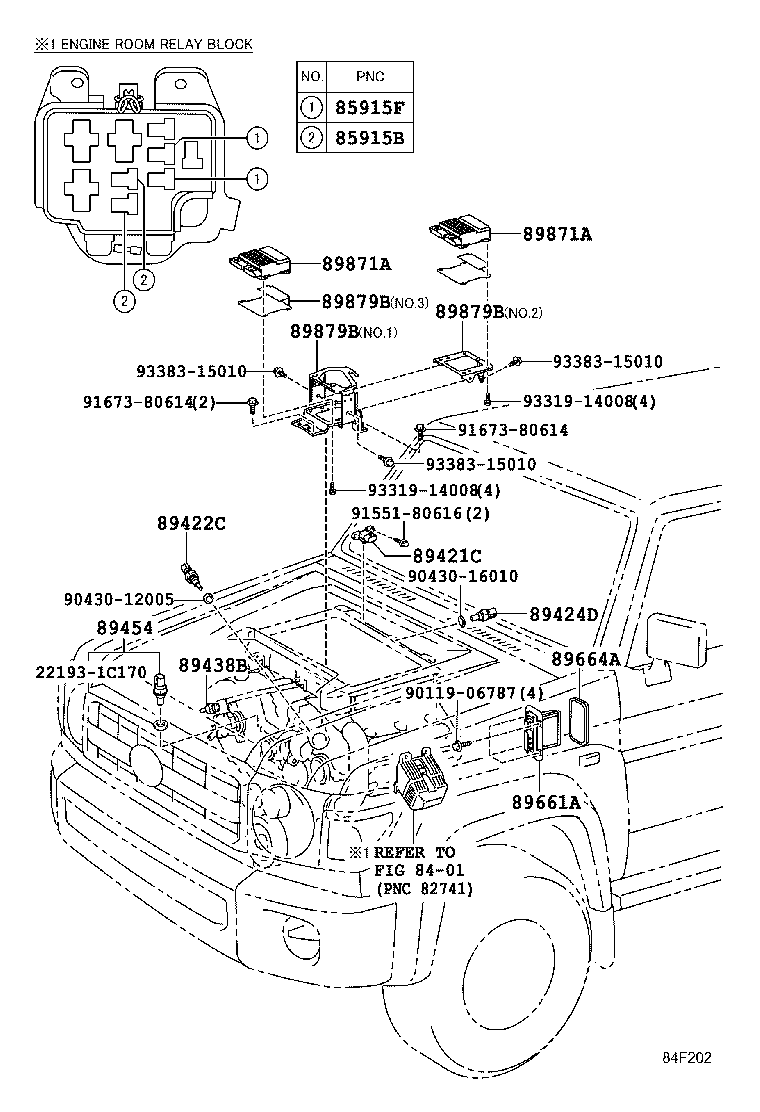

(0907-1608)VDJ7#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85915B - RELAY, MAIN (FOR DIESEL TURBO) | ||||
| 90987-02027 |
VDJ7# |
2 | ||
| 85915F - RELAY, SPILL VALVE | ||||
| 90987-02027 |
VDJ7# |
2 | ||
| 89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO) | ||||
| 89421-20200 |
VDJ7# |
1 | ||
| 89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE | ||||
| 89422-16010 |
VDJ7# |
1 | ||
| 89424D - SENSOR, INLET AIR TEMPERATURE | ||||
| 89424-60010 |
VDJ7# |
1 | ||
| 89438B - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
VDJ7# |
1 | ||
| 89454 - SENSOR, FUEL TEMPERATURE | ||||
| 89454-60020 |
VDJ7# |
1 | ||
| 89661A - COMPUTER, ENGINE CONTROL | ||||
| 89661-60F31 |
VDJ7# |
1 | ||
| 89661-60L21 |
VDJ7# |
1 | ||
| 89661-60L20 |
VDJ7# |
1 | ||
| 89661-60X40 |
VDJ7# |
1 | ||
| 89661-60F30 |
VDJ7# |
1 | ||
| 89664A - SEAL, ENGINE CONTROL COMPUTER | ||||
| 89664-34010 |
VDJ7# |
1 | ||
| 89871A - DRIVER, INJECTOR | ||||
| 89871-71010 |
VDJ7# |
2 | ||
| 89871A - DRIVER, INJECTOR | ||||
| 89871-71010 |
VDJ7# |
2 | ||
| 89879B - BRACKET, INJECTOR DRIVER | ||||
| 89879-60090 |
VDJ7# NO.3 |
2 | ||
| 89879-60070 |
VDJ7# NO.1 |
1 | ||
| 89879-60080 |
VDJ7# NO.2 |
1 | ||
| 89879-60170 |
VDJ7# NO.2 |
1 | ||
| 89879-60160 |
VDJ7# NO.1 |
1 | ||
| 89879B - BRACKET, INJECTOR DRIVER | ||||
| 89879-60090 |
VDJ7# NO.3 |
2 | ||
| 89879-60070 |
VDJ7# NO.1 |
1 | ||
| 89879-60080 |
VDJ7# NO.2 |
1 | ||
| 89879-60170 |
VDJ7# NO.2 |
1 | ||
| 89879-60160 |
VDJ7# NO.1 |
1 | ||
| 89879B - BRACKET, INJECTOR DRIVER | ||||
| 89879-60090 |
VDJ7# NO.3 |
2 | ||
| 89879-60070 |
VDJ7# NO.1 |
1 | ||
| 89879-60080 |
VDJ7# NO.2 |
1 | ||
| 89879-60170 |
VDJ7# NO.2 |
1 | ||
| 89879-60160 |
VDJ7# NO.1 |
1 | ||
| Common parts | ||||
| 22193-1C170 | ||||
| 90119-06787 | ||||
| 90430-12005 | ||||
| 90430-16010 | ||||
| 91551-80616 | ||||
| 91673-80614 | ||||
| 93319-14008 | ||||
| 93383-15010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
