VDJ78R-RJMRYQ (2007)
Toyota Land Cruiser

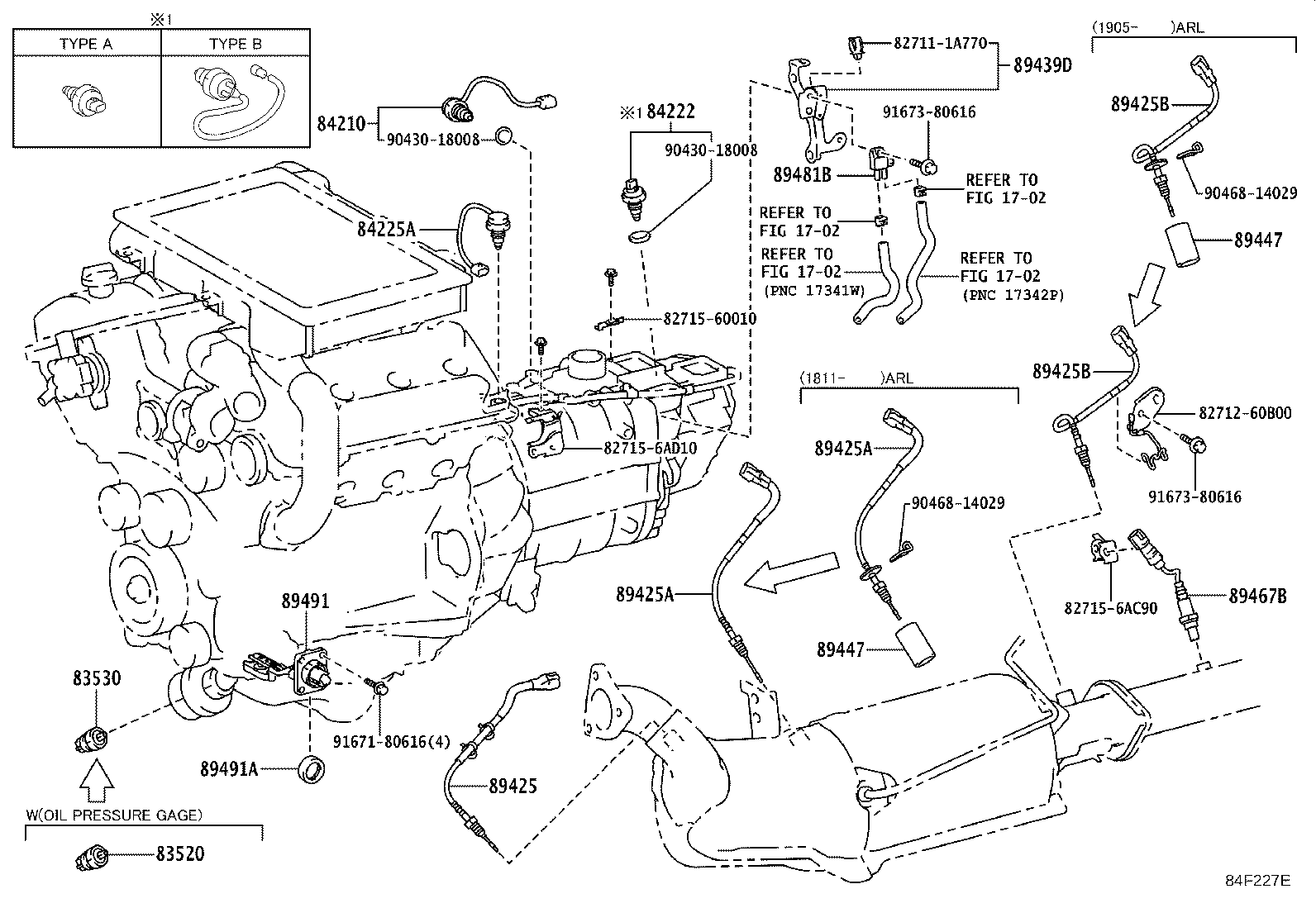

ILLUST NO. 1 OF 7(0701- )VDJ7#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60060 |
GRJ71,78,79..RHD SPEEDOMETER-KM/H |
1 | ||
| 83520-60050 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60010 |
VDJ78,79..HT,PIC |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60030 |
FZJ7#,GRJ7#,VDJ7# |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-12010 |
FZJ7#,GRJ7#,VDJ7# TYPE A:REFER ILLUST. |
1 | ||
| 84222-60120 |
VDJ7# TYPE B:REFER ILLUST. |
1 | ||
| 84225A - SWITCH, SHIFT POSITION | ||||
| 84225-35010 |
VDJ7# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-60070 |
GRJ71,78..RHD |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-60100 |
VDJ7# |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
VDJ7# |
1 | ||
| Common parts | ||||
| 82711-1A770 | ||||
| 82712-60B00 | ||||
| 82715-60010 | ||||
| 82715-6AC90 | ||||
| 82715-6AD10 | ||||
| 90430-18008 | ||||
| 90468-14029 | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 1702 | ||||

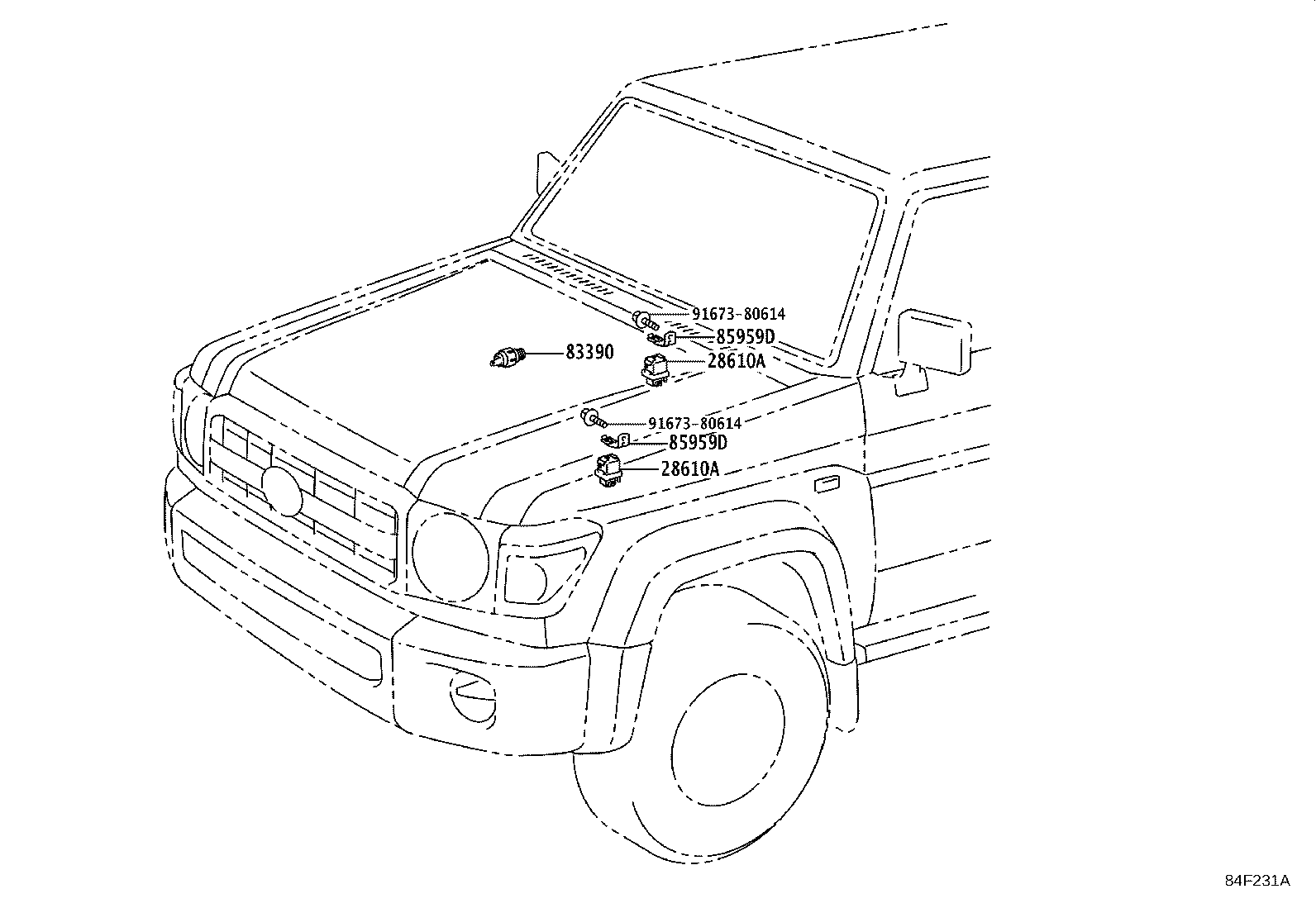

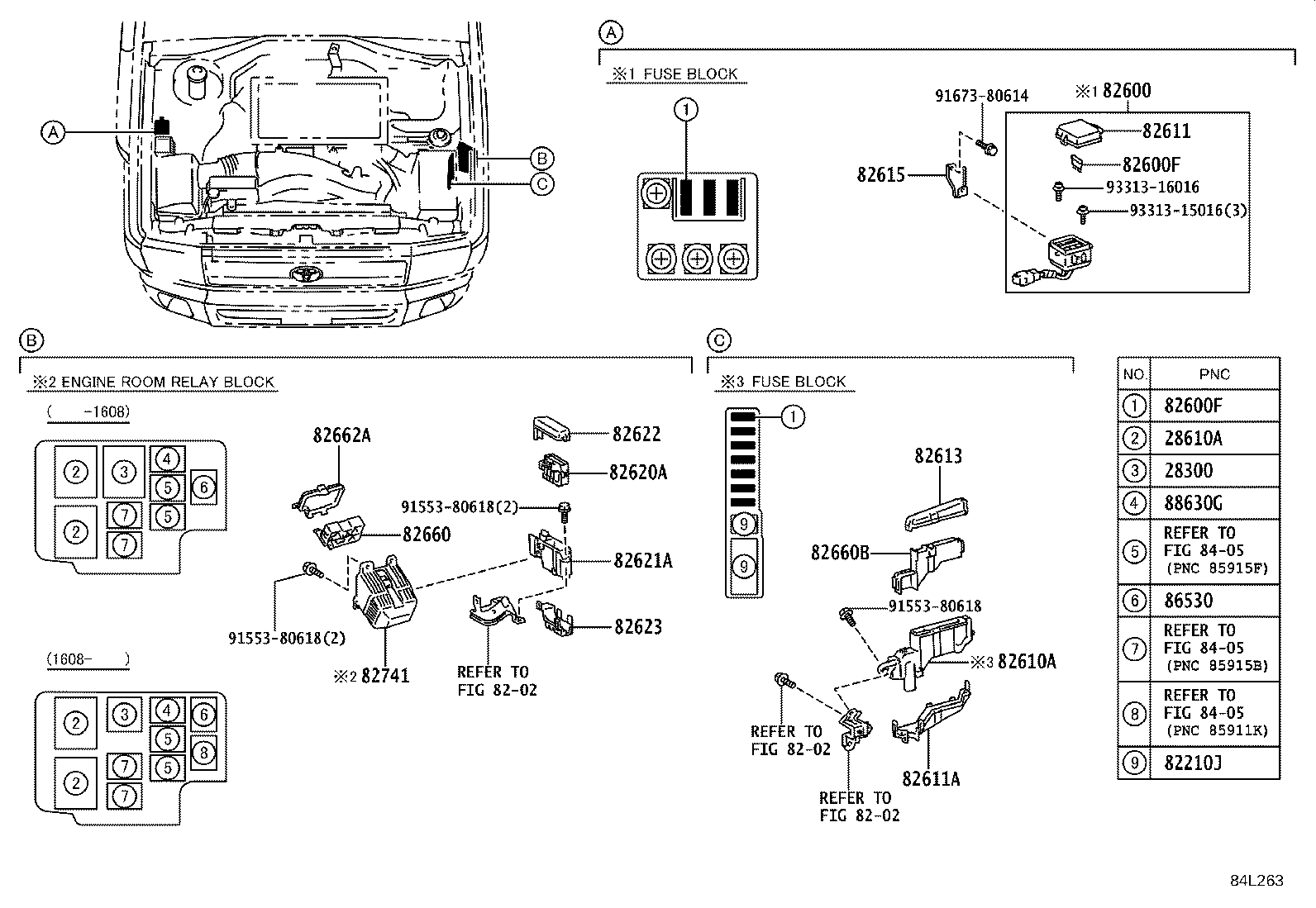

ILLUST NO. 2 OF 7(0701-0907)VDJ7#
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28601-17020 |
1VDFTV..VDJ7# |
2 | ||
| 28610-27010 |
1VDFTV..VDJ7# |
2 | ||
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28601-17020 |
1VDFTV..VDJ7# |
2 | ||
| 28610-27010 |
1VDFTV..VDJ7# |
2 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-12340 |
HZJ7#,VDJ7# |
1 | ||
| 85959D - HOLDER, RELAY | ||||
| 85959-60080 |
VDJ7# |
2 | ||
| 85959D - HOLDER, RELAY | ||||
| 85959-60080 |
VDJ7# |
2 | ||
| Common parts | ||||
| 91673-80614 | ||||

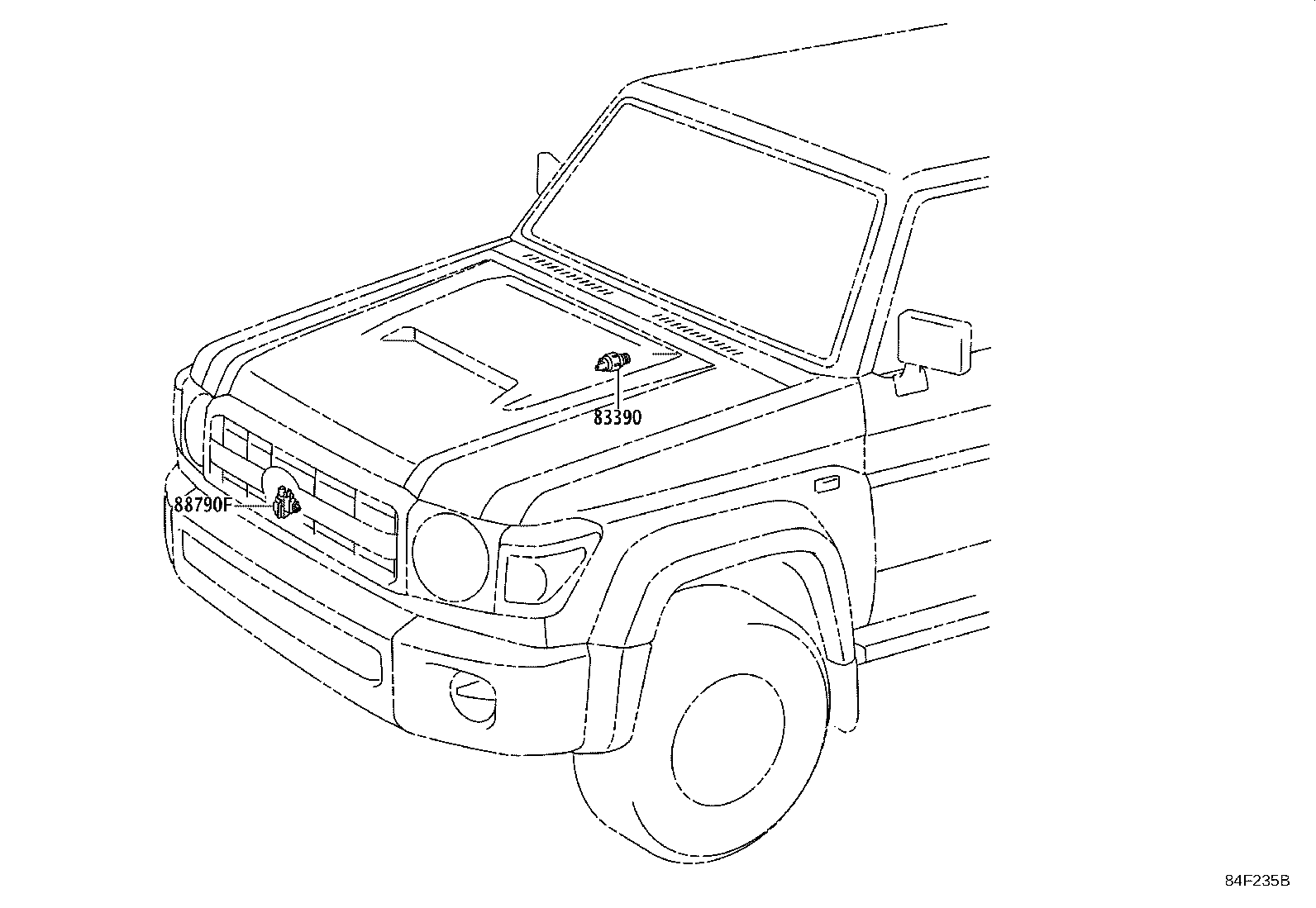

ILLUST NO. 2 OF 7(0907- )VDJ7#..RHD
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-12340 |
HZJ7#,VDJ7# |
1 | ||
ILLUST NO. 4 OF 7(0701-0907)RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-32010 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 81980-30170 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 81980-30170 |
GRJ71,78..RHD |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-32010 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 81980-30170 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 81980-30170 |
GRJ71,78..RHD |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08280 |
FZJ7#,HZJ7#,VDJ7# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08227 |
VDJ7# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08203 |
VDJ7# 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08295 |
GRJ71,78..RHD 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08303 |
GRJ71,78..RHD 50A-50A-50A,FEMALE |
1 | ||
| 90982-08296 |
GRJ71,78..RHD 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08296 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08303 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 50A-50A-50A,FEMALE |
1 | ||
| 90982-08295 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08189 |
VDJ7# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08286 |
VDJ7# 140A,TERM.:MALE,RBR |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
FZJ7#,VDJ7# 7.5A |
1 | ||
| 90982-09003 |
FZJ7#,HZJ7#,VDJ7# 15A |
1 | ||
| 90982-07011 |
HZJ7#,VDJ7# 30A,GREEN |
1 | ||
| 90982-09020 |
GRJ71,78..RHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
GRJ71,78..RHD 25A,MINI FUSE |
1 | ||
| 90982-09002 |
VDJ7# 10A |
1 | ||
| 90982-09022 |
GRJ71,78..RHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
GRJ71,78..RHD 10A,MINI FUSE,RED |
1 | ||
| 90982-09021 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GRJ71,78..RHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GRJ71,78..RHD 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 25A,MINI FUSE |
1 | ||
| 90982-09020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09004 |
VDJ7# 20A,YELLOW |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-60260 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 82683-60200 |
VDJ7# |
1 | ||
| 82683-60261 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 82683-60262 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 82616-12010 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 82616-58010 |
GRJ71,78..RHD |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-60160 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 82660-60160 |
GRJ71,78..RHD |
1 | ||
| 82660-20340 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-42020 |
GRJ79,VDJ7#;GRJ71,76,78..LHD |
1 | ||
| 84340-42020 |
GRJ71,78..RHD |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
FZJ79..LX;FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78,VDJ7# |
1 | ||
| 90987-04010 |
GRJ71,78..RHD |
1 | ||
| 90987-04010 |
GRJ79..LX;GRJ79,HZJ79..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ7#;GRJ79,HZJ79..DCB..GCC |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
FZJ79..LX;FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78,VDJ7# |
1 | ||
| 90987-04010 |
GRJ71,78..RHD |
1 | ||
| 90987-04010 |
GRJ79..LX;GRJ79,HZJ79..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ7#;GRJ79,HZJ79..DCB..GCC |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
FZJ7#,HZJ7#,VDJ7# HEAD LAMP |
1 | ||
| 90987-01003 |
FZJ7#,HZJ7#,VDJ7# TAIL LAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
FZJ7#,HZJ7#,VDJ7# HEAD LAMP |
1 | ||
| 90987-01003 |
FZJ7#,HZJ7#,VDJ7# TAIL LAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
FZJ7#,HZJ7#,VDJ7# HEAD LAMP |
1 | ||
| 90987-01003 |
FZJ7#,HZJ7#,VDJ7# TAIL LAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
FZJ7#,HZJ7#,VDJ7# HEAD LAMP |
1 | ||
| 90987-01003 |
FZJ7#,HZJ7#,VDJ7# TAIL LAMP |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-60030 |
VDJ78,79..STD |
1 | ||
| 90987-04004 |
HZJ76,78,79..RHD..(HT,PIC) SOUTH AFRICA SPEC&HEATER-W(FRONT) |
1 | ||
| 90987-04004 |
HZJ76,78,79..RHD..(HT,PIC) SOUTH AFRICA SPEC&HEATER-W(FRONT)&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 90987-04004 |
HZJ76,78,79..RHD..(HT,PIC) SOUTH AFRICA SPEC&HEATER-W(FRONT)&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 90987-02027 |
GRJ71,78..RHD |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| 88280-42010 |
VDJ7# |
1 | ||
| 89533A - COMPUTER, 4 WHEEL DRIVE CONTROL, NO.2 | ||||
| 89533-60250 |
FZJ71,78..RHD REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 89533-60280 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| 89533-60250 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| Common parts | ||||
| 91511-B0614 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-60616 | ||||
| 91673-80614 | ||||
| 93319-15010 | ||||
| 93560-55016 | ||||
| 94332-15000 | ||||
ILLUST NO. 4 OF 7(0907- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02025 |
1GRFE..GRJ71,76,78..LHD;1GRFE,1HZ,1VDFTV..GRJ79,HZJ7#,VDJ7# |
2 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-32010 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 81980-30170 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 81980-30170 |
GRJ71,78..RHD |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-32010 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 81980-30170 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 81980-30170 |
GRJ71,78..RHD |
1 | ||
| 81981A - FLASHER, TURN SIGNAL | ||||
| 81980-50030 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08280 |
FZJ7#,HZJ7#,VDJ7# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08227 |
VDJ7# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08203 |
VDJ7# 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08295 |
GRJ71,78..RHD 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08303 |
GRJ71,78..RHD 50A-50A-50A,FEMALE |
1 | ||
| 90982-08296 |
GRJ71,78..RHD 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08296 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08303 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 50A-50A-50A,FEMALE |
1 | ||
| 90982-08295 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08189 |
VDJ7# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08286 |
VDJ7# 140A,TERM.:MALE,RBR |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
FZJ7#,VDJ7# 7.5A |
1 | ||
| 90982-09003 |
FZJ7#,HZJ7#,VDJ7# 15A |
1 | ||
| 90982-07011 |
HZJ7#,VDJ7# 30A,GREEN |
1 | ||
| 90982-09020 |
GRJ71,78..RHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
GRJ71,78..RHD 25A,MINI FUSE |
1 | ||
| 90982-09002 |
VDJ7# 10A |
1 | ||
| 90982-09022 |
GRJ71,78..RHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
GRJ71,78..RHD 10A,MINI FUSE,RED |
1 | ||
| 90982-09021 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GRJ71,78..RHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GRJ71,78..RHD 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 25A,MINI FUSE |
1 | ||
| 90982-09020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09004 |
VDJ7# 20A,YELLOW |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-60260 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 82683-60200 |
VDJ7# |
1 | ||
| 82683-60261 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 82683-60262 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 82616-12010 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 82616-58010 |
GRJ71,78..RHD |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-60160 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 82660-60160 |
GRJ71,78..RHD |
1 | ||
| 82660-20340 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-60120 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-60240 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 82661-60240 |
GRJ71,78..RHD |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
GRJ71,78..RHD |
1 | ||
| 82824-41010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-42020 |
GRJ79,VDJ7#;GRJ71,76,78..LHD |
1 | ||
| 84340-42020 |
GRJ71,78..RHD |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
FZJ79..LX;FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78,VDJ7# |
1 | ||
| 90987-04010 |
GRJ71,78..RHD |
1 | ||
| 90987-04010 |
GRJ79..LX;GRJ79,HZJ79..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ7#;GRJ79,HZJ79..DCB..GCC |
1 | ||
| 85912D - RELAY | ||||
| 90987-02027 |
VDJ78,79..HT,PIC |
1 | ||
| 90987-02027 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
FZJ7#,HZJ7#,VDJ7# HEAD LAMP |
1 | ||
| 90987-01003 |
FZJ7#,HZJ7#,VDJ7# TAIL LAMP |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
FZJ7#,HZJ7#,VDJ7# HEAD LAMP |
1 | ||
| 90987-01003 |
FZJ7#,HZJ7#,VDJ7# TAIL LAMP |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# FRONT FOG LAMP-WITH |
1 | ||
| 90987-02027 |
GRJ71,78..RHD FRONT FOG LAMP-WITH |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02027 |
GRJ71,78..RHD |
1 | ||
| 90987-02027 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 90987-02025 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-60030 |
VDJ78,79..STD |
1 | ||
| 90987-04004 |
HZJ76,78,79..RHD..(HT,PIC) SOUTH AFRICA SPEC&HEATER-W(FRONT) |
1 | ||
| 90987-04004 |
HZJ76,78,79..RHD..(HT,PIC) SOUTH AFRICA SPEC&HEATER-W(FRONT)&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 90987-04004 |
HZJ76,78,79..RHD..(HT,PIC) SOUTH AFRICA SPEC&HEATER-W(FRONT)&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 85940D - RELAY ASSY, WINDSHIELD WIPER, NO.2 | ||||
| 90987-02027 |
HZJ76,78,79..RHD..(HT,PIC) SOUTH AFRICA SPEC&HEATER-W(FRONT) |
1 | ||
| 90987-02027 |
HZJ76,78,79..RHD..(HT,PIC) SOUTH AFRICA SPEC&HEATER-W(FRONT)&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 90987-02027 |
HZJ76,78,79..RHD..(HT,PIC) SOUTH AFRICA SPEC&HEATER-W(FRONT)&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 90987-02027 |
GRJ71,78..RHD |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| 88280-42010 |
VDJ7# |
1 | ||
| 89533A - COMPUTER, 4 WHEEL DRIVE CONTROL, NO.2 | ||||
| 89533-60250 |
FZJ71,78..RHD REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK |
1 | ||
| 89533-60280 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| 89533-60250 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| Common parts | ||||
| 82711-1E320 | ||||
| 82715-60Q60 | ||||
| 90105-06049 | ||||
| 90119-06951 | ||||
| 90984-01006 | ||||
| 91651-60616 | ||||
| 91673-80614 | ||||
| 91673-80816 | ||||
| 93315-14012 | ||||
| 93319-15010 | ||||
| 93383-15014 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8601 | ||||
ILLUST NO. 5 OF 7(0701-0907)RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-90K01 |
FZJ7#,HZJ7#,VDJ7# FRONT FOG LAMP-WITH |
1 | ||
| 84453 - SWITCH, IDLE UP | ||||
| 84453-26030 |
VDJ7# |
1 | ||
| 84453-60080 |
VDJ7# |
1 | ||
| 84453A - BULB, IDLE UP SWITCH | ||||
| 84999-10320 |
VDJ7# |
1 | ||
| 90010-01061 |
VDJ7# |
1 | ||
| 84560A - SWITCH ASSY, FUEL CONTROL | ||||
| 84560-60070 |
VDJ78,79 |
1 | ||
| 84560-60070 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 84560-60050 |
VDJ78,79..HT,PIC |
1 | ||
| 84560-60050 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 84560B - BULB, FUEL CONTROL SWITCH | ||||
| 84999-10860 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 90010-01039 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 84999-10860 |
VDJ78,79 |
1 | ||
| 90010-01039 |
VDJ78,79..HT,PIC |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-90K00 |
VDJ76,78 |
1 | ||
| 84660E - KNOB, COOLER SWITCH | ||||
| 84731-12032 |
GRJ78;HZJ76,78..RHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 84731-12032 |
VDJ7#..ARL AIR CONDITIONER-WITH(DOP) |
1 | ||
| 84731-12032 |
GRJ71,VDJ79..DCB,PIC,SOT;GRJ79,HZJ79,VDJ76,78..RHD..(DCB,HT) AIR CONDITIONER-WITH |
1 | ||
| 84725 - SWITCH, CENTER DIFFERENTIAL LOCK | ||||
| 84725-60020 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84660-90K02 |
FZJ71,78,79,HZJ7#..RHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 84660-90K02 |
VDJ7# AIR CONDITIONER-WITH |
1 | ||
| 84660-90K02 |
VDJ7# AIR CONDITIONER-WITH(DOP) |
1 | ||
| 84660-60020 |
GRJ71,78,79,HZJ7#..RHD..(HT,PIC) HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 84660-90K02 |
FZJ78,HZJ76,78..RHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 84732-90K02 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 84660-60020 |
GRJ78,HZJ76,78..RHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 84660-60020 |
VDJ7#..ARL AIR CONDITIONER-WITH(DOP) |
1 | ||
| 84732-60060 |
GRJ71,78,79,HZJ7#..RHD..(HT,PIC) HEATER-W(FRONT) |
1 | ||
| 84732-60060 |
GRJ78,HZJ76,78..RHD HEATER-W(FRONT & REAR) |
1 | ||
| 84732-60060 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD..(DCB,HT,PIC) |
1 | ||
| 84660-60020 |
VDJ7#;GRJ79,HZJ79..RHD..DCB AIR CONDITIONER-WITH |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12010 |
FZJ79..LX;FZJ79..GEN;FZJ71,76,78 |
1 | ||
| 84731-20030 |
GRJ78;HZJ76,78..RHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 84731-12010 |
GRJ71,78..RHD |
1 | ||
| 84731-20030 |
GRJ71,VDJ79..DCB,PIC,SOT;GRJ79,HZJ79,VDJ76,78..RHD..(DCB,HT) AIR CONDITIONER-WITH |
1 | ||
| 84731-12010 |
GRJ79..LX;GRJ79,HZJ79..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ7#;GRJ79,HZJ79..DCB..GCC |
1 | ||
| 84731-20030 |
VDJ7#..ARL AIR CONDITIONER-WITH(DOP) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
HZJ79..CBU;GRJ71,76,78..LHD;GRJ79,HZJ71,76,78,VDJ7# |
1 | ||
| 85500-28080 |
GRJ71,78..RHD |
1 | ||
| 85500-60030 |
HZJ79..CBU;FZJ7#,HZJ71,76,78,VDJ7# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
HZJ79..CBU;FZJ7#,HZJ71,76,78,VDJ7# 14V 1.4W |
1 | ||
| 84999-10250 |
GRJ71,78..RHD 14V 1.4W |
1 | ||
| 84999-10250 |
HZJ79..CBU;GRJ71,76,78..LHD;GRJ79,HZJ71,76,78,VDJ7# 14V 1.4W |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
HZJ79..CBU;GRJ71,76,78..LHD;GRJ79,HZJ71,76,78,VDJ7# |
1 | ||
| 85520-28010 |
GRJ71,78..RHD |
1 | ||
| 85520-17020 |
HZJ79..CBU;FZJ7#,HZJ71,76,78,VDJ7# |
1 | ||
ILLUST NO. 5 OF 7(0907- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-69105 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD..(HT,PIC) |
1 | ||
| 84332-60330 |
GRJ71,78..RHD |
1 | ||
| 84332-60330 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
GRJ71,78..RHD 14V 0.91W |
1 | ||
| 84999-10860 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 14V 0.91W |
1 | ||
| 84453 - SWITCH, IDLE UP | ||||
| 84453-26030 |
VDJ7# |
1 | ||
| 84453-60080 |
VDJ7# |
1 | ||
| 84453A - BULB, IDLE UP SWITCH | ||||
| 84999-10320 |
VDJ7# |
1 | ||
| 90010-01061 |
VDJ7# |
1 | ||
| 84560A - SWITCH ASSY, FUEL CONTROL | ||||
| 84560-60070 |
VDJ78,79 |
1 | ||
| 84560-60070 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 84560-60050 |
VDJ78,79..HT,PIC |
1 | ||
| 84560-60050 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 84560B - BULB, FUEL CONTROL SWITCH | ||||
| 84999-10860 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 90010-01039 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 84999-10860 |
VDJ78,79 |
1 | ||
| 90010-01039 |
VDJ78,79..HT,PIC |
1 | ||
| 84660E - KNOB, COOLER SWITCH | ||||
| 84731-12032 |
GRJ78;HZJ76,78..RHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 84731-12032 |
VDJ7#..ARL AIR CONDITIONER-WITH(DOP) |
1 | ||
| 84731-12032 |
GRJ71,VDJ79..DCB,PIC,SOT;GRJ79,HZJ79,VDJ76,78..RHD..(DCB,HT) AIR CONDITIONER-WITH |
1 | ||
| 84725 - SWITCH, CENTER DIFFERENTIAL LOCK | ||||
| 84725-60020 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84660-90K02 |
FZJ71,78,79,HZJ7#..RHD HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 84660-90K02 |
VDJ7# AIR CONDITIONER-WITH |
1 | ||
| 84660-90K02 |
VDJ7# AIR CONDITIONER-WITH(DOP) |
1 | ||
| 84660-60020 |
GRJ71,78,79,HZJ7#..RHD..(HT,PIC) HEATER-W(FRONT)&AIR CONDITIONER-WITH |
1 | ||
| 84660-90K02 |
FZJ78,HZJ76,78..RHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 84732-90K02 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 84660-60020 |
GRJ78,HZJ76,78..RHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 84660-60020 |
VDJ7#..ARL AIR CONDITIONER-WITH(DOP) |
1 | ||
| 84732-60060 |
GRJ71,78,79,HZJ7#..RHD..(HT,PIC) HEATER-W(FRONT) |
1 | ||
| 84732-60060 |
GRJ78,HZJ76,78..RHD HEATER-W(FRONT & REAR) |
1 | ||
| 84732-60060 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD..(DCB,HT,PIC) |
1 | ||
| 84660-60020 |
VDJ7#;GRJ79,HZJ79..RHD..DCB AIR CONDITIONER-WITH |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12010 |
FZJ79..LX;FZJ79..GEN;FZJ71,76,78 |
1 | ||
| 84731-20030 |
GRJ78;HZJ76,78..RHD HEATER-W(FRONT & REAR)&AIR CONDITIONER-WITH |
1 | ||
| 84731-12010 |
GRJ71,78..RHD |
1 | ||
| 84731-20030 |
GRJ71,VDJ79..DCB,PIC,SOT;GRJ79,HZJ79,VDJ76,78..RHD..(DCB,HT) AIR CONDITIONER-WITH |
1 | ||
| 84731-12010 |
GRJ79..LX;GRJ79,HZJ79..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ7#;GRJ79,HZJ79..DCB..GCC |
1 | ||
| 84731-20030 |
VDJ7#..ARL AIR CONDITIONER-WITH(DOP) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-60100 |
GRJ71..STD..GEN;GRJ78,HZJ71,78..HT;GRJ79..PIC..STD..GCC POWER DOOR LOCK-WITH |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 90010-01039 |
GRJ71..STD..GEN;GRJ78,HZJ71,78..HT;GRJ79..PIC..STD..GCC 14V0.91W,W(GREEN CAP,POWER DOOR LOCK-WITH |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
HZJ79..CBU;GRJ71,76,78..LHD;GRJ79,HZJ71,76,78,VDJ7# |
1 | ||
| 85500-28080 |
GRJ71,78..RHD |
1 | ||
| 85500-60030 |
HZJ79..CBU;FZJ7#,HZJ71,76,78,VDJ7# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28080 |
HZJ79..CBU;GRJ71,76,78..LHD;GRJ79,HZJ71,76,78,VDJ7# |
1 | ||
| 85500-28080 |
GRJ71,78..RHD |
1 | ||
| 85500-60030 |
HZJ79..CBU;FZJ7#,HZJ71,76,78,VDJ7# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
HZJ79..CBU;FZJ7#,HZJ71,76,78,VDJ7# 14V 1.4W |
1 | ||
| 84999-10250 |
GRJ71,78..RHD 14V 1.4W |
1 | ||
| 84999-10250 |
HZJ79..CBU;GRJ71,76,78..LHD;GRJ79,HZJ71,76,78,VDJ7# 14V 1.4W |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
HZJ79..CBU;FZJ7#,HZJ71,76,78,VDJ7# 14V 1.4W |
1 | ||
| 84999-10250 |
GRJ71,78..RHD 14V 1.4W |
1 | ||
| 84999-10250 |
HZJ79..CBU;GRJ71,76,78..LHD;GRJ79,HZJ71,76,78,VDJ7# 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
HZJ79..CBU;GRJ71,76,78..LHD;GRJ79,HZJ71,76,78,VDJ7# |
1 | ||
| 85513-28010 |
GRJ71,78..RHD |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
HZJ79..CBU;GRJ71,76,78..LHD;GRJ79,HZJ71,76,78,VDJ7# |
1 | ||
| 85513-28010 |
GRJ71,78..RHD |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22030 |
GRJ71,78..RHD |
1 | ||
| 85515-22030 |
HZJ79..CBU;GRJ71,76,78..LHD;GRJ79,HZJ71,76,78,VDJ7# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22030 |
GRJ71,78..RHD |
1 | ||
| 85515-22030 |
HZJ79..CBU;GRJ71,76,78..LHD;GRJ79,HZJ71,76,78,VDJ7# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
HZJ79..CBU;GRJ71,76,78..LHD;GRJ79,HZJ71,76,78,VDJ7# |
1 | ||
| 85520-28010 |
GRJ71,78..RHD |
1 | ||
| 85520-17020 |
HZJ79..CBU;FZJ7#,HZJ71,76,78,VDJ7# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
HZJ79..CBU;GRJ71,76,78..LHD;GRJ79,HZJ71,76,78,VDJ7# |
1 | ||
| 85520-28010 |
GRJ71,78..RHD |
1 | ||
| 85520-17020 |
HZJ79..CBU;FZJ7#,HZJ71,76,78,VDJ7# |
1 | ||
ILLUST NO. 6 OF 7(0701-0907)
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-69345 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD..(HT,PIC) |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-69345 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD..(HT,PIC) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-69095 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 84140-60310 |
GRJ71,78..RHD FRONT FOG LAMP-WITH |
1 | ||
| 84140-60190 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 84140-42030 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 84140-60310 |
GRJ79,HZJ7#,VDJ7#..RHD FRONT FOG LAMP-WITH |
1 | ||
| 84140-52180 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 84140-42040 |
GRJ79,HZJ7#,VDJ7#..RHD FRONT FOG LAMP-WITH |
1 | ||
| 84140-60190 |
GRJ71,78..RHD |
1 | ||
| 84140-52090 |
GRJ79,HZJ7#,VDJ7#..RHD FRONT FOG LAMP-WITH |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-69095 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 84140-60310 |
GRJ71,78..RHD FRONT FOG LAMP-WITH |
1 | ||
| 84140-60190 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 84140-42030 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 84140-60310 |
GRJ79,HZJ7#,VDJ7#..RHD FRONT FOG LAMP-WITH |
1 | ||
| 84140-52180 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 84140-42040 |
GRJ79,HZJ7#,VDJ7#..RHD FRONT FOG LAMP-WITH |
1 | ||
| 84140-60190 |
GRJ71,78..RHD |
1 | ||
| 84140-52090 |
GRJ79,HZJ7#,VDJ7#..RHD FRONT FOG LAMP-WITH |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-60540 |
FZJ71,78,79,HZJ7#..RHD..(HT,PIC) |
1 | ||
| 84310-60550 |
FZJ71,78,79,HZJ7#..RHD..(HT,PIC) INTERMITTENT WIPER-WITHOUT(TIME ADJUSTMENT) |
1 | ||
| 84310-60550 |
VDJ78,79..STD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-60540 |
FZJ71,78,79,HZJ7#..RHD..(HT,PIC) |
1 | ||
| 84310-60550 |
FZJ71,78,79,HZJ7#..RHD..(HT,PIC) INTERMITTENT WIPER-WITHOUT(TIME ADJUSTMENT) |
1 | ||
| 84310-60550 |
VDJ78,79..STD |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32010 |
FZJ7#,HZJ7#,VDJ7#..HT,PIC |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32010 |
FZJ7#,HZJ7#,VDJ7#..HT,PIC |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-69105 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD..(HT,PIC) |
1 | ||
| 84332-60330 |
GRJ71,78..RHD |
1 | ||
| 84332-60330 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-69105 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD..(HT,PIC) |
1 | ||
| 84332-60330 |
GRJ71,78..RHD |
1 | ||
| 84332-60330 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-71010 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 84450-60261 |
FZJ71,76,79,HZJ76,78,79,VDJ7#..ARL,GCC |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-69415 |
FZJ71,78,79,HZJ7#..RHD..(HT,PIC) |
1 | ||
| 84652-12A00 |
GRJ71,78..RHD |
1 | ||
| 84652-69425 |
VDJ78,79..STD |
1 | ||
| 84652-52270 |
GRJ71,78..RHD INTERMITTENT WIPER-WITHOUT(TIME ADJUSTMENT) |
1 | ||
| 84652-69425 |
FZJ71,78,79,HZJ7#..RHD..(HT,PIC) INTERMITTENT WIPER-WITHOUT(TIME ADJUSTMENT) |
1 | ||
| 84652-1A851 |
HZJ71,76,78..RHD..HT REAR WINDOW WIPER-WITH(INTERMITTENT)&INTERMITTENT WIPER-WITHOUT(TIME ADJUSTMENT) |
1 | ||
| 84652-1A850 |
VDJ78..STD |
1 | ||
| 84652-1A850 |
HZJ71,76,78..RHD..HT REAR WINDOW WIPER-WITH(INTERMITTENT)&INTERMITTENT WIPER-WITHOUT(TIME ADJUSTMENT) |
1 | ||
| 84652-1A851 |
VDJ78..STD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-69415 |
FZJ71,78,79,HZJ7#..RHD..(HT,PIC) |
1 | ||
| 84652-12A00 |
GRJ71,78..RHD |
1 | ||
| 84652-69425 |
VDJ78,79..STD |
1 | ||
| 84652-52270 |
GRJ71,78..RHD INTERMITTENT WIPER-WITHOUT(TIME ADJUSTMENT) |
1 | ||
| 84652-69425 |
FZJ71,78,79,HZJ7#..RHD..(HT,PIC) INTERMITTENT WIPER-WITHOUT(TIME ADJUSTMENT) |
1 | ||
| 84652-1A851 |
HZJ71,76,78..RHD..HT REAR WINDOW WIPER-WITH(INTERMITTENT)&INTERMITTENT WIPER-WITHOUT(TIME ADJUSTMENT) |
1 | ||
| 84652-1A850 |
VDJ78..STD |
1 | ||
| 84652-1A850 |
HZJ71,76,78..RHD..HT REAR WINDOW WIPER-WITH(INTERMITTENT)&INTERMITTENT WIPER-WITHOUT(TIME ADJUSTMENT) |
1 | ||
| 84652-1A851 |
VDJ78..STD |
1 | ||
| Common parts | ||||
| 82711-14550 | ||||
| 82715-6A070 | ||||
| 90461-12206 | ||||
| 90463-12570 | ||||
| 90463-15402 | ||||
| 90464-00537 | ||||
| 90464-00551 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 6 OF 7(0907- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
VDJ79;GRJ71,76,79,HZJ76,78,79,VDJ76,78..ARL,GCC |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-69095 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 84140-60310 |
GRJ71,78..RHD FRONT FOG LAMP-WITH |
1 | ||
| 84140-60190 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 84140-42030 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 84140-60310 |
GRJ79,HZJ7#,VDJ7#..RHD FRONT FOG LAMP-WITH |
1 | ||
| 84140-52180 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 84140-42040 |
GRJ79,HZJ7#,VDJ7#..RHD FRONT FOG LAMP-WITH |
1 | ||
| 84140-60190 |
GRJ71,78..RHD |
1 | ||
| 84140-52090 |
GRJ79,HZJ7#,VDJ7#..RHD FRONT FOG LAMP-WITH |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-69095 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 84140-60310 |
GRJ71,78..RHD FRONT FOG LAMP-WITH |
1 | ||
| 84140-60190 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 84140-42030 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 84140-60310 |
GRJ79,HZJ7#,VDJ7#..RHD FRONT FOG LAMP-WITH |
1 | ||
| 84140-52180 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 84140-42040 |
GRJ79,HZJ7#,VDJ7#..RHD FRONT FOG LAMP-WITH |
1 | ||
| 84140-60190 |
GRJ71,78..RHD |
1 | ||
| 84140-52090 |
GRJ79,HZJ7#,VDJ7#..RHD FRONT FOG LAMP-WITH |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52100 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 84306-52100 |
VDJ7#;GRJ79..RHD..DCB |
1 | ||
| 84306-52100 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 84306-60120 |
GRJ71,78,79..RHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-71010 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 84450-60261 |
FZJ71,76,79,HZJ76,78,79,VDJ7#..ARL,GCC |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-69415 |
FZJ71,78,79,HZJ7#..RHD..(HT,PIC) |
1 | ||
| 84652-12A00 |
GRJ71,78..RHD |
1 | ||
| 84652-69425 |
VDJ78,79..STD |
1 | ||
| 84652-52270 |
GRJ71,78..RHD INTERMITTENT WIPER-WITHOUT(TIME ADJUSTMENT) |
1 | ||
| 84652-69425 |
FZJ71,78,79,HZJ7#..RHD..(HT,PIC) INTERMITTENT WIPER-WITHOUT(TIME ADJUSTMENT) |
1 | ||
| 84652-1A851 |
HZJ71,76,78..RHD..HT REAR WINDOW WIPER-WITH(INTERMITTENT)&INTERMITTENT WIPER-WITHOUT(TIME ADJUSTMENT) |
1 | ||
| 84652-1A850 |
VDJ78..STD |
1 | ||
| 84652-1A850 |
HZJ71,76,78..RHD..HT REAR WINDOW WIPER-WITH(INTERMITTENT)&INTERMITTENT WIPER-WITHOUT(TIME ADJUSTMENT) |
1 | ||
| 84652-1A851 |
VDJ78..STD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-69415 |
FZJ71,78,79,HZJ7#..RHD..(HT,PIC) |
1 | ||
| 84652-12A00 |
GRJ71,78..RHD |
1 | ||
| 84652-69425 |
VDJ78,79..STD |
1 | ||
| 84652-52270 |
GRJ71,78..RHD INTERMITTENT WIPER-WITHOUT(TIME ADJUSTMENT) |
1 | ||
| 84652-69425 |
FZJ71,78,79,HZJ7#..RHD..(HT,PIC) INTERMITTENT WIPER-WITHOUT(TIME ADJUSTMENT) |
1 | ||
| 84652-1A851 |
HZJ71,76,78..RHD..HT REAR WINDOW WIPER-WITH(INTERMITTENT)&INTERMITTENT WIPER-WITHOUT(TIME ADJUSTMENT) |
1 | ||
| 84652-1A850 |
VDJ78..STD |
1 | ||
| 84652-1A850 |
HZJ71,76,78..RHD..HT REAR WINDOW WIPER-WITH(INTERMITTENT)&INTERMITTENT WIPER-WITHOUT(TIME ADJUSTMENT) |
1 | ||
| 84652-1A851 |
VDJ78..STD |
1 | ||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 7 OF 7(0701- )RHD
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-69335 |
VDJ78,79 SUB FUEL TANK |
1 | ||
| 83320-69355 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 83320-69355 |
VDJ78,79 MAIN FUEL TANK |
1 | ||
| 83320-69475 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 83320-69465 |
VDJ78,79..HT,PIC SUB TANK |
1 | ||
| 83320-69475 |
VDJ78,79..HT,PIC MAIN TANK |
1 | ||
| 83320-69555 |
VDJ78,79..HT,PIC SUB TANK |
1 | ||
| 83320-69565 |
VDJ78,79..HT,PIC MAIN TANK |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-69335 |
VDJ78,79 SUB FUEL TANK |
1 | ||
| 83320-69355 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 83320-69355 |
VDJ78,79 MAIN FUEL TANK |
1 | ||
| 83320-69475 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 83320-69465 |
VDJ78,79..HT,PIC SUB TANK |
1 | ||
| 83320-69475 |
VDJ78,79..HT,PIC MAIN TANK |
1 | ||
| 83320-69555 |
VDJ78,79..HT,PIC SUB TANK |
1 | ||
| 83320-69565 |
VDJ78,79..HT,PIC MAIN TANK |
1 | ||
| 84222D - SWITCH, TRANSFER INDICATOR, NO.4 | ||||
| 84222-12010 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
2 | ||
| 84222D - SWITCH, TRANSFER INDICATOR, NO.4 | ||||
| 84222-12010 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60080 |
GRJ78..LHD;HZJ78,VDJ78 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60080 |
GRJ78..LHD;HZJ78,VDJ78 |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84535-22080 |
FZJ71,76,78,GRJ71,76,78,HZJ71,76,78,VDJ76,78 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
FZJ7#,GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
GRJ79..PIC..STD..GCC;GRJ71,78,HZJ71,78..HT..STD POWER DOOR LOCK-WITH&POWER WINDOW-WITH |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
GRJ79..PIC..STD..GCC;GRJ71,78,HZJ71,78..HT..STD POWER DOOR LOCK-WITH&POWER WINDOW-WITH |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
GRJ79..PIC..STD..GCC;GRJ71,78,HZJ71,78..HT..STD POWER DOOR LOCK-WITH&POWER WINDOW-WITH |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-16050 |
HZJ71,78..RHD..HT POWER DOOR LOCK-WITH&POWER WINDOW-WITH |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-16050 |
HZJ71,78..RHD..HT POWER DOOR LOCK-WITH&POWER WINDOW-WITH |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-60100 |
GRJ71..STD..GEN;GRJ78,HZJ71,78..HT;GRJ79..PIC..STD..GCC POWER DOOR LOCK-WITH |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-60031 |
HZJ71,78..RHD..HT POWER DOOR LOCK-WITH |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-90K04 |
VDJ76,78 |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-60130 |
GRJ71..STD..GEN;GRJ78,HZJ71,78..HT;GRJ79..PIC..STD..GCC POWER DOOR LOCK-WITH |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06915 | ||||
| 90159-60081 | ||||
| 90189-06018 | ||||
| 90430-18008 | ||||
| 90467-13030 | ||||
| 91651-40614 | ||||
| 91671-80612 | ||||
| 93313-14012 | ||||
| 93319-A4010 | ||||
| 93540-14012 | ||||

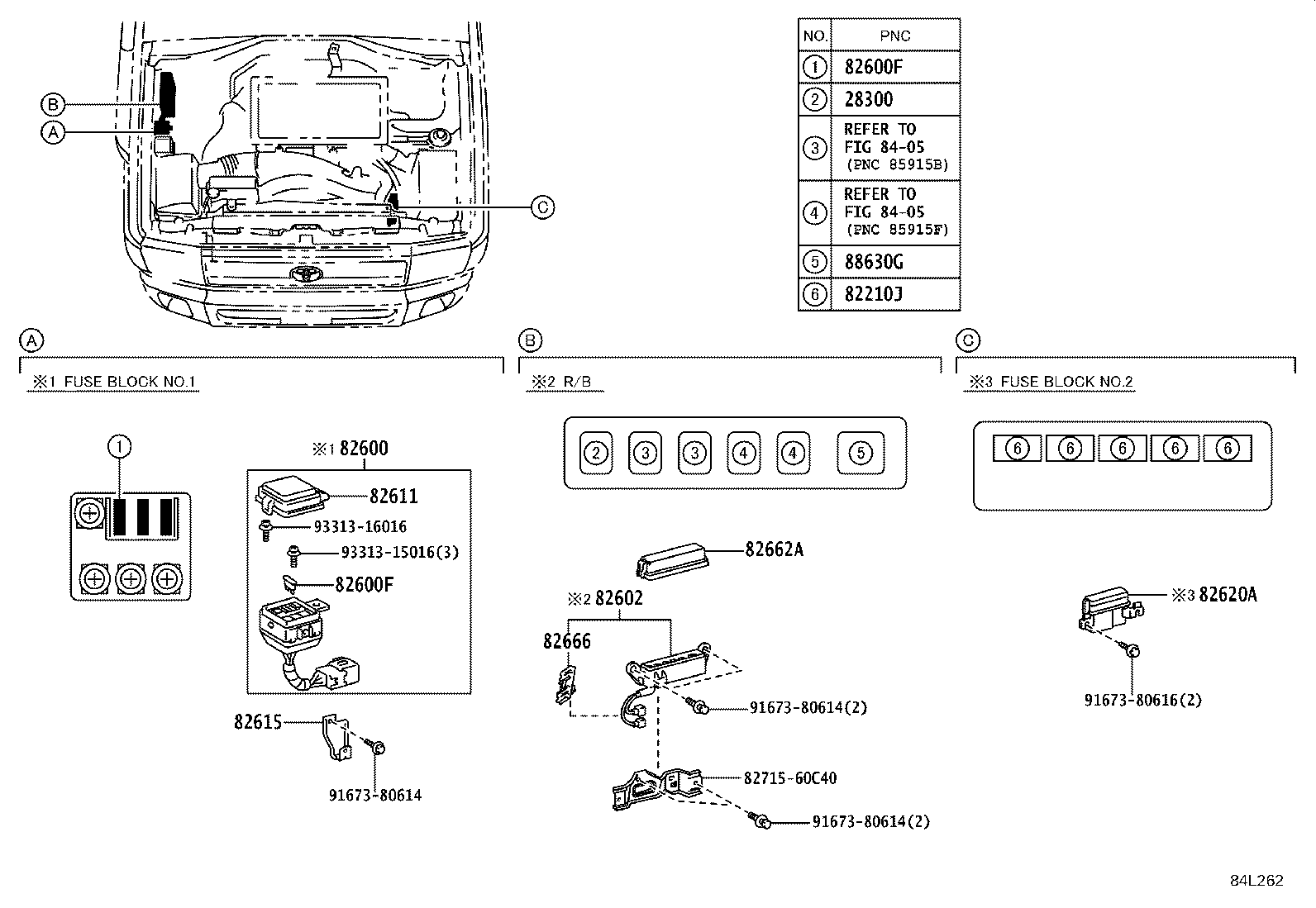

ILLUST NO. 3 OF 7(0701-0907)VDJ7#
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-51010 |
1VDFTV..VDJ7# |
1 | ||
| 90987-02025 |
1GRFE..GRJ71,76,78..LHD;1GRFE,1HZ,1VDFTV..GRJ79,HZJ7#,VDJ7# |
1 | ||
| 88263-24020 |
1VDFTV..VDJ7# |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08203 |
VDJ7# 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08295 |
GRJ71,78..RHD 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08303 |
GRJ71,78..RHD 50A-50A-50A,FEMALE |
1 | ||
| 90982-08296 |
GRJ71,78..RHD 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08227 |
VDJ7# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08280 |
FZJ7#,HZJ7#,VDJ7# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08303 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 50A-50A-50A,FEMALE |
1 | ||
| 90982-08295 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08189 |
VDJ7# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08286 |
VDJ7# 140A,TERM.:MALE,RBR |
1 | ||
| 82600 - BLOCK ASSY, FUSE | ||||
| 82600-60090 |
VDJ7# |
1 | ||
| 82600-60091 |
VDJ7# |
1 | ||
| 82600-60092 |
VDJ7# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
FZJ7#,VDJ7# 7.5A |
1 | ||
| 90982-09003 |
FZJ7#,HZJ7#,VDJ7# 15A |
1 | ||
| 90982-07011 |
HZJ7#,VDJ7# 30A,GREEN |
1 | ||
| 90982-09020 |
GRJ71,78..RHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
GRJ71,78..RHD 25A,MINI FUSE |
1 | ||
| 90982-09002 |
VDJ7# 10A |
1 | ||
| 90982-09022 |
GRJ71,78..RHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
GRJ71,78..RHD 10A,MINI FUSE,RED |
1 | ||
| 90982-09021 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GRJ71,78..RHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GRJ71,78..RHD 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 25A,MINI FUSE |
1 | ||
| 90982-09020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09004 |
VDJ7# 20A,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
FZJ7#,VDJ7# 7.5A |
1 | ||
| 90982-09003 |
FZJ7#,HZJ7#,VDJ7# 15A |
1 | ||
| 90982-07011 |
HZJ7#,VDJ7# 30A,GREEN |
1 | ||
| 90982-09020 |
GRJ71,78..RHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
GRJ71,78..RHD 25A,MINI FUSE |
1 | ||
| 90982-09002 |
VDJ7# 10A |
1 | ||
| 90982-09022 |
GRJ71,78..RHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
GRJ71,78..RHD 10A,MINI FUSE,RED |
1 | ||
| 90982-09021 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GRJ71,78..RHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GRJ71,78..RHD 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 25A,MINI FUSE |
1 | ||
| 90982-09020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09004 |
VDJ7# 20A,YELLOW |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-60070 |
VDJ7# |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-60100 |
VDJ7# |
1 | ||
| 82611-90K00 |
GRJ71,78..RHD ACCESSORY CONNECTOR-WITH(ENGINE ROOM) |
1 | ||
| 82611-90K00 |
VDJ7# |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82615-90K00 |
VDJ7# |
1 | ||
| 82715-60Y70 |
VDJ7# |
1 | ||
| 82615-60060 |
VDJ7# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60080 |
GRJ71,78..RHD |
1 | ||
| 82620-60080 |
GRJ79,VDJ7#;GRJ71,76,78..LHD |
1 | ||
| 82620-60040 |
VDJ7# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-60180 |
VDJ7# |
1 | ||
| 82662-60410 |
VDJ7# |
1 | ||
| 82662-60420 |
GRJ71,78..RHD |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-60310 |
VDJ7# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02028 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# AIR CONDITIONER-WITH |
1 | ||
| 90987-02028 |
VDJ7#..ARL AIR CONDITIONER-WITH(DOP) |
1 | ||
| 90987-02028 |
GRJ71,78..RHD AIR CONDITIONER-WITH |
1 | ||
| Common parts | ||||
| 82715-60C40 | ||||
| 91673-80614 | ||||
| 91673-80616 | ||||
| 93313-15016 | ||||
| 93313-16016 | ||||
| Linked diagrams | ||||
| 8405 | ||||
ILLUST NO. 3 OF 7(0907- )VDJ7#..RHD
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-51010 |
1VDFTV..VDJ7# |
1 | ||
| 90987-02025 |
1GRFE..GRJ71,76,78..LHD;1GRFE,1HZ,1VDFTV..GRJ79,HZJ7#,VDJ7# |
1 | ||
| 88263-24020 |
1VDFTV..VDJ7# |
1 | ||
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28601-17020 |
1VDFTV..VDJ7# |
2 | ||
| 28610-27010 |
1VDFTV..VDJ7# |
2 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08203 |
VDJ7# 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08295 |
GRJ71,78..RHD 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08303 |
GRJ71,78..RHD 50A-50A-50A,FEMALE |
1 | ||
| 90982-08296 |
GRJ71,78..RHD 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08227 |
VDJ7# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08280 |
FZJ7#,HZJ7#,VDJ7# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08303 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 50A-50A-50A,FEMALE |
1 | ||
| 90982-08295 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08189 |
VDJ7# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08286 |
VDJ7# 140A,TERM.:MALE,RBR |
1 | ||
| 82600 - BLOCK ASSY, FUSE | ||||
| 82600-60090 |
VDJ7# |
1 | ||
| 82600-60091 |
VDJ7# |
1 | ||
| 82600-60092 |
VDJ7# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
FZJ7#,VDJ7# 7.5A |
1 | ||
| 90982-09003 |
FZJ7#,HZJ7#,VDJ7# 15A |
1 | ||
| 90982-07011 |
HZJ7#,VDJ7# 30A,GREEN |
1 | ||
| 90982-09020 |
GRJ71,78..RHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
GRJ71,78..RHD 25A,MINI FUSE |
1 | ||
| 90982-09002 |
VDJ7# 10A |
1 | ||
| 90982-09022 |
GRJ71,78..RHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
GRJ71,78..RHD 10A,MINI FUSE,RED |
1 | ||
| 90982-09021 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GRJ71,78..RHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GRJ71,78..RHD 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 25A,MINI FUSE |
1 | ||
| 90982-09020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09004 |
VDJ7# 20A,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
FZJ7#,VDJ7# 7.5A |
1 | ||
| 90982-09003 |
FZJ7#,HZJ7#,VDJ7# 15A |
1 | ||
| 90982-07011 |
HZJ7#,VDJ7# 30A,GREEN |
1 | ||
| 90982-09020 |
GRJ71,78..RHD 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
GRJ71,78..RHD 25A,MINI FUSE |
1 | ||
| 90982-09002 |
VDJ7# 10A |
1 | ||
| 90982-09022 |
GRJ71,78..RHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
GRJ71,78..RHD 10A,MINI FUSE,RED |
1 | ||
| 90982-09021 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GRJ71,78..RHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GRJ71,78..RHD 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 25A,MINI FUSE |
1 | ||
| 90982-09020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09004 |
VDJ7# 20A,YELLOW |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-60090 |
GRJ71,78..RHD |
1 | ||
| 82610-60090 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-60100 |
VDJ7# |
1 | ||
| 82611-90K00 |
GRJ71,78..RHD ACCESSORY CONNECTOR-WITH(ENGINE ROOM) |
1 | ||
| 82611-90K00 |
VDJ7# |
1 | ||
| 82611A - COVER, FUSE BLOCK, NO.2 | ||||
| 82611-60070 |
GRJ71,78..RHD |
1 | ||
| 82611-60070 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 82613 - COVER, FUSE BLOCK | ||||
| 82611-60091 |
HZJ7#,VDJ7# |
1 | ||
| 82611-60090 |
HZJ7#,VDJ7# |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82615-90K00 |
VDJ7# |
1 | ||
| 82715-60Y70 |
VDJ7# |
1 | ||
| 82615-60060 |
VDJ7# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60080 |
GRJ71,78..RHD |
1 | ||
| 82620-60080 |
GRJ79,VDJ7#;GRJ71,76,78..LHD |
1 | ||
| 82620-60040 |
VDJ7# |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-60020 |
GRJ71,78..RHD |
1 | ||
| 82621-60020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 82622 - COVER, FUSIBLE LINK, UPPER | ||||
| 82622-60010 |
GRJ79,VDJ7#;GRJ71,76,78..LHD |
1 | ||
| 82622-60010 |
GRJ71,78..RHD |
1 | ||
| 82623 - COVER, FUSIBLE LINK, LOWER | ||||
| 82623-60010 |
GRJ71,78..RHD |
1 | ||
| 82623-60010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-60130 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 82660-60130 |
GRJ71,78..RHD |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-60180 |
GRJ71,78..RHD |
1 | ||
| 82660-60180 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-60180 |
VDJ7# |
1 | ||
| 82662-60410 |
VDJ7# |
1 | ||
| 82662-60420 |
GRJ71,78..RHD |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-60050 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 82741-60050 |
GRJ71,78..RHD |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 90987-02027 |
GRJ71,78..RHD |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02028 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# AIR CONDITIONER-WITH |
1 | ||
| 90987-02028 |
VDJ7#..ARL AIR CONDITIONER-WITH(DOP) |
1 | ||
| 90987-02028 |
GRJ71,78..RHD AIR CONDITIONER-WITH |
1 | ||
| Common parts | ||||
| 91553-80618 | ||||
| 91673-80614 | ||||
| 93313-15016 | ||||
| 93313-16016 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8405 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
