VDJ78R-RJMRYQ (2007)
Toyota Land Cruiser
ILLUST NO. 3 OF 8(0701- )VDJ7#..RHD..DCB,HT ; (0701- )FZJ71,76,78,GRJ7#,HZJ7#..DCB,HT,SOT ; (1
ROOF,DOOR,FRAME WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-60C71 |
GRJ79,HZJ71,78,79..RHD..(HT,PIC) POWER DOOR LOCK-WITH |
1 | ||
| 82151-60C40 |
GRJ79,HZJ71,78,79..RHD..(HT,PIC) POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH |
1 | ||
| 82151-60C30 |
GRJ79,HZJ71,78,79..RHD..(HT,PIC) POWER DOOR LOCK-WITH&WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH |
1 | ||
| 82151-60C61 |
GRJ79,HZJ71,78,79..RHD..(HT,PIC) POWER DOOR LOCK-WITH&POWER WINDOW-WITH |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-60B61 |
GRJ79,HZJ71,78,79..RHD..(HT,PIC) POWER DOOR LOCK-WITH&POWER WINDOW-WITH |
1 | ||
| 82152-60B71 |
GRJ79,HZJ71,78,79..RHD..(HT,PIC) POWER DOOR LOCK-WITH |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-60310 |
VDJ76;VDJ78..STD |
1 | ||
| 82184-60440 |
VDJ76;VDJ78..STD |
1 | ||
| 82184-60441 |
VDJ76;VDJ78..STD |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-60311 |
GRJ71..LX;GRJ71,78..RHD |
1 | ||
| 82185-60310 |
VDJ78..STD;GRJ71,76,78,HZJ71,76,78 |
1 | ||
| 82185-60120 |
VDJ78..STD;FZJ71,76,78,HZJ71,76,78 |
1 | ||
| 82185-60301 |
GRJ71..STD..GEN;GRJ78,HZJ71,78..HT POWER DOOR LOCK-WITH |
1 | ||
| 82185-60311 |
VDJ78..STD;HZJ71,76,78;GRJ76,78..LHD;GRJ71..LHD..STD |
1 | ||
| Common parts | ||||
| 64777-90A00 | ||||
ILLUST NO. 4 OF 8(0701-1608)VDJ78 ; (0701- )VDJ76..GEN ; (0701- )FZJ71,78,GRJ71,78,HZJ71,78
FLOOR & ROOF & FRAME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-60B00 |
VDJ78 |
1 | ||
| 82161-60B01 |
VDJ78 |
1 | ||
| 82161-60L60 |
VDJ78 |
1 | ||
| 82161-60L61 |
VDJ78 |
1 | ||
| 82161-60L62 |
VDJ78 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-60B40 |
FZJ71,78,HZJ71,78 |
1 | ||
| 82162-60B50 |
HZJ71,78 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 82162-60B70 |
HZJ71,78..RHD..HT MOZAMBIQUE SPEC&REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 82162-60B80 |
VDJ78 |
1 | ||
| 82162-60B70 |
FZJ78,HZJ71,78..RHD..HT MOZAMBIQUE SPEC |
1 | ||
| 82162-60B71 |
HZJ71,78..RHD..HT MOZAMBIQUE SPEC&REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 82162-60B41 |
FZJ71,78,HZJ71,78 |
1 | ||
| 82162-60B81 |
VDJ78 |
1 | ||
| 82162-60B51 |
HZJ71,78 REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 82162-60B71 |
FZJ78,HZJ71,78..RHD..HT MOZAMBIQUE SPEC |
1 | ||
| 82162-60M30 |
HZJ71,78;GRJ71..LHD..STD..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK |
1 | ||
| 82162-60M20 |
GRJ71,78,HZJ71,78 |
1 | ||
| 82162-60M60 |
VDJ78 |
1 | ||
| 82162-60M61 |
VDJ78 |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-60391 |
FZJ78,HZJ78,VDJ78 |
1 | ||
| 82163-60460 |
GRJ78..LHD;HZJ78,VDJ78 |
1 | ||
| 82163-60390 |
FZJ78,HZJ78,VDJ78 |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-60410 |
VDJ78 REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| 82164-60A50 |
VDJ78 REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| 82164-60A60 |
VDJ78 |
1 | ||
| 82164-60A51 |
VDJ78 REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-60410 |
VDJ78 REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| 82164-60A50 |
VDJ78 REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| 82164-60A60 |
VDJ78 |
1 | ||
| 82164-60A51 |
VDJ78 REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-60100 |
VDJ78,79..HT,PIC |
1 | ||
| 82169-60100 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 82169-60060 |
VDJ78,79 |
1 | ||
| 82169-60060 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-60A40 |
FZJ78,HZJ78,VDJ78..STD |
1 | ||
| 82171-60A50 |
FZJ78,HZJ78,VDJ78..STD HIGH MOUNT STOP LAMP-WITH |
1 | ||
| 82171-60E90 |
GRJ78..LHD;HZJ78,VDJ78..STD |
1 | ||
| 82171-60F00 |
GRJ78..LHD;HZJ78,VDJ78..STD HIGH MOUNT STOP LAMP-WITH |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-60A40 |
FZJ78,HZJ78,VDJ78..STD |
1 | ||
| 82171-60A50 |
FZJ78,HZJ78,VDJ78..STD HIGH MOUNT STOP LAMP-WITH |
1 | ||
| 82171-60E90 |
GRJ78..LHD;HZJ78,VDJ78..STD |
1 | ||
| 82171-60F00 |
GRJ78..LHD;HZJ78,VDJ78..STD HIGH MOUNT STOP LAMP-WITH |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-60010 |
HZJ78,VDJ78..STD;FZJ71,76,78,HZJ71,76..HT..GEN HIGH MOUNT STOP LAMP-WITH |
1 | ||
| 82214-36250 |
GRJ71,76,78..LHD..GEN;HZJ71,76,78,VDJ78..HT..STD HIGH MOUNT STOP LAMP-WITH |
1 | ||
| 82214-36250 |
GRJ71,78..RHD HIGH MOUNT STOP LAMP-WITH |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-60860 |
GRJ76,78,HZJ76,78,VDJ76 |
1 | ||
| 82666-60A90 |
VDJ78 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-60860 |
GRJ76,78,HZJ76,78,VDJ76 |
1 | ||
| 82666-60A90 |
VDJ78 |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-60B10 |
GRJ76,78,HZJ76,78 |
1 | ||
| 82666Z - HOLDER, CONNECTOR NO.19 | ||||
| 82666-60B40 |
GRJ71,78..RHD |
1 | ||
| 82666-60B40 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-60450 |
VDJ78 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-60N00 |
VDJ78 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-08701 | ||||
| 91673-80614 | ||||
| Linked diagrams | ||||
| 4101 | ||||
ILLUST NO. 2 OF 8(0701-0907)RHD
COWL&INSTRUMENT WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-6B770 |
FZJ71,78,79..RHD |
1 | ||
| 82131-60B90 |
VDJ78,79 |
1 | ||
| 82131-60A90 |
HZJ71,78,79..RHD |
1 | ||
| 82131-60A91 |
HZJ71,78,79..RHD |
1 | ||
| 82131-60B91 |
VDJ78,79 |
1 | ||
| 82131-6B771 |
FZJ71,78,79..RHD |
1 | ||
| 82131-60C70 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60C70 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60D50 |
VDJ7# |
1 | ||
| 82131-60D60 |
GRJ71,78,79..RHD |
1 | ||
| 82131-60C30 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60C30 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60E60 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&HEATER-W(FRONT)&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60E60 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&HEATER-W(FRONT)&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60E80 |
VDJ7# |
1 | ||
| 82131-60D11 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60D11 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60F10 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60F10 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60D51 |
VDJ7# |
1 | ||
| 82131-60D52 |
VDJ7# |
1 | ||
| 82131-60F11 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60F11 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-60D50 |
FZJ7#,HZJ7#;VDJ78,79..STD |
1 | ||
| 82141-60D30 |
VDJ78,79..STD FRONT FOG LAMP-WITH |
1 | ||
| 82141-60Q60 |
VDJ7# |
1 | ||
| 82141-60Q90 |
GRJ71,78,79,HZJ7#..RHD |
1 | ||
| 82141-60Q61 |
VDJ7# |
1 | ||
| 82141-60D50 |
VDJ78..STD FUEL TANK-W/O(SUB TANK)&FRONT FOG LAMP-WITH |
1 | ||
| 82141-60Q62 |
VDJ7# |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-60180 |
VDJ7# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60B50 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# NO.2 |
1 | ||
| 82666-60210 |
FZJ71,78,79,VDJ7#..RHD |
1 | ||
| 82666-60A30 |
GRJ79,HZJ7#,VDJ7#..RHD NO.1 |
1 | ||
| 82666-60B50 |
GRJ71,78..RHD NO.2 |
1 | ||
| 82666-60A30 |
GRJ71,78..RHD NO.1 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-60F50 |
VDJ7# |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-48110 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 82824-22080 |
FZJ7#,HZJ7#,VDJ7# |
2 | ||
| 82824-48110 |
GRJ71,78..RHD |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
| Linked diagrams | ||||
| 8401 | ||||

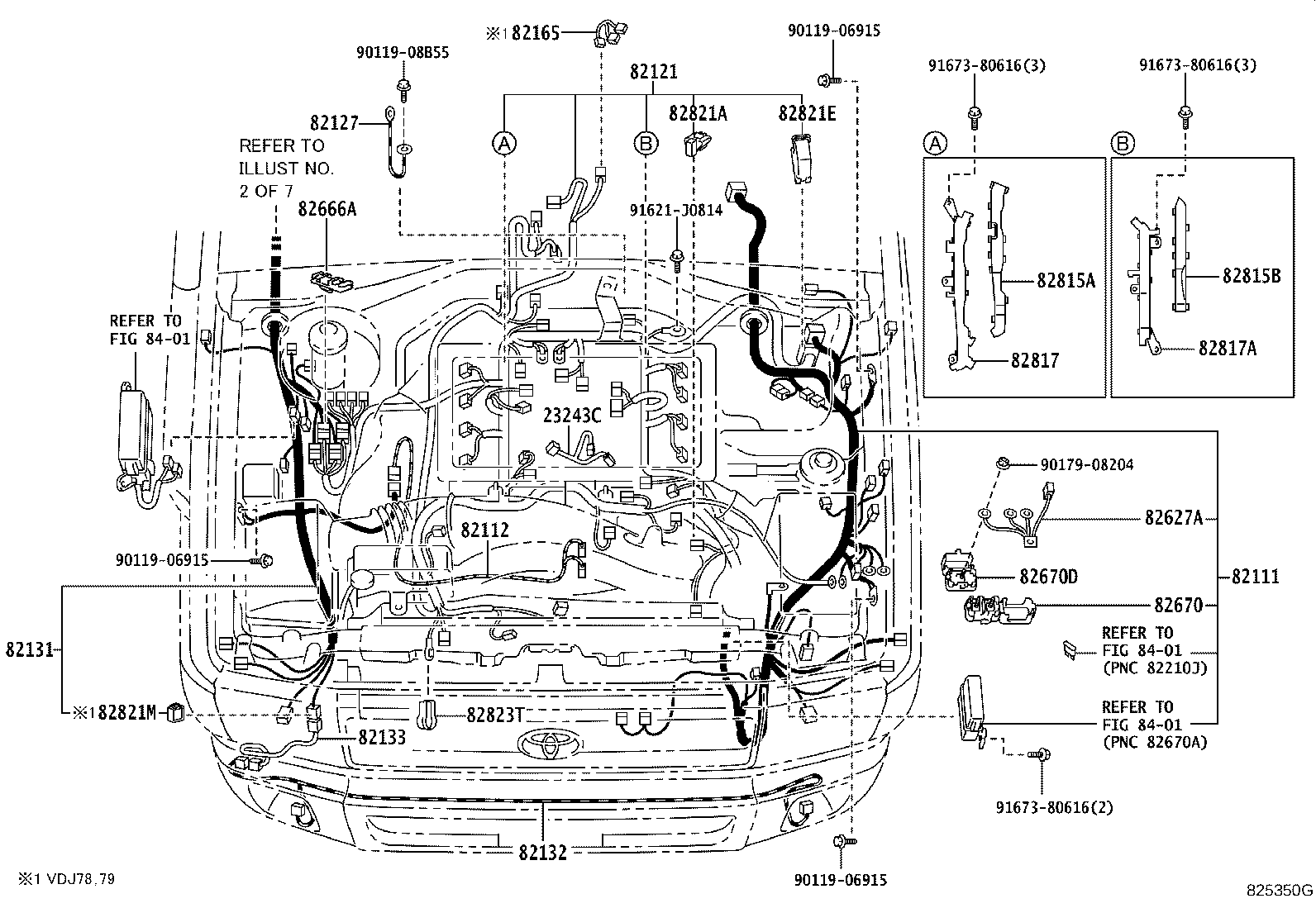

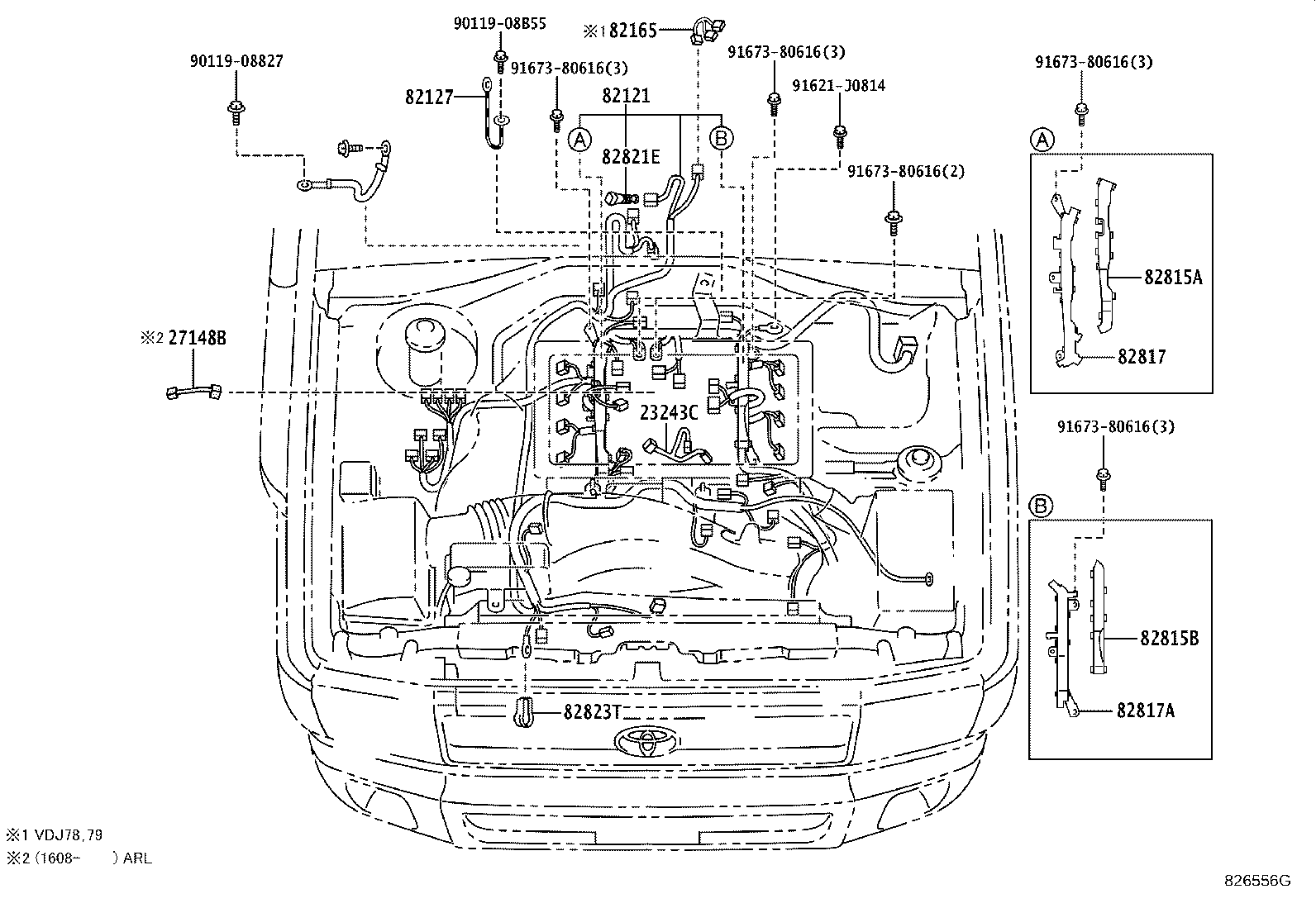

ILLUST NO. 1 OF 8(0701-0907)VDJ7#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23243C - WIRE, FUEL PUMP MOTOR | ||||
| 23243-51010 |
1VDFTV..VDJ7# |
1 | ||
| 23243-51020 |
1VDFTV..VDJ7# |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-60B70 |
VDJ7# |
1 | ||
| 82111-60J50 |
VDJ7# |
1 | ||
| 82111-60J60 |
GRJ71,78,79..RHD |
1 | ||
| 82111-60J51 |
VDJ7# |
1 | ||
| 82111-60J91 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC |
1 | ||
| 82111-6AC90 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-60670 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| 82112-60720 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| 82112-60750 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| 82112-60740 |
VDJ7# |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-60C00 |
FZJ71,78,79..RHD |
1 | ||
| 82121-60C30 |
VDJ78,79 |
1 | ||
| 82121-60C20 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 82121-60L60 |
VDJ78,79 |
1 | ||
| 82121-60L61 |
VDJ78,79..HT,PIC |
1 | ||
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-60070 |
VDJ7# |
1 | ||
| 82127-60100 |
GRJ71,78..RHD |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-6B770 |
FZJ71,78,79..RHD |
1 | ||
| 82131-60B90 |
VDJ78,79 |
1 | ||
| 82131-60A90 |
HZJ71,78,79..RHD |
1 | ||
| 82131-60A91 |
HZJ71,78,79..RHD |
1 | ||
| 82131-60B91 |
VDJ78,79 |
1 | ||
| 82131-6B771 |
FZJ71,78,79..RHD |
1 | ||
| 82131-60C70 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60C70 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60D50 |
VDJ7# |
1 | ||
| 82131-60D60 |
GRJ71,78,79..RHD |
1 | ||
| 82131-60C30 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60C30 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60E60 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&HEATER-W(FRONT)&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60E60 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&HEATER-W(FRONT)&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60E80 |
VDJ7# |
1 | ||
| 82131-60D11 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60D11 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60F10 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60F10 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60D51 |
VDJ7# |
1 | ||
| 82131-60D52 |
VDJ7# |
1 | ||
| 82131-60F11 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60F11 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-60120 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 82132-60100 |
FZJ79..GEN;FZJ71,76,78 FRONT FOG LAMP-WITH |
1 | ||
| 82132-60100 |
HZJ79..GEN;VDJ79..PIC..IV;GRJ79..LHD..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ76,78 FRONT FOG LAMP-WITH |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78;GRJ79..PIC..GEN;GRJ71,76,78..LHD;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH |
1 | ||
| 82132-60120 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH |
1 | ||
| 82132-60120 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60120 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH |
1 | ||
| 82132-60120 |
GRJ78,HZJ76,78..RHD TOWING HOOK-FRONT(1),W(*SB)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60120 |
GRJ78,HZJ76,78..RHD TOWING HOOK-FRONT(1),W(*SB)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60120 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78;GRJ79..PIC..GEN;GRJ71,76,78..LHD;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH |
1 | ||
| 82132-60120 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVERONLY) |
1 | ||
| 82132-60120 |
GRJ71,78..RHD TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER& PASSENGER) |
1 | ||
| 82132-60120 |
GRJ71,78..RHD TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVERONLY) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER& PASSENGER) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
GRJ71,78..RHD TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
GRJ71,78..RHD TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60101 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78 FRONT FOG LAMP-WITH |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER& PASSENGER) |
1 | ||
| 82132-60121 |
GRJ79,VDJ79..RHD;GRJ79,HZJ79,VDJ76,78..ARL,GCC FRONT FOG LAMP-WITH |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVERONLY) |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-60050 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 82133-60050 |
GRJ78,HZJ76,78..RHD TOWING HOOK-FRONT(1),W(*SB)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60050 |
GRJ78,HZJ76,78..RHD TOWING HOOK-FRONT(1),W(*SB)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD FRONT FOG LAMP-WITH |
1 | ||
| 82133-60050 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78;GRJ79..PIC..GEN;GRJ71,76,78..LHD;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH |
1 | ||
| 82133-60050 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH |
1 | ||
| 82133-60050 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78;GRJ79..PIC..GEN;GRJ71,76,78..LHD;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH |
1 | ||
| 82133-60050 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# FRONT FOG LAMP-WITH |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER& PASSENGER) |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER& PASSENGER) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVERONLY) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVERONLY) |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60051 |
GRJ7#,HZJ7#,VDJ7# FRONT FOG LAMP-WITH |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER& PASSENGER) |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVERONLY) |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-60220 |
VDJ78 |
1 | ||
| 82165-60220 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 82165-60350 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 82165-60350 |
VDJ78 |
1 | ||
| 82627A - WIRE, FUSIBLE LINK | ||||
| 82627-60120 |
VDJ7# |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-60310 |
VDJ7# |
3 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-60070 |
VDJ7# |
1 | ||
| 82670D - BLOCK ASSY, JUNCTION,NO.2 | ||||
| 82670-26010 |
VDJ7# |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-60051 |
VDJ7# |
1 | ||
| 82815-60050 |
VDJ7# |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-60060 |
VDJ7# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-60A31 |
VDJ7# |
1 | ||
| 82817-60A30 |
VDJ7# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-60A40 |
VDJ7# |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12360 |
VDJ7# |
1 | ||
| 82821-60110 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82821-60110 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82821-60110 |
GRJ71,78,79..RHD |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-12560 |
VDJ7# |
1 | ||
| 82821-28030 |
GRJ71,78..RHD |
1 | ||
| 82821-28030 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
HZJ7#,VDJ7# |
1 | ||
| 82823-60040 |
GRJ71,78..RHD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08B55 | ||||
| 90179-08204 | ||||
| 91621-J0814 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 8(0701- )FZJ71,78,79..RHD
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-60670 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| 82112-60720 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| 82112-60750 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| 82112-60740 |
VDJ7# |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-60C00 |
FZJ71,78,79..RHD |
1 | ||
| 82121-60C30 |
VDJ78,79 |
1 | ||
| 82121-60C20 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 82121-60L60 |
VDJ78,79 |
1 | ||
| 82121-60L61 |
VDJ78,79..HT,PIC |
1 | ||
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-60070 |
VDJ7# |
1 | ||
| 82127-60100 |
GRJ71,78..RHD |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-6B770 |
FZJ71,78,79..RHD |
1 | ||
| 82131-60B90 |
VDJ78,79 |
1 | ||
| 82131-60A90 |
HZJ71,78,79..RHD |
1 | ||
| 82131-60A91 |
HZJ71,78,79..RHD |
1 | ||
| 82131-60B91 |
VDJ78,79 |
1 | ||
| 82131-6B771 |
FZJ71,78,79..RHD |
1 | ||
| 82131-60C70 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60C70 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60D50 |
VDJ7# |
1 | ||
| 82131-60D60 |
GRJ71,78,79..RHD |
1 | ||
| 82131-60C30 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60C30 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60E60 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&HEATER-W(FRONT)&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60E60 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&HEATER-W(FRONT)&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60E80 |
VDJ7# |
1 | ||
| 82131-60D11 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60D11 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60F10 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60F10 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60D51 |
VDJ7# |
1 | ||
| 82131-60D52 |
VDJ7# |
1 | ||
| 82131-60F11 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60F11 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-6B770 |
FZJ71,78,79..RHD |
1 | ||
| 82131-60B90 |
VDJ78,79 |
1 | ||
| 82131-60A90 |
HZJ71,78,79..RHD |
1 | ||
| 82131-60A91 |
HZJ71,78,79..RHD |
1 | ||
| 82131-60B91 |
VDJ78,79 |
1 | ||
| 82131-6B771 |
FZJ71,78,79..RHD |
1 | ||
| 82131-60C70 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60C70 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60D50 |
VDJ7# |
1 | ||
| 82131-60D60 |
GRJ71,78,79..RHD |
1 | ||
| 82131-60C30 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60C30 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60E60 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&HEATER-W(FRONT)&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60E60 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&HEATER-W(FRONT)&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60E80 |
VDJ7# |
1 | ||
| 82131-60D11 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60D11 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60F10 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60F10 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60D51 |
VDJ7# |
1 | ||
| 82131-60D52 |
VDJ7# |
1 | ||
| 82131-60F11 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60F11 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-60120 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 82132-60100 |
FZJ79..GEN;FZJ71,76,78 FRONT FOG LAMP-WITH |
1 | ||
| 82132-60100 |
HZJ79..GEN;VDJ79..PIC..IV;GRJ79..LHD..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ76,78 FRONT FOG LAMP-WITH |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78;GRJ79..PIC..GEN;GRJ71,76,78..LHD;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH |
1 | ||
| 82132-60120 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH |
1 | ||
| 82132-60120 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60120 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH |
1 | ||
| 82132-60120 |
GRJ78,HZJ76,78..RHD TOWING HOOK-FRONT(1),W(*SB)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60120 |
GRJ78,HZJ76,78..RHD TOWING HOOK-FRONT(1),W(*SB)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60120 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78;GRJ79..PIC..GEN;GRJ71,76,78..LHD;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH |
1 | ||
| 82132-60120 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVERONLY) |
1 | ||
| 82132-60120 |
GRJ71,78..RHD TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER& PASSENGER) |
1 | ||
| 82132-60120 |
GRJ71,78..RHD TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVERONLY) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER& PASSENGER) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
GRJ71,78..RHD TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
GRJ71,78..RHD TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60101 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78 FRONT FOG LAMP-WITH |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER& PASSENGER) |
1 | ||
| 82132-60121 |
GRJ79,VDJ79..RHD;GRJ79,HZJ79,VDJ76,78..ARL,GCC FRONT FOG LAMP-WITH |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVERONLY) |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-60050 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 82133-60050 |
GRJ78,HZJ76,78..RHD TOWING HOOK-FRONT(1),W(*SB)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60050 |
GRJ78,HZJ76,78..RHD TOWING HOOK-FRONT(1),W(*SB)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD FRONT FOG LAMP-WITH |
1 | ||
| 82133-60050 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78;GRJ79..PIC..GEN;GRJ71,76,78..LHD;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH |
1 | ||
| 82133-60050 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH |
1 | ||
| 82133-60050 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78;GRJ79..PIC..GEN;GRJ71,76,78..LHD;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH |
1 | ||
| 82133-60050 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# FRONT FOG LAMP-WITH |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER& PASSENGER) |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER& PASSENGER) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVERONLY) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVERONLY) |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60051 |
GRJ7#,HZJ7#,VDJ7# FRONT FOG LAMP-WITH |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER& PASSENGER) |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVERONLY) |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-60220 |
VDJ78 |
1 | ||
| 82165-60220 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 82165-60350 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 82165-60350 |
VDJ78 |
1 | ||
| 82275A - CABLE, BATTERY TO MAGNET SWITCH | ||||
| 82275-60120 |
FZJ71,78,79..RHD WINCH-W(ELECTRIC 12V) |
1 | ||
| 82275-60140 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V) |
1 | ||
| 82276A - CABLE, MAGNET SWITCH TO WINCH | ||||
| 82276-60100 |
FZJ71,78,79..RHD WINCH-W(ELECTRIC 12V) |
1 | ||
| 82276-60100 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V) |
1 | ||
| 82627A - WIRE, FUSIBLE LINK | ||||
| 82627-60120 |
VDJ7# |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-60310 |
VDJ7# |
3 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-90300 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V) |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
HZJ7#,VDJ7# |
1 | ||
| 82823-60040 |
GRJ71,78..RHD |
1 | ||
| Common parts | ||||
| 52112-28080 | ||||
| 90119-06915 | ||||
| 90119-08116 | ||||
| 90119-08827 | ||||
| 91512-61014 | ||||
| 91621-J0814 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 7 OF 8(0701- )FZJ7#,HZJ7#,VDJ7#
CLAMP & BRACKET 4/5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1A310 | ||||
| 82711-22270 | ||||
| 82711-2A730 | ||||
| 82711-60130 | ||||
| 82711-60240 | ||||
| 82712-60470 | ||||
| 82712-60480 | ||||
| 82715-60040 | ||||
| 82715-60170 | ||||
| 82715-60360 | ||||
| 82715-60480 | ||||
| 82715-60520 | ||||
| 82715-60810 | ||||
| 82715-60C00 | ||||
| 82715-60C10 | ||||
| 82715-60C30 | ||||
| 82715-60C50 | ||||
| 82715-60C80 | ||||
| 82715-60R80 | ||||
| 82715-60T90 | ||||
| 82715-60W50 | ||||
| 82715-6A210 | ||||
| 82715-6A290 | ||||
| 82715-6AD80 | ||||
| 82715-6AE40 | ||||
| 82715-6AE70 | ||||
| 82729-60060 | ||||
| 82729-60090 | ||||
| 90159-50144 | ||||
| 90179-08017 | ||||
| 90464-00345 | ||||
| 91553-80612 | ||||
| 91611-B0816 | ||||
| 91621-J0814 | ||||
| 91651-60816 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91673-80614 | ||||
| 91674-80820 | ||||
ILLUST NO. 7 OF 8(0701- )FZJ7#,HZJ7#,VDJ7#
CLAMP & BRACKET 2/5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-60030 | ||||
| 82711-12200 | ||||
| 82711-1A310 | ||||
| 82711-22270 | ||||
| 82711-60240 | ||||
| 82711-60520 | ||||
| 82715-21110 | ||||
| 82715-2J230 | ||||
| 82715-30870 | ||||
| 82715-36030 | ||||
| 82715-36040 | ||||
| 82715-36080 | ||||
| 82715-42220 | ||||
| 82715-60B10 | ||||
| 82715-60B20 | ||||
| 82715-60B30 | ||||
| 82715-60B50 | ||||
| 82715-60B60 | ||||
| 82715-60B80 | ||||
| 82715-60B90 | ||||
| 82715-60C60 | ||||
| 82715-60D40 | ||||
| 82715-60D50 | ||||
| 82715-60D70 | ||||
| 82715-60D90 | ||||
| 82715-60M10 | ||||
| 82715-60Q10 | ||||
| 82715-60U20 | ||||
| 82715-60Z80 | ||||
| 82715-6A210 | ||||
| 82715-6A600 | ||||
| 90179-06161 | ||||
| 91512-61014 | ||||
| 91611-B0825 | ||||
| 91621-J0814 | ||||
| 91651-60816 | ||||
| 91651-61016 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91673-80812 | ||||
| 91674-80820 | ||||
ILLUST NO. 1 OF 8(0907- )VDJ7#..RHD
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23243C - WIRE, FUEL PUMP MOTOR | ||||
| 23243-51010 |
1VDFTV..VDJ7# |
1 | ||
| 23243-51020 |
1VDFTV..VDJ7# |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-60C00 |
FZJ71,78,79..RHD |
1 | ||
| 82121-60C30 |
VDJ78,79 |
1 | ||
| 82121-60C20 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 82121-60L60 |
VDJ78,79 |
1 | ||
| 82121-60L61 |
VDJ78,79..HT,PIC |
1 | ||
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-60070 |
VDJ7# |
1 | ||
| 82127-60100 |
GRJ71,78..RHD |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-60220 |
VDJ78 |
1 | ||
| 82165-60220 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 82165-60350 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 82165-60350 |
VDJ78 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-60051 |
VDJ7# |
1 | ||
| 82815-60050 |
VDJ7# |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-60060 |
VDJ7# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-60A31 |
VDJ7# |
1 | ||
| 82817-60A30 |
VDJ7# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-60A40 |
VDJ7# |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-28030 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 82821-12560 |
VDJ7# |
1 | ||
| 82821-28030 |
GRJ71,78..RHD |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
HZJ7#,VDJ7# |
1 | ||
| 82823-60040 |
GRJ71,78..RHD |
1 | ||
| Common parts | ||||
| 90119-08827 | ||||
| 90119-08B55 | ||||
| 91621-J0814 | ||||
| 91673-80616 | ||||
ILLUST NO. 1 OF 8(0907- )RHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-60B70 |
VDJ7# |
1 | ||
| 82111-60J50 |
VDJ7# |
1 | ||
| 82111-60J60 |
GRJ71,78,79..RHD |
1 | ||
| 82111-60J51 |
VDJ7# |
1 | ||
| 82111-60J91 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC |
1 | ||
| 82111-6AC90 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-60670 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| 82112-60720 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| 82112-60750 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| 82112-60740 |
VDJ7# |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-6B770 |
FZJ71,78,79..RHD |
1 | ||
| 82131-60B90 |
VDJ78,79 |
1 | ||
| 82131-60A90 |
HZJ71,78,79..RHD |
1 | ||
| 82131-60A91 |
HZJ71,78,79..RHD |
1 | ||
| 82131-60B91 |
VDJ78,79 |
1 | ||
| 82131-6B771 |
FZJ71,78,79..RHD |
1 | ||
| 82131-60C70 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60C70 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60D50 |
VDJ7# |
1 | ||
| 82131-60D60 |
GRJ71,78,79..RHD |
1 | ||
| 82131-60C30 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60C30 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60E60 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&HEATER-W(FRONT)&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60E60 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&HEATER-W(FRONT)&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60E80 |
VDJ7# |
1 | ||
| 82131-60D11 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60D11 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60F10 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60F10 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60D51 |
VDJ7# |
1 | ||
| 82131-60D52 |
VDJ7# |
1 | ||
| 82131-60F11 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60F11 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-60120 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 82132-60100 |
FZJ79..GEN;FZJ71,76,78 FRONT FOG LAMP-WITH |
1 | ||
| 82132-60100 |
HZJ79..GEN;VDJ79..PIC..IV;GRJ79..LHD..GEN;GRJ71,76,78..LHD;HZJ71,76,78,VDJ76,78 FRONT FOG LAMP-WITH |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78;GRJ79..PIC..GEN;GRJ71,76,78..LHD;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH |
1 | ||
| 82132-60120 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH |
1 | ||
| 82132-60120 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60120 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH |
1 | ||
| 82132-60120 |
GRJ78,HZJ76,78..RHD TOWING HOOK-FRONT(1),W(*SB)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60120 |
GRJ78,HZJ76,78..RHD TOWING HOOK-FRONT(1),W(*SB)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60120 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78;GRJ79..PIC..GEN;GRJ71,76,78..LHD;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH |
1 | ||
| 82132-60120 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVERONLY) |
1 | ||
| 82132-60120 |
GRJ71,78..RHD TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER& PASSENGER) |
1 | ||
| 82132-60120 |
GRJ71,78..RHD TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVERONLY) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER& PASSENGER) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
GRJ71,78..RHD TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
GRJ71,78..RHD TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60101 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78 FRONT FOG LAMP-WITH |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER& PASSENGER) |
1 | ||
| 82132-60121 |
GRJ79,VDJ79..RHD;GRJ79,HZJ79,VDJ76,78..ARL,GCC FRONT FOG LAMP-WITH |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVERONLY) |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82132-60121 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82132-60120 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-60050 |
FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&FRONT FOG LAMP-WITH |
1 | ||
| 82133-60050 |
GRJ78,HZJ76,78..RHD TOWING HOOK-FRONT(1),W(*SB)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60050 |
GRJ78,HZJ76,78..RHD TOWING HOOK-FRONT(1),W(*SB)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD FRONT FOG LAMP-WITH |
1 | ||
| 82133-60050 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78;GRJ79..PIC..GEN;GRJ71,76,78..LHD;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH |
1 | ||
| 82133-60050 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH |
1 | ||
| 82133-60050 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78;GRJ79..PIC..GEN;GRJ71,76,78..LHD;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH |
1 | ||
| 82133-60050 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# FRONT FOG LAMP-WITH |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER& PASSENGER) |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER& PASSENGER) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVERONLY) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVERONLY) |
1 | ||
| 82133-60050 |
HZJ79..GEN;HZJ71,76,78..HT;GRJ79..PIC..GEN;GRJ71,76,78..LHD..HT;GRJ79..LHD..DCB..GEN TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60051 |
GRJ7#,HZJ7#,VDJ7# FRONT FOG LAMP-WITH |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60050 |
GRJ71,78..RHD TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78 WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER& PASSENGER) |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT WINCH-W(ELECTRIC 12V)&TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT TOWING HOOK-FRONT(1),W(*SB) & REAR(1),PINTELE HOOK&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82133-60051 |
HZJ79..GEN;GRJ79..LHD..GEN;GRJ71,76,78,HZJ71,76,78..HT TOWING HOOK-FRONT(1),W(*SB) & REAR(1)&FRONT FOG LAMP-WITH&SRS AIR BAG-WITH(DRIVERONLY) |
1 | ||
| 82275A - CABLE, BATTERY TO MAGNET SWITCH | ||||
| 82275-60120 |
FZJ71,78,79..RHD WINCH-W(ELECTRIC 12V) |
1 | ||
| 82275-60140 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V) |
1 | ||
| 82276A - CABLE, MAGNET SWITCH TO WINCH | ||||
| 82276-60100 |
FZJ71,78,79..RHD WINCH-W(ELECTRIC 12V) |
1 | ||
| 82276-60100 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V) |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-60570 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 82815-60570 |
GRJ71,78..RHD |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-60Q50 |
GRJ71,78..RHD |
1 | ||
| 82817-60Q50 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12360 |
VDJ7# |
1 | ||
| 82821-60110 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82821-60110 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82821-60110 |
GRJ71,78,79..RHD |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-90300 |
GRJ71,78..RHD WINCH-W(ELECTRIC 12V) |
1 | ||
| Common parts | ||||
| 52112-28080 | ||||
| 82815-60440 | ||||
| 82817-60N20 | ||||
| 82817-60S90 | ||||
| 90119-06915 | ||||
| 90119-08116 | ||||
| 90179-06178 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 4301 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 8(0907- )GRJ71,78,79..RHD
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-60C00 |
FZJ71,78,79..RHD |
1 | ||
| 82121-60C30 |
VDJ78,79 |
1 | ||
| 82121-60C20 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 82121-60L60 |
VDJ78,79 |
1 | ||
| 82121-60L61 |
VDJ78,79..HT,PIC |
1 | ||
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-60070 |
VDJ7# |
1 | ||
| 82127-60100 |
GRJ71,78..RHD |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-60220 |
VDJ78 |
1 | ||
| 82165-60220 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 82165-60350 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 82165-60350 |
VDJ78 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-35020 |
GRJ71,78..RHD |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-12560 |
VDJ7# |
1 | ||
| 82821-28030 |
GRJ71,78..RHD |
1 | ||
| 82821-28030 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-60050 |
GRJ71,78..RHD |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
HZJ7#,VDJ7# |
1 | ||
| 82823-60040 |
GRJ71,78..RHD |
1 | ||
| Common parts | ||||
| 91515-60616 | ||||
| 91673-80814 | ||||
| Linked diagrams | ||||
| 8601 | ||||
ILLUST NO. 8 OF 8(0701- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10354 | ||||
| 90980-10905 | ||||
| 90980-10942 | ||||
| 90980-10988 | ||||
| 90980-11001 | ||||
| 90980-11013 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11096 | ||||
| 90980-11142 | ||||
| 90980-11156 | ||||
| 90980-11159 | ||||
| 90980-11162 | ||||
| 90980-11168 | ||||
| 90980-11296 | ||||
| 90980-11314 | ||||
| 90980-11856 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12634 | ||||
| 90980-12710 | ||||
ILLUST NO. 2 OF 8(0907- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-60D50 |
FZJ7#,HZJ7#;VDJ78,79..STD |
1 | ||
| 82141-60D30 |
VDJ78,79..STD FRONT FOG LAMP-WITH |
1 | ||
| 82141-60Q60 |
VDJ7# |
1 | ||
| 82141-60Q90 |
GRJ71,78,79,HZJ7#..RHD |
1 | ||
| 82141-60Q61 |
VDJ7# |
1 | ||
| 82141-60D50 |
VDJ78..STD FUEL TANK-W/O(SUB TANK)&FRONT FOG LAMP-WITH |
1 | ||
| 82141-60Q62 |
VDJ7# |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-60180 |
VDJ7# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-60A10 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 82666-60A10 |
GRJ71,78..RHD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
ILLUST NO. 2 OF 8(0907- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-6B770 |
FZJ71,78,79..RHD |
1 | ||
| 82131-60B90 |
VDJ78,79 |
1 | ||
| 82131-60A90 |
HZJ71,78,79..RHD |
1 | ||
| 82131-60A91 |
HZJ71,78,79..RHD |
1 | ||
| 82131-60B91 |
VDJ78,79 |
1 | ||
| 82131-6B771 |
FZJ71,78,79..RHD |
1 | ||
| 82131-60C70 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60C70 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60D50 |
VDJ7# |
1 | ||
| 82131-60D60 |
GRJ71,78,79..RHD |
1 | ||
| 82131-60C30 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60C30 |
GRJ71,78,79..RHD SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60E60 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&HEATER-W(FRONT)&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60E60 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&HEATER-W(FRONT)&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60E80 |
VDJ7# |
1 | ||
| 82131-60D11 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60D11 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60F10 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60F10 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82131-60D51 |
VDJ7# |
1 | ||
| 82131-60D52 |
VDJ7# |
1 | ||
| 82131-60F11 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82131-60F11 |
HZJ76,78,79..RHD SOUTH AFRICA SPEC&REAR WHEEL BRAKE-DISC FS14 18V&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-60350 |
GRJ71,78..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 82143-60350 |
VDJ7# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60B50 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# NO.2 |
1 | ||
| 82666-60210 |
FZJ71,78,79,VDJ7#..RHD |
1 | ||
| 82666-60A30 |
GRJ79,HZJ7#,VDJ7#..RHD NO.1 |
1 | ||
| 82666-60B50 |
GRJ71,78..RHD NO.2 |
1 | ||
| 82666-60A30 |
GRJ71,78..RHD NO.1 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60B50 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# NO.2 |
1 | ||
| 82666-60210 |
FZJ71,78,79,VDJ7#..RHD |
1 | ||
| 82666-60A30 |
GRJ79,HZJ7#,VDJ7#..RHD NO.1 |
1 | ||
| 82666-60B50 |
GRJ71,78..RHD NO.2 |
1 | ||
| 82666-60A30 |
GRJ71,78..RHD NO.1 |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-48110 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 82824-22080 |
FZJ7#,HZJ7#,VDJ7# |
2 | ||
| 82824-48110 |
GRJ71,78..RHD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90179-06264 | ||||
| 91673-80614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 7 OF 8(0701- )FZJ7#,HZJ7#,VDJ7#
CLAMP & BRACKET 5/5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 23211-51010 | ||||
| 23265-51010 | ||||
| 82702-60160 | ||||
| 82710-60110 | ||||
| 82710-60120 | ||||
| 82711-12120 | ||||
| 82711-12480 | ||||
| 82715-60060 | ||||
| 82715-60D60 | ||||
| 82715-60T30 | ||||
| 82715-60V40 | ||||
| 82715-60V50 | ||||
| 82715-60V60 | ||||
| 82715-60Y90 | ||||
| 82715-6AD60 | ||||
| 82715-6AD70 | ||||
| 82715-6AE00 | ||||
| 82715-6AE50 | ||||
| 82715-87003 | ||||
| 82729-60060 | ||||
| 82729-60080 | ||||
| 90119-08701 | ||||
| 90119-08827 | ||||
| 90463-08207 | ||||
| 90463-10521 | ||||
| 90463-15003 | ||||
| 90467-09043 | ||||
| 90467-13030 | ||||
| 90480-36508 | ||||
| 91553-80814 | ||||
| 91651-60816 | ||||
| 91671-80614 | ||||
| 91674-80820 | ||||
| 94130-61000 | ||||
ILLUST NO. 7 OF 8(0701- )FZJ7#,HZJ7#,VDJ7#
CLAMP & BRACKET 1/5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-60050 | ||||
| 82710-60080 | ||||
| 82711-60300 | ||||
| 82715-36160 | ||||
| 82715-60540 | ||||
| 82715-60C20 | ||||
| 82715-60C30 | ||||
| 82715-60R90 | ||||
| 82715-60T10 | ||||
| 82715-60V20 | ||||
| 82715-60V30 | ||||
| 82715-60W50 | ||||
| 82715-60Y30 | ||||
| 82715-6A610 | ||||
| 82715-6A620 | ||||
| 82715-6AD50 | ||||
| 82715-6AD90 | ||||
| 82729-60060 | ||||
| 82729-60090 | ||||
| 90119-06915 | ||||
| 90119-08667 | ||||
| 91553-80612 | ||||
| 91641-C0612 | ||||
| 91651-60816 | ||||
| 91671-80614 | ||||
| 91673-80614 | ||||
| 91673-80616 | ||||
| 91674-80820 | ||||
ILLUST NO. 7 OF 8(0701- )FZJ7#,HZJ7#,VDJ7#
CLAMP & BRACKET 3/5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-60040 | ||||
| 82715-60170 | ||||
| 82715-60360 | ||||
| 82715-60480 | ||||
| 82715-60530 | ||||
| 82715-60540 | ||||
| 82715-60600 | ||||
| 82715-60860 | ||||
| 82715-6AD20 | ||||
| 82715-6AD30 | ||||
| 82715-6AD40 | ||||
| 82715-6AE10 | ||||
| 82715-6AE20 | ||||
| 82715-6AE60 | ||||
| 82715-6AF20 | ||||
| 82715-6AF90 | ||||
| 82715-6AG00 | ||||
| 82715-6AG50 | ||||
| 82729-60090 | ||||
| 91511-B0814 | ||||
| 91512-61014 | ||||
| 91611-B0816 | ||||
| 91621-J0814 | ||||
| 91651-60816 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91673-80614 | ||||
| 91673-80812 | ||||
ILLUST NO. 8 OF 8(0701- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10816 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11070 | ||||
| 90980-12490 | ||||
| 90980-12687 | ||||
| 90980-12690 | ||||
| 90980-12691 | ||||
| 90980-12B01 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
