VDJ78R-RJMRYQ (2007)
Toyota Land Cruiser
ILLUST NO. 5 OF 5(0701- )
AUXILIARY FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77110 - TANK ASSY, AUXILIARY FUEL | ||||
| 77110-60011 |
GRJ71,78..RHD AUXILIARY FUEL TANK-WITH(1 TANK) |
1 | ||
| 77110-60011 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# AUXILIARY FUEL TANK-WITH(1 TANK) |
1 | ||
| 77110-60011 |
GRJ71,78..RHD AUXILIARY FUEL TANK-WITH(2 TANKS) |
2 | ||
| 77110-60011 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# AUXILIARY FUEL TANK-WITH(2 TANKS) |
2 | ||
| Common parts | ||||
| 90119-08277 | ||||
| 90202-11006 | ||||
| 90950-01088 | ||||
| 90950-01555 | ||||

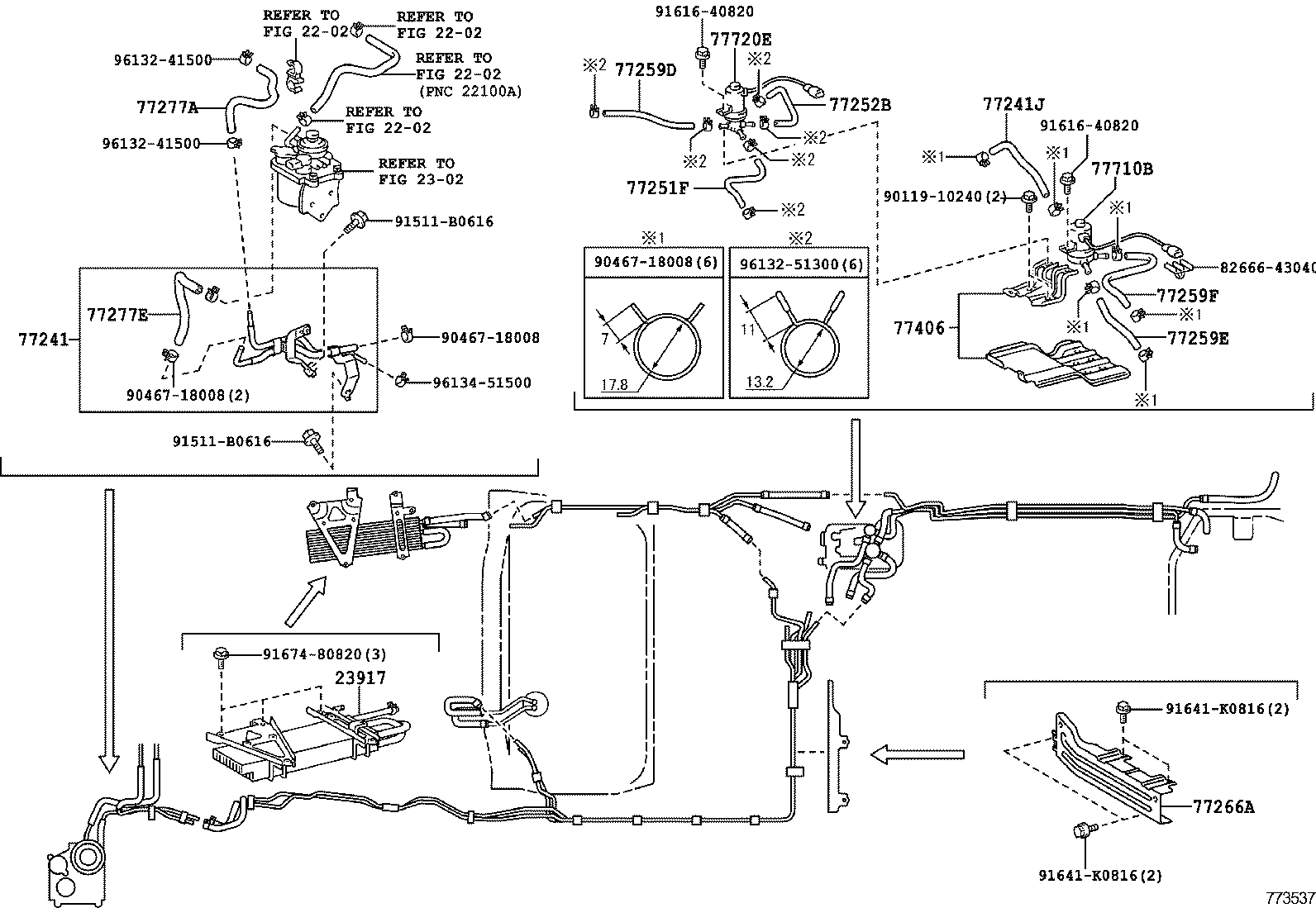

ILLUST NO. 3 OF 5(0701-1208)VDJ78,79
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23917 - COOLER, FUEL | ||||
| 23920-51012 |
1VDFTV..VDJ7# |
1 | ||
| 23920-51010 |
1VDFTV..VDJ7# |
1 | ||
| 23920-51011 |
1VDFTV..VDJ7# |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60481 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77206-60501 |
VDJ78 |
1 | ||
| 77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3 | ||||
| 77207-60270 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77207-60302 |
VDJ78 |
1 | ||
| 77207-60301 |
VDJ78 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-60B81 |
VDJ7# |
1 | ||
| 77241G - HOSE, FUEL, NO.6 | ||||
| 95332-10018 |
VDJ78,79 |
1 | ||
| 95337-10018 |
VDJ78,79 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 77259-60730 |
VDJ78 FUEL TANK-W/O(SUB TANK),NO.2 |
1 | ||
| 77259-60730 |
VDJ78 NO.2 |
1 | ||
| 77259-60750 |
VDJ78 FUEL TANK-W/O(SUB TANK),NO.1 |
1 | ||
| 77259-60750 |
VDJ78 NO.1 |
1 | ||
| 77259-60731 |
VDJ78 FUEL TANK-W/O(SUB TANK),NO.2 |
1 | ||
| 77259-60731 |
VDJ78 NO.2 |
1 | ||
| 77259-60751 |
VDJ78 NO.1 |
1 | ||
| 77259-60751 |
VDJ78 FUEL TANK-W/O(SUB TANK),NO.1 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 77259-60771 |
VDJ78,79..HT,PIC |
1 | ||
| 77259-60770 |
VDJ78,79 |
1 | ||
| 77259-60770 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60771 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77259-60740 |
VDJ7# |
1 | ||
| 77259-60740 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60741 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60741 |
VDJ7# |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 77259-60751 |
VDJ78 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-60060 |
VDJ78,79 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 77259-60B20 |
GRJ71,78..RHD |
1 | ||
| 23273-51031 |
VDJ7# |
1 | ||
| 23273-51030 |
VDJ7# |
1 | ||
| 77277E - HOSE, FUEL, NO.5 (FOR RETURN TUBE, NO.1) | ||||
| 77259-60761 |
VDJ7# |
1 | ||
| 77259-60760 |
VDJ7# |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 77259-60780 |
VDJ78,79 |
1 | ||
| 77259-60780 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60781 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60781 |
VDJ78,79..HT,PIC |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60670 |
HZJ71,VDJ78,79..HT,PIC,SOT |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-60610 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
6 | ||
| 77285-60610 |
VDJ78,79..HT,PIC |
3 | ||
| 77285-60A90 |
GRJ71,78..RHD |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-60820 |
VDJ7# |
1 | ||
| Common parts | ||||
| 90467-18008 | ||||
| 91611-B0816 | ||||
| 91641-K0816 | ||||
| 91674-80820 | ||||
| 96132-41500 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
ILLUST NO. 1 OF 5(0701-1608)VDJ78,79..HT,PIC..ARL ; (0701- )DCB..IV ; (0701- )HZJ78,79,VDJ78,7
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-60180 |
GRJ71,78..RHD |
1 | ||
| 77011-60120 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77011-60180 |
VDJ78,79..HT,PIC |
2 | ||
| 77011-60120 |
VDJ78,79 |
2 | ||
| 77011-60180 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-60440 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77017-60450 |
VDJ78,79..HT,PIC SUB TANK |
1 | ||
| 77017-60440 |
VDJ78,79..HT,PIC MAIN TANK |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77023-60010 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77023-60010 |
VDJ78,79..HT,PIC |
2 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-60200 |
HZJ78,79,VDJ78,79..HT,PIC |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77300-28010 |
FZJ71,76,78 |
1 | ||
| 77300-28010 |
GRJ71,78..RHD |
1 | ||
| 77300-35010 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77300-35010 |
HZJ71,76,78,VDJ76 |
1 | ||
| 77300-35010 |
VDJ78 |
2 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-16010 |
FZJ71,76,78 |
1 | ||
| 77316-16010 |
GRJ71,78..RHD |
1 | ||
| 77316-16010 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77316-16010 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76 |
1 | ||
| 77316-16010 |
VDJ78 |
2 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-60551 |
VDJ78,79 SUB TANK |
1 | ||
| 77001-60780 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77001-60780 |
VDJ78,79 MAIN TANK |
1 | ||
| 77001-60781 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77001-60781 |
VDJ78,79..HT,PIC MAIN TANK |
1 | ||
| 77001-60552 |
VDJ78,79..HT,PIC SUB TANK |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
VDJ78,79..HT,PIC |
2 | ||
| 90105-12116 |
GRJ71,78..LHD;GRJ79,HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 90105-12116 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 90105-12116 |
GRJ76,HZJ76;GRJ71,78,VDJ76..RHD |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
GRJ76,HZJ76;GRJ71,78,VDJ76..RHD |
1 | ||
| 90430-12245 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 90430-12245 |
VDJ78,79..HT,PIC |
2 | ||
| 90430-12245 |
GRJ71,78..LHD;GRJ79,HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 95311-13015 |
VDJ78 L=150,FUEL TANK-W/O(SUB TANK) |
1 | ||
| 90445-22024 |
VDJ78 L=220,SUB TANK |
1 | ||
| 95311-13015 |
VDJ78,79..HT,PIC L=150,MAIN TANK |
1 | ||
| 77131 - BRACKET, FUEL TANK FILLER PIPE SUPPORT | ||||
| 77131-90K00 |
GRJ71..LHD;HZJ71,VDJ78 |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-42010 |
VDJ78,79..HT,PIC |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77178-20010 |
GRJ71,78..RHD |
1 | ||
| 77178-20010 |
VDJ78,79..HT,PIC |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26011 |
GRJ78,79,HZJ78,79,VDJ78,79..HT,PIC |
2 | ||
| 77179-26010 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26011 |
GRJ78,79,HZJ78,79,VDJ78,79..HT,PIC |
2 | ||
| 77179-26010 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60650 |
VDJ78 MAIN-TANK |
1 | ||
| 77201-60370 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77201-60670 |
VDJ78 SUB-TANK |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60650 |
VDJ78 MAIN-TANK |
1 | ||
| 77201-60370 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77201-60670 |
VDJ78 SUB-TANK |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60650 |
VDJ78 MAIN-TANK |
1 | ||
| 77201-60370 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77201-60670 |
VDJ78 SUB-TANK |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60650 |
VDJ78 MAIN-TANK |
1 | ||
| 77201-60370 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77201-60670 |
VDJ78 SUB-TANK |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77169-14020 |
HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77169-14020 |
VDJ78,79..HT,PIC |
2 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60180 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77213-60180 |
VDJ78 MAIN TANK |
1 | ||
| 77213-60190 |
VDJ78 SUB TANK |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
VDJ78 *H,L=140,FUEL TANK-W/O(SUB TANK) |
1 | ||
| 95333-06020 |
HZJ78,79,VDJ78,79..HT,PIC *H,L=140 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-90K01 |
GRJ71,76..LHD;HZJ71,76,VDJ76,78 |
1 | ||
| 77277-90K01 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77291 - PACKING, FUEL TANK SUPPORT, UPPER | ||||
| 77293-60030 |
GRJ78..LHD;VDJ79..DCB;GRJ79,HZJ78,79,VDJ78 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-90K00 |
VDJ78 SUB TANK |
1 | ||
| 77305-90K01 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77305-90K01 |
VDJ78 MAIN TANK |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05018 |
FZJ71,76,78 |
2 | ||
| 90541-05018 |
GRJ71,78..RHD |
2 | ||
| 90541-05018 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
2 | ||
| 90541-05018 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76 |
2 | ||
| 90541-05018 |
VDJ78 |
4 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-12010 |
GRJ71,78..RHD |
1 | ||
| 77366-12010 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77366-12010 |
VDJ78 |
2 | ||
| 77366-12010 |
FZJ71,76,78 |
1 | ||
| 77366-12010 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60130 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77606-60130 |
VDJ78,79..HT,PIC MAIN TANK |
1 | ||
| 77606-60030 |
VDJ78,79..HT,PIC SUB TANK |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60230 |
VDJ78 FUEL TANK-W/O(SUB TANK),RH |
1 | ||
| 77602-60100 |
VDJ78 FUEL TANK-W/O(SUB TANK),LH |
1 | ||
| 77601-60230 |
VDJ78,79..HT,PIC MAIN TANK, RH |
1 | ||
| 77601-60261 |
VDJ78,79..HT,PIC SUB TANK |
2 | ||
| 77602-60100 |
VDJ78,79..HT,PIC MAIN TANK, LH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60230 |
VDJ78 FUEL TANK-W/O(SUB TANK),RH |
1 | ||
| 77602-60100 |
VDJ78 FUEL TANK-W/O(SUB TANK),LH |
1 | ||
| 77601-60230 |
VDJ78,79..HT,PIC MAIN TANK, RH |
1 | ||
| 77601-60261 |
VDJ78,79..HT,PIC SUB TANK |
2 | ||
| 77602-60100 |
VDJ78,79..HT,PIC MAIN TANK, LH |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-10011 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
2 | ||
| 90249-14002 |
VDJ78,79..HT,PIC SUB TANK |
2 | ||
| 90240-10011 |
VDJ78,79..HT,PIC MAIN TANK |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77616-60080 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
2 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77615-60050 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79..HT,PIC |
2 | ||
| 77675B - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.1 | ||||
| 77675-90K00 |
GRJ71,76..LHD;HZJ71,76,VDJ76,78 |
1 | ||
| 77676B - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.2 | ||||
| 77676-90K00 |
GRJ71,76..LHD;HZJ71,76,VDJ76,78 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10092 |
HZJ78,79,VDJ78,79 |
1 | ||
| Common parts | ||||
| 90119-06195 | ||||
| 90119-06621 | ||||
| 90119-10153 | ||||
| 90159-50219 | ||||
| 90179-05042 | ||||
| 90460-65002 | ||||
| 90467-20134 | ||||
| 90468-14017 | ||||
| 91612-B1020 | ||||
| 91626-B0818 | ||||
| 91651-61022 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| 96135-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 5(0701-1608)VDJ78 ; (0701- )VDJ79 ; (0701-)HZJ78,79,VDJ78..HT,PIC..GCC,GEN ;
FUEL SUB TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-60180 |
GRJ71,78..RHD |
1 | ||
| 77011-60120 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77011-60180 |
VDJ78,79..HT,PIC |
2 | ||
| 77011-60120 |
VDJ78,79 |
2 | ||
| 77011-60180 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-60440 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77017-60450 |
VDJ78,79..HT,PIC SUB TANK |
1 | ||
| 77017-60440 |
VDJ78,79..HT,PIC MAIN TANK |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77023-60010 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77023-60010 |
VDJ78,79..HT,PIC |
2 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77300-28010 |
FZJ71,76,78 |
1 | ||
| 77300-28010 |
GRJ71,78..RHD |
1 | ||
| 77300-35010 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77300-35010 |
HZJ71,76,78,VDJ76 |
1 | ||
| 77300-35010 |
VDJ78 |
2 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-16010 |
FZJ71,76,78 |
1 | ||
| 77316-16010 |
GRJ71,78..RHD |
1 | ||
| 77316-16010 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77316-16010 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76 |
1 | ||
| 77316-16010 |
VDJ78 |
2 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-60551 |
VDJ78,79 SUB TANK |
1 | ||
| 77001-60780 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77001-60780 |
VDJ78,79 MAIN TANK |
1 | ||
| 77001-60781 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77001-60781 |
VDJ78,79..HT,PIC MAIN TANK |
1 | ||
| 77001-60552 |
VDJ78,79..HT,PIC SUB TANK |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
VDJ78,79..HT,PIC |
2 | ||
| 90105-12116 |
GRJ71,78..LHD;GRJ79,HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 90105-12116 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 90105-12116 |
GRJ76,HZJ76;GRJ71,78,VDJ76..RHD |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
GRJ76,HZJ76;GRJ71,78,VDJ76..RHD |
1 | ||
| 90430-12245 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 90430-12245 |
VDJ78,79..HT,PIC |
2 | ||
| 90430-12245 |
GRJ71,78..LHD;GRJ79,HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 95311-13015 |
VDJ78 L=150,FUEL TANK-W/O(SUB TANK) |
1 | ||
| 90445-22024 |
VDJ78 L=220,SUB TANK |
1 | ||
| 95311-13015 |
VDJ78,79..HT,PIC L=150,MAIN TANK |
1 | ||
| 77133 - SUPPORT, FUEL SUB-TANK, RH | ||||
| 77133-60100 |
VDJ78,79 |
1 | ||
| 77133-60101 |
VDJ78,79..HT,PIC |
1 | ||
| 77134 - SUPPORT, FUEL SUB-TANK, LH | ||||
| 77133-60100 |
VDJ78,79 |
1 | ||
| 77133-60101 |
VDJ78,79..HT,PIC |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77178-20010 |
GRJ71,78..RHD |
1 | ||
| 77178-20010 |
VDJ78,79..HT,PIC |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60650 |
VDJ78 MAIN-TANK |
1 | ||
| 77201-60370 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77201-60670 |
VDJ78 SUB-TANK |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60650 |
VDJ78 MAIN-TANK |
1 | ||
| 77201-60370 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77201-60670 |
VDJ78 SUB-TANK |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77169-14020 |
HZJ71,78,79..HT,PIC,SOT |
1 | ||
| 77169-14020 |
VDJ78,79..HT,PIC |
2 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60180 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77213-60180 |
VDJ78 MAIN TANK |
1 | ||
| 77213-60190 |
VDJ78 SUB TANK |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-60030 |
GRJ71,76..LHD;HZJ71,76,VDJ76,78 |
1 | ||
| 77291 - PACKING, FUEL TANK SUPPORT, UPPER | ||||
| 77293-60030 |
GRJ78..LHD;VDJ79..DCB;GRJ79,HZJ78,79,VDJ78 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-90K00 |
GRJ71,76..LHD;HZJ71,76,VDJ76,78 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-90K00 |
VDJ78 SUB TANK |
1 | ||
| 77305-90K01 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77305-90K01 |
VDJ78 MAIN TANK |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05018 |
FZJ71,76,78 |
2 | ||
| 90541-05018 |
GRJ71,78..RHD |
2 | ||
| 90541-05018 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
2 | ||
| 90541-05018 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76 |
2 | ||
| 90541-05018 |
VDJ78 |
4 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-12010 |
GRJ71,78..RHD |
1 | ||
| 77366-12010 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77366-12010 |
VDJ78 |
2 | ||
| 77366-12010 |
FZJ71,76,78 |
1 | ||
| 77366-12010 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-32010 |
GRJ71,76..LHD;HZJ71,76,VDJ76,78 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60130 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77606-60130 |
VDJ78,79..HT,PIC MAIN TANK |
1 | ||
| 77606-60030 |
VDJ78,79..HT,PIC SUB TANK |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60230 |
VDJ78 FUEL TANK-W/O(SUB TANK),RH |
1 | ||
| 77602-60100 |
VDJ78 FUEL TANK-W/O(SUB TANK),LH |
1 | ||
| 77601-60230 |
VDJ78,79..HT,PIC MAIN TANK, RH |
1 | ||
| 77601-60261 |
VDJ78,79..HT,PIC SUB TANK |
2 | ||
| 77602-60100 |
VDJ78,79..HT,PIC MAIN TANK, LH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60230 |
VDJ78 FUEL TANK-W/O(SUB TANK),RH |
1 | ||
| 77602-60100 |
VDJ78 FUEL TANK-W/O(SUB TANK),LH |
1 | ||
| 77601-60230 |
VDJ78,79..HT,PIC MAIN TANK, RH |
1 | ||
| 77601-60261 |
VDJ78,79..HT,PIC SUB TANK |
2 | ||
| 77602-60100 |
VDJ78,79..HT,PIC MAIN TANK, LH |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-10011 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
2 | ||
| 90249-14002 |
VDJ78,79..HT,PIC SUB TANK |
2 | ||
| 90240-10011 |
VDJ78,79..HT,PIC MAIN TANK |
2 | ||
| Common parts | ||||
| 90119-06195 | ||||
| 90119-06621 | ||||
| 90119-06724 | ||||
| 90119-10153 | ||||
| 90119-10556 | ||||
| 90159-50219 | ||||
| 90460-65002 | ||||
| 90467-20134 | ||||
| 91626-B0818 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 5(1208-1608)VDJ78,79..HT,PIC ; (1208- )VDJ79..LX..CBU
FUEL TUBE, W(FUEL SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60481 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77206-60501 |
VDJ78 |
1 | ||
| 77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3 | ||||
| 77207-60270 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77207-60302 |
VDJ78 |
1 | ||
| 77207-60301 |
VDJ78 |
1 | ||
| 77235 - TUBE, FUEL TANK BREATHER, NO.1 | ||||
| 77235-60020 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77235-60020 |
VDJ78,79..HT,PIC |
1 | ||
| 77241E - HOSE, FUEL, NO.5 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08030 |
VDJ78,79 *H,L=220,ID=7.6 |
1 | ||
| 95338-08022 |
VDJ78,79..HT,PIC L=220 |
1 | ||
| 77241H - HOSE, FUEL, NO.7 | ||||
| 95332-10016 |
VDJ78,79 |
1 | ||
| 95337-10016 |
VDJ78,79..HT,PIC |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 77259-60730 |
VDJ78 FUEL TANK-W/O(SUB TANK),NO.2 |
1 | ||
| 77259-60730 |
VDJ78 NO.2 |
1 | ||
| 77259-60750 |
VDJ78 FUEL TANK-W/O(SUB TANK),NO.1 |
1 | ||
| 77259-60750 |
VDJ78 NO.1 |
1 | ||
| 77259-60731 |
VDJ78 FUEL TANK-W/O(SUB TANK),NO.2 |
1 | ||
| 77259-60731 |
VDJ78 NO.2 |
1 | ||
| 77259-60751 |
VDJ78 NO.1 |
1 | ||
| 77259-60751 |
VDJ78 FUEL TANK-W/O(SUB TANK),NO.1 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 77259-60771 |
VDJ78,79..HT,PIC |
1 | ||
| 77259-60770 |
VDJ78,79 |
1 | ||
| 77259-60770 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60771 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77244 - TUBE, FUEL MAIN, NO.4 | ||||
| 77254-60240 |
VDJ78,79..HT,PIC |
1 | ||
| 77254-60240 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77259-60740 |
VDJ7# |
1 | ||
| 77259-60740 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60741 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60741 |
VDJ7# |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 77259-60820 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60820 |
VDJ78,79 |
1 | ||
| 77259-60821 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 95338-08016 |
VDJ78 L=160 |
1 | ||
| 77259-60821 |
VDJ78,79..HT,PIC |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 77259-60751 |
VDJ78 |
1 | ||
| 77258A - TUBE, FUEL RETURN, NO.4 | ||||
| 77258-60170 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77258-60170 |
VDJ78,79..HT,PIC |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-60610 |
VDJ78,79 |
1 | ||
| 77259-60611 |
VDJ78,79..HT,PIC |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 77259-60780 |
VDJ78,79 |
1 | ||
| 77259-60780 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60781 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60781 |
VDJ78,79..HT,PIC |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08034 |
VDJ78,79..HT,PIC L=180 |
1 | ||
| 95334-08028 |
VDJ78 *H,L=160 |
1 | ||
| 95334-08028 |
VDJ78 *H,L=160,FUEL TANK-W/O(SUB TANK) |
1 | ||
| 95337-08034 |
VDJ78 L=180,FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77279G - HOSE, FUEL, NO.2 | ||||
| 77259-60410 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60411 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60410 |
VDJ78,79 |
1 | ||
| 77259-60411 |
VDJ78,79..HT,PIC |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60670 |
HZJ71,VDJ78,79..HT,PIC,SOT |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-60610 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
6 | ||
| 77285-60610 |
VDJ78,79..HT,PIC |
3 | ||
| 77285-60A90 |
GRJ71,78..RHD |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-60820 |
VDJ7# |
1 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77285-34380 |
VDJ78,79..HT,PIC |
1 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 77285-60830 |
VDJ78,79..HT,PIC |
3 | ||
| 77286P - CLAMP, FUEL TUBE, NO.8 | ||||
| 77285-60740 |
VDJ78,79..HT,PIC |
2 | ||
| 77285-60740 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
2 | ||
| 77286Q - CLAMP, FUEL TUBE, NO.9 | ||||
| 77285-60610 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77285-60610 |
VDJ78,79..HT,PIC |
1 | ||
| Common parts | ||||
| 90467-18008 | ||||
| 91641-K0816 | ||||
| 96132-41500 | ||||
| 96132-51300 | ||||
ILLUST NO. 4 OF 5(1208-1608)VDJ78,79..HT,PIC..ARL ; (1304- )VDJ79..LX..GEN
FUEL TUBE, W(FUEL SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23917 - COOLER, FUEL | ||||
| 23920-51012 |
1VDFTV..VDJ7# |
1 | ||
| 23920-51010 |
1VDFTV..VDJ7# |
1 | ||
| 23920-51011 |
1VDFTV..VDJ7# |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-60B81 |
VDJ7# |
1 | ||
| 77241J - HOSE, FUEL, NO.8 | ||||
| 77259-60A80 |
VDJ78,79 |
1 | ||
| 77259-60A80 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60A81 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60A81 |
VDJ78,79..HT,PIC |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 77259-60820 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60820 |
VDJ78,79 |
1 | ||
| 77259-60821 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 95338-08016 |
VDJ78 L=160 |
1 | ||
| 77259-60821 |
VDJ78,79..HT,PIC |
1 | ||
| 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) | ||||
| 77259-60830 |
VDJ78,79 |
1 | ||
| 77259-60831 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60831 |
VDJ78,79..HT,PIC |
1 | ||
| 77259-60830 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-60670 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60670 |
VDJ78,79 |
1 | ||
| 77259-60671 |
VDJ78,79..HT,PIC |
1 | ||
| 77259-60671 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259E - HOSE, FUEL | ||||
| 95332-12016 |
VDJ78,79 |
1 | ||
| 95338-12016 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 95332-12016 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 95338-12016 |
VDJ78,79..HT,PIC |
1 | ||
| 77259F - HOSE, FUEL | ||||
| 77259-60810 |
VDJ78,79 |
1 | ||
| 77259-60811 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60810 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60811 |
VDJ78,79..HT,PIC |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-60060 |
VDJ78,79 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 77259-60B20 |
GRJ71,78..RHD |
1 | ||
| 23273-51031 |
VDJ7# |
1 | ||
| 23273-51030 |
VDJ7# |
1 | ||
| 77277E - HOSE, FUEL, NO.5 (FOR RETURN TUBE, NO.1) | ||||
| 77259-60761 |
VDJ7# |
1 | ||
| 77259-60760 |
VDJ7# |
1 | ||
| 77406 - PROTECTOR SUB-ASSY, FUEL TUBE | ||||
| 77406-60020 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77406-60020 |
VDJ78,79..HT,PIC |
1 | ||
| 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN | ||||
| 77710-60180 |
VDJ78,79..HT,PIC |
1 | ||
| 77710-60180 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77720E - VALVE ASSY, FUEL TANK SOLENOID RETURN | ||||
| 77720-60140 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77720-60140 |
VDJ78,79..HT,PIC |
1 | ||
| Common parts | ||||
| 82666-43040 | ||||
| 90119-10240 | ||||
| 90467-18008 | ||||
| 91511-B0616 | ||||
| 91616-40820 | ||||
| 91641-K0816 | ||||
| 91674-80820 | ||||
| 96132-41500 | ||||
| 96132-51300 | ||||
| 96134-51500 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
ILLUST NO. 3 OF 5(0701-1208)VDJ78,79
FUEL TUBE, W(FUEL SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23917 - COOLER, FUEL | ||||
| 23920-51012 |
1VDFTV..VDJ7# |
1 | ||
| 23920-51010 |
1VDFTV..VDJ7# |
1 | ||
| 23920-51011 |
1VDFTV..VDJ7# |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60481 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77206-60501 |
VDJ78 |
1 | ||
| 77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3 | ||||
| 77207-60270 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77207-60302 |
VDJ78 |
1 | ||
| 77207-60301 |
VDJ78 |
1 | ||
| 77235 - TUBE, FUEL TANK BREATHER, NO.1 | ||||
| 77235-60020 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77235-60020 |
VDJ78,79..HT,PIC |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-60B81 |
VDJ7# |
1 | ||
| 77241E - HOSE, FUEL, NO.5 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08030 |
VDJ78,79 *H,L=220,ID=7.6 |
1 | ||
| 95338-08022 |
VDJ78,79..HT,PIC L=220 |
1 | ||
| 77241G - HOSE, FUEL, NO.6 | ||||
| 95332-10018 |
VDJ78,79 |
1 | ||
| 95337-10018 |
VDJ78,79 |
1 | ||
| 77241H - HOSE, FUEL, NO.7 | ||||
| 95332-10016 |
VDJ78,79 |
1 | ||
| 95337-10016 |
VDJ78,79..HT,PIC |
1 | ||
| 77241J - HOSE, FUEL, NO.8 | ||||
| 77259-60A80 |
VDJ78,79 |
1 | ||
| 77259-60A80 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60A81 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60A81 |
VDJ78,79..HT,PIC |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 77259-60730 |
VDJ78 FUEL TANK-W/O(SUB TANK),NO.2 |
1 | ||
| 77259-60730 |
VDJ78 NO.2 |
1 | ||
| 77259-60750 |
VDJ78 FUEL TANK-W/O(SUB TANK),NO.1 |
1 | ||
| 77259-60750 |
VDJ78 NO.1 |
1 | ||
| 77259-60731 |
VDJ78 FUEL TANK-W/O(SUB TANK),NO.2 |
1 | ||
| 77259-60731 |
VDJ78 NO.2 |
1 | ||
| 77259-60751 |
VDJ78 NO.1 |
1 | ||
| 77259-60751 |
VDJ78 FUEL TANK-W/O(SUB TANK),NO.1 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 77259-60730 |
VDJ78 FUEL TANK-W/O(SUB TANK),NO.2 |
1 | ||
| 77259-60730 |
VDJ78 NO.2 |
1 | ||
| 77259-60750 |
VDJ78 FUEL TANK-W/O(SUB TANK),NO.1 |
1 | ||
| 77259-60750 |
VDJ78 NO.1 |
1 | ||
| 77259-60731 |
VDJ78 FUEL TANK-W/O(SUB TANK),NO.2 |
1 | ||
| 77259-60731 |
VDJ78 NO.2 |
1 | ||
| 77259-60751 |
VDJ78 NO.1 |
1 | ||
| 77259-60751 |
VDJ78 FUEL TANK-W/O(SUB TANK),NO.1 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 77259-60771 |
VDJ78,79..HT,PIC |
1 | ||
| 77259-60770 |
VDJ78,79 |
1 | ||
| 77259-60770 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60771 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77244 - TUBE, FUEL MAIN, NO.4 | ||||
| 77254-60240 |
VDJ78,79..HT,PIC |
1 | ||
| 77254-60240 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77259-60740 |
VDJ7# |
1 | ||
| 77259-60740 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60741 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60741 |
VDJ7# |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 77259-60820 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60820 |
VDJ78,79 |
1 | ||
| 77259-60821 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 95338-08016 |
VDJ78 L=160 |
1 | ||
| 77259-60821 |
VDJ78,79..HT,PIC |
1 | ||
| 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) | ||||
| 77259-60830 |
VDJ78,79 |
1 | ||
| 77259-60831 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60831 |
VDJ78,79..HT,PIC |
1 | ||
| 77259-60830 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77258A - TUBE, FUEL RETURN, NO.4 | ||||
| 77258-60170 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77258-60170 |
VDJ78,79..HT,PIC |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-60610 |
VDJ78,79 |
1 | ||
| 77259-60611 |
VDJ78,79..HT,PIC |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-60670 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60670 |
VDJ78,79 |
1 | ||
| 77259-60671 |
VDJ78,79..HT,PIC |
1 | ||
| 77259-60671 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259E - HOSE, FUEL | ||||
| 95332-12016 |
VDJ78,79 |
1 | ||
| 95338-12016 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 95332-12016 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 95338-12016 |
VDJ78,79..HT,PIC |
1 | ||
| 77259F - HOSE, FUEL | ||||
| 77259-60810 |
VDJ78,79 |
1 | ||
| 77259-60811 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60810 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60811 |
VDJ78,79..HT,PIC |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-60060 |
VDJ78,79 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 77259-60B20 |
GRJ71,78..RHD |
1 | ||
| 23273-51031 |
VDJ7# |
1 | ||
| 23273-51030 |
VDJ7# |
1 | ||
| 77277E - HOSE, FUEL, NO.5 (FOR RETURN TUBE, NO.1) | ||||
| 77259-60761 |
VDJ7# |
1 | ||
| 77259-60760 |
VDJ7# |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 77259-60780 |
VDJ78,79 |
1 | ||
| 77259-60780 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60781 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60781 |
VDJ78,79..HT,PIC |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95337-08034 |
VDJ78,79..HT,PIC L=180 |
1 | ||
| 95334-08028 |
VDJ78 *H,L=160 |
1 | ||
| 95334-08028 |
VDJ78 *H,L=160,FUEL TANK-W/O(SUB TANK) |
1 | ||
| 95337-08034 |
VDJ78 L=180,FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77279G - HOSE, FUEL, NO.2 | ||||
| 77259-60410 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60411 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77259-60410 |
VDJ78,79 |
1 | ||
| 77259-60411 |
VDJ78,79..HT,PIC |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60670 |
HZJ71,VDJ78,79..HT,PIC,SOT |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-60610 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
6 | ||
| 77285-60610 |
VDJ78,79..HT,PIC |
3 | ||
| 77285-60A90 |
GRJ71,78..RHD |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-60820 |
VDJ7# |
1 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77285-34380 |
VDJ78,79..HT,PIC |
1 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 77285-60830 |
VDJ78,79..HT,PIC |
3 | ||
| 77286P - CLAMP, FUEL TUBE, NO.8 | ||||
| 77285-60740 |
VDJ78,79..HT,PIC |
2 | ||
| 77285-60740 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
2 | ||
| 77287A - HOSE, FUEL | ||||
| 95338-08016 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77406 - PROTECTOR SUB-ASSY, FUEL TUBE | ||||
| 77406-60020 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77406-60020 |
VDJ78,79..HT,PIC |
1 | ||
| 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN | ||||
| 77710-60180 |
VDJ78,79..HT,PIC |
1 | ||
| 77710-60180 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77720E - VALVE ASSY, FUEL TANK SOLENOID RETURN | ||||
| 77720-60140 |
VDJ78 FUEL TANK-W/O(SUB TANK) |
1 | ||
| 77720-60140 |
VDJ78,79..HT,PIC |
1 | ||
| Common parts | ||||
| 82666-43040 | ||||
| 90119-10240 | ||||
| 90467-18008 | ||||
| 91611-B0816 | ||||
| 91616-40820 | ||||
| 91641-K0816 | ||||
| 91674-80820 | ||||
| 96132-41500 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
