VDJ78R-RJMRYQ (2007)
Toyota Land Cruiser

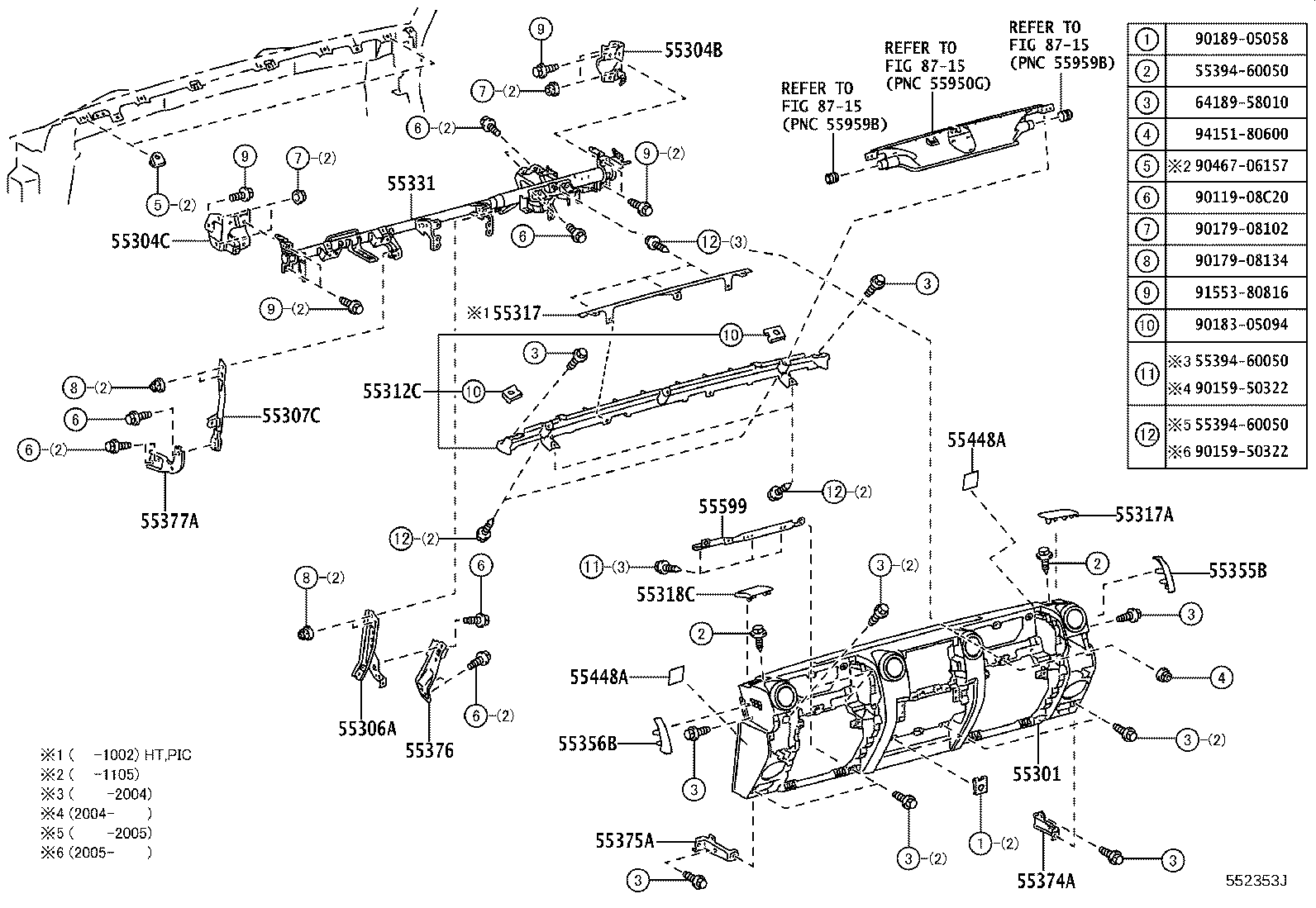

ILLUST NO. 1 OF 2(0907-1608)RHD ; (1608- )DCB..IV ; (1608-)RHD..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-60700E0 |
FZJ71,78,79,HZJ7#..RHD MD.OAK,TRIM4# |
1 | ||
| 55301-60780B0 |
FZJ71,78..RHD REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,SLATE GRAY,TRIM1# |
1 | ||
| 55301-60700B0 |
FZJ71,78,79,HZJ7#..RHD SLATE GRAY,TRIM1# |
1 | ||
| 55301-60780E0 |
FZJ71,78..RHD REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,MD.OAK,TRIM4# |
1 | ||
| 55301-60A31E0 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK,MD.OAK,TRIM4# |
1 | ||
| 55301-60A31B0 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK,SLATE GRAY,TRIM1# |
1 | ||
| 55301-60A21E0 |
VDJ7# MD.OAK,TRIM4# |
1 | ||
| 55311-60D10B0 |
GRJ7#,HZJ7#,VDJ7#..HT,PIC BLUISH GRAY,TRIM1# |
1 | ||
| 55311-60D10E0 |
GRJ7#,HZJ7#,VDJ7#..HT,PIC OAK,TRIM4# |
1 | ||
| 55301-60A40B0 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC BLUISH GRAY,TRIM1# |
1 | ||
| 55301-60A21B0 |
VDJ7# SLATE GRAY,TRIM1# |
1 | ||
| 55301-60A40E0 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC OAK,TRIM4# |
1 | ||
| 55304B - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACKET MOUNTING | ||||
| 55304-60051 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 55304-60050 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 55304-60051 |
GRJ71,78..RHD |
1 | ||
| 55304C - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACKET MOUNTING | ||||
| 55304-60061 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 55304-60061 |
GRJ71,78..RHD |
1 | ||
| 55304-60060 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-60170 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 55306-60170 |
GRJ71,78..RHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-60110 |
GRJ71,78..RHD |
1 | ||
| 55307-60110 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 55312C - PLATE, INSTRUMENT RETAINER | ||||
| 55312-60090 |
GRJ7#,HZJ7#,VDJ7#..HT,PIC |
1 | ||
| 55312-60091 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC |
1 | ||
| 55317 - PATCH, INSTRUMENT PANEL | ||||
| 55315-60130 |
GRJ7#,HZJ7#,VDJ7#..HT,PIC |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-60070B0 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC BLUISH GRAY,TRIM1# |
1 | ||
| 55317-60070E0 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC OAK,TRIM4# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-60160B0 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC BLUISH GRAY,TRIM1# |
1 | ||
| 55318-60160E0 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC OAK,TRIM4# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-60280 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 55330-60370 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 55305-60030 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 55355B - PLATE, INSTRUMENT PANEL, RH | ||||
| 55355-60110B0 |
FZJ7#,HZJ7#,VDJ7#..HT,PIC SLATE GRAY,TRIM1# |
1 | ||
| 55355-60110E0 |
FZJ7#,HZJ7#,VDJ7#..HT,PIC MD.OAK,TRIM4# |
1 | ||
| 55355-60220B0 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC BLUISH GRAY,TRIM1# |
1 | ||
| 55355-60220E0 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC OAK,TRIM4# |
1 | ||
| 55356B - PLATE, INSTRUMENT PANEL, LH | ||||
| 55356-60100E0 |
FZJ7#,HZJ7#,VDJ7#..HT,PIC MD.OAK,TRIM4# |
1 | ||
| 55356-60160B0 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC BLUISH GRAY,TRIM1# |
1 | ||
| 55356-60100B0 |
FZJ7#,HZJ7#,VDJ7#..HT,PIC SLATE GRAY,TRIM1# |
1 | ||
| 55356-60160E0 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC OAK,TRIM4# |
1 | ||
| 55374A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH | ||||
| 55374-60131 |
GRJ71,78..RHD |
1 | ||
| 55374-60131 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 55374-60130 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 55375A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH | ||||
| 55375-60141 |
GRJ71,78..RHD |
1 | ||
| 55375-60140 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 55375-60141 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-60120 |
GRJ71,78..RHD |
1 | ||
| 55376-60120 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||||
| 55377-60120 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 55377-60150 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 55377-60120 |
GRJ71,78..RHD |
1 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-60080 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 55448-60080 |
GRJ71,78..RHD |
2 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-60080 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 55448-60080 |
GRJ71,78..RHD |
2 | ||
| 55599 - BRACKET, GLOVE COMPARTMENT DOOR HINGE, LH | ||||
| 55599-60010 |
GRJ71,78..RHD |
1 | ||
| 55599-60020 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 55599-60010 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| Common parts | ||||
| 55394-60050 | ||||
| 64189-58010 | ||||
| 90119-08C20 | ||||
| 90159-50322 | ||||
| 90179-08102 | ||||
| 90179-08134 | ||||
| 90183-05094 | ||||
| 90189-05058 | ||||
| 90467-06157 | ||||
| 91553-80816 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8715 | ||||

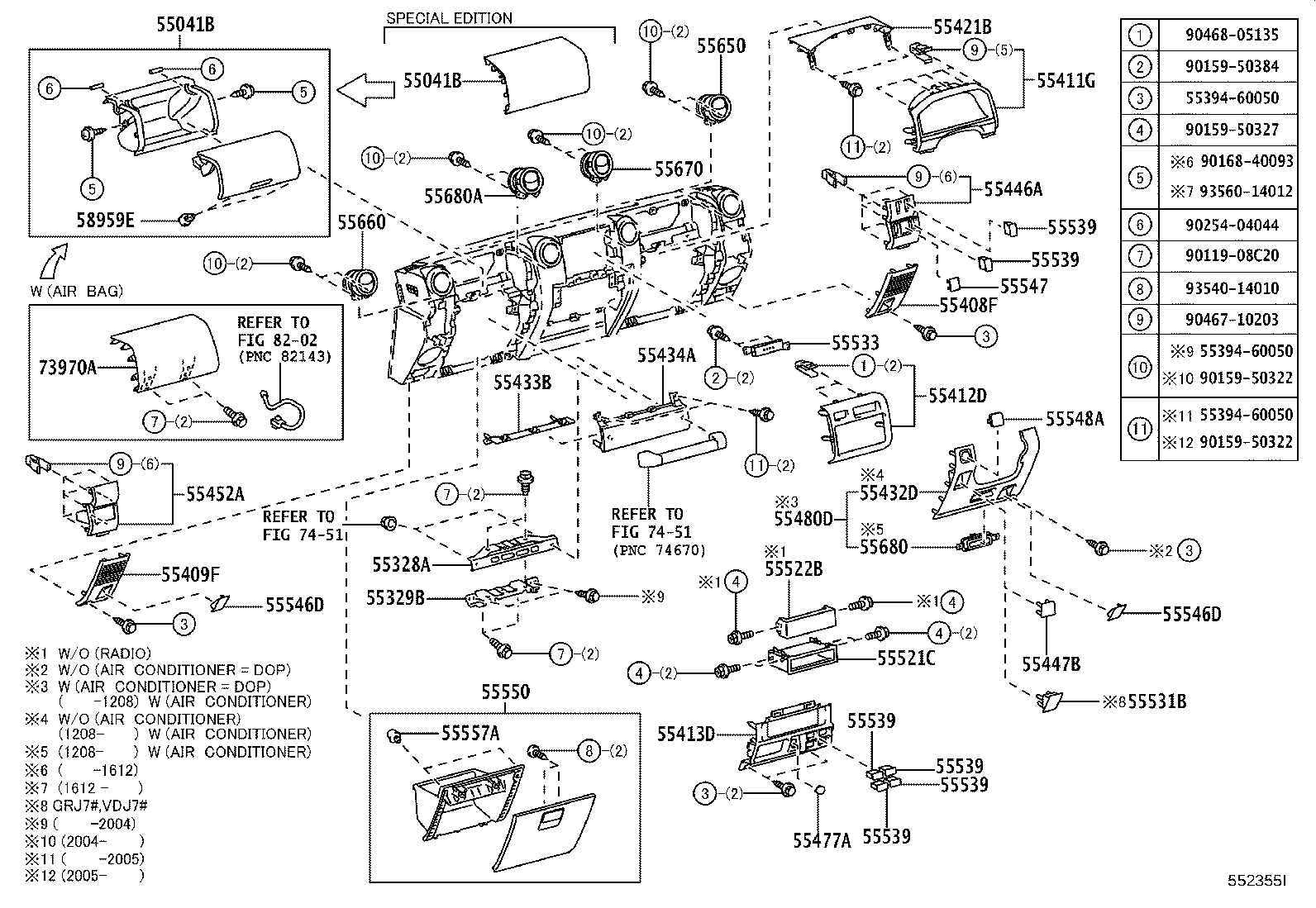

ILLUST NO. 2 OF 2(0907-1608)RHD ; (1608- )DCB..IV ; (1608-)RHD..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-60010E0 |
HZJ71..HT;GRJ7#,HZJ76,78,79 OAK,TRIM4# |
1 | ||
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-60010E0 |
HZJ71..HT;GRJ7#,HZJ76,78,79 OAK,TRIM4# |
1 | ||
| 55328A - STAY, INSTRUMENT PANEL, NO.3 | ||||
| 55328-60150 |
GRJ71,78..RHD |
1 | ||
| 55328-60150 |
GRJ71,78..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 55329B - STAY, INSTRUMENT PANEL, NO.4 | ||||
| 55329-60120 |
GRJ71,78..RHD |
1 | ||
| 55329-60120 |
GRJ71,78..RHD SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-60170E0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# OAK,TRIM4# |
1 | ||
| 55472-60170B0 |
GRJ7#,HZJ7#,VDJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-60120B0 |
GRJ7#,HZJ7#,VDJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55473-60120E0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# OAK,TRIM4# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-60350B0 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55411-60350E0 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD..(DCB,HT,PIC) OAK,TRIM4# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-60390 |
GRJ71,78..RHD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(MP3)(2DIN) & 2SPEAKER |
1 | ||
| 55412-60390 |
GRJ71..LHD..HT;GRJ76,78..LHD..GEN;GRJ79,HZJ7#,VDJ78,79..STD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(MP3)(2DIN) & 2SPEAKER |
1 | ||
| 55412-60380 |
GRJ71,78..LHD;GRJ76,79,HZJ7#,VDJ78,79..STD |
1 | ||
| 55412-60380 |
GRJ71,78..RHD |
1 | ||
| 55412-60390 |
GRJ71,78..RHD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(2DIN) & 2SPEAKER |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-60300 |
GRJ71,78..RHD |
1 | ||
| 55413-60300 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-60140E0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# OAK,TRIM4# |
1 | ||
| 55421-60140B0 |
GRJ7#,HZJ7#,VDJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-60090E0 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK,LT.OAK,TRIM4# |
1 | ||
| 55432-60480B0 |
GRJ79,HZJ7#,VDJ7#..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55432-60470E0 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD..(HT,PIC) OAK,TRIM4# |
1 | ||
| 55432-60090S7 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK,SLATE GRAY,TRIM1# |
1 | ||
| 55432-60470B0 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55432-60480E0 |
GRJ79,HZJ7#,VDJ7#..RHD..(DCB,HT,PIC) OAK,TRIM4# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-60150B0 |
GRJ7#,HZJ7#,VDJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55433-60150E0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# OAK,TRIM4# |
1 | ||
| 55433-60110B0 |
VDJ7# SLATE GRAY,TRIM1# |
1 | ||
| 55433-60110E0 |
VDJ7# MD.OAK,TRIM4# |
1 | ||
| 55434A - PANEL, INSTRUMENT FINISH, LOWER SUB | ||||
| 55434-60020E0 |
HZJ71..HT;GRJ7#,HZJ76,78,79 OAK,TRIM4# |
1 | ||
| 55434-60030B0 |
VDJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55434-60030E0 |
VDJ7# OAK,TRIM4# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-60150E0 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD..(DCB,HT,PIC) OAK,TRIM4# |
1 | ||
| 55446-60150B0 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55452A - BOX, INSTRUMENT PANEL, NO.2 | ||||
| 55452-60400B0 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55452-60400E0 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD..(DCB,HT,PIC) OAK,TRIM4# |
1 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-60300B0 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD AIR CONDITIONER-WITH,BLUISH GRAY,TRIM1# |
1 | ||
| 55480-60300E0 |
VDJ7#..ARL AIR CONDITIONER-WITH(DOP),OAK,TRIM4# |
1 | ||
| 55480-60300E0 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD..(HT,PIC) AIR CONDITIONER-WITH,OAK,TRIM4# |
1 | ||
| 55480-60300B0 |
VDJ7#..ARL AIR CONDITIONER-WITH(DOP),BLUISH GRAY,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16010 |
HZJ76,78,79..RHD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(MP3)(2DIN) & 2SPEAKER |
1 | ||
| 55521-16010 |
VDJ78..STD;HZJ7#,VDJ79 AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(MP3)(2DIN) & 2SPEAKER |
1 | ||
| 55521-44020 |
GRJ71,78..RHD |
1 | ||
| 55521-44020 |
GRJ71,78..RHD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(2DIN) & 2SPEAKER |
1 | ||
| 55521-44020 |
GRJ71..LHD..HT;GRJ76,78..LHD..GEN;GRJ79,HZJ7#,VDJ78,79..STD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(MP3)(2DIN) & 2SPEAKER |
1 | ||
| 55521-16010 |
HZJ7#,VDJ78,79..STD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD/USB(2DIN) & 2SPEAKER |
1 | ||
| 55521-44020 |
GRJ71,78..RHD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(MP3)(2DIN) & 2SPEAKER |
1 | ||
| 55521-16010 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 55521-44020 |
GRJ71,78..LHD;GRJ76,79,HZJ7#,VDJ78,79..STD |
1 | ||
| 55521-44020 |
GRJ79,HZJ76,78,79..RHD..(HT,PIC) AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(MP3)(2DIN) & 2SPEAKER |
1 | ||
| 55521-44020 |
GRJ71..LHD..HT;GRJ76,78..LHD..GEN;GRJ79,HZJ7#,VDJ78,79..STD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD/USB(2DIN) & 2SPEAKER |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-32010 |
FZJ7#,HZJ7#,VDJ78,79..STD |
1 | ||
| 55522-32010 |
HZJ7#,VDJ78,79..STD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(MP3)(2DIN) & 2SPEAKER |
1 | ||
| 55522-32010 |
HZJ76,78,79..RHD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(MP3)(2DIN) & 2SPEAKER |
1 | ||
| 55522-32010 |
HZJ7#,VDJ78,79..STD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD/USB(2DIN) & 2SPEAKER |
1 | ||
| 55522-12180 |
GRJ71,78..RHD |
1 | ||
| 55522-12180 |
GRJ71,78..RHD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(MP3)(2DIN) & 2SPEAKER |
1 | ||
| 55522-12180 |
GRJ71,78..RHD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(2DIN) & 2SPEAKER |
1 | ||
| 55522-12180 |
GRJ79,HZJ76,78,79..RHD..(HT,PIC) AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(MP3)(2DIN) & 2SPEAKER |
1 | ||
| 55522-12180 |
GRJ71,76,78..LHD..HT..STD;GRJ79,HZJ7#,VDJ78,79..STD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(MP3)(2DIN) & 2SPEAKER |
1 | ||
| 55522-12180 |
GRJ71,76,78..LHD..STD;GRJ79,HZJ7#,VDJ78,79..STD |
1 | ||
| 55522-12180 |
GRJ71,76,78..LHD..HT..STD;GRJ79,HZJ7#,VDJ78,79..STD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD/USB(2DIN) & 2SPEAKER |
1 | ||
| 55531B - COVER, CHOKE KNOB HOLE | ||||
| 55531-60060E0 |
GRJ7#,VDJ7# OAK,TRIM4# |
1 | ||
| 55531-60060B0 |
GRJ7#,VDJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-90A00 |
VDJ7# CLOCK-WITHOUT |
1 | ||
| 55533-60020 |
GRJ71,78..RHD CLOCK-WITH |
1 | ||
| 55533-60020 |
VDJ7#..ARL;VDJ79..STD..CBU CLOCK-WITHOUT |
1 | ||
| 55533-60020 |
GRJ71,78..RHD |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
FZJ7#,HZJ7#,VDJ7# BLACK,TRIM1#,4# |
1 | ||
| 55539-32010C0 |
FZJ7#,HZJ7#,VDJ7# FRONT FOG LAMP-WITH,BLACK,TRIM1#,4# |
1 | ||
| 55539-48030C0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# BLACK,TRIM1#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
FZJ7#,HZJ7#,VDJ7# BLACK,TRIM1#,4# |
1 | ||
| 55539-32010C0 |
FZJ7#,HZJ7#,VDJ7# FRONT FOG LAMP-WITH,BLACK,TRIM1#,4# |
1 | ||
| 55539-48030C0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# BLACK,TRIM1#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
FZJ7#,HZJ7#,VDJ7# BLACK,TRIM1#,4# |
1 | ||
| 55539-32010C0 |
FZJ7#,HZJ7#,VDJ7# FRONT FOG LAMP-WITH,BLACK,TRIM1#,4# |
1 | ||
| 55539-48030C0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# BLACK,TRIM1#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
FZJ7#,HZJ7#,VDJ7# BLACK,TRIM1#,4# |
1 | ||
| 55539-32010C0 |
FZJ7#,HZJ7#,VDJ7# FRONT FOG LAMP-WITH,BLACK,TRIM1#,4# |
1 | ||
| 55539-48030C0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# BLACK,TRIM1#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
FZJ7#,HZJ7#,VDJ7# BLACK,TRIM1#,4# |
1 | ||
| 55539-32010C0 |
FZJ7#,HZJ7#,VDJ7# FRONT FOG LAMP-WITH,BLACK,TRIM1#,4# |
1 | ||
| 55539-48030C0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# BLACK,TRIM1#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
FZJ7#,HZJ7#,VDJ7# BLACK,TRIM1#,4# |
1 | ||
| 55539-32010C0 |
FZJ7#,HZJ7#,VDJ7# FRONT FOG LAMP-WITH,BLACK,TRIM1#,4# |
1 | ||
| 55539-48030C0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# BLACK,TRIM1#,4# |
1 | ||
| 55546D - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55546-60010E0 |
GRJ71,78,HZJ78,79..STD;GRJ79,HZJ71,VDJ78,79..DCB,HT,PIC OAK,TRIM4# |
2 | ||
| 55546-60010B0 |
GRJ79,VDJ78,79;GRJ71,78,HZJ71,78,79..STD BLUISH GRAY,TRIM1# |
2 | ||
| 55546D - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55546-60010E0 |
GRJ71,78,HZJ78,79..STD;GRJ79,HZJ71,VDJ78,79..DCB,HT,PIC OAK,TRIM4# |
2 | ||
| 55546-60010B0 |
GRJ79,VDJ78,79;GRJ71,78,HZJ71,78,79..STD BLUISH GRAY,TRIM1# |
2 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-90K00 |
FZJ7#,HZJ7#,VDJ7# |
2 | ||
| 55547-28010C0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# BLACK,TRIM1#,4# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-60040C0 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK,BLACK,TRIM1#,4# |
1 | ||
| 55548-60040C0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# BLACK,TRIM1#,4# |
1 | ||
| 55548-60040C0 |
GRJ76,79,HZJ76,78,79;GRJ71,78,HZJ71..HT..GEN REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.300, 4P, DIFF LOCK,BLACK,TRIM1#,4# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-60240E0 |
VDJ76,78;GRJ71,VDJ79..DCB,PIC,SOT OAK,TRIM4# |
1 | ||
| 55550-60240B0 |
VDJ76,78;GRJ71,HZJ71,VDJ79..DCB,PIC,SOT BLUISH GRAY,TRIM1# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 55557-53030 |
GRJ71,78..RHD |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-60200C0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# BLACK,TRIM1#,4# |
1 | ||
| 55650-60040 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-60060 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 55650-60200C0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# BLACK,TRIM1#,4# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-60240C0 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ71,76,78,HZJ76,78,VDJ7#;GRJ79,HZJ71,79..(DCB,HT,PIC)..GEN BLACK,TRIM1#,4# |
1 | ||
| 55670-90K00 |
FZJ79..LX;FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78,VDJ7# |
2 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-32010 |
GRJ7#,HZJ7#,VDJ7# AIR CONDITIONER-WITH |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-60160C0 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ71,76,78,HZJ76,78,VDJ7#;GRJ79,HZJ71,79..(DCB,HT,PIC)..GEN BLACK,TRIM1#,4# |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
GRJ71,78..RHD |
2 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-60030B0 |
VDJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 73970-60030E0 |
VDJ7# OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 55394-60050 | ||||
| 90119-08C20 | ||||
| 90159-50322 | ||||
| 90159-50327 | ||||
| 90159-50384 | ||||
| 90168-40093 | ||||
| 90254-04044 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
| 93540-14010 | ||||
| 93560-14012 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 8202 | ||||
(0701-0907)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55042A - REINFORCEMENT SUB-ASSY, CLUSTER FINISH PANEL | ||||
| 55042-90K0010 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD SLATE GRAY,TRIM1# |
1 | ||
| 55042-90K00E0 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD MD.OAK,TRIM4# |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-60700E0 |
FZJ71,78,79,HZJ7#..RHD MD.OAK,TRIM4# |
1 | ||
| 55301-60780B0 |
FZJ71,78..RHD REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,SLATE GRAY,TRIM1# |
1 | ||
| 55301-60700B0 |
FZJ71,78,79,HZJ7#..RHD SLATE GRAY,TRIM1# |
1 | ||
| 55301-60780E0 |
FZJ71,78..RHD REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK,MD.OAK,TRIM4# |
1 | ||
| 55301-60A31E0 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK,MD.OAK,TRIM4# |
1 | ||
| 55301-60A31B0 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK,SLATE GRAY,TRIM1# |
1 | ||
| 55301-60A21E0 |
VDJ7# MD.OAK,TRIM4# |
1 | ||
| 55311-60D10B0 |
GRJ7#,HZJ7#,VDJ7#..HT,PIC BLUISH GRAY,TRIM1# |
1 | ||
| 55311-60D10E0 |
GRJ7#,HZJ7#,VDJ7#..HT,PIC OAK,TRIM4# |
1 | ||
| 55301-60A40B0 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC BLUISH GRAY,TRIM1# |
1 | ||
| 55301-60A21B0 |
VDJ7# SLATE GRAY,TRIM1# |
1 | ||
| 55301-60A40E0 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC OAK,TRIM4# |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-60010 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-60050 |
FZJ7#,HZJ7#,VDJ7# |
2 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-60050 |
FZJ7#,HZJ7#,VDJ7# |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-60280 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 55330-60370 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 55305-60030 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 55354 - BRACE, INSTRUMENT PANEL TO FLOOR | ||||
| 55309-60060 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 55355B - PLATE, INSTRUMENT PANEL, RH | ||||
| 55355-60110B0 |
FZJ7#,HZJ7#,VDJ7#..HT,PIC SLATE GRAY,TRIM1# |
1 | ||
| 55355-60110E0 |
FZJ7#,HZJ7#,VDJ7#..HT,PIC MD.OAK,TRIM4# |
1 | ||
| 55355-60220B0 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC BLUISH GRAY,TRIM1# |
1 | ||
| 55355-60220E0 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC OAK,TRIM4# |
1 | ||
| 55356B - PLATE, INSTRUMENT PANEL, LH | ||||
| 55356-60100E0 |
FZJ7#,HZJ7#,VDJ7#..HT,PIC MD.OAK,TRIM4# |
1 | ||
| 55356-60160B0 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC BLUISH GRAY,TRIM1# |
1 | ||
| 55356-60100B0 |
FZJ7#,HZJ7#,VDJ7#..HT,PIC SLATE GRAY,TRIM1# |
1 | ||
| 55356-60160E0 |
GRJ7#,HZJ7#,VDJ7#..DCB,HT,PIC OAK,TRIM4# |
1 | ||
| 55357A - PROTECTOR, EDGE, NO.1 | ||||
| 55357-90A00 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-60010 |
FZJ7#,HZJ7#,VDJ7# |
2 | ||
| 55381B - BRACKET, FINISH PANEL MOUNTING, NO.1 | ||||
| 55381-60020 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-90K00B0 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55401-90K00E0 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD OAK,TRIM4# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-60160E0 |
FZJ7#,HZJ7#,VDJ7# OAK,TRIM4# |
1 | ||
| 55404-60160B0 |
FZJ7#,HZJ7#,VDJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-60070 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 55413C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.2 | ||||
| 55413-90K00 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-60090E0 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK,LT.OAK,TRIM4# |
1 | ||
| 55432-60480B0 |
GRJ79,HZJ7#,VDJ7#..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55432-60470E0 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD..(HT,PIC) OAK,TRIM4# |
1 | ||
| 55432-60090S7 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK,SLATE GRAY,TRIM1# |
1 | ||
| 55432-60470B0 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 55432-60480E0 |
GRJ79,HZJ7#,VDJ7#..RHD..(DCB,HT,PIC) OAK,TRIM4# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-60150B0 |
GRJ7#,HZJ7#,VDJ7# BLUISH GRAY,TRIM1# |
1 | ||
| 55433-60150E0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# OAK,TRIM4# |
1 | ||
| 55433-60110B0 |
VDJ7# SLATE GRAY,TRIM1# |
1 | ||
| 55433-60110E0 |
VDJ7# MD.OAK,TRIM4# |
1 | ||
| 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55468-90K00 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 55497A - REFLECTOR, WARNING LAMP, RH | ||||
| 55497-90K03 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 55498A - REFLECTOR, WARNING LAMP, LH | ||||
| 55498-90K03 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-90K01E0 |
VDJ76,78;HZJ71,VDJ79..PIC,SOT LT.OAK,TRIM4# |
1 | ||
| 55501-90K01B0 |
VDJ76,78;HZJ71,VDJ79..PIC,SOT SLATE GRAY,TRIM1# |
1 | ||
| 55505D - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55505-60010 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16010 |
HZJ76,78,79..RHD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(MP3)(2DIN) & 2SPEAKER |
1 | ||
| 55521-16010 |
VDJ78..STD;HZJ7#,VDJ79 AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(MP3)(2DIN) & 2SPEAKER |
1 | ||
| 55521-44020 |
GRJ71,78..RHD |
1 | ||
| 55521-44020 |
GRJ71,78..RHD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(2DIN) & 2SPEAKER |
1 | ||
| 55521-44020 |
GRJ71..LHD..HT;GRJ76,78..LHD..GEN;GRJ79,HZJ7#,VDJ78,79..STD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(MP3)(2DIN) & 2SPEAKER |
1 | ||
| 55521-16010 |
HZJ7#,VDJ78,79..STD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD/USB(2DIN) & 2SPEAKER |
1 | ||
| 55521-44020 |
GRJ71,78..RHD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(MP3)(2DIN) & 2SPEAKER |
1 | ||
| 55521-16010 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 55521-44020 |
GRJ71,78..LHD;GRJ76,79,HZJ7#,VDJ78,79..STD |
1 | ||
| 55521-44020 |
GRJ79,HZJ76,78,79..RHD..(HT,PIC) AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(MP3)(2DIN) & 2SPEAKER |
1 | ||
| 55521-44020 |
GRJ71..LHD..HT;GRJ76,78..LHD..GEN;GRJ79,HZJ7#,VDJ78,79..STD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD/USB(2DIN) & 2SPEAKER |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-32010 |
FZJ7#,HZJ7#,VDJ78,79..STD |
1 | ||
| 55522-32010 |
HZJ7#,VDJ78,79..STD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(MP3)(2DIN) & 2SPEAKER |
1 | ||
| 55522-32010 |
HZJ76,78,79..RHD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(MP3)(2DIN) & 2SPEAKER |
1 | ||
| 55522-32010 |
HZJ7#,VDJ78,79..STD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD/USB(2DIN) & 2SPEAKER |
1 | ||
| 55522-12180 |
GRJ71,78..RHD |
1 | ||
| 55522-12180 |
GRJ71,78..RHD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(MP3)(2DIN) & 2SPEAKER |
1 | ||
| 55522-12180 |
GRJ71,78..RHD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(2DIN) & 2SPEAKER |
1 | ||
| 55522-12180 |
GRJ79,HZJ76,78,79..RHD..(HT,PIC) AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(MP3)(2DIN) & 2SPEAKER |
1 | ||
| 55522-12180 |
GRJ71,76,78..LHD..HT..STD;GRJ79,HZJ7#,VDJ78,79..STD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD(MP3)(2DIN) & 2SPEAKER |
1 | ||
| 55522-12180 |
GRJ71,76,78..LHD..STD;GRJ79,HZJ7#,VDJ78,79..STD |
1 | ||
| 55522-12180 |
GRJ71,76,78..LHD..HT..STD;GRJ79,HZJ7#,VDJ78,79..STD AUDIO(FOR OVERSEAS MARKET)-AM/FM/CD/USB(2DIN) & 2SPEAKER |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-90A00 |
VDJ7# CLOCK-WITHOUT |
1 | ||
| 55533-60020 |
GRJ71,78..RHD CLOCK-WITH |
1 | ||
| 55533-60020 |
VDJ7#..ARL;VDJ79..STD..CBU CLOCK-WITHOUT |
1 | ||
| 55533-60020 |
GRJ71,78..RHD |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
FZJ7#,HZJ7#,VDJ7# BLACK,TRIM1#,4# |
1 | ||
| 55539-32010C0 |
FZJ7#,HZJ7#,VDJ7# FRONT FOG LAMP-WITH,BLACK,TRIM1#,4# |
1 | ||
| 55539-48030C0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# BLACK,TRIM1#,4# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
FZJ7#,HZJ7#;VDJ78,79..STD BLACK,TRIM1#,4# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010C0 |
VDJ78 FUEL TANK-W/O(SUB TANK),BLACK,TRIM1#,4# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-90K00 |
FZJ7#,HZJ7#,VDJ7# |
2 | ||
| 55547-28010C0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# BLACK,TRIM1#,4# |
1 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-90K00 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-90K00 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 55581A - COMPARTMENT, GLOVE | ||||
| 55581-90K00 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-60200C0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# BLACK,TRIM1#,4# |
1 | ||
| 55650-60040 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-60060 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 55650-60200C0 |
HZJ71..HT;GRJ7#,HZJ76,78,79,VDJ7# BLACK,TRIM1#,4# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-60240C0 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ71,76,78,HZJ76,78,VDJ7#;GRJ79,HZJ71,79..(DCB,HT,PIC)..GEN BLACK,TRIM1#,4# |
1 | ||
| 55670-90K00 |
FZJ79..LX;FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78,VDJ7# |
2 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-60240C0 |
GRJ79..LX;GRJ79,HZJ79..DCB..GCC;GRJ71,76,78,HZJ76,78,VDJ7#;GRJ79,HZJ71,79..(DCB,HT,PIC)..GEN BLACK,TRIM1#,4# |
1 | ||
| 55670-90K00 |
FZJ79..LX;FZJ79,HZJ79..GEN;FZJ71,76,78,HZJ71,76,78,VDJ7# |
2 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-60030 |
FZJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 55959A - COVER, DEFROSTER NOZZLE OPENING, NO.1 | ||||
| 55959-14010 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 55969A - COVER, DEFROSTER NOZZLE OPENING, NO.2 | ||||
| 55959-14010 |
FZJ7#,HZJ7#,VDJ7# |
1 | ||
| 55970A - DUCT ASSY, SIDE DEFROSTER, RH | ||||
| 55970-90K00 |
FZJ7#,HZJ7#,VDJ7# SIDE DEFROSTER-WITH |
1 | ||
| 55980A - DUCT ASSY, SIDE DEFROSTER, LH | ||||
| 55970-90K00 |
FZJ7#,HZJ7#,VDJ7# SIDE DEFROSTER-WITH |
1 | ||
| Common parts | ||||
| 55345-60010 | ||||
| 90119-06350 | ||||
| 90159-40159 | ||||
| 90164-50008 | ||||
| 90168-40043 | ||||
| 90168-50027 | ||||
| 90179-06115 | ||||
| 90179-08102 | ||||
| 90189-05024 | ||||
| 90339-03003 | ||||
| 90467-06157 | ||||
| 90468-04147 | ||||
| 90468-05047 | ||||
| 90541-03005 | ||||
| 90950-01329 | ||||
| 91551-80610 | ||||
| 91551-80612 | ||||
| 91626-40618 | ||||
| 91651-60816 | ||||
| 93540-55025 | ||||
| 93560-55016 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 7451 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
