VDJ78R-RJMRYQ (2007)
Toyota Land Cruiser
ILLUST NO. 3 OF 3(0701- )
W(STABILIZER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-60090 |
HZJ78;GRJ78..LHD;HZJ76,VDJ78..ARL,GCC |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48805-60100 |
GRJ78..LHD;HZJ78,VDJ78 |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-26020 |
GRJ78..LHD;HZJ78,VDJ78 |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-30010 |
HZJ78;GRJ78..LHD;HZJ76,VDJ78..ARL,GCC |
4 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-30010 |
HZJ78;GRJ78..LHD;HZJ76,VDJ78..ARL,GCC |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02126 |
HZJ78;GRJ78..LHD;HZJ76,VDJ78..ARL,GCC |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02126 |
HZJ78;GRJ78..LHD;HZJ76,VDJ78..ARL,GCC |
4 | ||
| 48817V - RETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR) | ||||
| 90948-02127 |
HZJ78;GRJ78..LHD;HZJ76,VDJ78..ARL,GCC |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48823-60030 |
HZJ78;GRJ78..LHD;HZJ76,VDJ78..ARL,GCC |
2 | ||
| 48825A - BRACKET, REAR STABILIZER END | ||||
| 48824-60120 |
HZJ78;GRJ78..LHD;HZJ76,VDJ78..ARL,GCC |
1 | ||
| 48826B - PROTECTOR, REAR STABILIZER BAR | ||||
| 48829-60070 |
HZJ78;GRJ78..LHD;HZJ76,VDJ78..ARL,GCC |
1 | ||
| Common parts | ||||
| 90101-10172 | ||||
| 90119-08701 | ||||
| 90119-08834 | ||||
| 90179-08062 | ||||
| 90385-11021 | ||||
| 90560-10275 | ||||
| 91112-61045 | ||||
| 94185-61000 | ||||

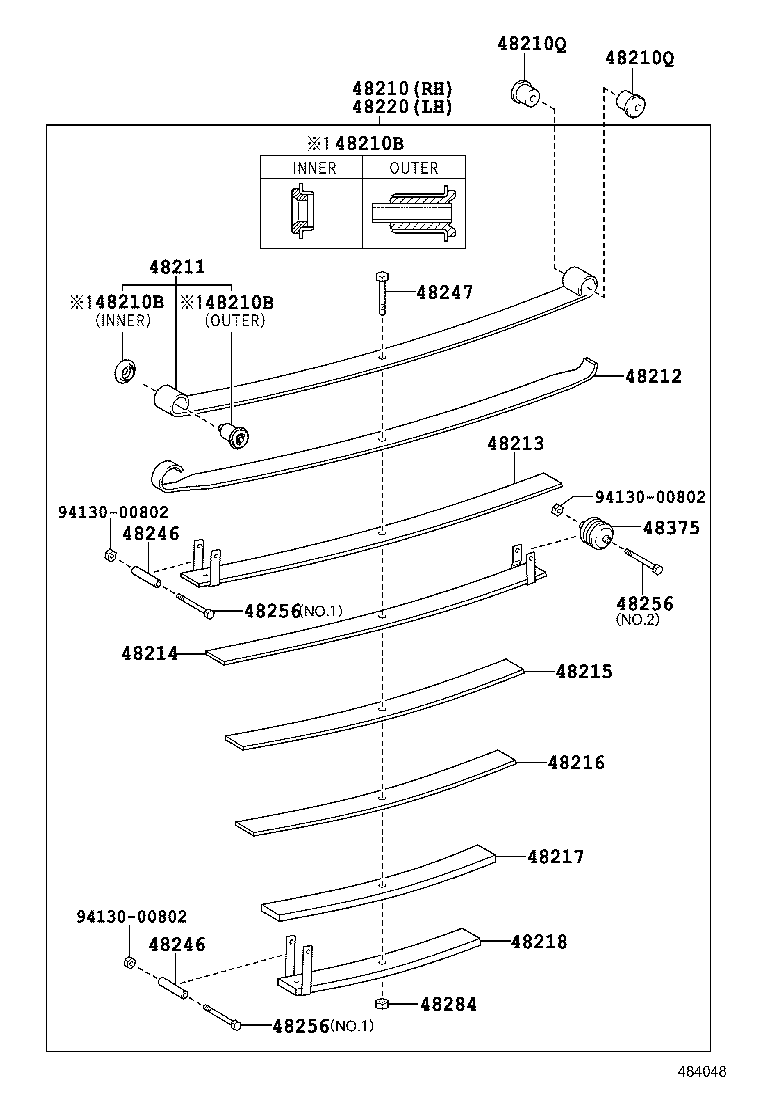

ILLUST NO. 2 OF 3(0701- )VDJ78
8-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-60A10 |
VDJ78 8-LEAF |
1 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-22003 |
FZJ71,HZJ71,VDJ79..RHD;FZJ76,78,79,HZJ76,78,79 INNER |
2 | ||
| 90389-14056 |
FZJ71,HZJ71,VDJ79..RHD;FZJ76,78,79,HZJ76,78,79 OUTER |
2 | ||
| 90389-22003 |
VDJ76,78 INNER |
2 | ||
| 90389-14056 |
VDJ76,78 OUTER |
2 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-22003 |
FZJ71,HZJ71,VDJ79..RHD;FZJ76,78,79,HZJ76,78,79 INNER |
2 | ||
| 90389-14056 |
FZJ71,HZJ71,VDJ79..RHD;FZJ76,78,79,HZJ76,78,79 OUTER |
2 | ||
| 90389-22003 |
VDJ76,78 INNER |
2 | ||
| 90389-14056 |
VDJ76,78 OUTER |
2 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-22003 |
FZJ71,HZJ71,VDJ79..RHD;FZJ76,78,79,HZJ76,78,79 INNER |
2 | ||
| 90389-14056 |
FZJ71,HZJ71,VDJ79..RHD;FZJ76,78,79,HZJ76,78,79 OUTER |
2 | ||
| 90389-22003 |
VDJ76,78 INNER |
2 | ||
| 90389-14056 |
VDJ76,78 OUTER |
2 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18022 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# UPPER |
4 | ||
| 90385-18022 |
GRJ71,78..RHD UPPER |
4 | ||
| 90385-18021 |
FZJ71,76,78,HZJ71,76,78 LOWER |
4 | ||
| 90385-18021 |
VDJ76,78 LOWER |
4 | ||
| 90385-18021 |
GRJ71,78..RHD LOWER |
8 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18022 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# UPPER |
4 | ||
| 90385-18022 |
GRJ71,78..RHD UPPER |
4 | ||
| 90385-18021 |
FZJ71,76,78,HZJ71,76,78 LOWER |
4 | ||
| 90385-18021 |
VDJ76,78 LOWER |
4 | ||
| 90385-18021 |
GRJ71,78..RHD LOWER |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48031-60160 |
VDJ78 LH |
1 | ||
| 48201-60A10 |
VDJ78 RH |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-60A10 |
VDJ78 RH |
1 | ||
| 48212-60180 |
VDJ78 LH |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-60160 |
VDJ78 LH |
1 | ||
| 48202-60A10 |
VDJ78 RH |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48103-60130 |
VDJ78 LH |
1 | ||
| 48203-60A10 |
VDJ78 RH |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-60160 |
VDJ78 LH |
1 | ||
| 48215-60A10 |
VDJ78 RH |
1 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-60A10 |
VDJ78 RH |
1 | ||
| 48216-60160 |
VDJ78 LH |
1 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-60A10 |
VDJ78 RH |
1 | ||
| 48217-60160 |
VDJ78 LH |
1 | ||
| 48218 - LEAF, REAR SPRING, NO.8 | ||||
| 48204-60160 |
VDJ78 LH |
1 | ||
| 48204-60A10 |
VDJ78 RH |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48220-60160 |
VDJ78 8-LEAF |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
VDJ78 |
4 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-36052 |
VDJ78 |
4 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36200 |
GRJ78..LHD;HZJ78,VDJ78 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
VDJ78 NO.1 |
4 | ||
| 48256-36570 |
VDJ78 NO.2 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
VDJ78 NO.1 |
4 | ||
| 48256-36570 |
VDJ78 NO.2 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
VDJ78 NO.1 |
4 | ||
| 48256-36570 |
VDJ78 NO.2 |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-37130 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79 |
2 | ||
| 48375 - DAMPER, LEAF SPRING DYNAMIC | ||||
| 48375-26080 |
VDJ76,78 |
2 | ||
| Common parts | ||||
| 94130-00802 | ||||
ILLUST NO. 1 OF 3(0701-0907) ; (0907- )VDJ76,78..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-60200 |
GRJ71,78..RHD |
2 | ||
| 04483-60130 |
FZJ71,76,78,HZJ71,76,78,VDJ76,78 |
2 | ||
| 04483-60200 |
GRJ71,76,78..LHD;HZJ71,76,78,VDJ76,78 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-60110 |
GRJ71,78..RHD |
2 | ||
| 04484-60120 |
VDJ76,78 |
2 | ||
| 04484-60080 |
FZJ7#,HZJ7#,VDJ7# |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-60100 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 48046-60100 |
GRJ71,78..RHD |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14052 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79 L=230 |
2 | ||
| 90117-14181 |
GRJ78..LHD;HZJ78,VDJ78 L=215 |
2 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-60090 |
GRJ71,78..RHD |
1 | ||
| 48047-60090 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-22003 |
FZJ71,HZJ71,VDJ79..RHD;FZJ76,78,79,HZJ76,78,79 INNER |
2 | ||
| 90389-14056 |
FZJ71,HZJ71,VDJ79..RHD;FZJ76,78,79,HZJ76,78,79 OUTER |
2 | ||
| 90389-22003 |
VDJ76,78 INNER |
2 | ||
| 90389-14056 |
VDJ76,78 OUTER |
2 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-22003 |
FZJ71,HZJ71,VDJ79..RHD;FZJ76,78,79,HZJ76,78,79 INNER |
2 | ||
| 90389-14056 |
FZJ71,HZJ71,VDJ79..RHD;FZJ76,78,79,HZJ76,78,79 OUTER |
2 | ||
| 90389-22003 |
VDJ76,78 INNER |
2 | ||
| 90389-14056 |
VDJ76,78 OUTER |
2 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18022 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# UPPER |
4 | ||
| 90385-18022 |
GRJ71,78..RHD UPPER |
4 | ||
| 90385-18021 |
FZJ71,76,78,HZJ71,76,78 LOWER |
4 | ||
| 90385-18021 |
VDJ76,78 LOWER |
4 | ||
| 90385-18021 |
GRJ71,78..RHD LOWER |
8 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18022 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# UPPER |
4 | ||
| 90385-18022 |
GRJ71,78..RHD UPPER |
4 | ||
| 90385-18021 |
FZJ71,76,78,HZJ71,76,78 LOWER |
4 | ||
| 90385-18021 |
VDJ76,78 LOWER |
4 | ||
| 90385-18021 |
GRJ71,78..RHD LOWER |
8 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18022 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# UPPER |
4 | ||
| 90385-18022 |
GRJ71,78..RHD UPPER |
4 | ||
| 90385-18021 |
FZJ71,76,78,HZJ71,76,78 LOWER |
4 | ||
| 90385-18021 |
VDJ76,78 LOWER |
4 | ||
| 90385-18021 |
GRJ71,78..RHD LOWER |
8 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90385-18022 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# UPPER |
4 | ||
| 90385-18022 |
GRJ71,78..RHD UPPER |
4 | ||
| 90385-18021 |
FZJ71,76,78,HZJ71,76,78 LOWER |
4 | ||
| 90385-18021 |
VDJ76,78 LOWER |
4 | ||
| 90385-18021 |
GRJ71,78..RHD LOWER |
8 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-60160 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 48306-60160 |
GRJ71,78..RHD |
2 | ||
| 48404A - BRACKET SUB-ASSY, SPRING, NO.3 RH | ||||
| 48404-60140 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79 |
1 | ||
| 48407 - BRACKET SUB-ASSY, SPRING, NO.3 LH | ||||
| 48407-60120 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79 |
1 | ||
| 48416A - BRACKET, SPRING, NO.4 RH | ||||
| 48416-60130 |
GRJ76,78..LHD;GRJ79,HZJ76,78,79,VDJ7# |
1 | ||
| 48416-60130 |
FZJ76,78,79 |
1 | ||
| 48417A - BRACKET, SPRING, NO.4 LH | ||||
| 48417-60040 |
FZJ76,78,79 |
1 | ||
| 48417-60040 |
GRJ76,78..LHD;GRJ79,HZJ76,78,79,VDJ7# |
1 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-60020 |
GRJ71,78..RHD |
1 | ||
| 48475-60020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-69855 |
FZJ76,78 MARK 48531-60730 |
1 | ||
| 48531-69855 |
GRJ76,78..LHD;HZJ76,78,VDJ76,78 MARK 48531-60730 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
8 | ||
| 90385-19003 |
GRJ71,78..RHD |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
8 | ||
| 90385-19003 |
GRJ71,78..RHD |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
8 | ||
| 90385-19003 |
GRJ71,78..RHD |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19003 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
8 | ||
| 90385-19003 |
GRJ71,78..RHD |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03024 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
4 | ||
| 90948-03024 |
GRJ71,78..RHD |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03024 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
4 | ||
| 90948-03024 |
GRJ71,78..RHD |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-69855 |
FZJ76,78 MARK 48531-60730 |
1 | ||
| 48531-69855 |
GRJ76,78..LHD;HZJ76,78,VDJ76,78 MARK 48531-60730 |
1 | ||
| Common parts | ||||
| 90119-08686 | ||||
| 90119-08834 | ||||
| 90119-12088 | ||||
| 90170-14012 | ||||
| 90178-14009 | ||||
| 90178-14017 | ||||
| 90201-14006 | ||||
| 90201-15012 | ||||
| 94130-01432 | ||||
