VDJ78R-RJMRYQ (2007)
Toyota Land Cruiser
(0701- )HZJ71..HT ; (0701- )HZJ79..LHD ; (0701- )HZJ79..RHD..DCB ; (0701-

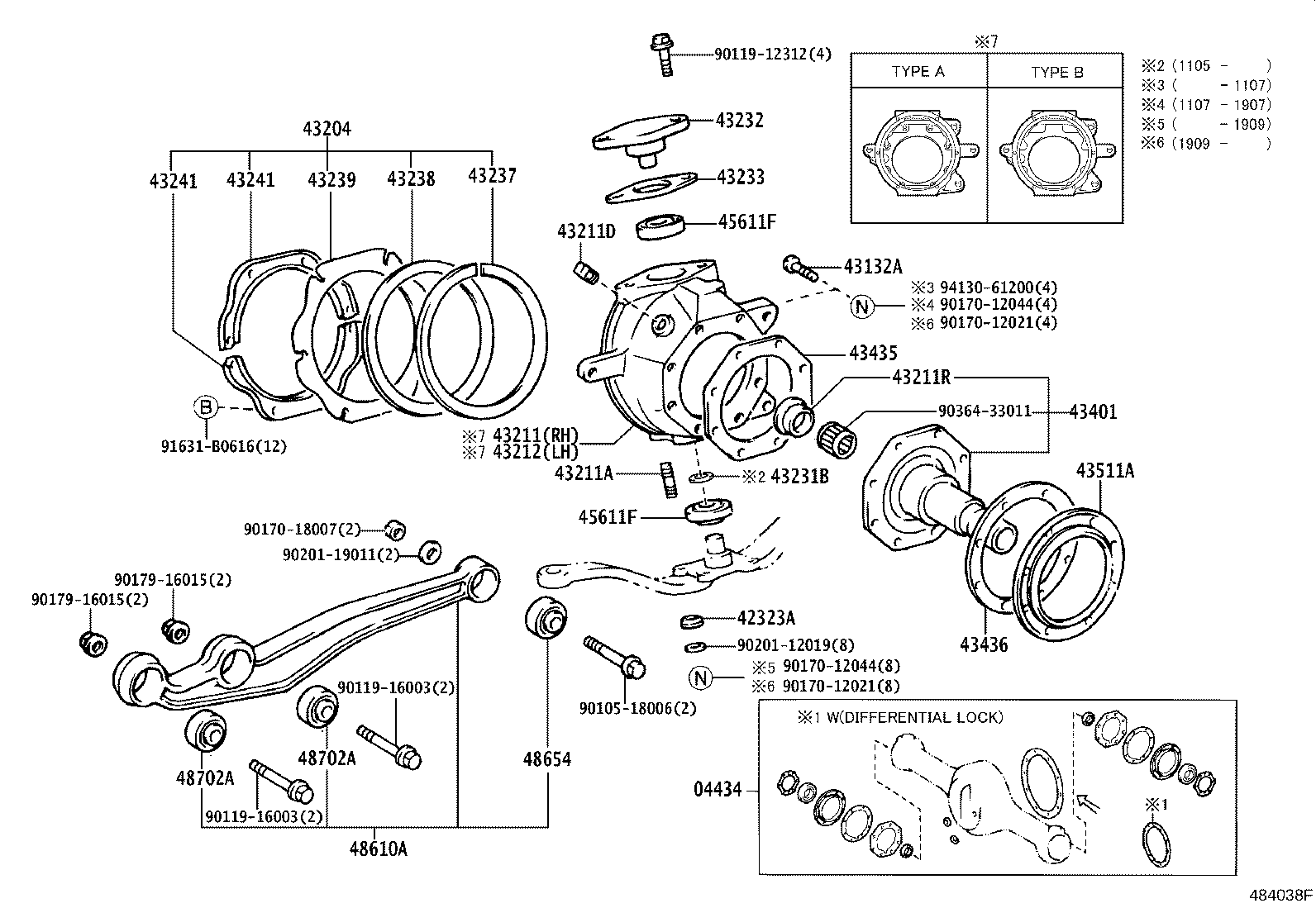

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04434 - GASKET KIT, FRONT AXLE OVERHAUL | ||||
| 04434-60080 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 04434-60090 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| 04434-60130 |
VDJ7# |
1 | ||
| 04434-60140 |
VDJ7# REAR DIFFERENTIAL-FINAL GEAR RATIO = 3.909, 4P, DIFF LOCK |
1 | ||
| 42323A - WASHER, CONE (FOR STEERING KNUCKLE ARM) | ||||
| 42323-60020 |
GRJ71,78..RHD |
8 | ||
| 42323-60020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
8 | ||
| 43132A - BOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT) | ||||
| 90106-12005 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
4 | ||
| 90106-12005 |
GRJ71,78..RHD |
4 | ||
| 43204 - SEAL SUB-ASSY, STEERING KNUCKLE OIL | ||||
| 43204-60031 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 43204-60032 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 43204-60032 |
GRJ71,78..RHD |
2 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-60110 |
FZJ71,78,79..RHD |
1 | ||
| 43211-60110 |
GRJ71,76,VDJ7#;GRJ78,79,HZJ7#..RHD |
1 | ||
| 43211-60111 |
GRJ71,78,VDJ7#..RHD |
1 | ||
| 43211-60220 |
VDJ7# |
1 | ||
| 43211A - BOLT, STUD (FOR STEERING SET) | ||||
| 90126-12005 |
GRJ71,78..RHD |
8 | ||
| 90126-12005 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
8 | ||
| 43211D - PLUG (FOR STEERING KNUCKLE) | ||||
| 90345-53020 |
GRJ71,78..RHD |
2 | ||
| 90345-53020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 43211R - BUSH (FOR STEERING KNUCKLE) | ||||
| 90381-35001 |
GRJ71,78..RHD |
2 | ||
| 90381-35001 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-60110 |
GRJ79..GEN;HZJ7#..RHD;GRJ71,76,78,VDJ7# |
1 | ||
| 43212-60111 |
GRJ71,78,VDJ7#..RHD |
1 | ||
| 43212-60220 |
VDJ7# |
1 | ||
| 43231B - SEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN) | ||||
| 96711-24037 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 96711-24037 |
GRJ71,78..RHD |
2 | ||
| 43232 - CAP, STEERING KNUCKLE BEARING | ||||
| 43232-60031 |
GRJ71,78..RHD |
2 | ||
| 43232-60031 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 43233 - SHIM, STEERING KNUCKLE ADJUST, NO.1 | ||||
| 43236-60020 |
GRJ71,78..RHD T=0.10 |
1 | ||
| 43233-60030 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# T=0.20 |
1 | ||
| 43235-60020 |
GRJ71,78..RHD T=1.00 |
1 | ||
| 43234-60020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# T=0.50 |
1 | ||
| 43233-60030 |
GRJ71,78..RHD T=0.20 |
1 | ||
| 43236-60020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# T=0.10 |
1 | ||
| 43234-60020 |
GRJ71,78..RHD T=0.50 |
1 | ||
| 43235-60020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# T=1.00 |
1 | ||
| 43237 - RING, STEERING KNUCKLE OIL SEAL, INNER | ||||
| 43237-60040 |
GRJ7#,HZJ7#,VDJ7# |
2 | ||
| 43237-60060 |
GRJ71,78..RHD |
2 | ||
| 43237-60060 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 43238 - SEAL, STEERING KNUCKLE OIL, INNER | ||||
| 43238-60021 |
GRJ71,78..RHD |
2 | ||
| 43238-60021 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 43239 - SEAL, STEERING KNUCKLE OIL, OUTER | ||||
| 43239-60030 |
GRJ71,78..RHD |
2 | ||
| 43239-60030 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 43241 - COVER, STEERING KUNCKLE OIL SEAL | ||||
| 43241-60040 |
GRJ71,78..RHD |
4 | ||
| 43241-60040 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
4 | ||
| 43241 - COVER, STEERING KUNCKLE OIL SEAL | ||||
| 43241-60040 |
GRJ71,78..RHD |
4 | ||
| 43241-60040 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
4 | ||
| 43401 - SPINDLE SUB-ASSY, STEERING KNUCKLE | ||||
| 43401-60080 |
GRJ78..RHD;GRJ71,76,HZJ71,76,VDJ7# |
2 | ||
| 43401-60100 |
VDJ7# |
2 | ||
| 43435 - GASKET, KNUCKLE SPINDLE | ||||
| 43435-60020 |
GRJ71,78,VDJ7#..RHD |
2 | ||
| 43435-60030 |
VDJ7# |
2 | ||
| 43436 - GASKET, KNUCKLE SPINDLE OIL RETAINER | ||||
| 43436-60011 |
GRJ71,78,VDJ7#..RHD |
2 | ||
| 43436-60030 |
VDJ7# |
2 | ||
| 43511A - SEAL, DUST (FOR FRONT AXLE HUB) | ||||
| 90313-99003 |
VDJ7# |
2 | ||
| 90313-93003 |
GRJ71,78,VDJ7#..RHD |
2 | ||
| 45611F - BEARING(FOR STEERING KNUCKLE ARM) | ||||
| 90366-20003 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
4 | ||
| 90366-20003 |
GRJ71,78..RHD |
4 | ||
| 45611F - BEARING(FOR STEERING KNUCKLE ARM) | ||||
| 90366-20003 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
4 | ||
| 90366-20003 |
GRJ71,78..RHD |
4 | ||
| 48610A - ARM ASSY, LEADING, FRONT | ||||
| 48610-60040 |
FZJ78,79,GRJ78,79,HZJ78,79,VDJ78,79 |
2 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48061-60050 |
GRJ78..LHD;GRJ79,HZJ78,79,VDJ78,79 |
2 | ||
| 48702A - BUSH SUB-ASSY, LEADING ARM, NO.1 | ||||
| 48702-60120 |
FZJ78,79,GRJ78,79,HZJ78,79,VDJ78,79 |
4 | ||
| 48702A - BUSH SUB-ASSY, LEADING ARM, NO.1 | ||||
| 48702-60120 |
FZJ78,79,GRJ78,79,HZJ78,79,VDJ78,79 |
4 | ||
| Common parts | ||||
| 90105-18006 | ||||
| 90119-12312 | ||||
| 90119-16003 | ||||
| 90170-12021 | ||||
| 90170-12044 | ||||
| 90170-18007 | ||||
| 90179-16015 | ||||
| 90201-12019 | ||||
| 90201-19011 | ||||
| 90364-33011 | ||||
| 91631-B0616 | ||||
| 94130-61200 | ||||
