VDJ78R-RJMRYQ (2007)

Toyota Land Cruiser

Production Jan 2007 - Aug 2016
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )VDJ7#..RHD

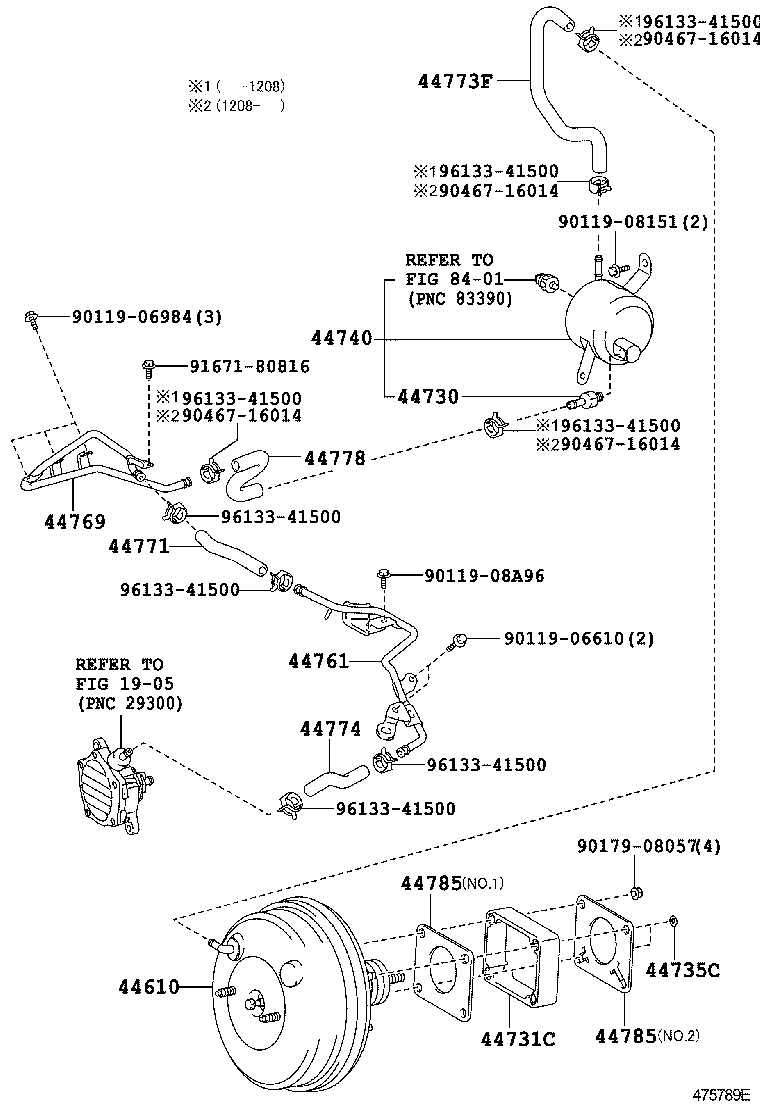

Click highlighted areas on diagram

diagram 1905 44610 44730 44731C 44735C 44740 44761 44769 44771 44773F 44774 44778 44785 44785 8401 9011906610 9011906984 9011908151 9011908A96 9017908057 9046716014 9046716014 9046716014 9046716014 9167180816 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-6A290

GRJ71,78..RHD

 1
44610-6A280

VDJ7#

 1
44610-6A370

VDJ7#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20170

GRJ71,78..RHD

 1
44730-60050

HZJ7#,VDJ7#

 1
44731C - BRACKET, BRAKE BOOSTER
44731-60020

GRJ71,78..RHD

 1
44731-60020

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 1
44735C - RING, BOOSTER BRACKET STOPPER
44735-30010

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 2
44735-30010

GRJ71,78..RHD

 2
44740 - RESERVOIR ASSY, VACUUM
44740-60270

HZJ7#,VDJ7#

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-60050

VDJ7#

 1
44769 - TUBE, VACUUM RESERVOIR CONNECT
44769-60090

VDJ7#

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-60050

VDJ7#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-60250

GRJ71,78..RHD

 1
44773-60280

VDJ7#

 1
44773-60250

FZJ71,78,79..RHD

 1
44773-60340

VDJ7#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-60330

VDJ7#

 1
44774-60320

FZJ71,78,79..RHD

 1
44774-60350

GRJ71,78..RHD

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-60230

VDJ7#

 1
44778-60231

VDJ7#

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

GRJ71,78..RHD

NO.1

 1
44785-35030

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

NO.2

 1
44785-35030

GRJ71,78..RHD

NO.2

 1
44785-35020

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

NO.1

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

GRJ71,78..RHD

NO.1

 1
44785-35030

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

NO.2

 1
44785-35030

GRJ71,78..RHD

NO.2

 1
44785-35020

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

NO.1

 1
Common parts
90119-06610
90119-06984
90119-08151
90119-08A96
90179-08057
90467-16014
91671-80816
96133-41500
Linked diagrams
1905
8401

(0701- )FZJ71,78,79,GRJ71,78,79..RHD

Click highlighted areas on diagram

diagram 44610 44696 44730 44730F 44731C 44735C 44763B 44773F 44774 44785 44785 9017906161 9017906161 9017906161 9017906161 9017906178 9017906178 9017906178 9017906178 9017908057 9046110838 9046110838 9046716014 9046716014 9046716014 9046716014 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-6A290

GRJ71,78..RHD

 1
44610-6A280

VDJ7#

 1
44610-6A370

VDJ7#

 1
44696 - GROMMET, CHECK VALVE
90480-24439

GRJ71,78..RHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20170

GRJ71,78..RHD

 1
44730-60050

HZJ7#,VDJ7#

 1
44731C - BRACKET, BRAKE BOOSTER
44731-60020

GRJ71,78..RHD

 1
44731-60020

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 1
44735C - RING, BOOSTER BRACKET STOPPER
44735-30010

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 2
44735-30010

GRJ71,78..RHD

 2
44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR
44763-60220

GRJ71,78..RHD

 1
44763-60170

FZJ71,78,79..RHD

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-60250

GRJ71,78..RHD

 1
44773-60280

VDJ7#

 1
44773-60250

FZJ71,78,79..RHD

 1
44773-60340

VDJ7#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-60330

VDJ7#

 1
44774-60320

FZJ71,78,79..RHD

 1
44774-60350

GRJ71,78..RHD

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

GRJ71,78..RHD

NO.1

 1
44785-35030

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

NO.2

 1
44785-35030

GRJ71,78..RHD

NO.2

 1
44785-35020

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

NO.1

 1
44785 - GASKET, BRAKE BOOSTER
44785-35020

GRJ71,78..RHD

NO.1

 1
44785-35030

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

NO.2

 1
44785-35030

GRJ71,78..RHD

NO.2

 1
44785-35020

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

NO.1

 1
Common parts
90179-06161
90179-06178
90179-08057
90461-10838
90467-16014
96133-41500
