VDJ78R-RJMRYQ (2007)

Toyota Land Cruiser

Production Jan 2007 - Aug 2016
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )VDJ7#

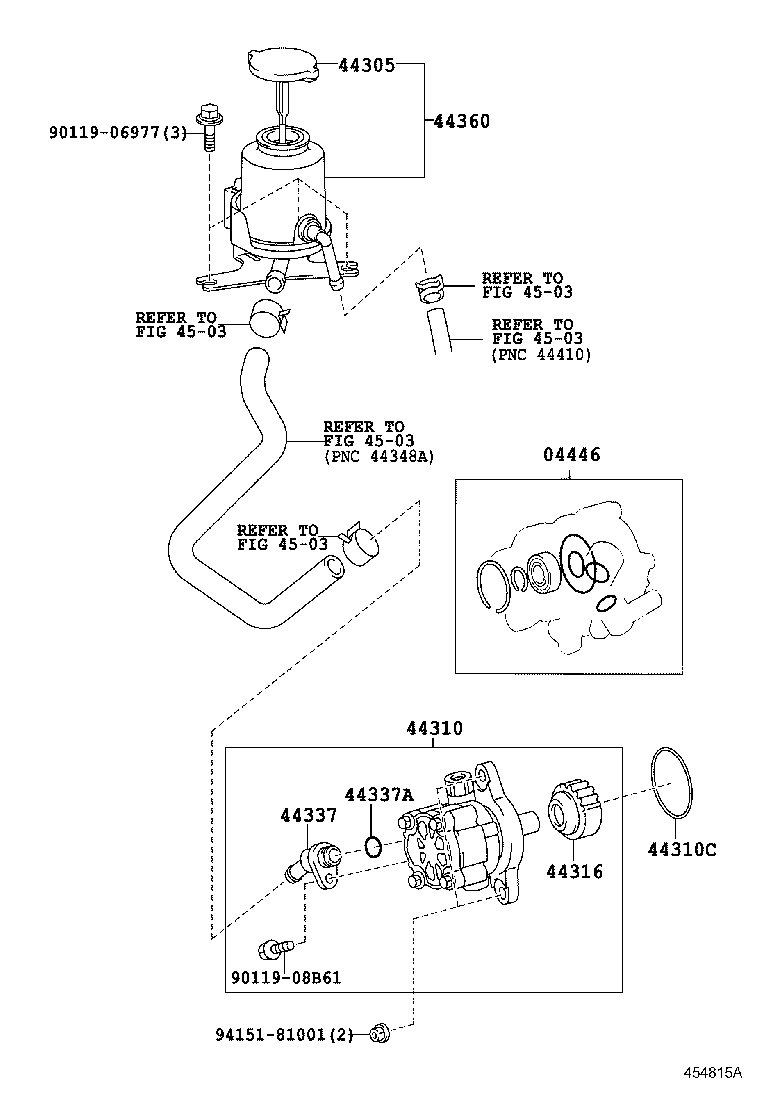

Click highlighted areas on diagram

diagram 04446 44305 44310 44310C 44316 44337 44337A 44360 4503 4503 4503 4503 4503 9011906977 9011908B61 9415181001
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-60130

HZJ7#,VDJ7#

 1
04446-60260

GRJ71,78..RHD

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-60020

VDJ7#

 1
44305-60040

GRJ71,78..RHD

 1
44305-60040

GRJ79,VDJ7#;GRJ71,76,78..LHD

 1
44310 - PUMP ASSY, VANE
44310-60580

GRJ71,78..RHD

 1
44310-60460

VDJ7#

 1
44310C - RING, O(FOR VANE PUMP)
90301-60002

HZJ7#,VDJ7#

 1
44316 - GEAR, VANE PUMP
44316-60080

VDJ7#

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-60190

VDJ7#

 1
44337-60250

GRJ71,78..RHD

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-15025

GRJ71,78..RHD

 1
90301-15025

GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7#

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-60280

GRJ79,VDJ7#;GRJ71,76,78..LHD

 1
44360-60280

GRJ71,78..RHD

 1
Common parts
90119-06977
90119-08B61
94151-81001
Linked diagrams
4503
