VDJ78R-RJMRYQ (2007)
Toyota Land Cruiser
ILLUST NO. 1 OF 2(0701-0907)HZJ7#,VDJ7#..RHD ; (0701- )FZJ71,78,79..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-60260 |
FZJ71,78,79,VDJ7#..RHD |
1 | ||
| 31301-60330 |
GRJ79,VDJ7#..RHD |
1 | ||
| 31301-60330 |
GRJ71,78..RHD |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-23025 |
GRJ79,VDJ7#;GRJ71,76,78..LHD |
1 | ||
| 90507-23025 |
GRJ71,78..RHD |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GRJ71,78..RHD |
1 | ||
| 90541-06036 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13020 |
GRJ71,78..RHD |
2 | ||
| 90386-13020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13020 |
GRJ71,78..RHD |
2 | ||
| 90386-13020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
GRJ71,78..RHD |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94130-61000 |
GRJ71,78..RHD |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 90389-06055 |
GRJ71,78..RHD |
1 | ||
| 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) | ||||
| 90949-03149 |
GRJ79,VDJ7#..RHD |
1 | ||
| 90949-03149 |
FZJ71,78,79..RHD |
1 | ||
| 90949-03149 |
GRJ71,78..RHD |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52020 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 31321-52010 |
GRJ71,78..RHD |
1 | ||
| 31321-52010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
GRJ71,78..RHD |
1 | ||
| 90387-10003 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
GRJ71,78..RHD |
1 | ||
| 31353-26010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08018 |
FZJ71,78,79..RHD L=29.5 |
1 | ||
| 90249-08018 |
GRJ79,HZJ7#,VDJ7#..RHD L=29.5 |
1 | ||
| 90249-08018 |
GRJ71,78..RHD L=29.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
GRJ71,78..RHD |
1 | ||
| 90386-08033 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 90386-08002 |
HZJ7#..RHD;FZJ7#,VDJ7# |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-60291 |
GRJ71,78,79,VDJ7#..RHD |
1 | ||
| 55107-60210 |
FZJ71,78,79,VDJ7#..RHD |
1 | ||
| Common parts | ||||
| 90105-10524 | ||||
| 90179-10088 | ||||
| 90468-16142 | ||||
| 90561-09018 | ||||
| 91651-60816 | ||||
| 96160-00600 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

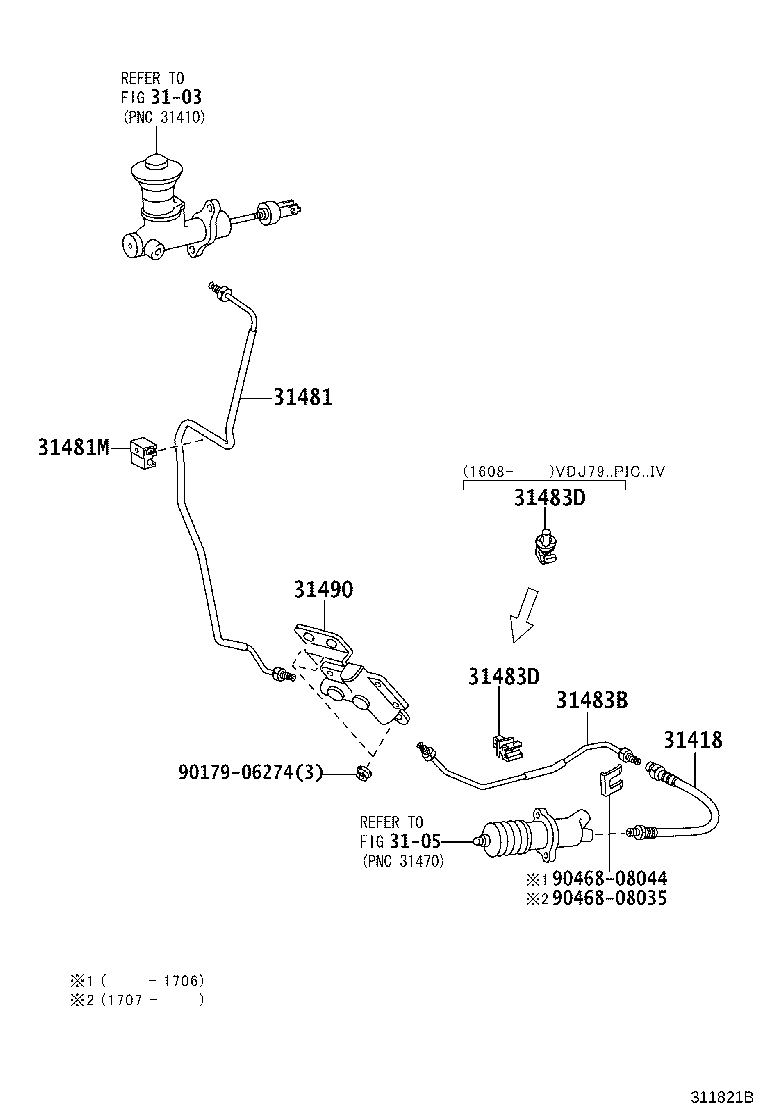

ILLUST NO. 2 OF 2(0701- )VDJ7#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90947-02E87 |
VDJ7# |
1 | ||
| 90947-02F41 |
GRJ71,78..RHD |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-60A10 |
FZJ71,78,79..RHD |
1 | ||
| 31481-60B60 |
VDJ7# |
1 | ||
| 31481-60A21 |
VDJ7# |
1 | ||
| 31481-60B30 |
GRJ71,78,79..RHD |
1 | ||
| 31481-60A20 |
VDJ7# |
1 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01D18 |
FZJ71,78,79..RHD |
4 | ||
| 90949-01C82 |
VDJ79;GRJ79,VDJ76,78..DCB,HT |
1 | ||
| 90949-01C82 |
GRJ71,78,79..RHD |
3 | ||
| 31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE | ||||
| 31483-60031 |
VDJ7# |
1 | ||
| 31483-60030 |
VDJ7# |
1 | ||
| 31483D - CLAMP(FOR ACCUMULATOR TO FLEXIBLE HOSE TUBE) | ||||
| 90949-01D56 |
VDJ7# |
1 | ||
| 31483D - CLAMP(FOR ACCUMULATOR TO FLEXIBLE HOSE TUBE) | ||||
| 90949-01D56 |
VDJ7# |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-60121 |
VDJ7# |
1 | ||
| 31490-60120 |
VDJ7# |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90468-08035 | ||||
| 90468-08044 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
ILLUST NO. 2 OF 2(0701- )FZJ71,78,79,HZJ7#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90947-02E87 |
VDJ7# |
1 | ||
| 90947-02F41 |
GRJ71,78..RHD |
1 | ||
| 31418 - HOSE, CLUTCH | ||||
| 90947-02E87 |
VDJ7# |
1 | ||
| 90947-02F41 |
GRJ71,78..RHD |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-60A10 |
FZJ71,78,79..RHD |
1 | ||
| 31481-60B60 |
VDJ7# |
1 | ||
| 31481-60A21 |
VDJ7# |
1 | ||
| 31481-60B30 |
GRJ71,78,79..RHD |
1 | ||
| 31481-60A20 |
VDJ7# |
1 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01D18 |
FZJ71,78,79..RHD |
4 | ||
| 90949-01C82 |
VDJ79;GRJ79,VDJ76,78..DCB,HT |
1 | ||
| 90949-01C82 |
GRJ71,78,79..RHD |
3 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01D18 |
FZJ71,78,79..RHD |
4 | ||
| 90949-01C82 |
VDJ79;GRJ79,VDJ76,78..DCB,HT |
1 | ||
| 90949-01C82 |
GRJ71,78,79..RHD |
3 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01D18 |
FZJ71,78,79..RHD |
4 | ||
| 90949-01C82 |
VDJ79;GRJ79,VDJ76,78..DCB,HT |
1 | ||
| 90949-01C82 |
GRJ71,78,79..RHD |
3 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01D18 |
FZJ71,78,79..RHD |
4 | ||
| 90949-01C82 |
VDJ79;GRJ79,VDJ76,78..DCB,HT |
1 | ||
| 90949-01C82 |
GRJ71,78,79..RHD |
3 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-60290 |
GRJ71,78..RHD |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-60290 |
GRJ71,78..RHD |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-60430 |
GRJ71,78..RHD |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-60430 |
GRJ71,78..RHD |
1 | ||
| Common parts | ||||
| 90468-08035 | ||||
| 90468-08044 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
ILLUST NO. 2 OF 2(0907-1208)GRJ71,78,79..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90947-02E87 |
VDJ7# |
1 | ||
| 90947-02F41 |
GRJ71,78..RHD |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-60A10 |
FZJ71,78,79..RHD |
1 | ||
| 31481-60B60 |
VDJ7# |
1 | ||
| 31481-60A21 |
VDJ7# |
1 | ||
| 31481-60B30 |
GRJ71,78,79..RHD |
1 | ||
| 31481-60A20 |
VDJ7# |
1 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01D18 |
FZJ71,78,79..RHD |
4 | ||
| 90949-01C82 |
VDJ79;GRJ79,VDJ76,78..DCB,HT |
1 | ||
| 90949-01C82 |
GRJ71,78,79..RHD |
3 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01D18 |
FZJ71,78,79..RHD |
4 | ||
| 90949-01C82 |
VDJ79;GRJ79,VDJ76,78..DCB,HT |
1 | ||
| 90949-01C82 |
GRJ71,78,79..RHD |
3 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-60290 |
GRJ71,78..RHD |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-60430 |
GRJ71,78..RHD |
1 | ||
| Common parts | ||||
| 90119-06984 | ||||
| 90179-08234 | ||||
| 90461-06204 | ||||
| 90461-10834 | ||||
| 90468-08044 | ||||
| 91671-80816 | ||||
| 91674-80616 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
ILLUST NO. 1 OF 2(0907- )GRJ71,78,79..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-60260 |
FZJ71,78,79,VDJ7#..RHD |
1 | ||
| 31301-60330 |
GRJ79,VDJ7#..RHD |
1 | ||
| 31301-60330 |
GRJ71,78..RHD |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-23025 |
GRJ79,VDJ7#;GRJ71,76,78..LHD |
1 | ||
| 90507-23025 |
GRJ71,78..RHD |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GRJ71,78..RHD |
1 | ||
| 90541-06036 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13020 |
GRJ71,78..RHD |
2 | ||
| 90386-13020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13020 |
GRJ71,78..RHD |
2 | ||
| 90386-13020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
GRJ71,78..RHD |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94130-61000 |
GRJ71,78..RHD |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 90389-06055 |
GRJ71,78..RHD |
1 | ||
| 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) | ||||
| 90949-03149 |
GRJ79,VDJ7#..RHD |
1 | ||
| 90949-03149 |
FZJ71,78,79..RHD |
1 | ||
| 90949-03149 |
GRJ71,78..RHD |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52020 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 31321-52010 |
GRJ71,78..RHD |
1 | ||
| 31321-52010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
GRJ71,78..RHD |
1 | ||
| 90387-10003 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
GRJ71,78..RHD |
1 | ||
| 31353-26010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08018 |
FZJ71,78,79..RHD L=29.5 |
1 | ||
| 90249-08018 |
GRJ79,HZJ7#,VDJ7#..RHD L=29.5 |
1 | ||
| 90249-08018 |
GRJ71,78..RHD L=29.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
GRJ71,78..RHD |
1 | ||
| 90386-08033 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 90386-08002 |
HZJ7#..RHD;FZJ7#,VDJ7# |
1 | ||
| 55105D - BRACKET SUB-ASSY, CLUTCH PEDAL | ||||
| 55105-60050 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-60291 |
GRJ71,78,79,VDJ7#..RHD |
1 | ||
| 55107-60210 |
FZJ71,78,79,VDJ7#..RHD |
1 | ||
| Common parts | ||||
| 90105-10524 | ||||
| 90119-06558 | ||||
| 90179-10088 | ||||
| 90468-16142 | ||||
| 90561-09018 | ||||
| 91651-60816 | ||||
| 96160-00600 | ||||
| 96160-00800 | ||||
ILLUST NO. 1 OF 2(0907- )HZJ7#,VDJ7#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-60260 |
FZJ71,78,79,VDJ7#..RHD |
1 | ||
| 31301-60330 |
GRJ79,VDJ7#..RHD |
1 | ||
| 31301-60330 |
GRJ71,78..RHD |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-23025 |
GRJ79,VDJ7#;GRJ71,76,78..LHD |
1 | ||
| 90507-23025 |
GRJ71,78..RHD |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GRJ71,78..RHD |
1 | ||
| 90541-06036 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13020 |
GRJ71,78..RHD |
2 | ||
| 90386-13020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13020 |
GRJ71,78..RHD |
2 | ||
| 90386-13020 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
GRJ71,78..RHD |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94130-61000 |
GRJ71,78..RHD |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 90389-06055 |
GRJ71,78..RHD |
1 | ||
| 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) | ||||
| 90949-03149 |
GRJ79,VDJ7#..RHD |
1 | ||
| 90949-03149 |
FZJ71,78,79..RHD |
1 | ||
| 90949-03149 |
GRJ71,78..RHD |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52020 |
GRJ7#,HZJ7#,VDJ7# |
1 | ||
| 31321-52010 |
GRJ71,78..RHD |
1 | ||
| 31321-52010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
GRJ71,78..RHD |
1 | ||
| 90387-10003 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
GRJ71,78..RHD |
1 | ||
| 31353-26010 |
GRJ71,76,78..LHD;GRJ79,HZJ7#,VDJ7# |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08018 |
FZJ71,78,79..RHD L=29.5 |
1 | ||
| 90249-08018 |
GRJ79,HZJ7#,VDJ7#..RHD L=29.5 |
1 | ||
| 90249-08018 |
GRJ71,78..RHD L=29.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
GRJ71,78..RHD |
1 | ||
| 90386-08033 |
GRJ79,HZJ7#,VDJ7#..RHD |
1 | ||
| 90386-08002 |
HZJ7#..RHD;FZJ7#,VDJ7# |
1 | ||
| 55105D - BRACKET SUB-ASSY, CLUTCH PEDAL | ||||
| 55105-60050 |
GRJ71,78,79,HZJ7#,VDJ7#..RHD |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-60291 |
GRJ71,78,79,VDJ7#..RHD |
1 | ||
| 55107-60210 |
FZJ71,78,79,VDJ7#..RHD |
1 | ||
| Common parts | ||||
| 90105-10524 | ||||
| 90179-10088 | ||||
| 90468-16142 | ||||
| 90561-09018 | ||||
| 91651-60816 | ||||
| 96160-00600 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
