VDJ78R-RJMRYQ (2007)

Toyota Land Cruiser

Production Jan 2007 - Aug 2016
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701-1608)1VDFTV ; (1608- )1VDFTV..VDJ76,79..GEN ; (1709- )1VDFTV..GCC

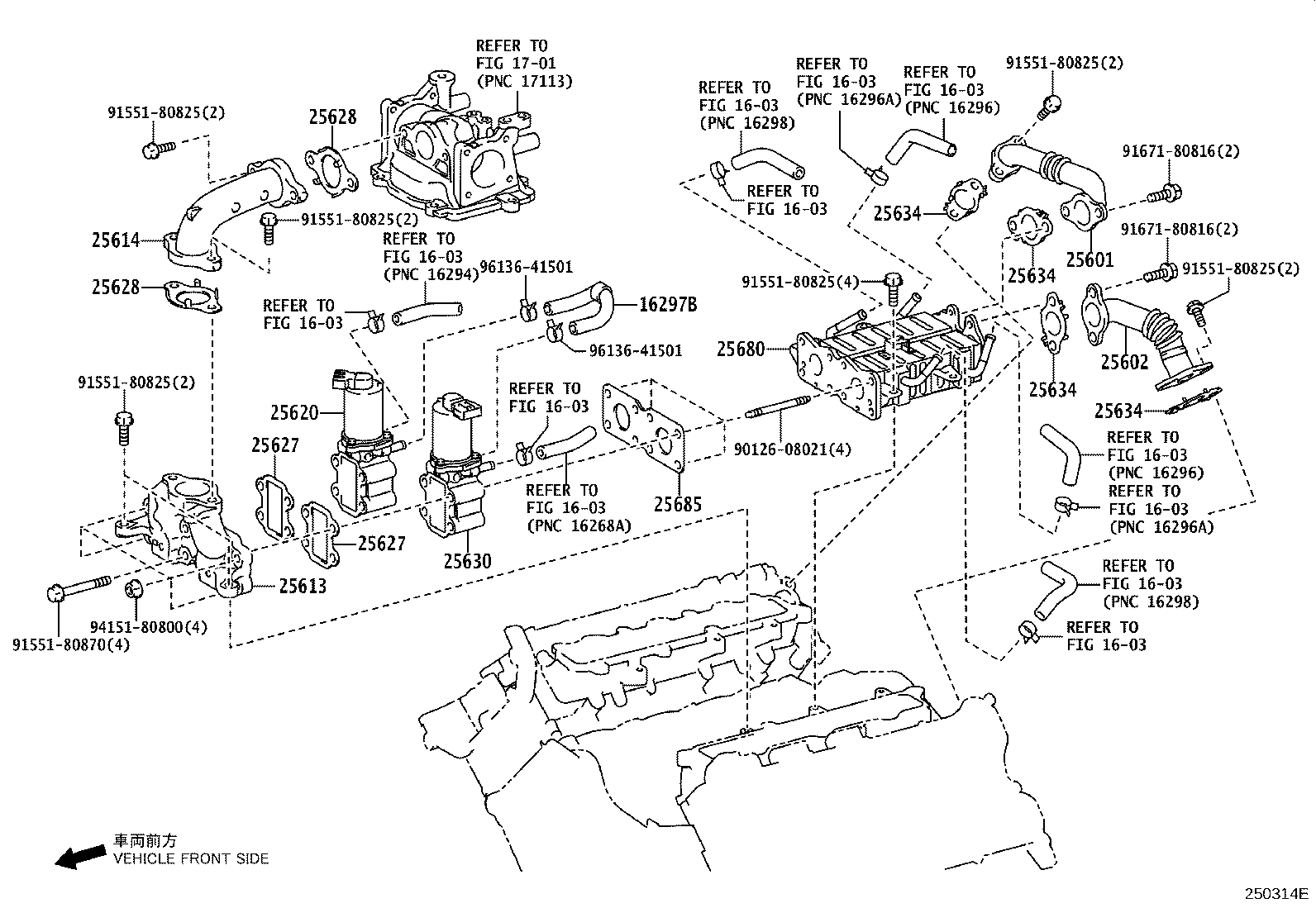

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 1603 1603 1603 1603 1603 1603 16297B 1701 25601 25602 25613 25614 25620 25627 25627 25628 25628 25630 25634 25634 25634 25634 25680 25685 9012608021 9155180825 9155180825 9155180825 9155180825 9155180825 9155180825 9155180870 9167180816 9167180816 9415180800 9613641501 9613641501
Part # Description Qty Price
16297B - HOSE, WATER BY-PASS, NO.9
16297-51010

1VDFTV..VDJ7#

 1
25601 - PIPE SUB-ASSY, EGR, NO.1
25611-51011

1VDFTV..VDJ7#

 1
25602 - PIPE SUB-ASSY, EGR, NO.2
25612-51011

1VDFTV..VDJ7#

 1
25613 - PIPE, EGR, NO.3
25613-51010

1VDFTV..VDJ7#

 1
25614 - PIPE, EGR, NO.4
25614-51010

1VDFTV..VDJ7#

 1
25620 - VALVE ASSY, EGR
25620-51010

1VDFTV..VDJ7#

 1
25620-51011

1VDFTV..VDJ7#

 1
25627 - GASKET, EGR VALVE
25627-26020

1VDFTV..VDJ7#

 2
25627 - GASKET, EGR VALVE
25627-26020

1VDFTV..VDJ7#

 2
25628 - GASKET, EGR INLET
25628-51010

1VDFTV..VDJ7#

 2
25628 - GASKET, EGR INLET
25628-51010

1VDFTV..VDJ7#

 2
25630 - VALVE ASSY, EGR, NO.2
25630-51010

1VDFTV..VDJ7#

 1
25630-51011

1VDFTV..VDJ7#

 1
25634 - GASKET, EGR PIPE
25634-51010

1VDFTV..VDJ7#

 4
25634 - GASKET, EGR PIPE
25634-51010

1VDFTV..VDJ7#

 4
25634 - GASKET, EGR PIPE
25634-51010

1VDFTV..VDJ7#

 4
25634 - GASKET, EGR PIPE
25634-51010

1VDFTV..VDJ7#

 4
25680 - COOLER ASSY, EGR
25680-51010

1VDFTV..VDJ7#

 1
25680-51011

1VDFTV..VDJ7#

 1
25685 - GASKET, EGR COOLER, NO.1
25685-51010

1VDFTV..VDJ7#

 1
Common parts
90126-08021
91551-80825
91551-80870
91671-80816
94151-80800
96136-41501
Linked diagrams
1603
1701
