VDJ78R-RJMRYQ (2007)

Toyota Land Cruiser

Production Jan 2007 - Aug 2016
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )1VDFTV

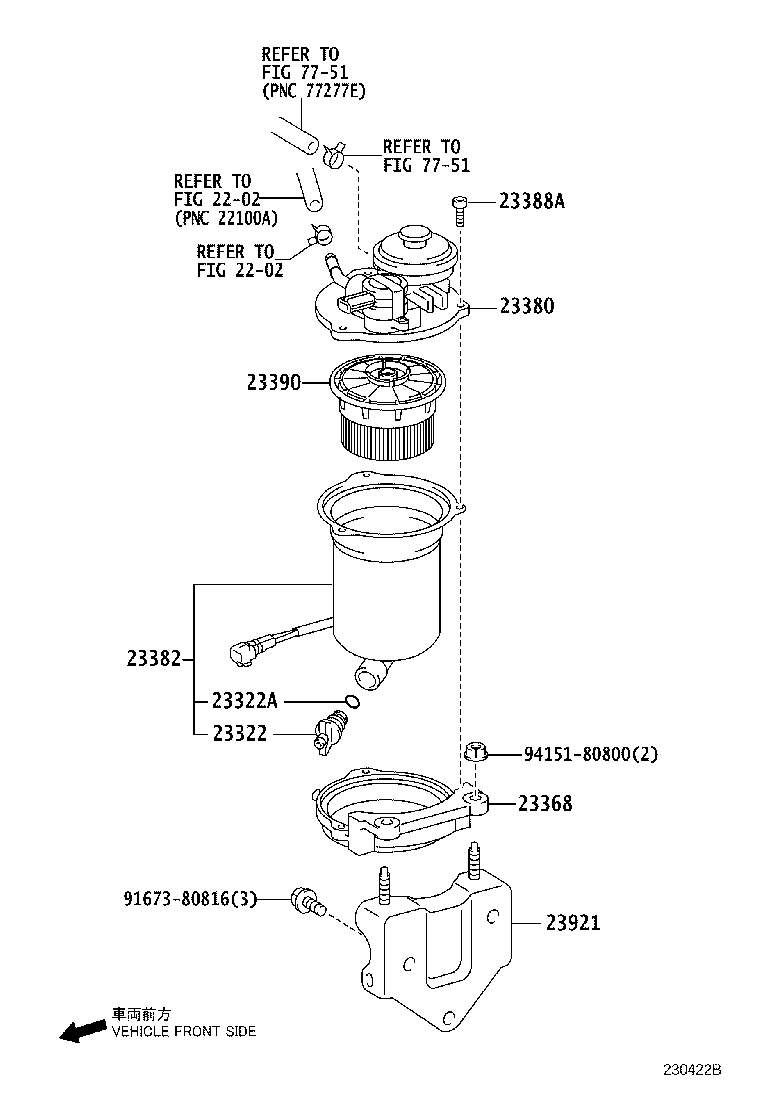

Click highlighted areas on diagram

diagram 2202 2202 23322 23322A 23368 23380 23382 23388A 23390 23921 7751 7751 9167380816 9415180800
Part # Description Qty Price
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23388-64470

1VDFTV..VDJ7#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

1VDFTV..VDJ7#

 1
23368 - PLATE, GUIDE
23368-51020

1VDFTV..VDJ7#

 1
23380 - CAP ASSY, FUEL FILTER
23380-51020

1VDFTV..VDJ7#

 1
23380-51021

1VDFTV..VDJ7#

 1
23380-51060

1VDFTV..VDJ7#

 1
23382 - CASE, FUEL FILTER
23382-51031

1VDFTV..VDJ7#

 1
23382-51030

1VDFTV..VDJ7#

 1
23382-51020

1VDFTV..VDJ7#

 1
23388A - PLUG, FUEL FILTER DRAIN
23388-51020

1VDFTV..VDJ7#

 3
23390 - ELEMENT ASSY, FUEL FILTER
23390-51070

1VDFTV..VDJ7#

 1
23390-51020

1VDFTV..VDJ7#

 1
23921 - SUPPORT, FUEL FILTER
23921-51010

1VDFTV..VDJ7#

 1
Common parts
91673-80816
94151-80800
Linked diagrams
2202
7751
