VDJ78R-RJMRYQ (2007)
Toyota Land Cruiser
Production
Jan 2007
-
Aug 2016
Engine
1VDFTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0701-1608)1VDFTV ; (1608- )1VDFTV..GCC,GEN

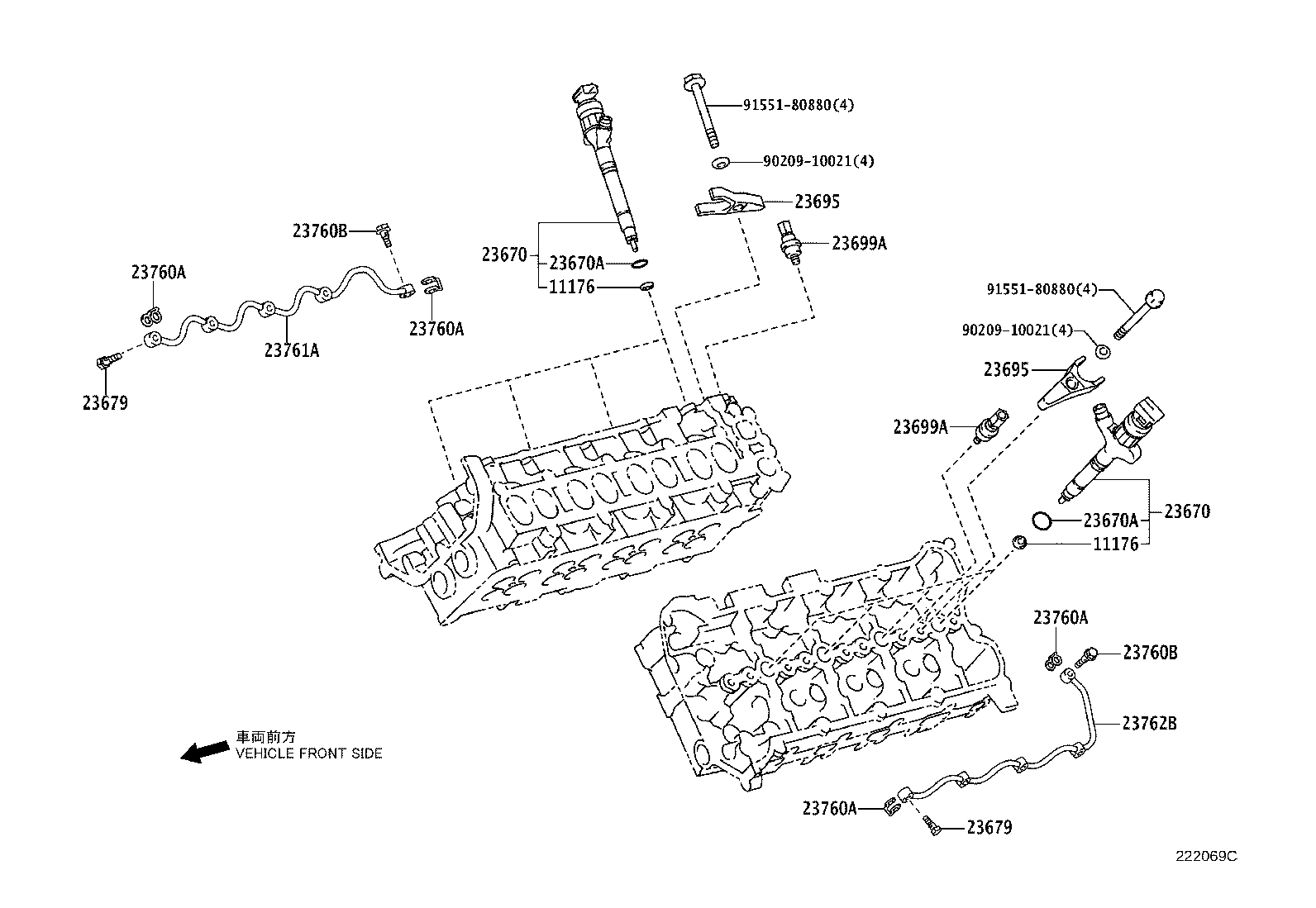

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-26010 |
1VDFTV..VDJ7# |
8 | ||
| 11176-51010 |
1VDFTV..VDJ7# |
8 | ||
| 11176-26020 |
1VDFTV..VDJ7# |
8 | ||
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-26010 |
1VDFTV..VDJ7# |
8 | ||
| 11176-51010 |
1VDFTV..VDJ7# |
8 | ||
| 11176-26020 |
1VDFTV..VDJ7# |
8 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-59017 |
1VDFTV..VDJ7# |
8 | ||
| 23670-59015 |
1VDFTV..VDJ7# |
8 | ||
| 23670-59016 |
1VDFTV..VDJ7# |
8 | ||
| 23670-59018 |
1VDFTV..VDJ7# |
8 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-59017 |
1VDFTV..VDJ7# |
8 | ||
| 23670-59015 |
1VDFTV..VDJ7# |
8 | ||
| 23670-59016 |
1VDFTV..VDJ7# |
8 | ||
| 23670-59018 |
1VDFTV..VDJ7# |
8 | ||
| 23670A - RING, O(FOR INJECTOR ASSY) | ||||
| 96721-19017 |
1VDFTV..VDJ7# |
8 | ||
| 23670A - RING, O(FOR INJECTOR ASSY) | ||||
| 96721-19017 |
1VDFTV..VDJ7# |
8 | ||
| 23679 - SCREW, INJECTOR FOLLOW | ||||
| 23679-51010 |
1VDFTV..VDJ7# |
8 | ||
| 23679-0R010 |
1VDFTV..VDJ7# |
8 | ||
| 23679 - SCREW, INJECTOR FOLLOW | ||||
| 23679-51010 |
1VDFTV..VDJ7# |
8 | ||
| 23679-0R010 |
1VDFTV..VDJ7# |
8 | ||
| 23695 - CLAMP, NOZZLE HOLDER, NO.1 | ||||
| 23695-0R010 |
1VDFTV..VDJ7# |
8 | ||
| 23695-0R012 |
1VDFTV..VDJ7# |
8 | ||
| 23695-0R011 |
1VDFTV..VDJ7# |
8 | ||
| 23695 - CLAMP, NOZZLE HOLDER, NO.1 | ||||
| 23695-0R010 |
1VDFTV..VDJ7# |
8 | ||
| 23695-0R012 |
1VDFTV..VDJ7# |
8 | ||
| 23695-0R011 |
1VDFTV..VDJ7# |
8 | ||
| 23699A - SEAT, NOZZLE HOLDER CLAMP | ||||
| 23699-26010 |
1VDFTV..VDJ7# |
8 | ||
| 23699A - SEAT, NOZZLE HOLDER CLAMP | ||||
| 23699-26010 |
1VDFTV..VDJ7# |
8 | ||
| 23760A - GASKET | ||||
| 90904-30008 |
1VDFTV..VDJ7# |
10 | ||
| 23760A - GASKET | ||||
| 90904-30008 |
1VDFTV..VDJ7# |
10 | ||
| 23760A - GASKET | ||||
| 90904-30008 |
1VDFTV..VDJ7# |
10 | ||
| 23760A - GASKET | ||||
| 90904-30008 |
1VDFTV..VDJ7# |
10 | ||
| 23760B - BOLT, UNION(FOR NOZZLE LEAKAGE PIPE) | ||||
| 90401-08016 |
1VDFTV..VDJ7# |
2 | ||
| 23760B - BOLT, UNION(FOR NOZZLE LEAKAGE PIPE) | ||||
| 90401-08016 |
1VDFTV..VDJ7# |
2 | ||
| 23761A - PIPE, NOZZLE LEAKAGE, NO.1 | ||||
| 23761-51010 |
1VDFTV..VDJ7# |
1 | ||
| 23762B - PIPE, NOZZLE LEAKAGE, NO.2 | ||||
| 23762-51010 |
1VDFTV..VDJ7# |
1 | ||
| Common parts | ||||
| 90209-10021 | ||||
| 91551-80880 | ||||
