VDJ78R-RJMRYQ (2007)
Toyota Land Cruiser
Production
Jan 2007
-
Aug 2016
Engine
1VDFTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0701- )1VDFTV

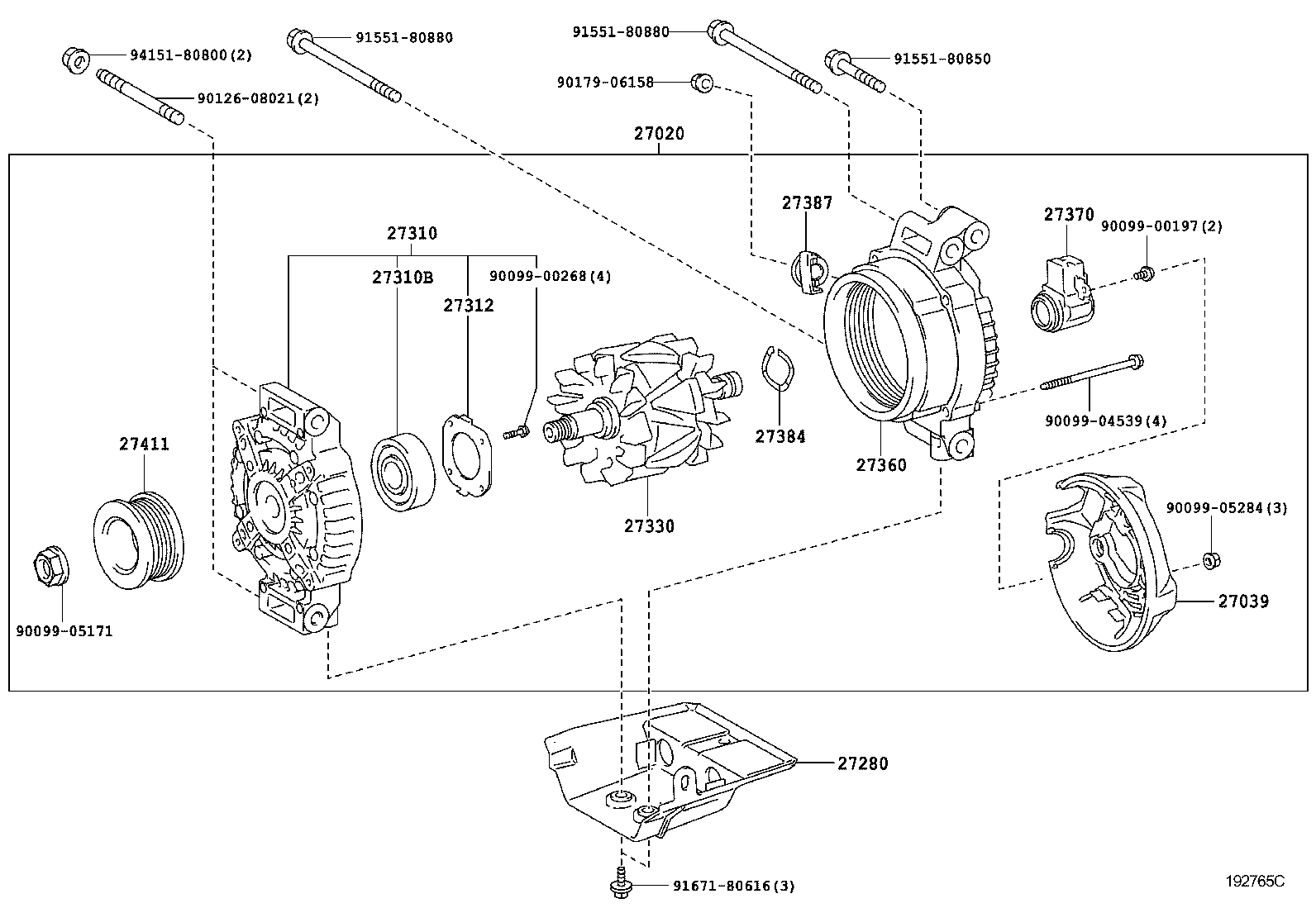

Click highlighted areas on diagram
12V 130A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-51010 |
1VDFTV..VDJ7# 12V 130A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-31390 |
1VDFTV..VDJ7# |
1 | ||
| 27039-26170 |
1VDFTV..VDJ7# |
1 | ||
| 27280 - COVER ASSY, ALTERNATOR SPLASH GUARD | ||||
| 27281-51010 |
1VDFTV..VDJ7# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-51030 |
1VDFTV..VDJ7# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10142 |
1VDFTV..VDJ7# |
1 | ||
| 90099-10223 |
1VDFTV..VDJ7# |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1VDFTV..VDJ7# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-33090 |
1VDFTV..VDJ7# |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-51030 |
1VDFTV..VDJ7# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-27060 |
1VDFTV..VDJ7# |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
1VDFTV..VDJ7# |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
1VDFTV..VDJ7# |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-51030 |
1VDFTV..VDJ7# |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04539 | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
| 90126-08021 | ||||
| 90179-06158 | ||||
| 91551-80850 | ||||
| 91551-80880 | ||||
| 91671-80616 | ||||
| 94151-80800 | ||||
