VDJ78R-RJMRYQ (2007)

Toyota Land Cruiser

Production Jan 2007 - Aug 2016
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

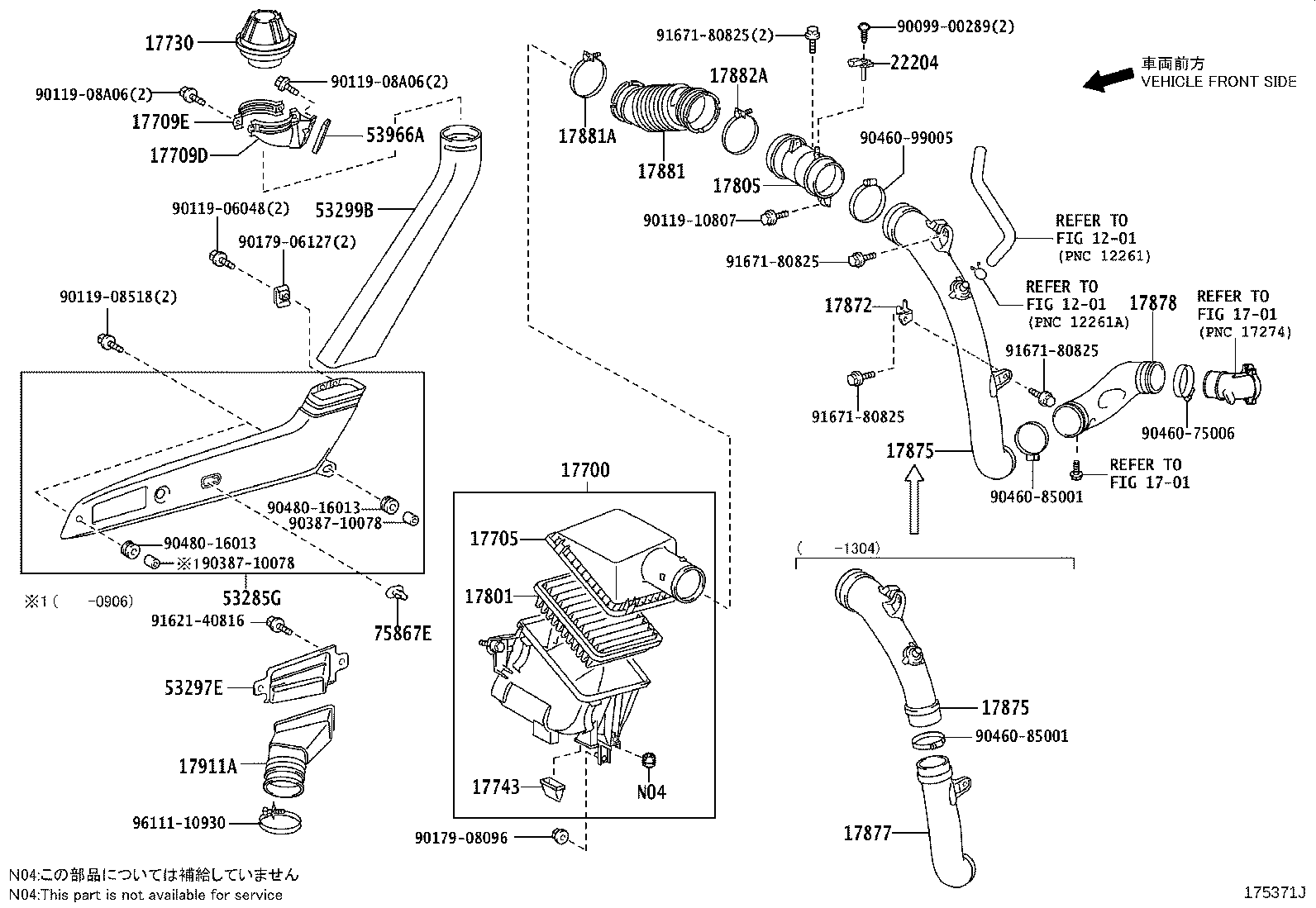

ILLUST NO. 1 OF 2(0701- )1VDFTV

Click highlighted areas on diagram

diagram 1201 1201 1701 1701 17700 17705 17709D 17709E 17730 17743 17801 17805 17872 17875 17875 17877 17878 17881 17881A 17882A 17911A 22204 53285G 53297E 53299B 53966A 75867E 9009900289 9011906048 9011908518 9011908A06 9011908A06 9011910807 9017906127 9017908096 9038710078 9038710078 9046075006 9046085001 9046085001 9046099005 9048016013 9048016013 9162140816 9167180825 9167180825 9167180825 9167180825 9611110930
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-51031

1VDFTV..VDJ7#

 1
17700-51030

1VDFTV..VDJ7#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-51010

1VDFTV..VDJ7#

 1
17709D - BRACKET, AIR CLEANER INLET, NO.1
53772-60020

1VDFTV..VDJ7#

 1
17709E - BRACKET, AIR CLEANER INLET, NO.2
53773-60020

1VDFTV..VDJ7#

 1
17730 - PRECLEANER ASSY, AIR W/HOSE
17730-66010

1VDFTV..VDJ7#

 1
17743 - VALVE, DUST RELIEF
17743-50010

1VDFTV..VDJ7#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-51010

1VDFTV..VDJ7#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-51011

1VDFTV..VDJ7#

 1
17805-51010

1VDFTV..VDJ7#

 1
17872 - BRACKET, INTAKE AIR CONNECTOR
17872-51010

1VDFTV..VDJ7#

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-51010

1VDFTV..VDJ7#

 1
17875-51011

1VDFTV..VDJ7#

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-51010

1VDFTV..VDJ7#

 1
17875-51011

1VDFTV..VDJ7#

 1
17877 - PIPE, INTAKE AIR CONNECTOR, NO.2
17877-51010

1VDFTV..VDJ7#

 1
17878 - PIPE, INTAKE AIR CONNECTOR, NO.3
17878-51010

1VDFTV..VDJ7#

 1
17878-51011

1VDFTV..VDJ7#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-51020

1VDFTV..VDJ7#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-11000

1VDFTV..VDJ7#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-11060

1VDFTV..VDJ7#

 1
17911A - HOSE, COOL AIR INTAKE, NO.1
52831-60040

1VDFTV..VDJ7#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-51010

1VDFTV..VDJ7#

 1
53285G - DUCT, COOL AIR INTAKE, NO.2
53285-60090

GRJ71,78..RHD

AIR CLEANER-ON-HEAD TYPE+SCHNORKEL

 1
53285-60090

VDJ7#

 1
53297E - PIPE, COOL AIR INTAKE
53297-60050

GRJ71,78..RHD

AIR CLEANER-ON-HEAD TYPE+SCHNORKEL

 1
53297-60050

VDJ7#

 1
53299B - DUCT, COOL AIR INTAKE
53299-60190

VDJ7#

 1
53299-60190

GRJ71,78..RHD

AIR CLEANER-ON-HEAD TYPE+SCHNORKEL

 1
53966A - PAD, PRECLEANER
53966-90K00

GRJ71,78..RHD

AIR CLEANER-ON-HEAD TYPE+SCHNORKEL

 1
53966-90K00

VDJ7#

 1
75867E - CLIP, ROCKER PANEL MOULDING
75867-60020C1

VDJ7#

BLACK

 1
Common parts
90099-00289
90119-06048
90119-08518
90119-08A06
90119-10807
90179-06127
90179-08096
90387-10078
90460-75006
90460-85001
90460-99005
90480-16013
91621-40816
91671-80825
96111-10930
Linked diagrams
1201
1701

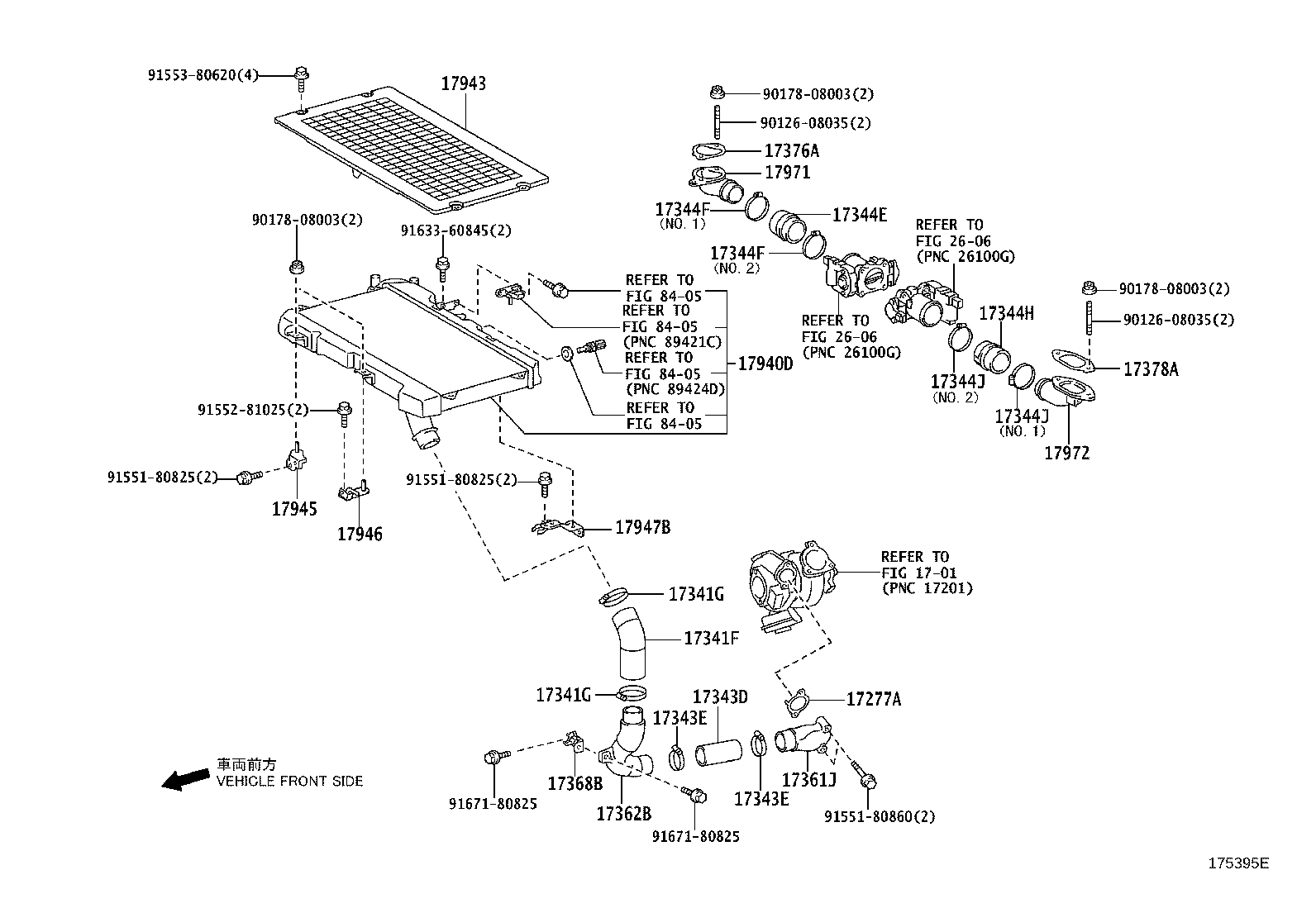

ILLUST NO. 2 OF 2(0701- )1VDFTV

Click highlighted areas on diagram

diagram 1701 17277A 17341F 17341G 17341G 17343D 17343E 17343E 17344E 17344F 17344F 17344H 17344J 17344J 17361J 17362B 17368B 17376A 17378A 17940D 17943 17945 17946 17947B 17971 17972 2606 2606 8405 8405 8405 8405 9012608035 9012608035 9017808003 9017808003 9017808003 9155180825 9155180825 9155180860 9155281025 9155380620 9163360845 9167180825 9167180825
Part # Description Qty Price
17277A - GASKET, COMPRESSOR OUTLET
17277-51010

1VDFTV..VDJ7#

 1
17341F - HOSE, AIR, NO.1
17341-51010

1VDFTV..VDJ7#

 1
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-67008

1VDFTV..VDJ7#

 2
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-67008

1VDFTV..VDJ7#

 2
17343D - HOSE, AIR, NO.3
17343-51010

1VDFTV..VDJ7#

 1
17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3)
90460-60006

1VDFTV..VDJ7#

 2
17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3)
90460-60006

1VDFTV..VDJ7#

 2
17344E - HOSE, AIR, NO.4
17344-51020

1VDFTV..VDJ7#

 1
17344-51010

1VDFTV..VDJ7#

 1
17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4)
90460-74004

1VDFTV..VDJ7#

NO.1:REFER ILLUST.

 1
90460-74004

1VDFTV..VDJ7#

NO.2:REFER ILLUST.

 1
90460-77002

1VDFTV..VDJ7#

NO.1:REFER ILLUST.

 1
17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4)
90460-74004

1VDFTV..VDJ7#

NO.1:REFER ILLUST.

 1
90460-74004

1VDFTV..VDJ7#

NO.2:REFER ILLUST.

 1
90460-77002

1VDFTV..VDJ7#

NO.1:REFER ILLUST.

 1
17344H - HOSE, AIR, NO.4(FOR INTERCOOLER)
17344-51020

1VDFTV..VDJ7#

 1
17344-51010

1VDFTV..VDJ7#

 1
17344J - CLAMP, HOSE, NO.4(FOR INTERCOOLER)
90460-74004

1VDFTV..VDJ7#

NO.1:REFER ILLUST.

 1
90460-74004

1VDFTV..VDJ7#

NO.2:REFER ILLUST.

 1
90460-77002

1VDFTV..VDJ7#

NO.1:REFER ILLUST.

 1
17344J - CLAMP, HOSE, NO.4(FOR INTERCOOLER)
90460-74004

1VDFTV..VDJ7#

NO.1:REFER ILLUST.

 1
90460-74004

1VDFTV..VDJ7#

NO.2:REFER ILLUST.

 1
90460-77002

1VDFTV..VDJ7#

NO.1:REFER ILLUST.

 1
17361J - TUBE, AIR, NO.1
17361-51010

1VDFTV..VDJ7#

 1
17362B - TUBE, AIR, NO.2
17362-51010

1VDFTV..VDJ7#

 1
17368B - SUPPORT, AIR TUBE
17368-51010

1VDFTV..VDJ7#

 1
17376A - GASKET, AIR TUBE
17376-51010

1VDFTV..VDJ7#

 1
17378A - GASKET, AIR TUBE, NO.3
17378-51010

1VDFTV..VDJ7#

 1
17940D - INTERCOOLER ASSY
17900-51010

1VDFTV..VDJ7#

 1
17943 - PROTECTOR, INTERCOOLER
17943-51010

1VDFTV..VDJ7#

 1
17945 - BRACKET, INTERCOOLER SUPPORT
17945-51010

1VDFTV..VDJ7#

 1
17945-51011

1VDFTV..VDJ7#

 1
17946 - BRACKET, INTERCOOLER SUPPORT, NO.2
17946-51010

1VDFTV..VDJ7#

 1
17947B - BRACKET, INTERCOOLER SUPPORT, NO.3
17947-51010

1VDFTV..VDJ7#

 1
17971 - INLET, COOL AIR, NO.1
17971-51010

1VDFTV..VDJ7#

 1
17972 - INLET, COOL AIR, NO.2
17972-51010

1VDFTV..VDJ7#

 1
Common parts
90126-08035
90178-08003
91551-80825
91551-80860
91552-81025
91553-80620
91633-60845
91671-80825
Linked diagrams
1701
2606
8405
