VDJ78R-RJMRYQ (2007)

Toyota Land Cruiser

Production Jan 2007 - Aug 2016
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701-1608)1VDFTV..HT,PIC..ARL ; (0701- )1VDFTV..VDJ79..GCC ; (0701- )1VDFTV.

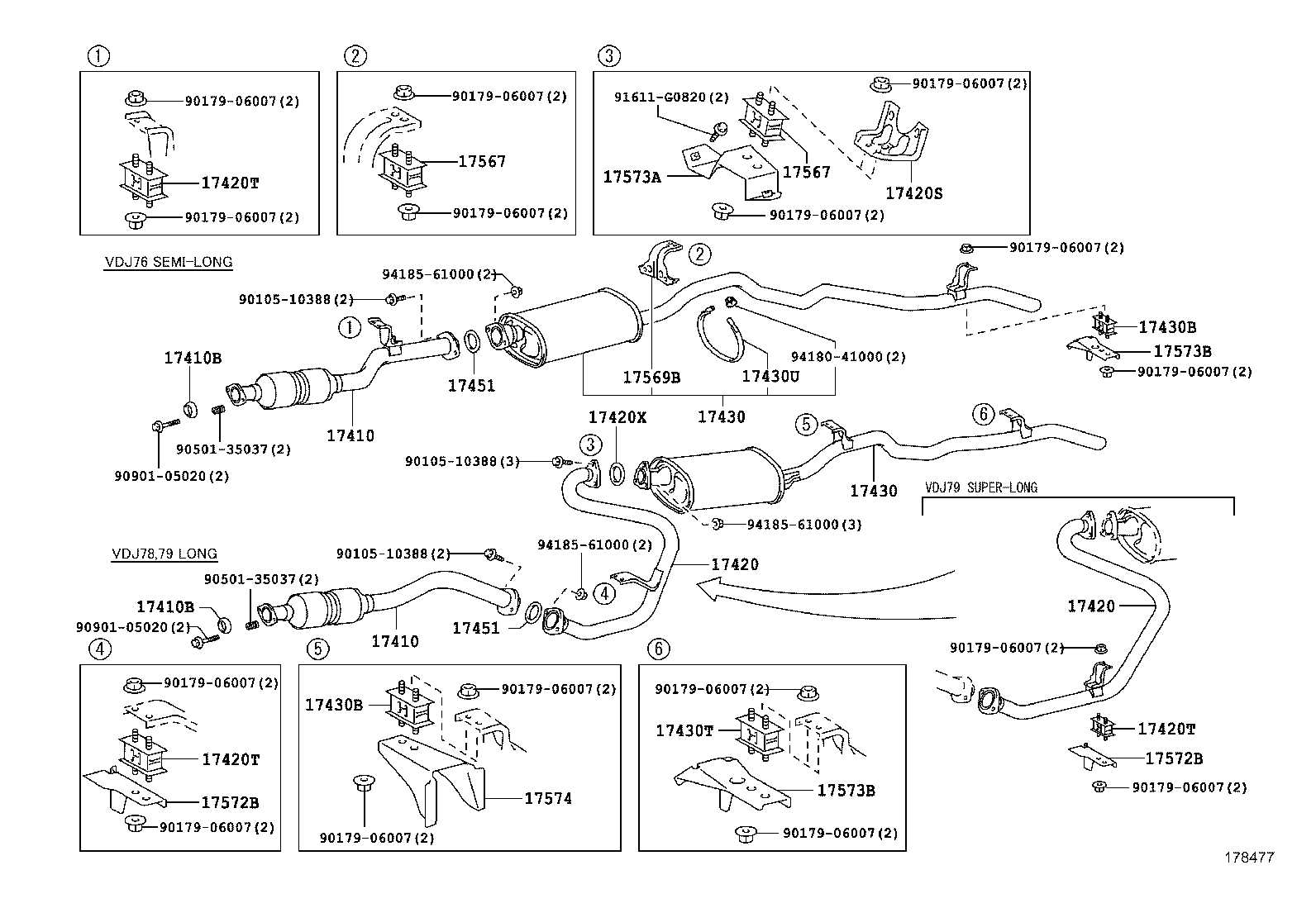

Click highlighted areas on diagram

diagram 17410 17410 17410B 17410B 17420 17420 17420S 17420T 17420T 17420T 17420X 17430 17430 17430B 17430B 17430T 17430U 17451 17451 17567 17567 17569B 17572B 17572B 17573A 17573B 17573B 17574 9010510388 9010510388 9010510388 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9017906007 9050135037 9050135037 9090105020 9090105020 91611G0820 9418041000 9418561000 9418561000 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-51060

1VDFTV..VDJ78,79..HT,PIC

 1
17401-51040

1VDFTV..VDJ78,79..HT,PIC

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-51060

1VDFTV..VDJ78,79..HT,PIC

 1
17401-51040

1VDFTV..VDJ78,79..HT,PIC

 1
17410B - GASKET, EXHAUST PIPE
17451-28040

1VDFTV..VDJ7#

 1
17410B - GASKET, EXHAUST PIPE
17451-28040

1VDFTV..VDJ7#

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-51010

1VDFTV..VDJ78

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-51010

1VDFTV..VDJ78

 1
17420S - BRACKET, EXHAUST PIPE CENTER, REAR
17576-61030

1GRFE,1HZ,1VDFTV..GRJ79,HZJ78,79,VDJ78,79

 1
17420T - CUSHION, EXHAUST PIPE CENTER, REAR
17567-17020

1VDFTV..VDJ7#

 1
17420T - CUSHION, EXHAUST PIPE CENTER, REAR
17567-17020

1VDFTV..VDJ7#

 1
17420T - CUSHION, EXHAUST PIPE CENTER, REAR
17567-17020

1VDFTV..VDJ7#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06049

1VDFTV..VDJ79;1HZ,1VDFTV..HZJ78,79,VDJ78..HT,PIC

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-17270

1VDFTV..VDJ78,79

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-17270

1VDFTV..VDJ78,79

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
17567-17020

1HZ,1VDFTV..HZJ7#,VDJ7#

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
17567-17020

1HZ,1VDFTV..HZJ7#,VDJ7#

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-17020

1HZ,1VDFTV..HZJ7#,VDJ78,79

 1
17451 - GASKET, EXHAUST PIPE
90917-06076

1VDFTV..VDJ79;1GRFE..GRJ71,76..LHD;1HZ,1VDFTV..HZJ7#,VDJ76,78..HT,PIC,SOT

 1
17451 - GASKET, EXHAUST PIPE
90917-06076

1VDFTV..VDJ79;1GRFE..GRJ71,76..LHD;1HZ,1VDFTV..HZJ7#,VDJ76,78..HT,PIC,SOT

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-17020

1HZ,1VDFTV..HZJ7#,VDJ7#

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-17020

1HZ,1VDFTV..HZJ7#,VDJ7#

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
51399-60030

1VDFTV..VDJ78,79

 1
51399-60031

1VDFTV..VDJ78,79..HT,PIC

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
51399-60030

1VDFTV..VDJ78,79

 1
51399-60031

1VDFTV..VDJ78,79..HT,PIC

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-58081

1HZ,1VDFTV..HZJ78,79,VDJ78,79

 1
17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-60021

1HZ,1VDFTV..HZJ76,78,79,VDJ7#

 1
17573B - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-60021

1HZ,1VDFTV..HZJ76,78,79,VDJ7#

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-60040

1GRFE..GRJ78..LHD;1GRFE,1HZ,1VDFTV..GRJ79,HZJ78,79,VDJ78,79

 1
Common parts
90105-10388
90179-06007
90501-35037
90901-05020
91611-G0820
94180-41000
94185-61000
