VDJ78R-RJMRYQ (2007)

Toyota Land Cruiser

Production Jan 2007 - Aug 2016
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0701-1608)1VDFTV ; (1608- )1VDFTV..GCC,GEN

Click highlighted areas on diagram

diagram 15407 15407A 15407A 15407B 15407B 15471 15473 15474A 15474B 15474B 15481 15482 1603 1603 1703 1703 1703 1703 17106 17111 17112 17113 17114D 17116B 17118 17119 17141 17142 17167 17168 17171 17173 17177 17177 17179A 17198 17201 17274 17278 17279 17293 17376C 17451B 17451B 17873A 18421C 18431 18450A 25617C 25628B 9011610117 9011610117 9011610117 9011610117 9012608052 9012610024 9012610024 9017710002 9017908237 9017910070 9017910070 9017910070 9017910070 9017910070 9038910060 9038910060 9155180616 9155180616 9155180825 9155180825 9155180825 9155281025 9155381035 9167180614 9167180816 9167180820 9167180820 9167180825 9167180825 9167281025 9167281025 9415180800
Part # Description Qty Price
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-51010

1VDFTV..VDJ7#

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-10069

1VDFTV..VDJ7#

NO.2

 1
90401-10065

1VDFTV..VDJ7#

NO.1

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-10069

1VDFTV..VDJ7#

NO.2

 1
90401-10065

1VDFTV..VDJ7#

NO.1

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-10025

1VDFTV..VDJ7#

 2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-10025

1VDFTV..VDJ7#

 2
15471 - GASKET, TURBO OIL INLET
15471-51010

1VDFTV..VDJ7#

 1
15473 - GASKET, TURBO OIL OUTLET, NO.2
15473-58010

1VDFTV..VDJ7#

 1
15474A - HOSE, TURBO OIL OUTLET
15491-51010

1VDFTV..VDJ7#

 1
15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE)
96136-42101

1VDFTV..VDJ7#

 2
15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE)
96136-42101

1VDFTV..VDJ7#

 2
15481 - PIPE, TURBO OIL, NO.1
15481-51010

1VDFTV..VDJ7#

 1
15482 - PIPE, TURBO OIL, NO.2
15482-51010

1VDFTV..VDJ7#

 1
17106 - PIPE SUB-ASSY, EXHAUST CROSSOVER
17106-51010

1VDFTV..VDJ7#

 1
17111 - MANIFOLD, INTAKE
17111-51020

1VDFTV..VDJ7#

 1
17112 - MANIFOLD, INTAKE, NO.2
17112-51010

1VDFTV..VDJ7#

 1
17113 - PIPE, INTAKE
17113-51010

1VDFTV..VDJ7#

 1
17113-51011

1VDFTV..VDJ7#

 1
17114D - MANIFOLD, INTAKE, NO.3
17114-51010

1VDFTV..VDJ7#

 1
17114-51011

1VDFTV..VDJ7#

 1
17116B - GASKET, INTAKE FLANGE
17116-51010

1VDFTV..VDJ7#

 1
17118 - STAY, MANIFOLD
17118-51010

1VDFTV..VDJ7#

 1
17119 - STAY, MANIFOLD, NO.2
17119-51011

1VDFTV..VDJ7#

 1
17141 - MANIFOLD, EXHAUST
17141-51020

1VDFTV..VDJ7#

 1
17142 - CASE, EXHAUST MANIFOLD, NO.2
17142-51020

1VDFTV..VDJ7#

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-51010

1VDFTV..VDJ7#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-51010

1VDFTV..VDJ7#

 1
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-51010

1VDFTV..VDJ7#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-51020

1VDFTV..VDJ7#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-51011

1VDFTV..VDJ7#

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-51011

1VDFTV..VDJ7#

 2
17179A - GASKET, INTAKE MANIFOLD, NO.2
17179-51010

1VDFTV..VDJ7#

 1
17198 - GASKET, EXHAUST MANIFOLD, NO.2
17198-51010

1VDFTV..VDJ7#

 1
17201 - TURBOCHARGER SUB-ASSY
17201-51010

1VDFTV..VDJ7#

 1
17274 - ELBOW, COMPRESSOR INLET
17274-51010

1VDFTV..VDJ7#

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-51010

1VDFTV..VDJ7#

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-17030

1VDFTV..VDJ7#

 1
17293 - STAY, TURBOCHARGER
17293-51011

1VDFTV..VDJ7#

 1
17293-51010

1VDFTV..VDJ7#

 1
17376C - GASKET, AIR TUBE
17376-17010

1VDFTV..VDJ7#

 1
17451B - GASKET, EXHAUST PIPE
17451-51010

1VDFTV..VDJ7#

 2
17451B - GASKET, EXHAUST PIPE
17451-51010

1VDFTV..VDJ7#

 2
17873A - BRACKET, INTAKE AIR CONNECTOR, NO.2
17873-51011

1VDFTV..VDJ7#

 1
17873-51010

1VDFTV..VDJ7#

 1
18421C - STAY, CONVERTER PROTECTOR, CENTER
18421-51010

1VDFTV..VDJ7#

 1
18431 - INSULATOR, CATALYTIC CONVERTER, UPPER
18431-51010

1VDFTV..VDJ7#

 1
18450A - CONVERTER ASSY, MONOLITHIC
18450-51020

1VDFTV..VDJ7#

MARK = 51020

 1
18450-51021

1VDFTV..VDJ7#

MARK = 51021

 1
Common parts
90116-10117
90126-08052
90126-10024
90177-10002
90179-08237
90179-10070
90389-10060
91551-80616
91551-80825
91552-81025
91553-81035
91671-80614
91671-80816
91671-80820
91671-80825
91672-81025
94151-80800
Linked diagrams
1603
1703

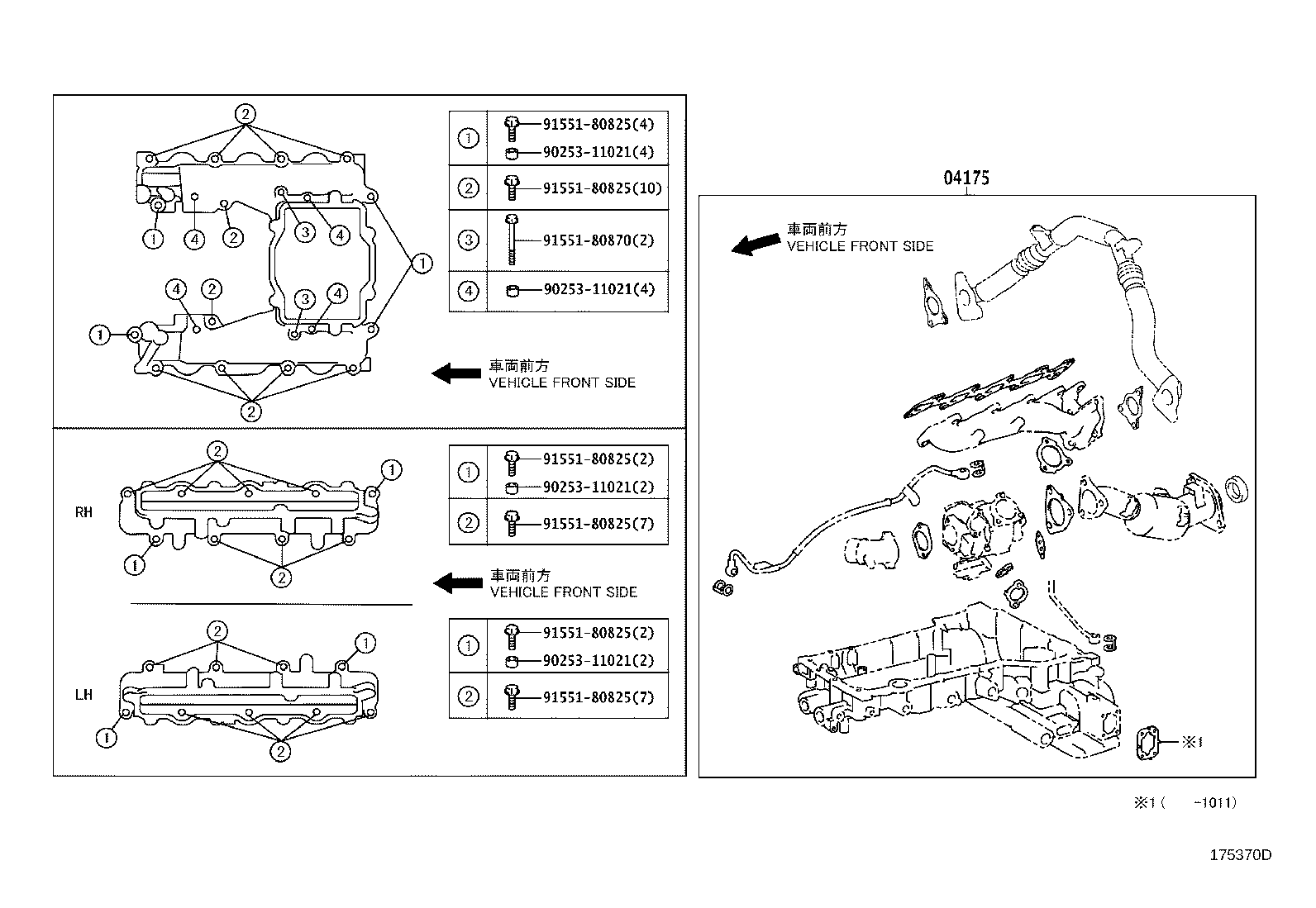

ILLUST NO. 2 OF 2(0701-1608)1VDFTV ; (1608- )1VDFTV..GCC,GEN

Click highlighted areas on diagram

diagram 04175 9025311021 9025311021 9025311021 9025311021 9155180825 9155180825 9155180825 9155180825 9155180825 9155180825 9155180870
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-51011

1VDFTV..VDJ7#

 1
04175-51010

1VDFTV..VDJ7#

 1
Common parts
90253-11021
91551-80825
91551-80870
