VDJ78R-RJMRYQ (2007)
Toyota Land Cruiser

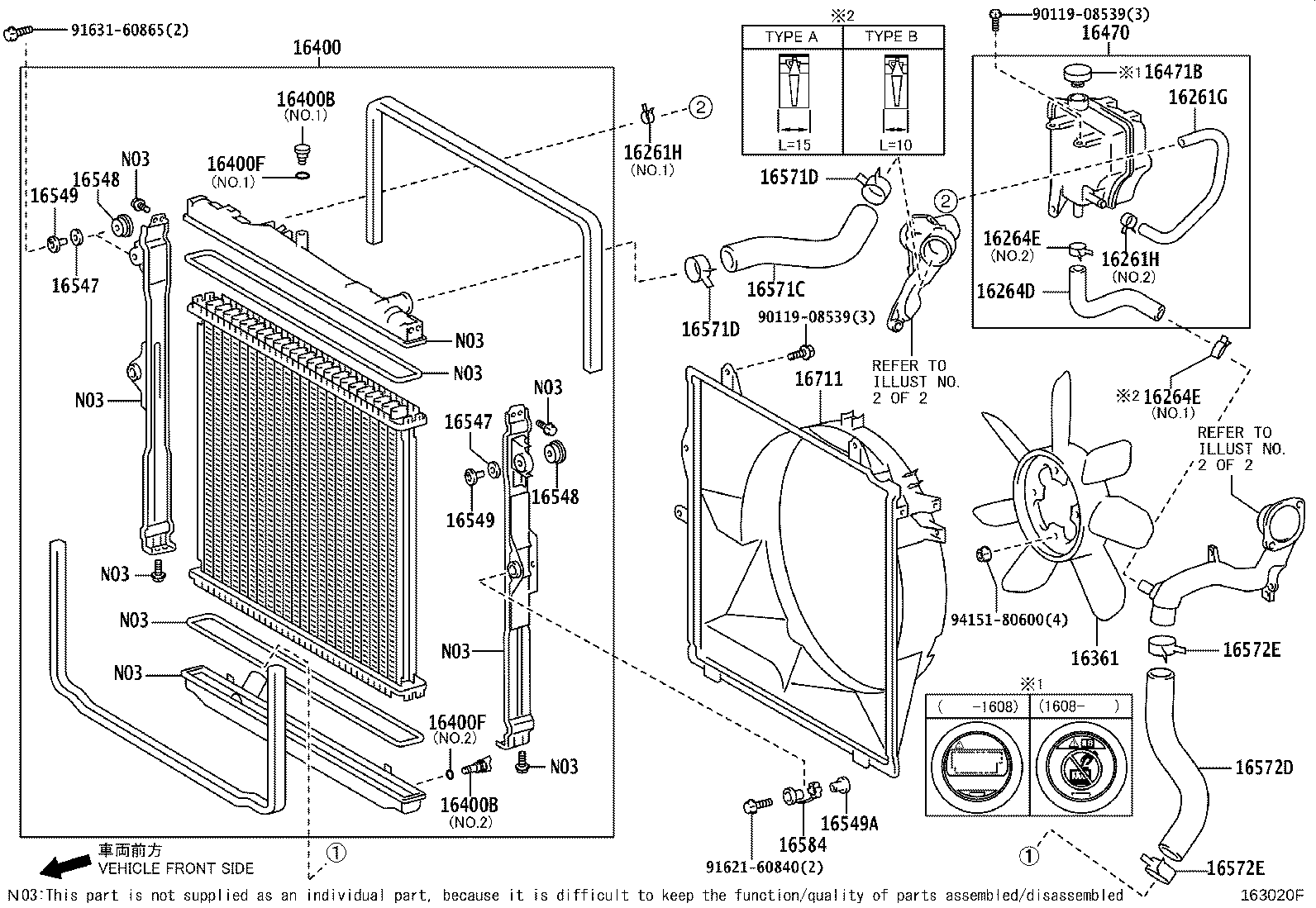

ILLUST NO. 1 OF 2(0701- )1VDFTV
RADIATOR SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-51030 |
1VDFTV..VDJ7# |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-51901 |
1VDFTV..VDJ7# NO.1:REFER ILLUST. |
1 | ||
| 90467-16022 |
1VDFTV..VDJ7# NO.2:REFER ILLUST. |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-51901 |
1VDFTV..VDJ7# NO.1:REFER ILLUST. |
1 | ||
| 90467-16022 |
1VDFTV..VDJ7# NO.2:REFER ILLUST. |
1 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-51020 |
1VDFTV..VDJ7# |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-52501 |
1VDFTV..VDJ7# NO.1:REFER ILLUST. |
1 | ||
| 90467-22011 |
1VDFTV..VDJ7# NO.2:REFER ILLUST. |
1 | ||
| 96136-42501 |
1VDFTV..VDJ7# NO.1:REFER ILLUST. |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-52501 |
1VDFTV..VDJ7# NO.1:REFER ILLUST. |
1 | ||
| 90467-22011 |
1VDFTV..VDJ7# NO.2:REFER ILLUST. |
1 | ||
| 96136-42501 |
1VDFTV..VDJ7# NO.1:REFER ILLUST. |
1 | ||
| 16361 - FAN | ||||
| 16361-50110 |
1VDFTV..VDJ7# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-51030 |
1VDFTV..VDJ7# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-51030 |
1VDFTV..VDJ7# NO.1:REFER ILLUST. |
1 | ||
| 16417-30170 |
1VDFTV..VDJ7# NO.2:REFER ILLUST. |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-51030 |
1VDFTV..VDJ7# NO.1:REFER ILLUST. |
1 | ||
| 16417-30170 |
1VDFTV..VDJ7# NO.2:REFER ILLUST. |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-51030 |
1VDFTV..VDJ7# NO.1:REFER ILLUST. |
1 | ||
| 16418-15520 |
1VDFTV..VDJ7# NO.2:REFER ILLUST. |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-51030 |
1VDFTV..VDJ7# NO.1:REFER ILLUST. |
1 | ||
| 16418-15520 |
1VDFTV..VDJ7# NO.2:REFER ILLUST. |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16470-51011 |
1VDFTV..VDJ7# |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16475-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16475-51011 |
1VDFTV..VDJ7# |
1 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-66180 |
1VDFTV..VDJ7# |
2 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-66180 |
1VDFTV..VDJ7# |
2 | ||
| 16548 - BUSH, RADIATOR SUPPORT, NO.2 | ||||
| 16548-66180 |
1VDFTV..VDJ7# |
2 | ||
| 16548 - BUSH, RADIATOR SUPPORT, NO.2 | ||||
| 16548-66180 |
1VDFTV..VDJ7# |
2 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-66180 |
1VDFTV..VDJ7# |
2 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-66180 |
1VDFTV..VDJ7# |
2 | ||
| 16549A - COLLAR, RADIATOR SUPPORT, NO.1 | ||||
| 16549-66010 |
1VDFTV..VDJ7# |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-51020 |
1VDFTV..VDJ7# |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54801 |
1VDFTV..VDJ7# |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-54801 |
1VDFTV..VDJ7# |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-51020 |
1VDFTV..VDJ7# |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-43002 |
1VDFTV..VDJ7# |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-43002 |
1VDFTV..VDJ7# |
2 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-66010 |
1VDFTV..VDJ7# |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16711-51011 |
1VDFTV..VDJ7# |
1 | ||
| Common parts | ||||
| 90119-08539 | ||||
| 91621-60840 | ||||
| 91631-60865 | ||||
| 94151-80600 | ||||

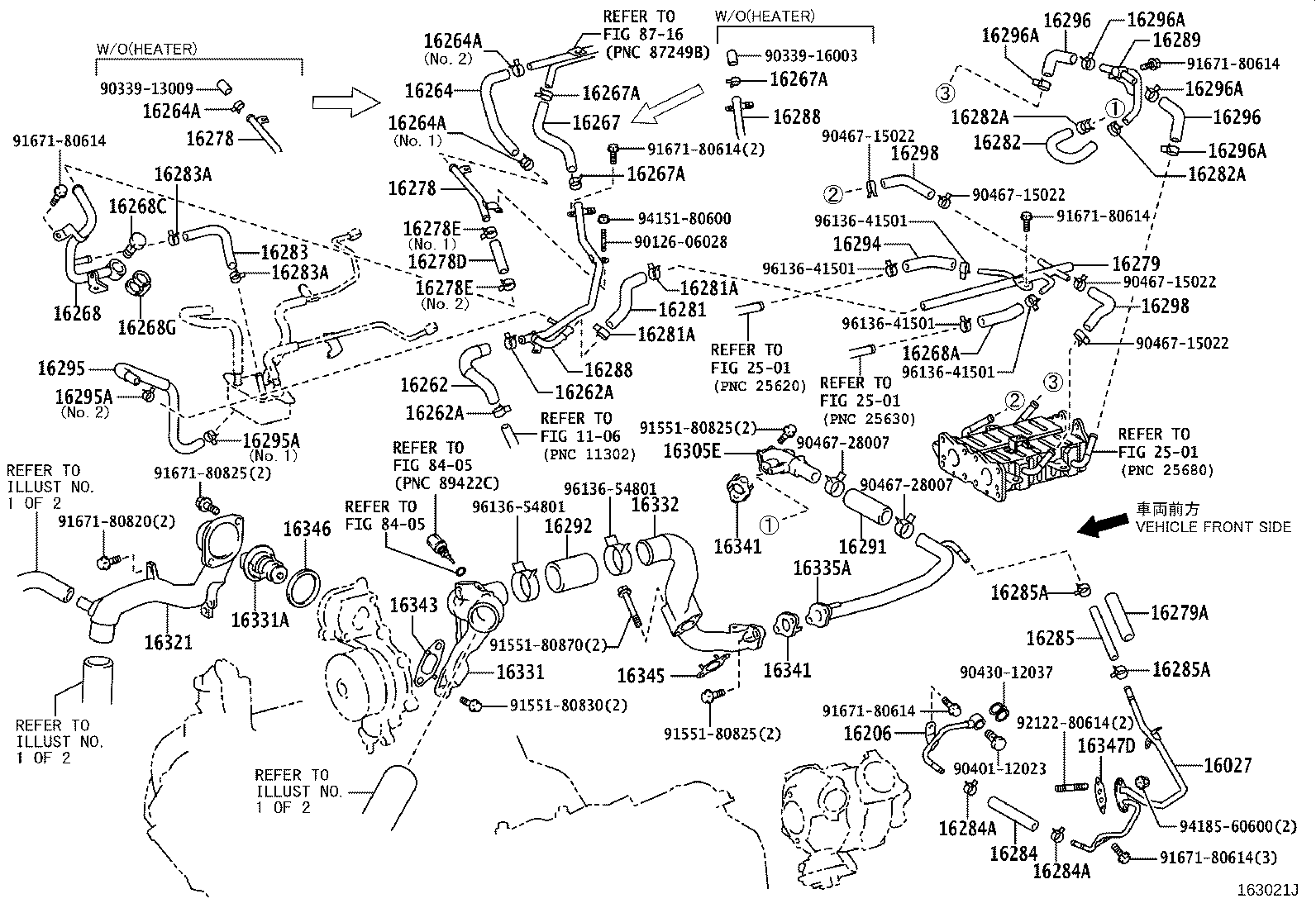

ILLUST NO. 2 OF 2(0701-1608)1VDFTV ; (1608- )1VDFTV..VDJ76,79..GEN ; (1709- )1VDFTV..GCC
ENGINE SIDE,EXCEPT EURO 5,W(EGR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96134-52100 |
1VDFTV..VDJ7# |
2 | ||
| 96138-42501 |
1VDFTV..VDJ7# |
2 | ||
| 96136-42501 |
1VDFTV..VDJ7# |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96134-52100 |
1VDFTV..VDJ7# |
2 | ||
| 96138-42501 |
1VDFTV..VDJ7# |
2 | ||
| 96136-42501 |
1VDFTV..VDJ7# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-21010 |
1VDFTV..VDJ7# NO.2:REFER ILLUST. |
1 | ||
| 90467-20011 |
1VDFTV..VDJ7# NO.1:REFER ILLUST. |
1 | ||
| 96136-42501 |
1VDFTV..VDJ7# NO.2:REFER ILLUST. |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-21010 |
1VDFTV..VDJ7# NO.2:REFER ILLUST. |
1 | ||
| 90467-20011 |
1VDFTV..VDJ7# NO.1:REFER ILLUST. |
1 | ||
| 96136-42501 |
1VDFTV..VDJ7# NO.2:REFER ILLUST. |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-21010 |
1VDFTV..VDJ7# NO.2:REFER ILLUST. |
1 | ||
| 90467-20011 |
1VDFTV..VDJ7# NO.1:REFER ILLUST. |
1 | ||
| 96136-42501 |
1VDFTV..VDJ7# NO.2:REFER ILLUST. |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-21010 |
1VDFTV..VDJ7# |
2 | ||
| 96136-42501 |
1VDFTV..VDJ7# |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-21010 |
1VDFTV..VDJ7# |
2 | ||
| 96136-42501 |
1VDFTV..VDJ7# |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-21010 |
1VDFTV..VDJ7# |
2 | ||
| 96136-42501 |
1VDFTV..VDJ7# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-51020 |
1VDFTV..VDJ7# |
1 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 99556-10090 |
1VDFTV..VDJ7# *H,L=90 |
1 | ||
| 16268C - UNION, WATER BY-PASS PIPE | ||||
| 90401-20004 |
1VDFTV..VDJ7# |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-20021 |
1VDFTV..VDJ7# |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16278D - HOSE, WATER BY-PASS | ||||
| 99556-20200 |
1VDFTV..VDJ7# *H,L=90 |
1 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-20011 |
1VDFTV..VDJ7# NO.1:REFER ILLUST. |
1 | ||
| 90467-20011 |
1VDFTV..VDJ7# NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
1VDFTV..VDJ7# NO.2:REFER ILLUST. |
1 | ||
| 16278E - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-20011 |
1VDFTV..VDJ7# NO.1:REFER ILLUST. |
1 | ||
| 90467-20011 |
1VDFTV..VDJ7# NO.2:REFER ILLUST. |
1 | ||
| 96136-42101 |
1VDFTV..VDJ7# NO.2:REFER ILLUST. |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16208-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16208-51020 |
1VDFTV..VDJ7# |
1 | ||
| 16279A - PROTECTOR, HOSE HEAT | ||||
| 16279-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42101 |
1VDFTV..VDJ7# |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42101 |
1VDFTV..VDJ7# |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
1VDFTV..VDJ7# |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15022 |
1VDFTV..VDJ7# |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96137-41501 |
1VDFTV..VDJ7# |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96137-41501 |
1VDFTV..VDJ7# |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96136-41501 |
1VDFTV..VDJ7# |
2 | ||
| 90467-13073 |
1VDFTV..VDJ7# |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96136-41501 |
1VDFTV..VDJ7# |
2 | ||
| 90467-13073 |
1VDFTV..VDJ7# |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-51010 |
1VDFTV..VDJ7# L=120 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15022 |
1VDFTV..VDJ7# |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15022 |
1VDFTV..VDJ7# |
2 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16289 - PIPE, WATER BY-PASS, NO.5 | ||||
| 16289-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16291-51011 |
1VDFTV..VDJ7# |
1 | ||
| 16292 - JOINT, WATER HOSE, NO.2 | ||||
| 16292-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16294 - HOSE, WATER BY-PASS, NO.11 | ||||
| 16294-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96137-41501 |
1VDFTV..VDJ7# NO.1,2:SEE ILLUST. |
2 | ||
| 96137-41501 |
1VDFTV..VDJ7# NO.1:REFER ILLUST. |
1 | ||
| 96136-41501 |
1VDFTV..VDJ7# NO.2:REFER ILLUST. |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96137-41501 |
1VDFTV..VDJ7# NO.1,2:SEE ILLUST. |
2 | ||
| 96137-41501 |
1VDFTV..VDJ7# NO.1:REFER ILLUST. |
1 | ||
| 96136-41501 |
1VDFTV..VDJ7# NO.2:REFER ILLUST. |
1 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-51010 |
1VDFTV..VDJ7# |
2 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-51010 |
1VDFTV..VDJ7# |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 90467-15022 |
1VDFTV..VDJ7# |
4 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 90467-15022 |
1VDFTV..VDJ7# |
4 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 90467-15022 |
1VDFTV..VDJ7# |
4 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 90467-15022 |
1VDFTV..VDJ7# |
4 | ||
| 16298 - HOSE, WATER BY-PASS, NO.12 | ||||
| 16298-51010 |
1VDFTV..VDJ7# |
2 | ||
| 16298 - HOSE, WATER BY-PASS, NO.12 | ||||
| 16298-51010 |
1VDFTV..VDJ7# |
2 | ||
| 16305E - OUTLET SUB-ASSY, WATER BY-PASS | ||||
| 16305-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16320-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16321-51020 |
1VDFTV..VDJ7# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-51020 |
1VDFTV..VDJ7# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03089 |
1VDFTV..VDJ7# *WAX 76-90 |
1 | ||
| 16332 - PIPE, WATER OUTLET, NO.1 | ||||
| 16332-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16335A - HOSE, WATER OUTLET | ||||
| 16335-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-51020 |
1VDFTV..VDJ7# |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-51020 |
1VDFTV..VDJ7# |
2 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16345-51010 |
1VDFTV..VDJ7# |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-66020 |
1VDFTV..VDJ7# |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-27020 |
1VDFTV..VDJ7# |
1 | ||
| Common parts | ||||
| 90126-06028 | ||||
| 90339-13009 | ||||
| 90339-16003 | ||||
| 90401-12023 | ||||
| 90430-12037 | ||||
| 90467-15022 | ||||
| 90467-28007 | ||||
| 91551-80825 | ||||
| 91551-80830 | ||||
| 91551-80870 | ||||
| 91671-80614 | ||||
| 91671-80820 | ||||
| 91671-80825 | ||||
| 92122-80614 | ||||
| 94151-80600 | ||||
| 94185-60600 | ||||
| 96136-41501 | ||||
| 96136-54801 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 2501 | ||||
| 8405 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
