VDJ78R-RJMRYQ (2007)

Toyota Land Cruiser

Production Jan 2007 - Aug 2016
Engine 1VDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0701- )1VDFTV

Click highlighted areas on diagram

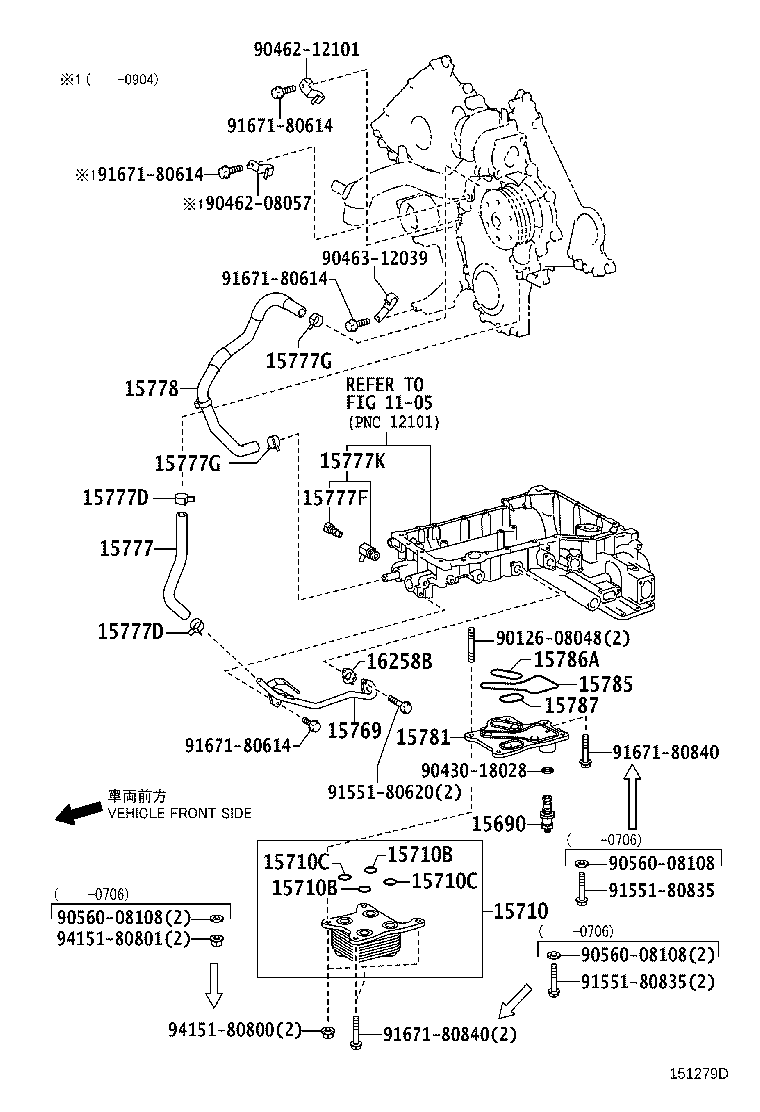

diagram 1105 15690 15710 15710B 15710B 15710C 15710C 15769 15777 15777D 15777D 15777F 15777G 15777G 15777K 15778 15781 15785 15786A 15787 16258B 9012608048 9043018028 9046208057 9046212101 9046312039 9056008108 9056008108 9056008108 9155180620 9155180835 9155180835 9167180614 9167180614 9167180614 9167180614 9167180840 9167180840 9415180800 9415180801
Part # Description Qty Price
15690 - VALVE ASSY, OIL COOLER RELIEF
15690-51010

1VDFTV..VDJ7#

 1
15710 - COOLER ASSY, OIL
15710-51010

1VDFTV..VDJ7#

 1
15710-51011

1VDFTV..VDJ7#

 1
15710B - RING, O(FOR OIL COOLER)
90301-21016

1VDFTV..VDJ7#

 2
15710B - RING, O(FOR OIL COOLER)
90301-21016

1VDFTV..VDJ7#

 2
15710C - GASKET(FOR OIL COOLER)
90301-21017

1VDFTV..VDJ7#

 2
15710C - GASKET(FOR OIL COOLER)
90301-21017

1VDFTV..VDJ7#

 2
15769 - PIPE, OIL COOLER
15769-51010

1VDFTV..VDJ7#

 1
15777 - HOSE, OIL COOLER
15777-51010

1VDFTV..VDJ7#

 1
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
90467-16037

1VDFTV..VDJ7#

 2
96137-41701

1VDFTV..VDJ7#

 2
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
90467-16037

1VDFTV..VDJ7#

 2
96137-41701

1VDFTV..VDJ7#

 2
15777F - PLUG
90910-09087

1VDFTV..VDJ7#

 1
15777G - CLAMP OR CRIP, HOSE
90467-16037

1VDFTV..VDJ7#

 2
96137-41701

1VDFTV..VDJ7#

 2
15777G - CLAMP OR CRIP, HOSE
90467-16037

1VDFTV..VDJ7#

 2
96137-41701

1VDFTV..VDJ7#

 2
15777K - COCK ASSY, DRAIN(FOR OIL COOLER HOSE)
90910-09120

1VDFTV..VDJ7#

 1
15778 - HOSE, OIL COOLER, NO.2
15778-51010

1VDFTV..VDJ7#

 1
15781 - BRACKET, OIL COOLER, NO.1
15781-51011

1VDFTV..VDJ7#

 1
15785 - GASKET, OIL COOLER
15785-51011

1VDFTV..VDJ7#

 1
15786A - GASKET, OIL COOLER
15786-51010

1VDFTV..VDJ7#

 1
15787 - GASKET, OIL COOLER
15787-51010

1VDFTV..VDJ7#

 1
16258B - GASKET, OIL COOLER PIPE
16258-51010

1VDFTV..VDJ7#

 1
Common parts
90126-08048
90430-18028
90462-08057
90462-12101
90463-12039
90560-08108
91551-80620
91551-80835
91671-80614
91671-80840
94151-80800
94151-80801
Linked diagrams
1105
